Features:
High Quality, High Resolution, Clear Images
900TV-Lines Definition
Japan CMOS
Certificate:CE,FC,RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative
Supply VGA or CVBS output ports.

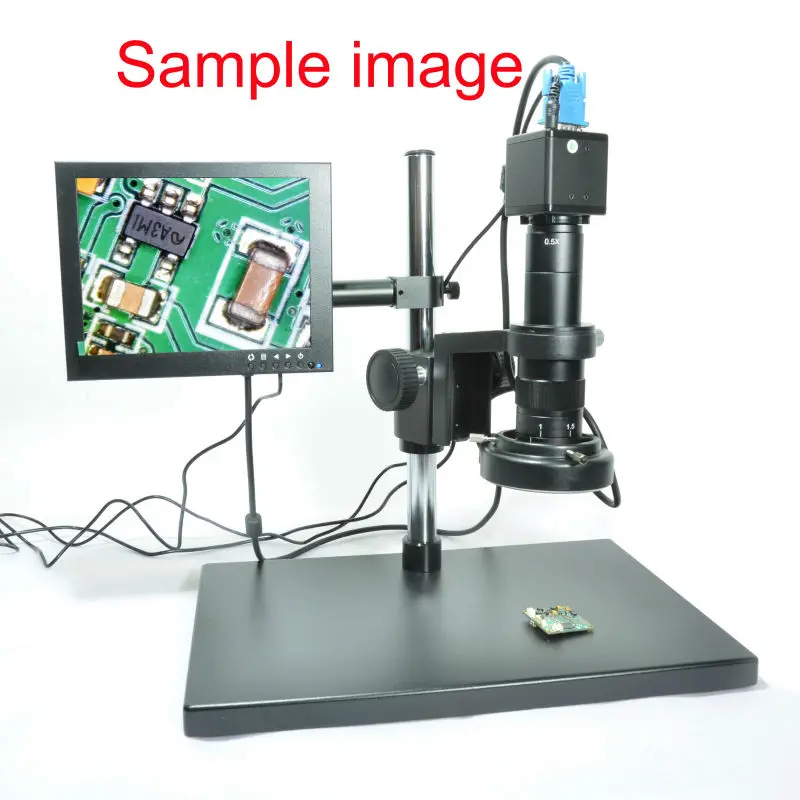

We sell much to the industy factory, then the works can see the problems directly in the Monitor.

 Specification:
Model: Camera with VGA AV output
Sensor: 2.0MP
Full Resolution: 1920X1080 (UXGA)
800 lines Definition
VGA output: 800X600 60Hz,1024X768 60Hz,1280X1024 60Hz,1366x768 60Hz,1440x900 60Hz, 1600X1200 60Hz,1920x1080 60Hz.
White Balance: Auto
Lens Mount: CS
Power input: DC5V 1A

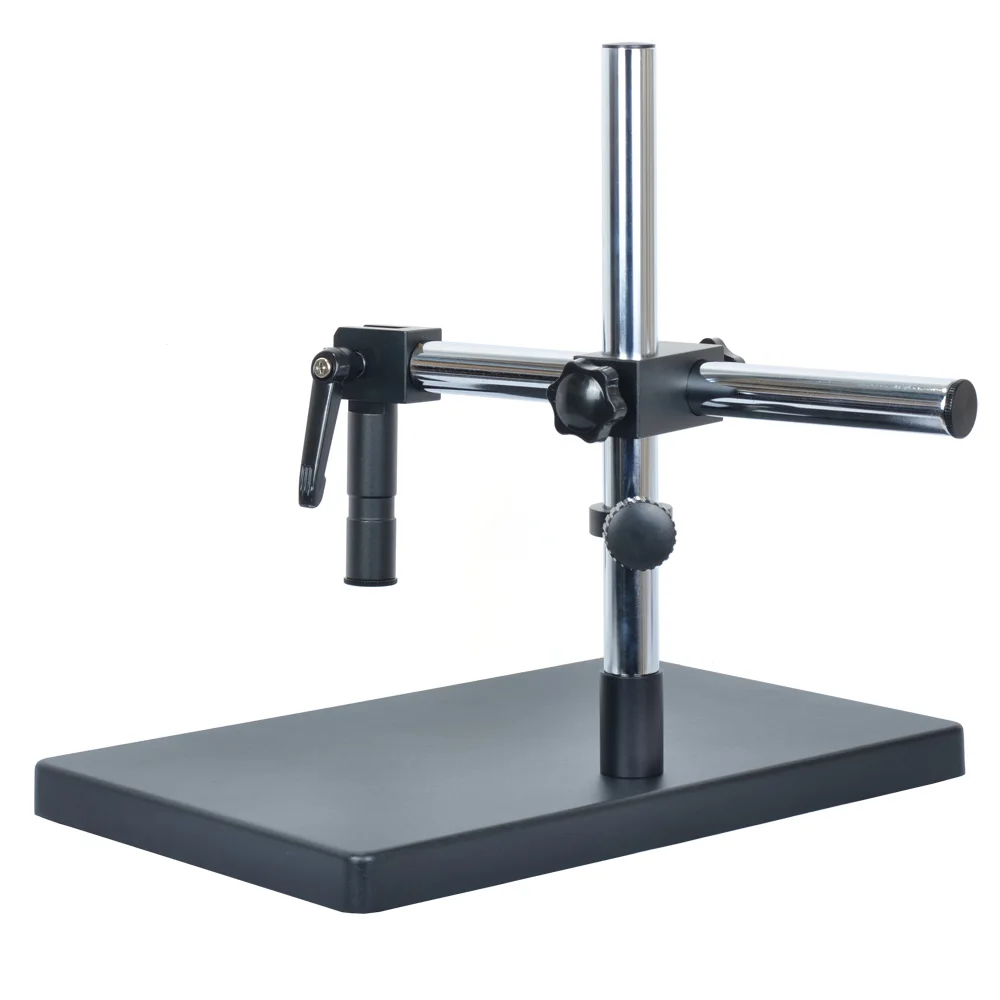

 Stereo Table Stand :
Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Item size: see the 4th picture
Weight: 3.3kg

 Zoom C-mount Lens:
Working distance: 95-125mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 500g

 144 LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

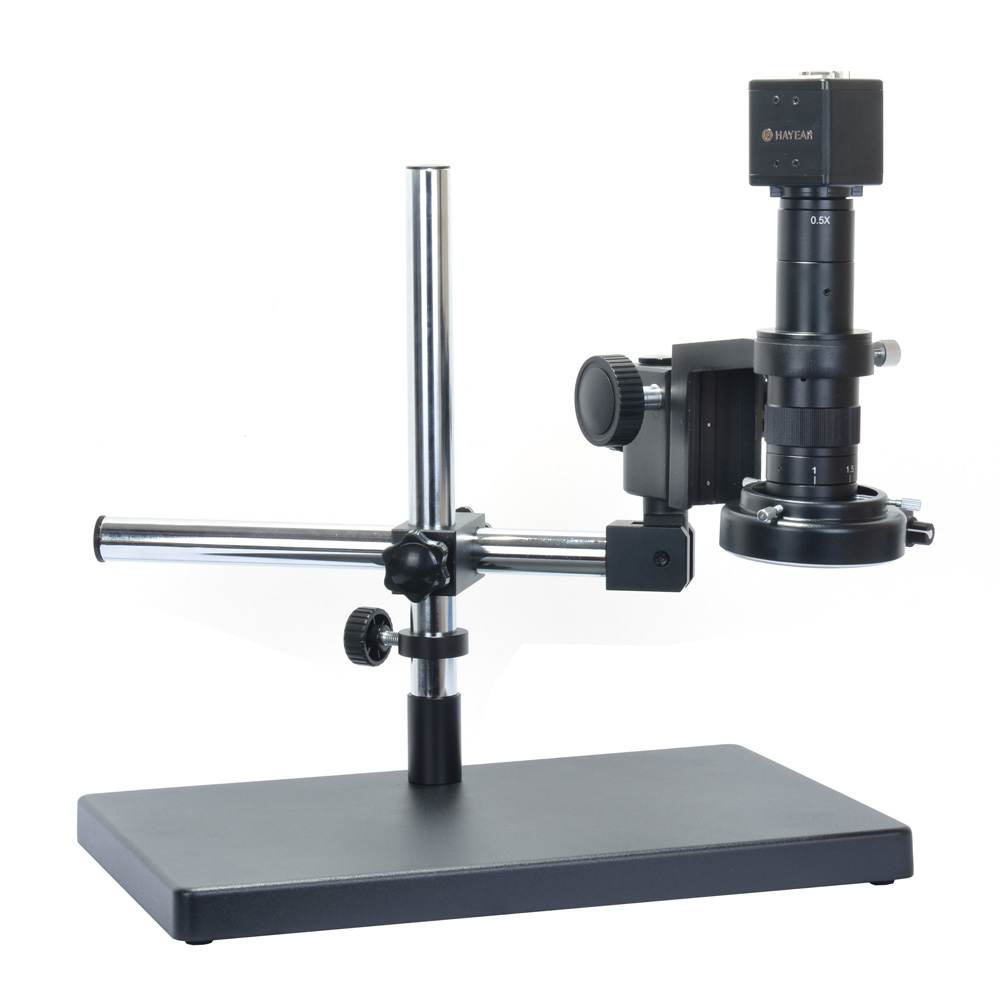

Packing Including:
1 x Microscope Camera
1 x C-mount Lens
1 x Universal Bracket
1 x 144-LED Ring Light with Power Adapter
1 x Power supply(100-240V)
