Noting:

please use only one way video output each time, don't connect the AV, USB or VGA cables in the same time, or the terminals will disturb each other.

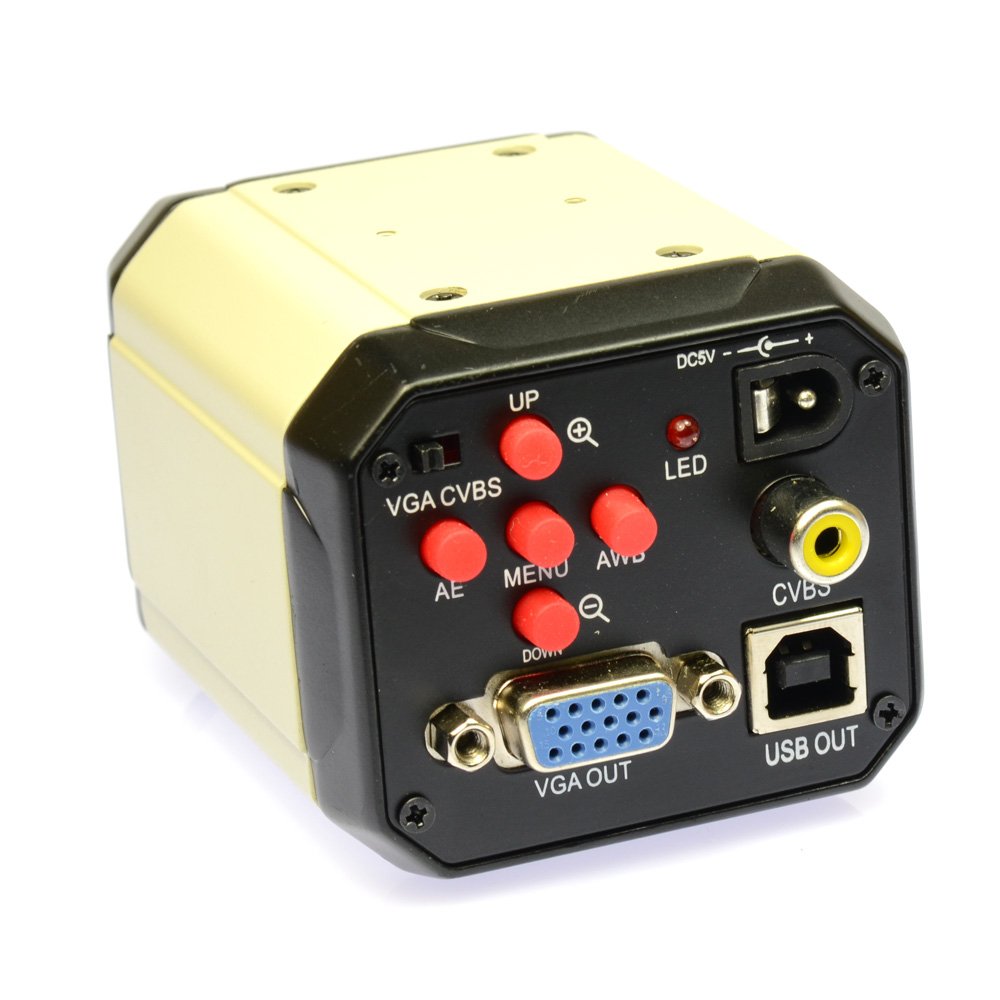

put the black button of the camera on the right position if you use different video output.

Features:

High Quality, High Resolution, Clear Images

Certificate: CE,FC,RoHS

Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.

It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative, Compare function .

Supply USB2.0, VGA, CVBS three output ports.

Supply USB2.0 + VGA or USB2.0+CVBS output at the same time.

We sell much to the industry factory, then the works can see the problems directly in the Monitor.

Specification:

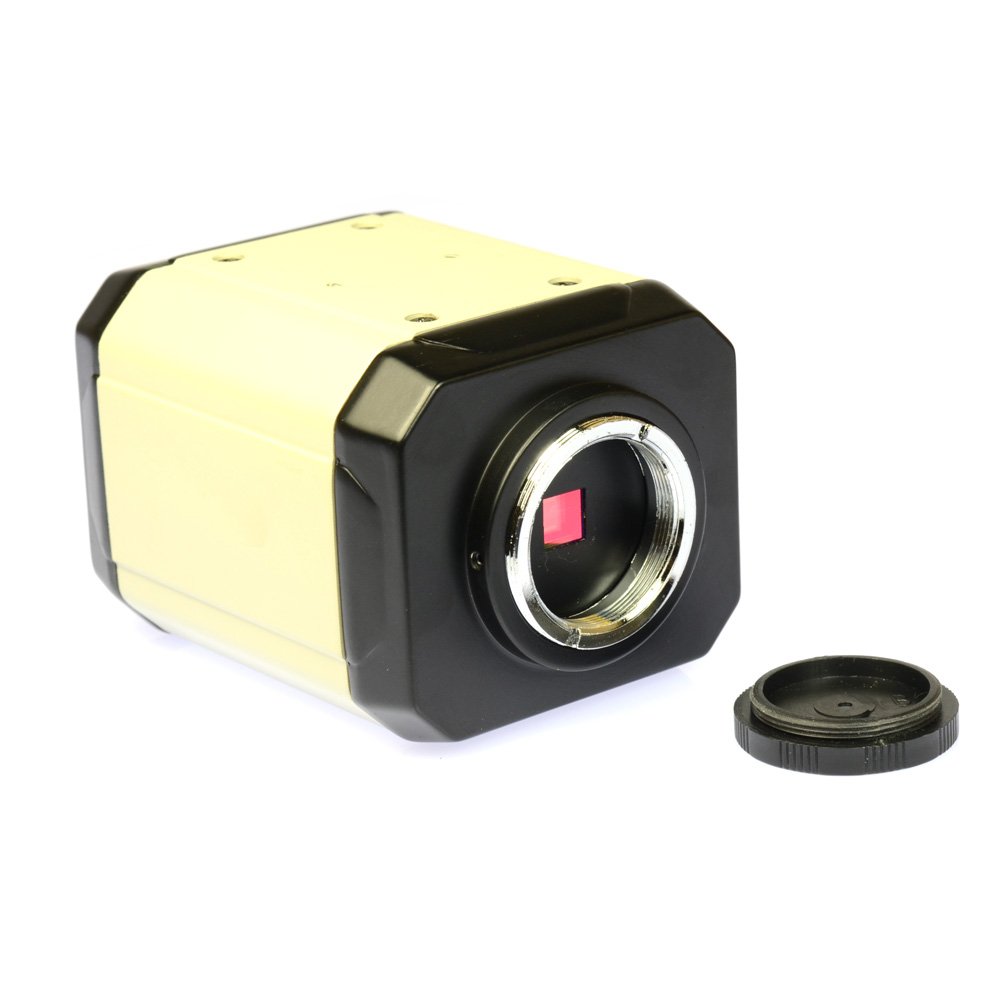

Model: Camera with VGA AV USB2.0 three output

Sensor: 2.0mp,1/3 inch

Full Resolution: 1600X1200 (UXGA)

Frame rate: 10-15(USB2.0)

720P/1024x768/1280x1024/1366x768@60HZ

White Balance: Auto

Light: Auto

Color: Color/B&W

Negative: Support

Morror: Left/right, Up/Down

Freeze: Support

OSD: English/Chinese

Picture compare: Captured picture dynamic video 1/2 screen compare

Contrast: Support

Saturation: Support

Cross cursor: Support, different color

Line: different color,2 horizontal line

2 vertical line, any positions

Digital Noise reducer: Support

VGA(RGB): 720P/1024x768/1280x1024/1366x768@60HZ

USB2.0

7" inch Monitor:

Screen: 7 inch TFT LCD

Resolution: 800 x 600

Shell material: Engineering ABS plastic

Surface treatment: Polyester wadding (elastic paint

Machine power consumption: 0.6W (12V emergency power does not open)

Video input standard: PAL/NTSC

Emergency power output: DC 12V

Automatic sleep: 3 minutes

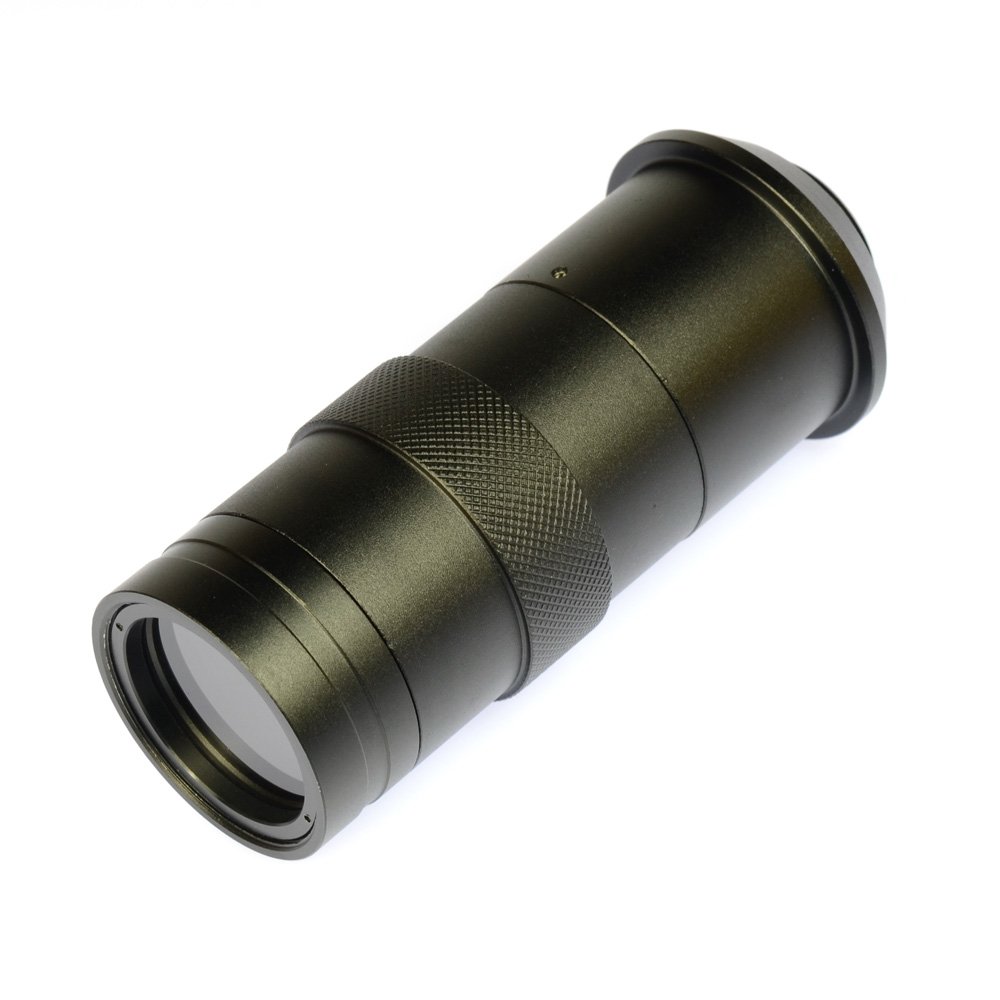

C-MOUNT Lens:

Zoom c-mount Lens

Magnification Power by 0.12 - 2X (about 8 - 100X on the display)

Work distance:55mm-130mm

Visual field :43mm-120mm

Size: 115mm(L) * 40mm(DIA)

Weight: 210g

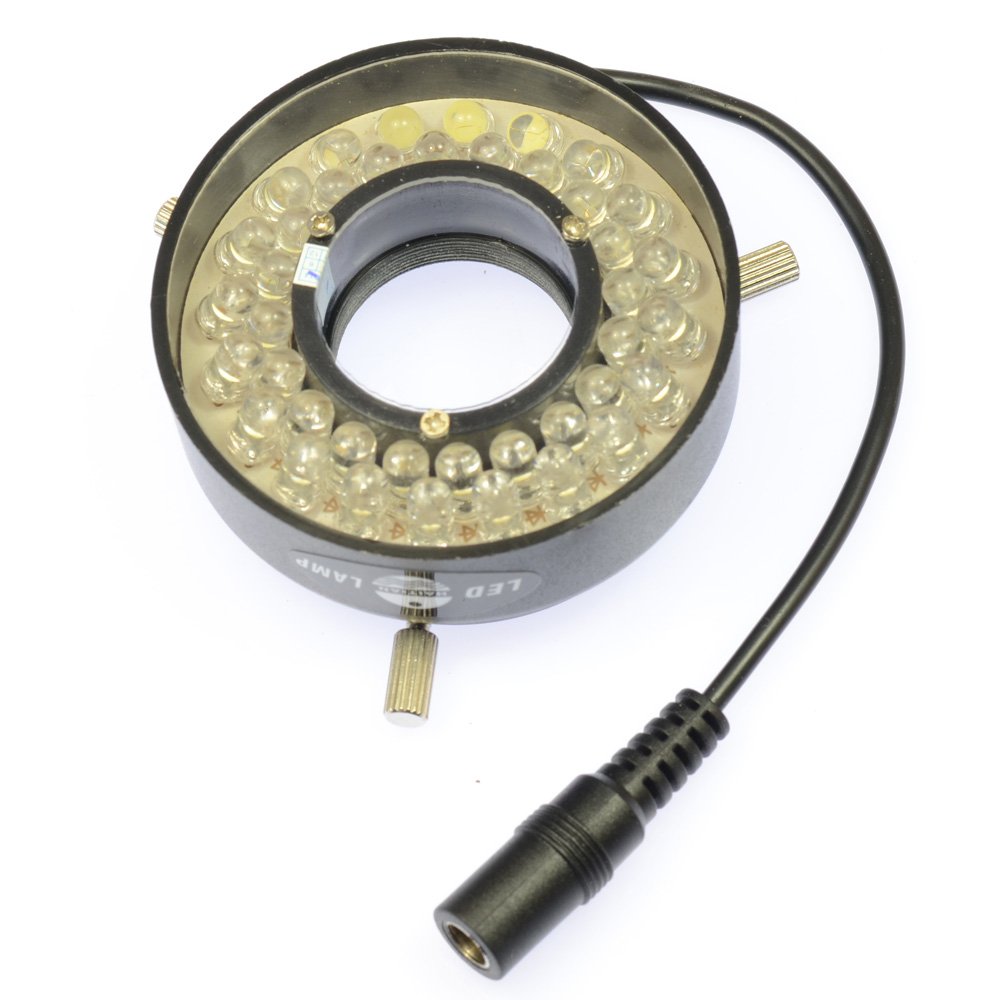

40 LED Adjustable Compact Microscope Ring Light:

Provides intense and focused shadow-free illumination

40 bright white LED bulbs

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-45mm

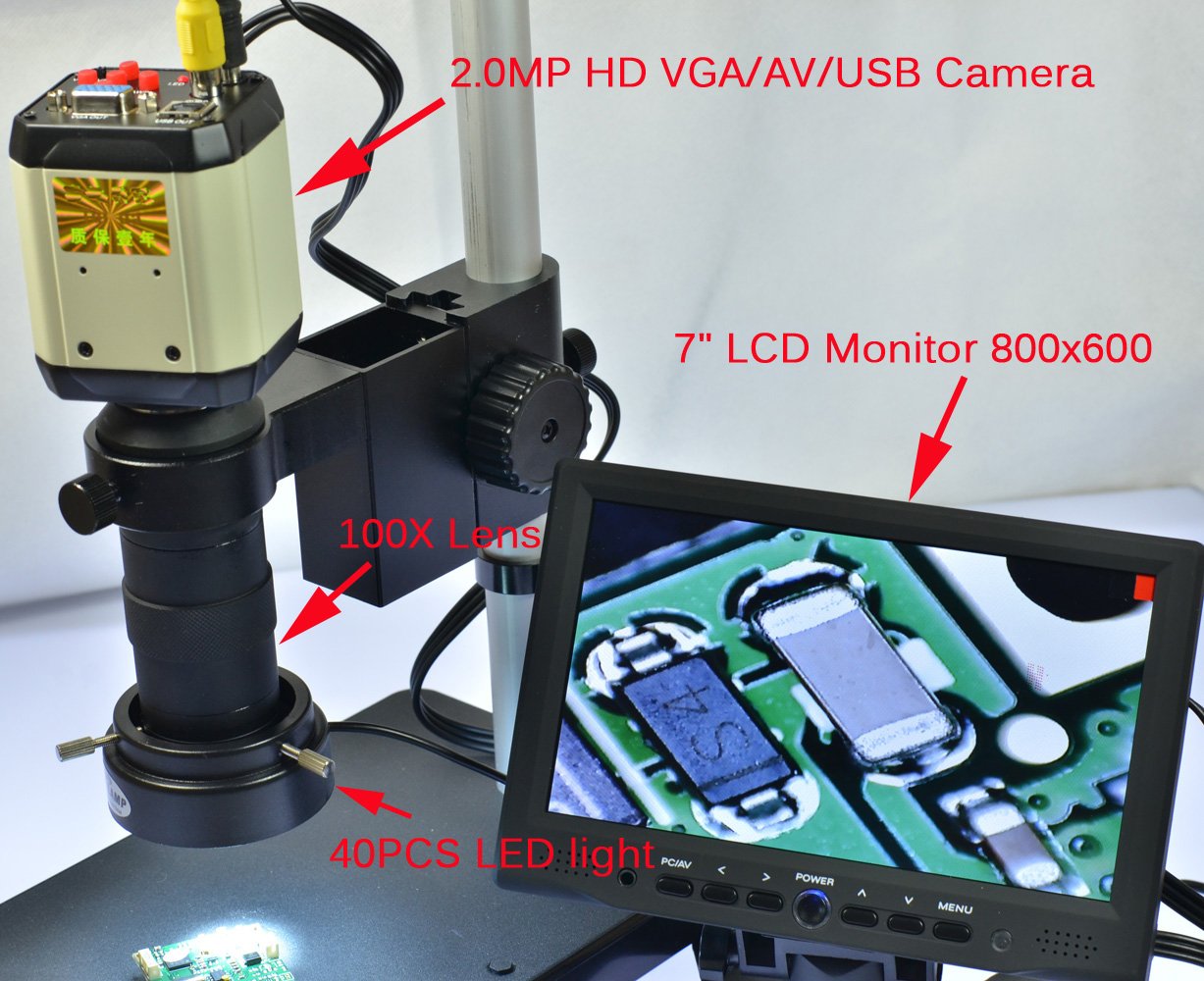

Package Content:

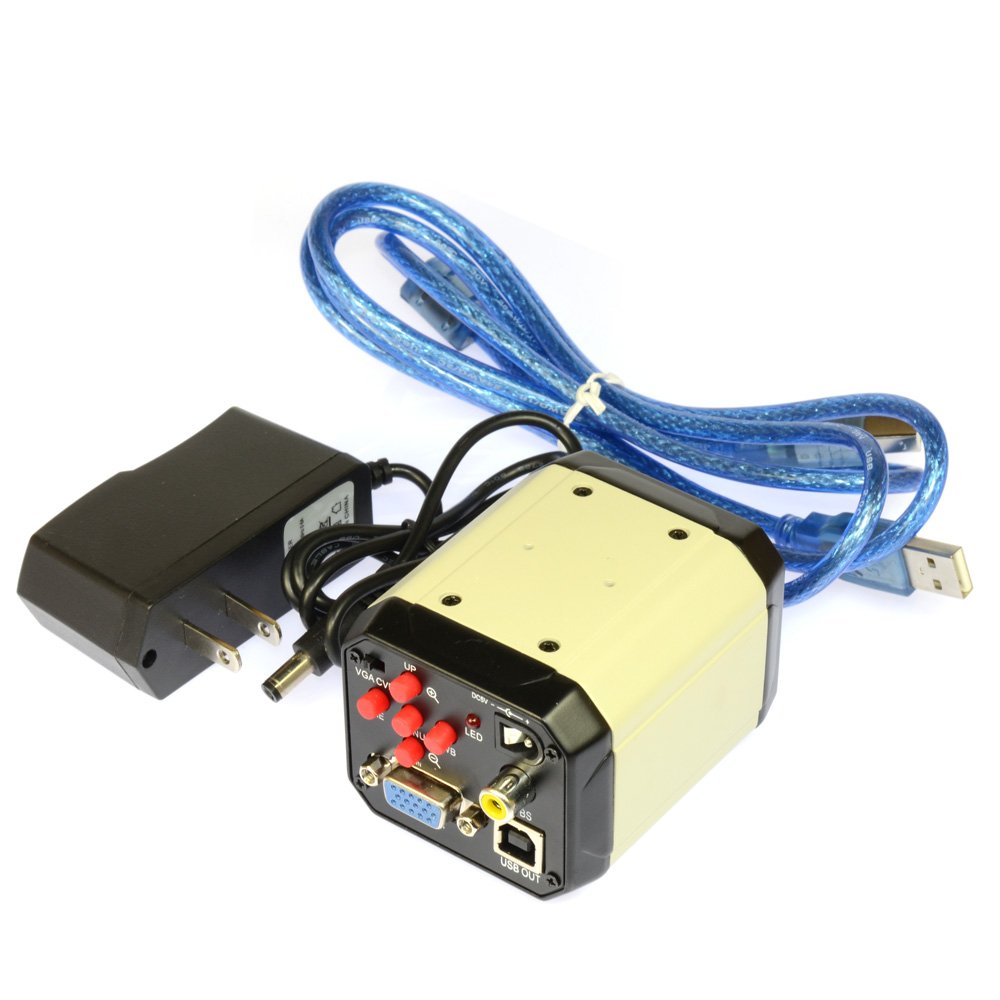

1 x Industry Microscope Camera

1 x 100X C-MOUNT Lens

1x  7" TFT LCD Color Monitor

1 x AC 100V-240V to DC 12V adapter (ONLY FOR CAMREA)

1 x USB line

1 x LED Ring light

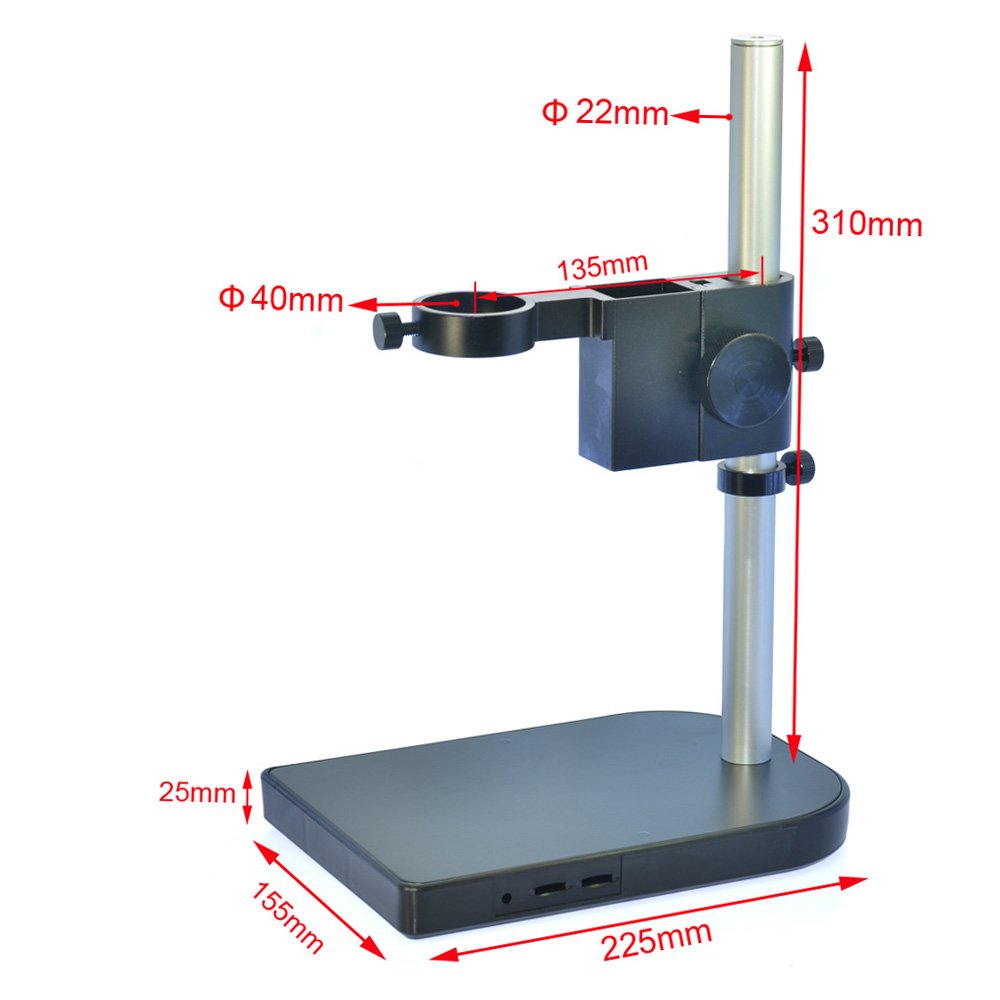

1 x Digital Microscope Table Stand

1 x AC 100V-240V to DC 12V 1A adapter (ONLY FOR LCD MONITOR)
