Specification:
Model :HY-6800
Image Sensor :SONY CMOS IMX585 1/1.2"
Sensor Size: 1/1.2"
Pixel Size :2.9 × 2.9μm

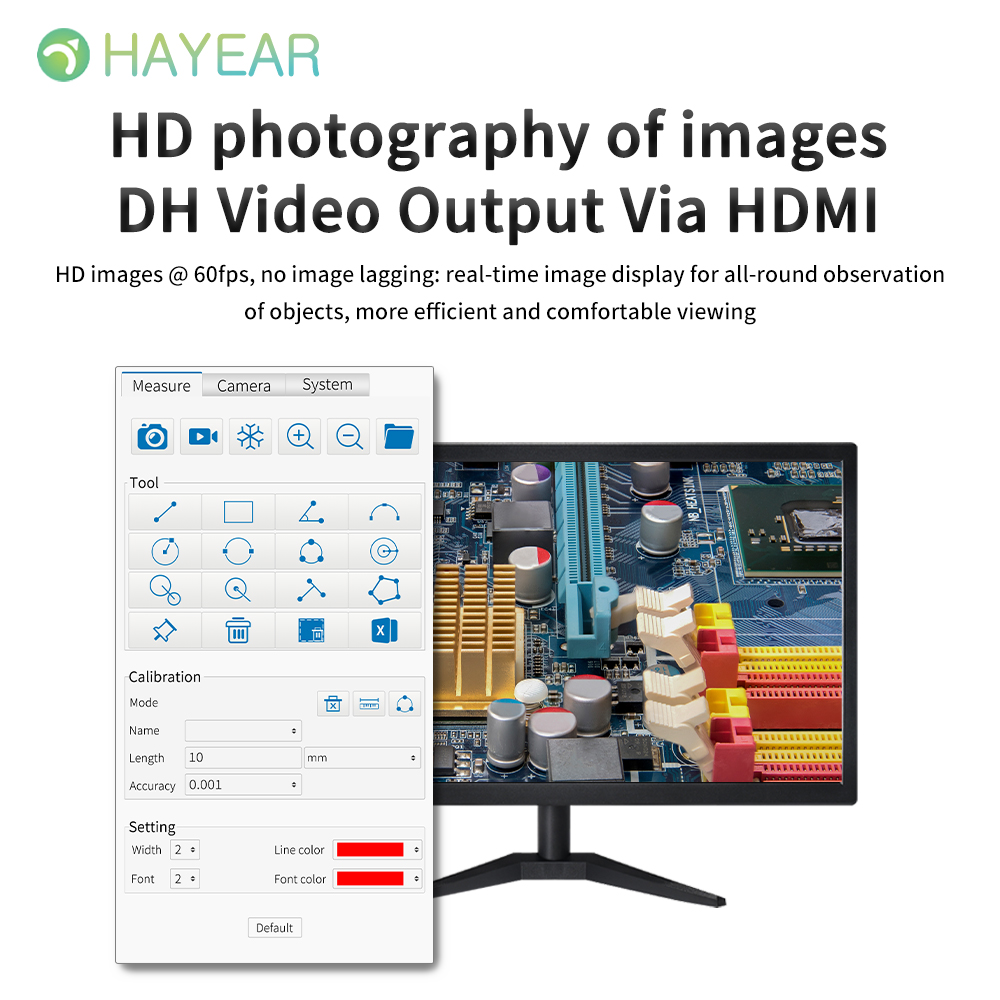

Video Output :4K/2K/1080P FHD(via HDMI); 4K(via USB)
Resolution:3840×2160 @60FPS(4K)
Frame Rate: 60@FPS
Image resolution: 3840 × 2160 (8MPX)
USB output Resolution :3840x2160@30FPS;1920x1080P@60FPS

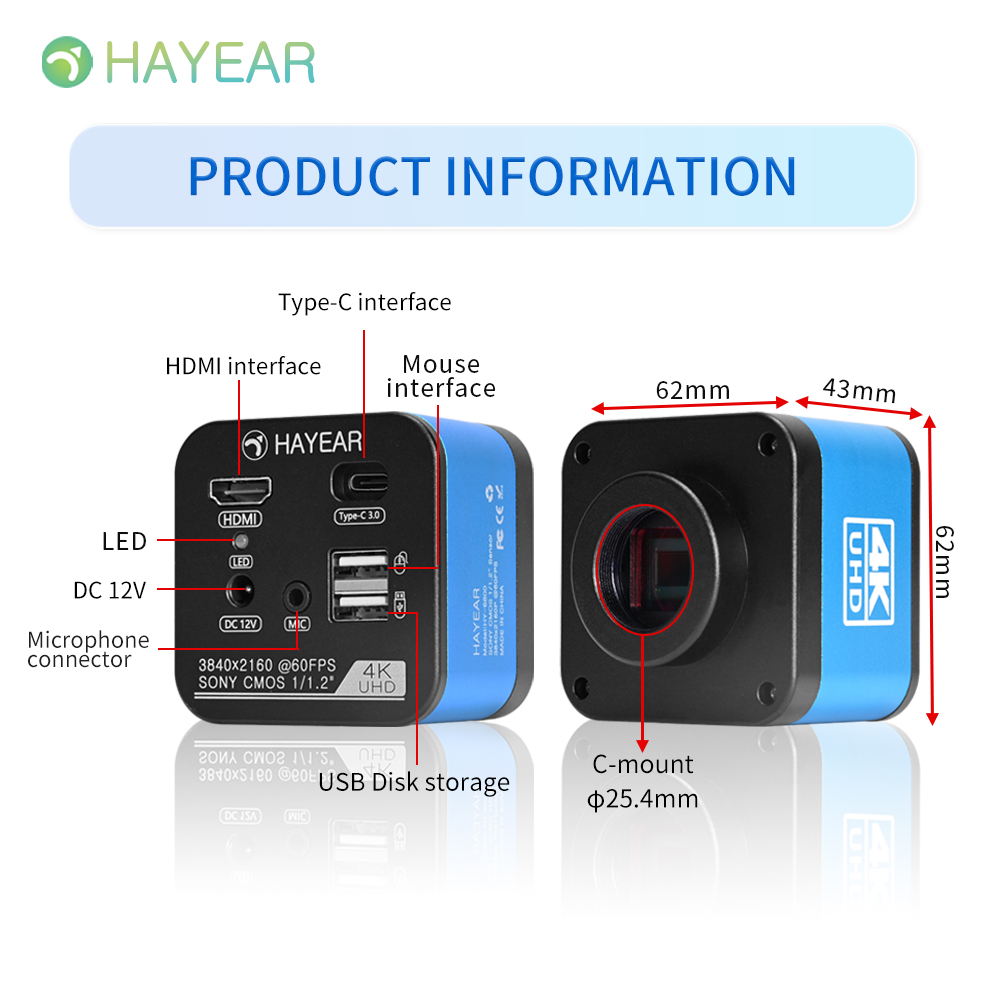

USB Port: Type-C 3.0
Simultaneous output : Supports HDMI and USB synchronous output
Image scaling: 15X digital zoom in and zoom out
Microphone: Support external dual channel microphone
Lens interface: Standard C / CS
Storage: USB Disk storage
Language: Chinese, English,
Working Voltage: DC 12V/ 1A
Camera system :Linux

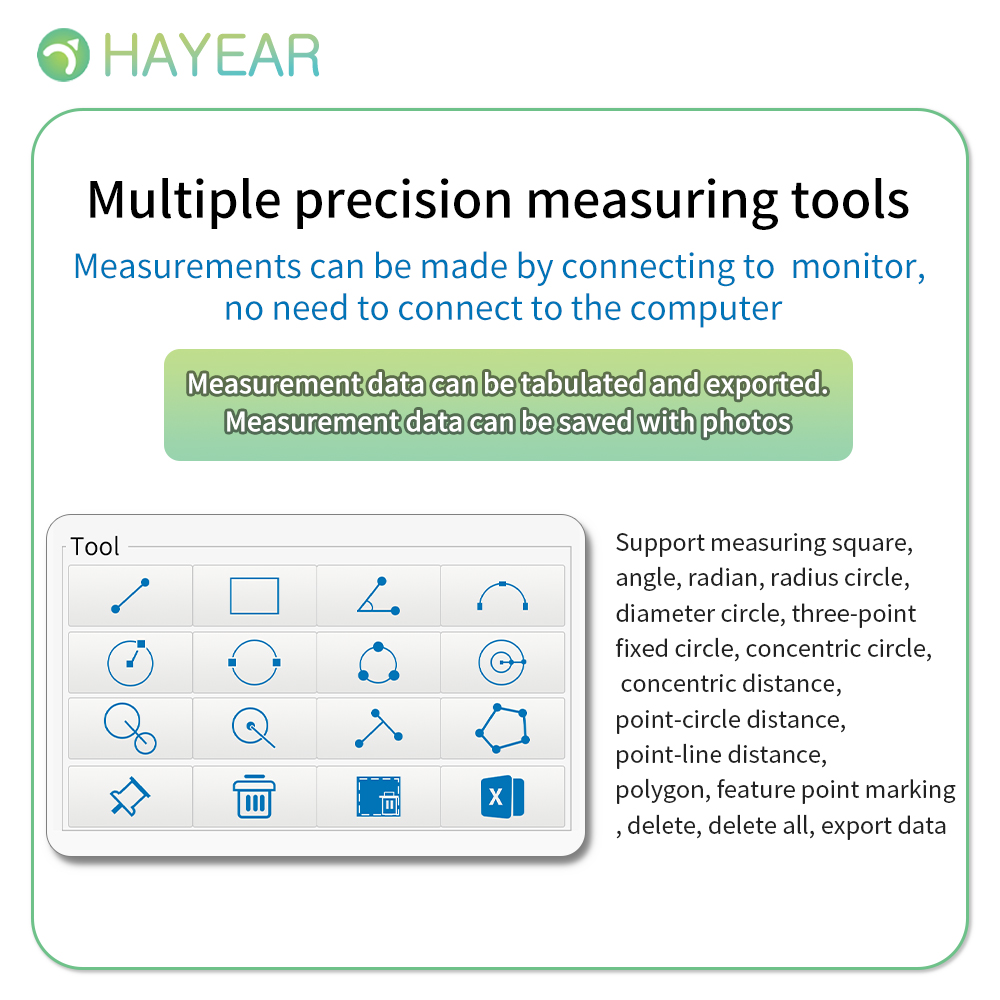

Marking Function :Point coordinates, crosshairs, coordinate systems, text annotations
Length measurement :Straight line length, polyline length, curve length, parallel line distance, point line
distance
Center distance of circles: Radius fixed circle, two-point fixed circle, three-point fixed circle
Geometric measurement: Line segment length, radius fixed circle, two-point fixed circle, three-point fixed
circle, concentric circle
Geometric area: Polygon, square
USB measure: HAYEARmesurement software
Shutter mode :progressive scanning
Other functions: Support ONE PUSH WB/ Auto / Manual, Vertical rotation/horizontal
mirroring/monochrome (black and white) image/image comparison/same screen
comparison
|
