For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI ouput, the functions can only be adjusted while connecting
with monitor. If you connect the camera with computer, the functions
also can not be adjusted.
Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4608*3456 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C/CS
USB interface:Standard usb2.0 interface (Type B)
TF card storage is only for HDMI output. USB output will be storaged in PC.
Description of the adapters:
Material: Metal
C-mount threads: 32TPI-UN-2A
Built-in 0.5X reduction lens
This 0.5X C-mount adpater is for microscope .
It can be used in all eyepiece position with 23.2mm or 30mm or 30.5mm.
Of course, it can be used in phototube and trinocular tube with 23.2mm or 30mm or 30.5mm.

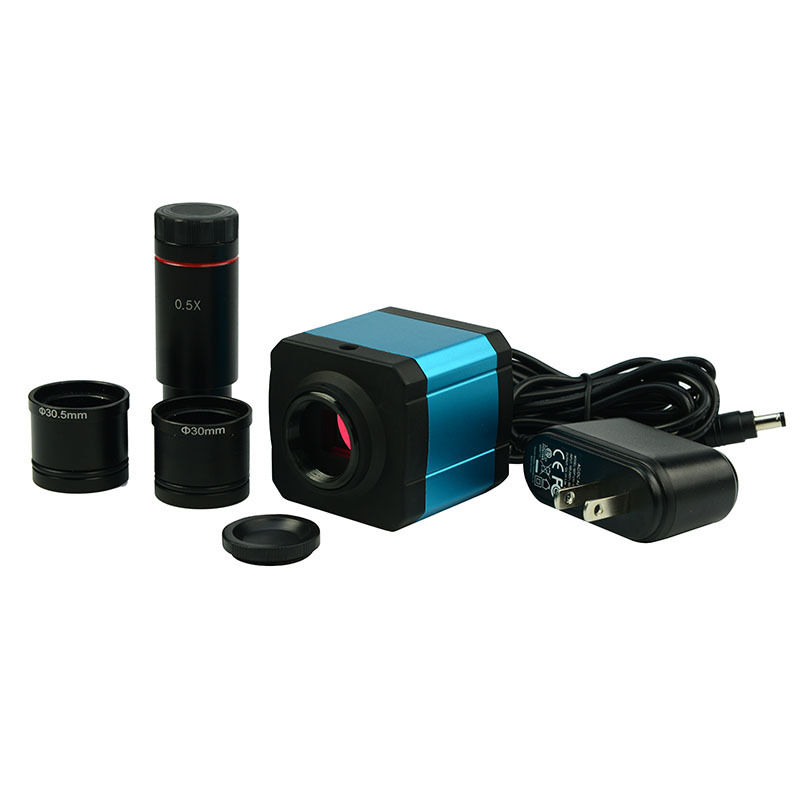

Package include:
1 x HDMI Microscope Camera
1 x 12V Power supply
1 x USB line
1 x Software DISC
Microscope Lens
