Noting:
For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting
with monitor. If you connect the camera with computer, the functions
also can not be adjusted.
Feature:
|
Image sensor
|
16 megapixel Panasonic sensor 1/2.3 inch
|
|
Effective pixel
|
16 megapixel
|
|
Pixel size
|
1.43*1.43um
|
|
Frame rate
|
60FPS
|
|
Definition
|
FULL HD
|
|
Housing
|
metal
|
|
Lens
|
CS for test, custom provide
|
|
White balance
|
Auto/manual
|
|
Digital magnification
|
5 times digital zoom
|
|
Brightness control
|
Auto/manual
|
|
Color
|
R/G/B adjustable
|
|
Freeze
|
Support
|
|
OSD
|
Support
|
|
Film and record
|
Support
|
|
Cross cursor
|
Support multi-color, size adjustable
|
|
Transverse and vertical line
|
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
|
|
SNR
|
Support
|
|
TF card interface
|
Max 64G
|
|
HDMI interface
|
Standard HDMI output (Type A)
|
|
Lens
|
C
|
|
USB interface
|
Standard usb2.0 interface (Type B)
|
Specification:
Model: Camera with HDMI USB2.0 two output
Image format: jpg,png,tiff
Image resolution: 4608*3456 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV,MP4(for TF card)
Video recorder: 1920*1080@60FPS (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions
120X C-MOUNT Lens:
Working distance: 40mm-1280mm
Field of view: 2.4mm-36mm
zoom c-mount Lens
zoom ratios: 15:1
Magnification Power by 0.13X - 2X
Size: 110mm(L) * 28mm(DIA)
With 50mm ring adapter
NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.

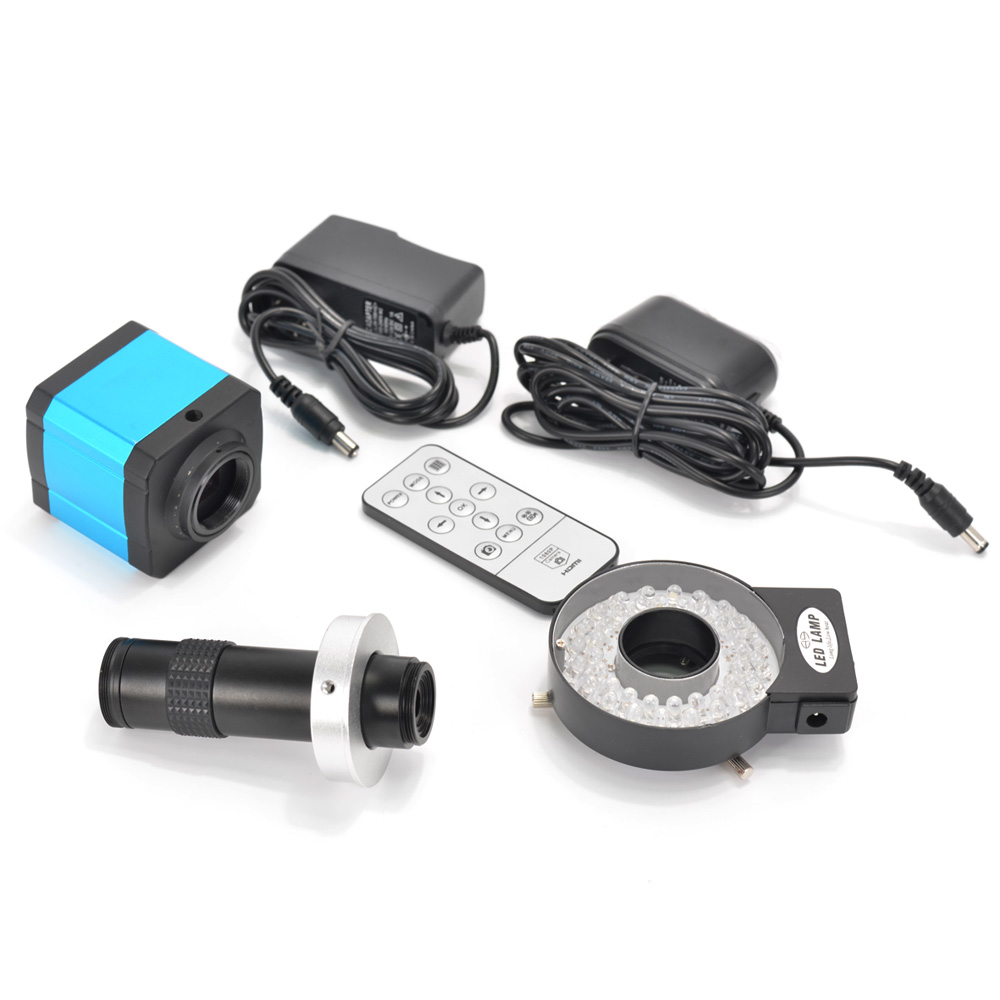

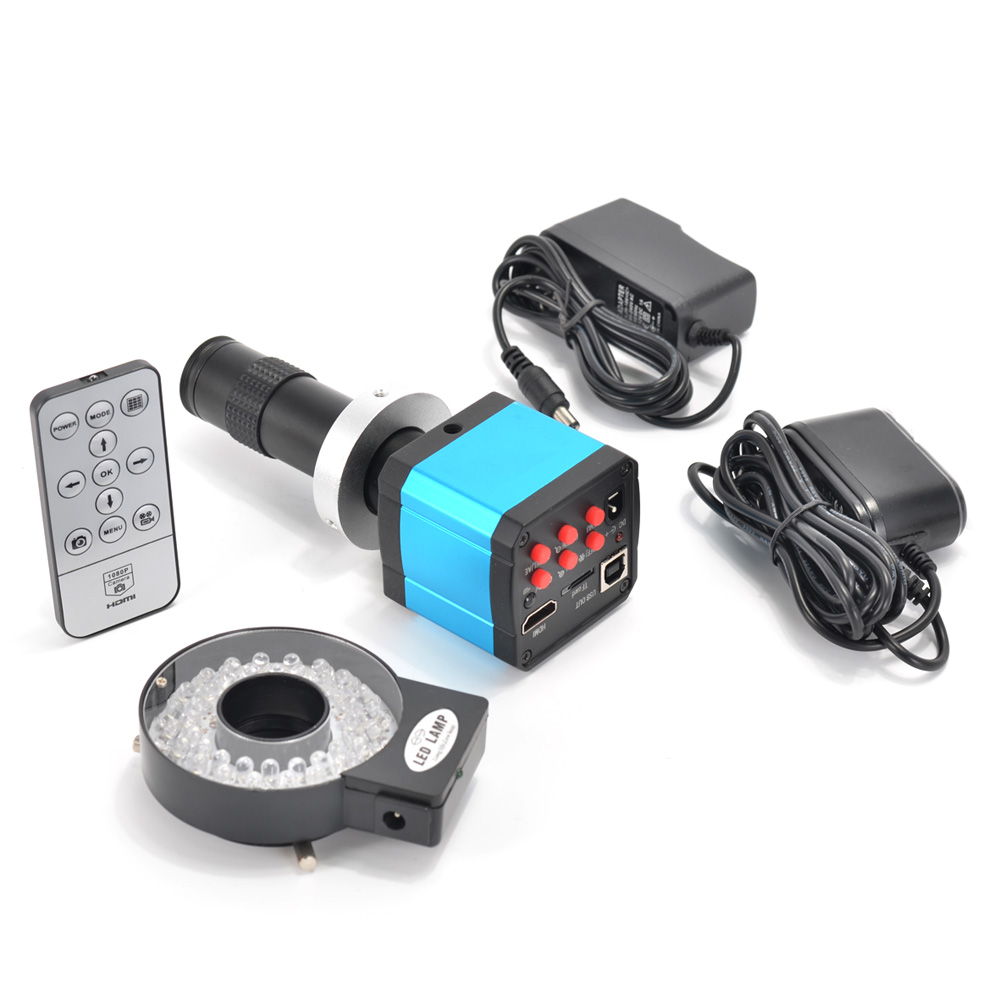

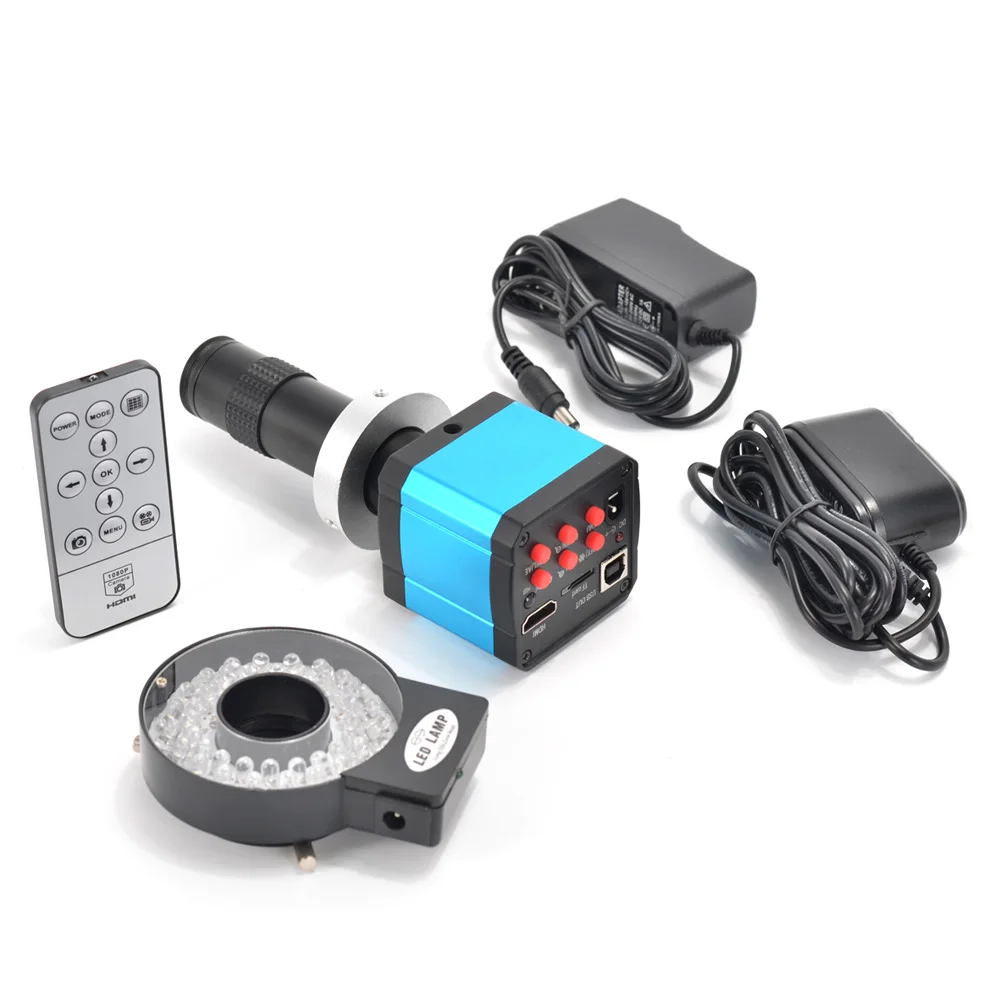

Package Including:
1 x Microscope Camera
1 x 12V/1A Power Supply
1 x USB Line
1 x Software DISC
1 x Zoom C-mount Lens
1 x 40 Led Light
Microscope Lens
