1080P HDMI USB HD Digital Microscope Camera Industrial Calibrate Camera+180X C-mount Lens+8'' LCD Monitor for Industry PCB Lab
Price : US $ 631.36 701.52

SKU : 0911174422
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

1080P HDMI USB HD Digital Microscope Camera Industrial Calibrate Camera+180X C-mount Lens+8'' LCD Monitor for Industry PCB Lab



Feature:
Low consumption embedded platform
Reliable embedded control system
Support 2M-5M multiple sensors
Integrated high-performance image processing
Support Multi exposure WDR
Full-HD 1080P@60 output
Image mouse control
SDXC/SDHC storage
Integrated multiple measure functions
Support sync amplification measure

Integrate picture and picture, picture and video image operation
Integrate picture and picture, picture and video sync compare
Support H.265 internet sync video output
Economy/standard/Plus models optional
Custom hardware functions accepted

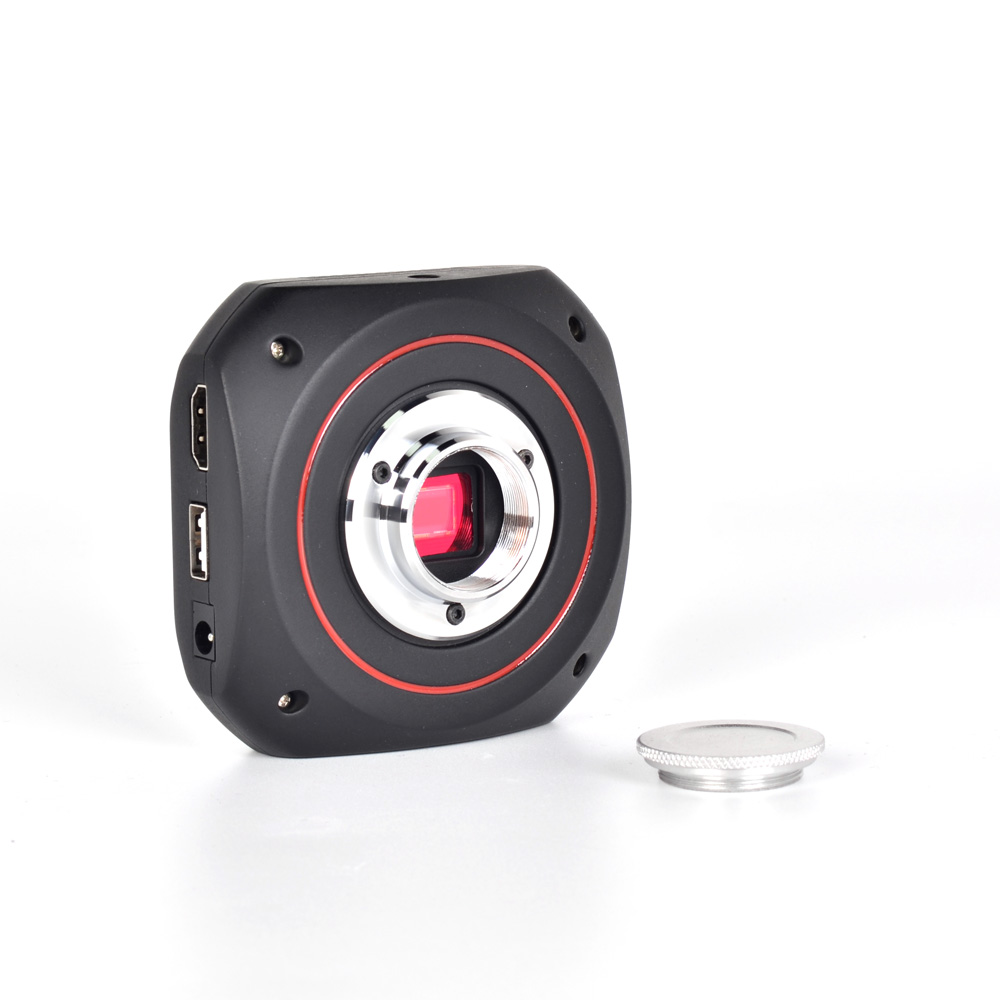

Specifications:

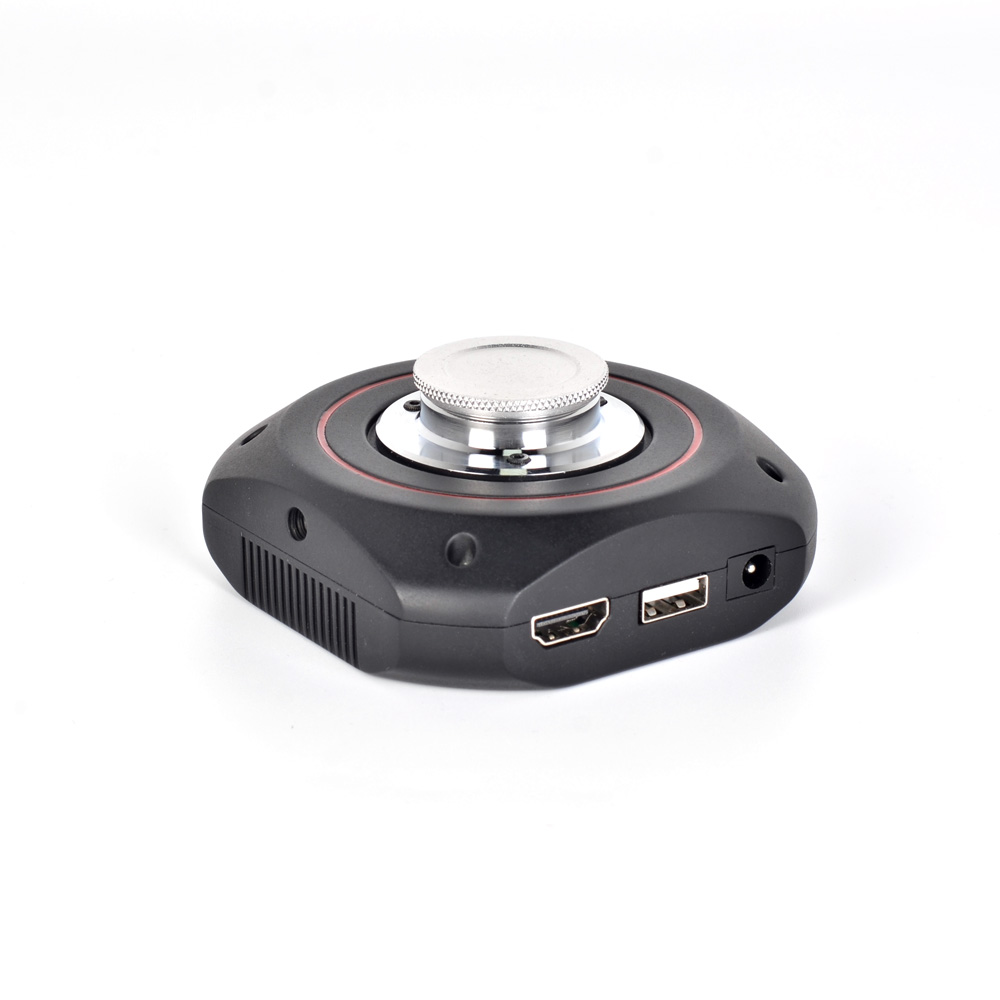

SONY IMX185,1/1.8 type (inch)  Color CMOS Image Sensor
rolling shutter
2.38M pixels
3.75 µm × 3.75 µm
1080P 60fps 1080P 30fps (WDR Mode)

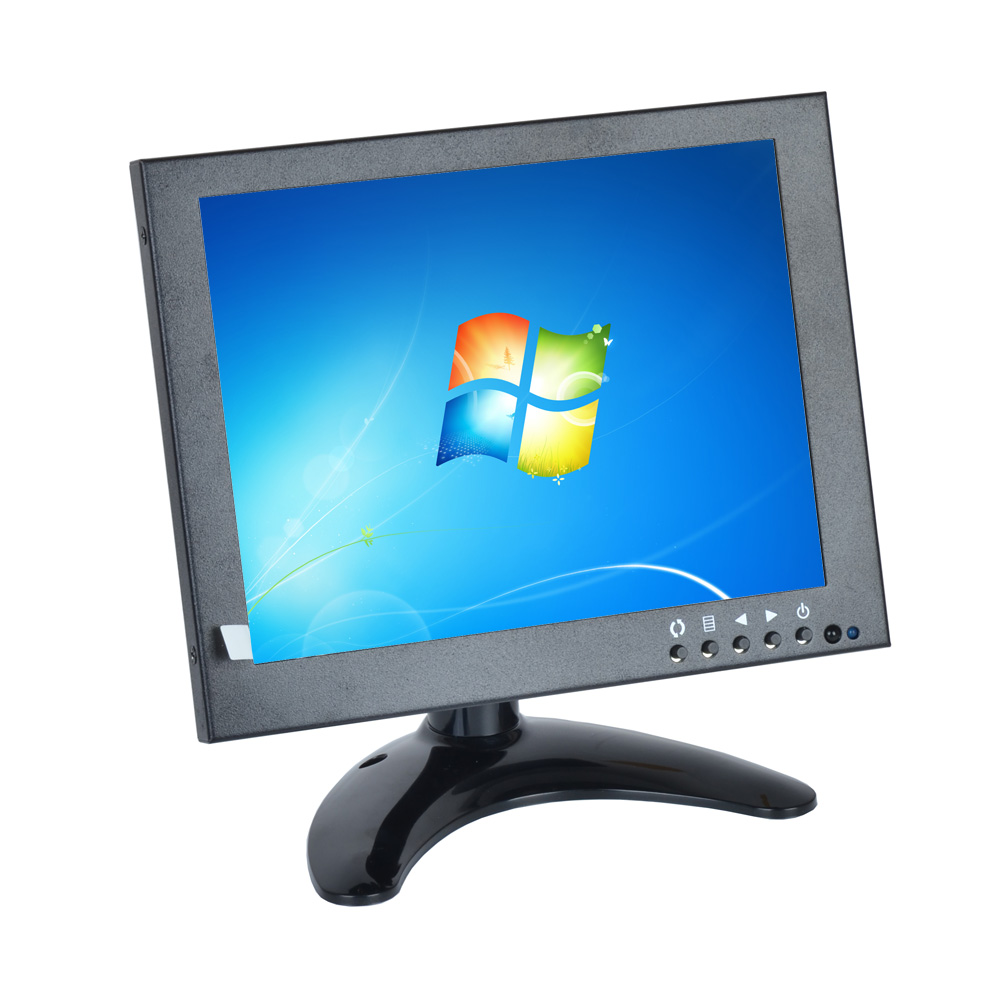

8" HDMI TFT LCD Color Monitor:
8 inch (1024 x 768) high resolution TFT LCD monitor
Clear image and colorful display
Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
Multi video input supported (RCA, VGA, BNC)
Support 15-pin VGA input , connect with PC (1024*768)
Suitable for CCTV monitor, PC monitor or indoor use
Built-in high quality speakers
Auto standy function with timer switch and no signal
Screen Size : 8"
Screen Resolution : 1024 x 768 pixels
Aspect Ratio : 4 : 3
Screen Brightness : 400 cd/m2
Screen Contrast : 400 : 1
Viewing Angle : 160° (H) x 160° (V)
Response Time : <= 12ms
Video Input : HDMI, AV-in, VGA, BNC
Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm

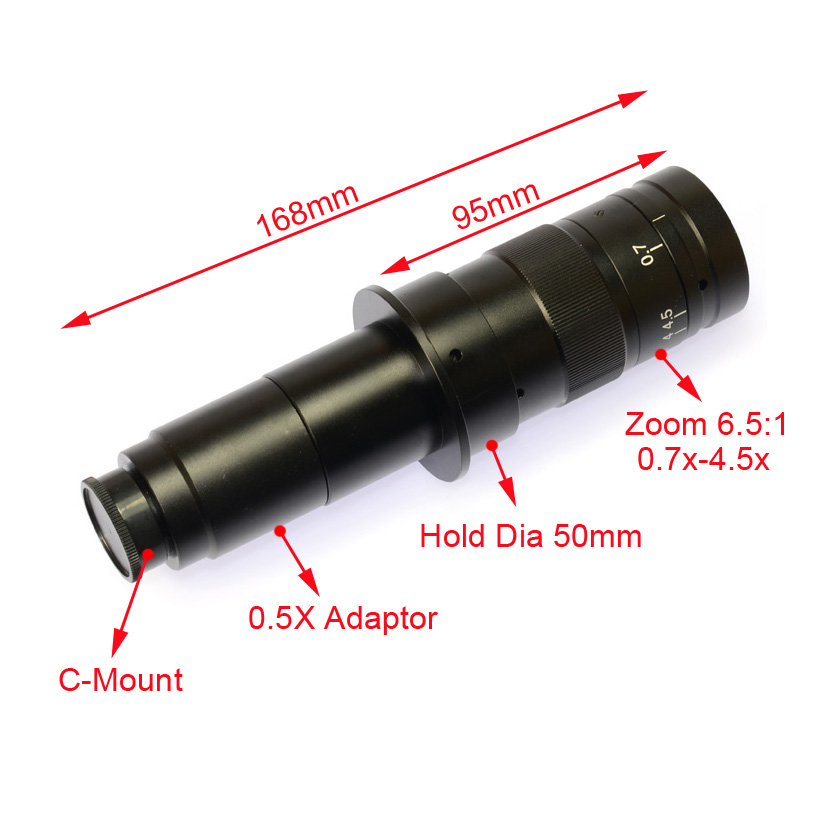

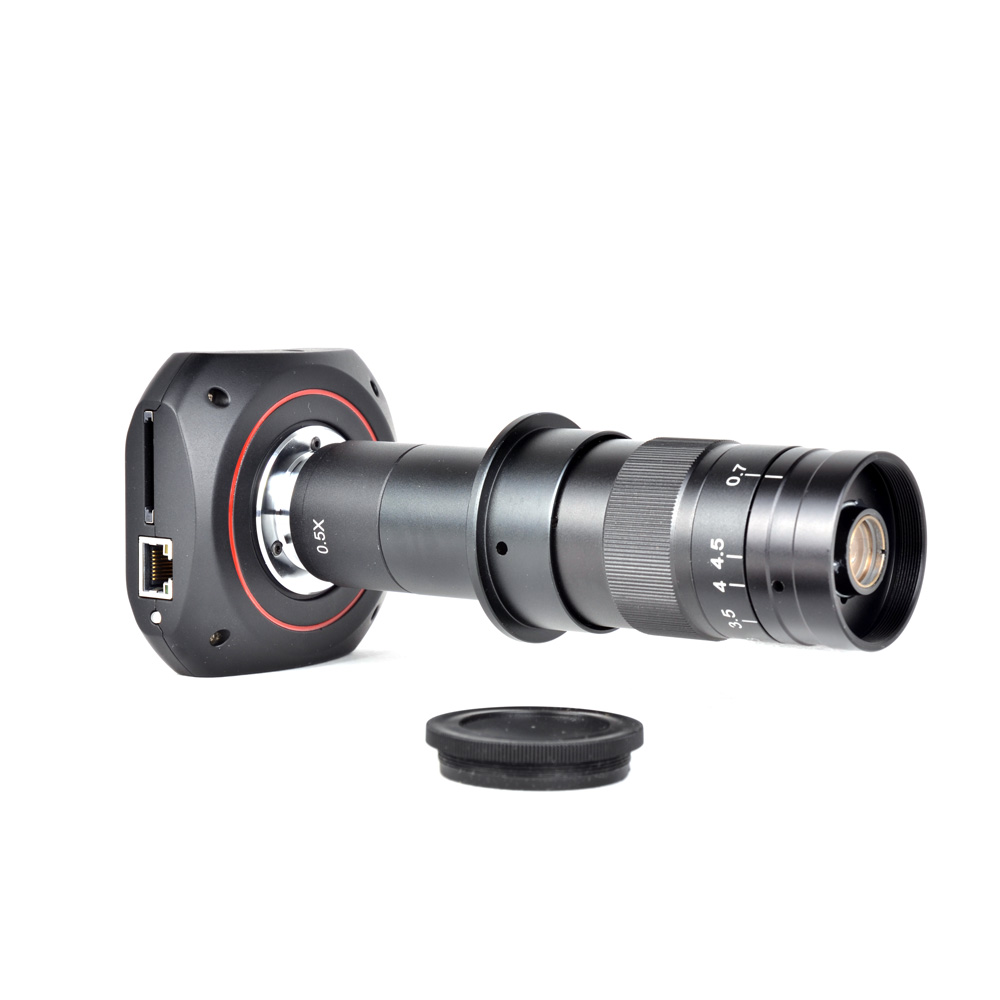

C-MOUNT Lens:
Working distance: 100mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g


144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm


Package Content:
1 x Microscope Camera
1 x Power Supply
1 x 180X C-mount Lens

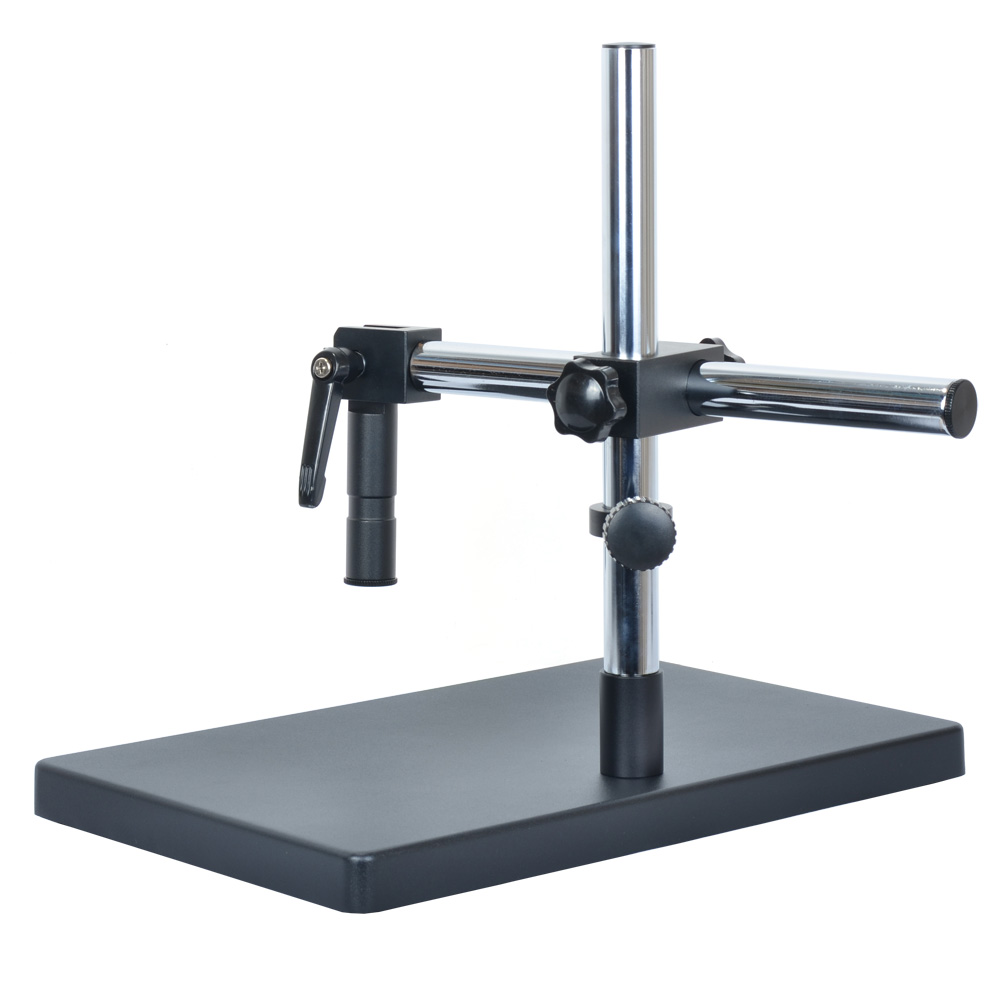

1 x Big Table Stand
1 x 144 LED Light with Power Adapter
1 x 8" LCD Monitor
