Note:
The camera can not be used as a USB camera.

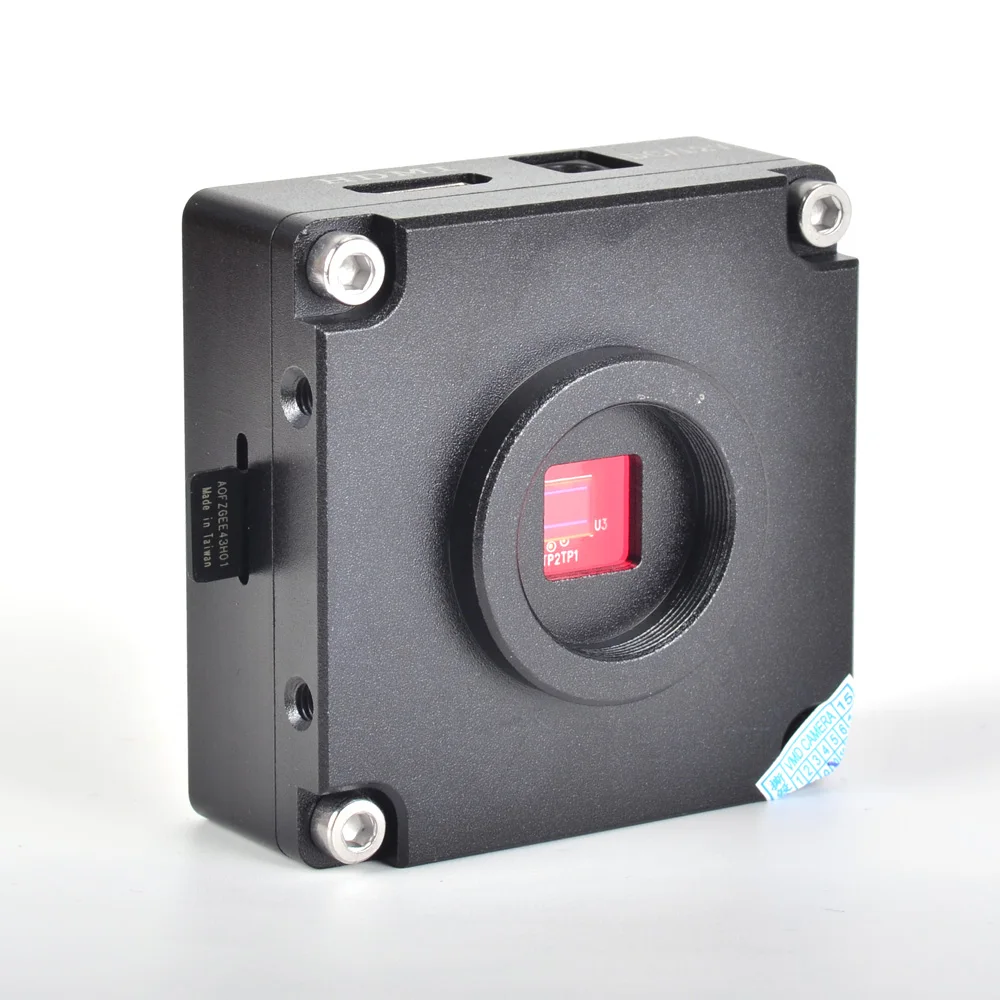

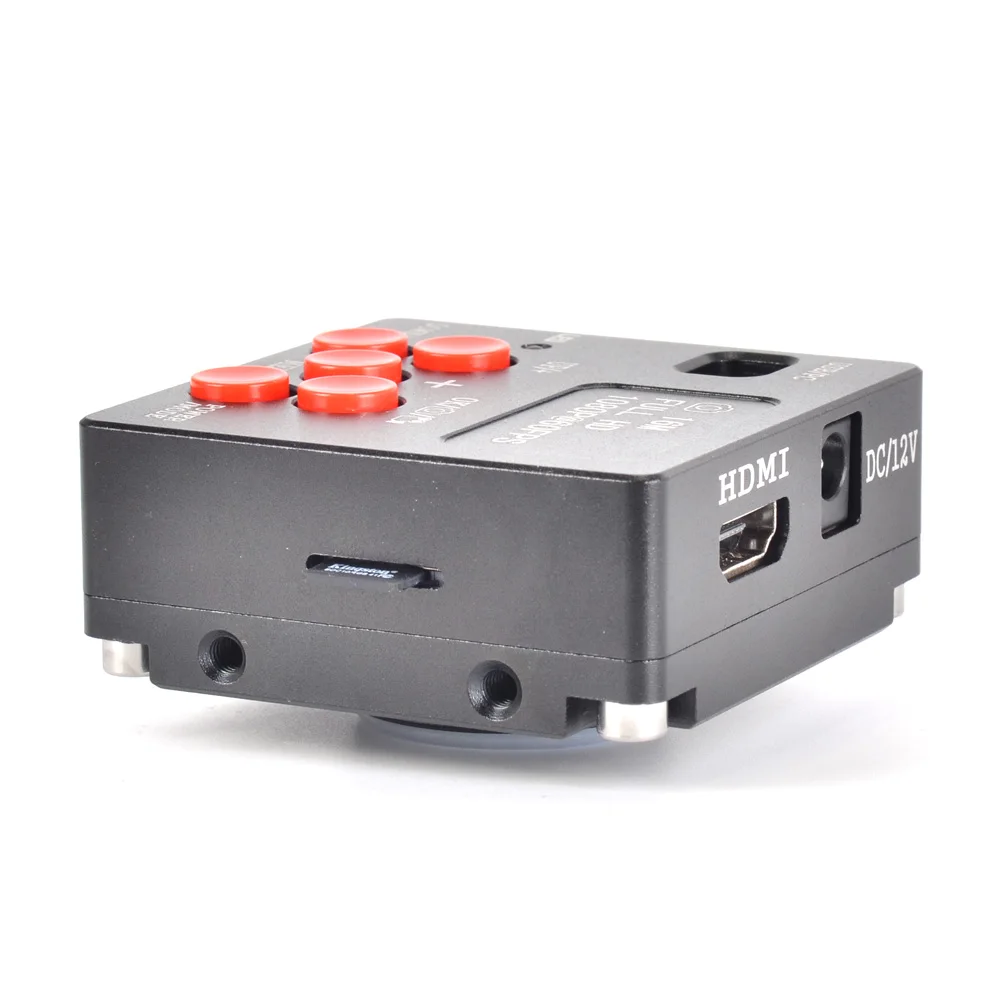

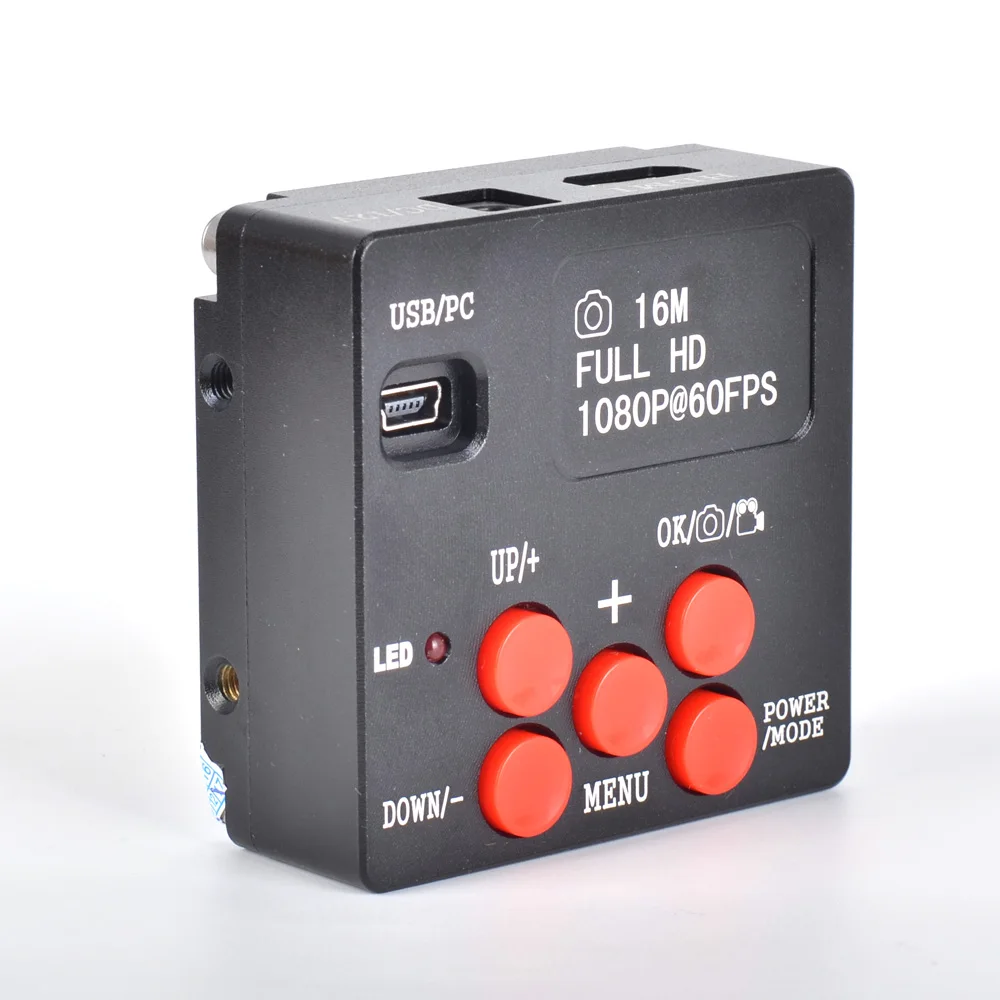

Features of the camera:
Model: Camera with HDMI USB2.0 two outports
Image resolution: 4640*3480 pixels(for TF card); 1920*1080 pixels(for PC USB)
Video recorder: 1920*1080 pixels @30FPS (for HDMI USB)
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,4 horizontal line , 4 vertical line,any positions
Specification for the camera:
Image sensor:16 megapixel Panasonic sensor 1/3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: AVI
Encode: H.264 (High Profile)
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 4 pcs of transverse lines/vertical lines, movable
Different color,4 horizontal line , 4 vertical line,any positions
SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type A)

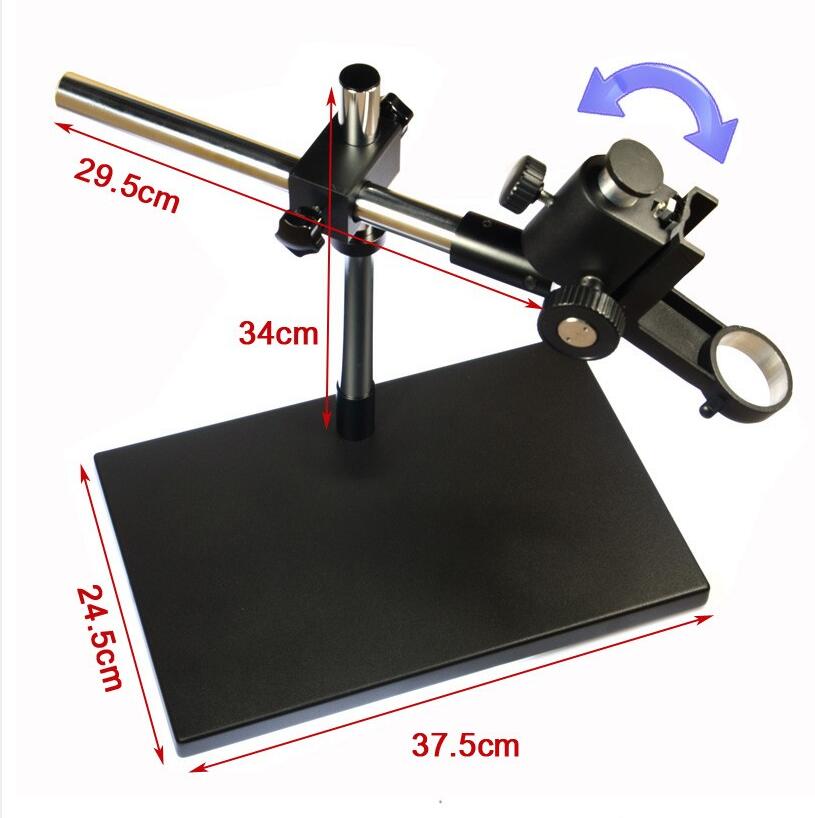

Stereo Table Stand :
Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
This stand has a
dual arm system with a counterweight on the opposite end of arm to
counter the weight of your microscope head. This gives more stability
compared with a common type of boom stand.
The multi-axis
rotation feature allows this boom stand to locate your microscope head
to most any position or angle. This can be a greatly needed tool when
you have a hard-to-see location such as inspecting and searching for
cracks on the solder of a circuit board.
We provide the
boom stand only. This is not a complete system. A microscope head with
optics is needed. You provide the head. We have several types of
adapters to fit a variety of microscope heads. Contact us for details
about your specific requirements so we can assist with a smooth fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Item size: see the 5th picture
Weight: 3.3kg
C-MOUNT Lens:
Working distance: 95-125mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g
144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

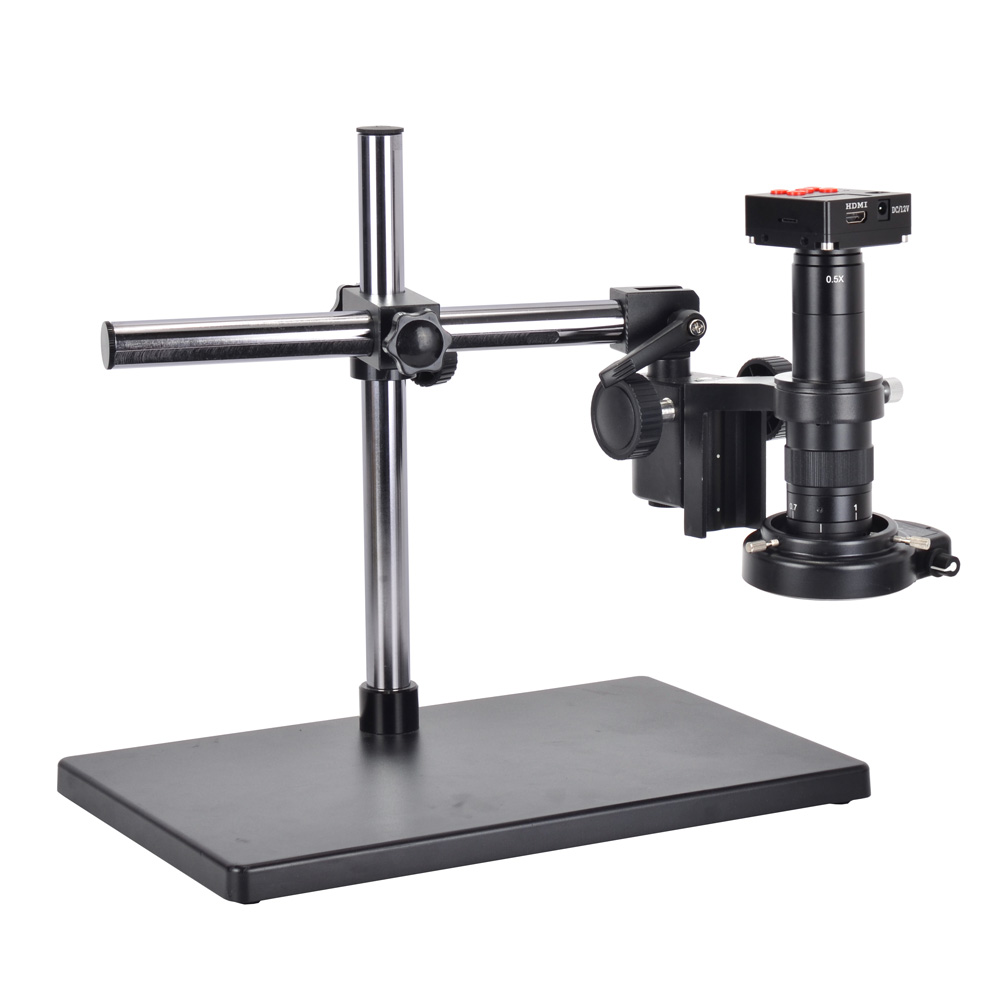

Package includes:
1 x Microscope Camera
1 x Power supply(EU / UK / AU Adapter for free)
1 x USB cable
1 x HDMI cable
1 x 4GB TF card
1 x 180X lens
1 x 144 bulbs LED light
1 x Digital Microscope Table Stand
Microscope Lens
