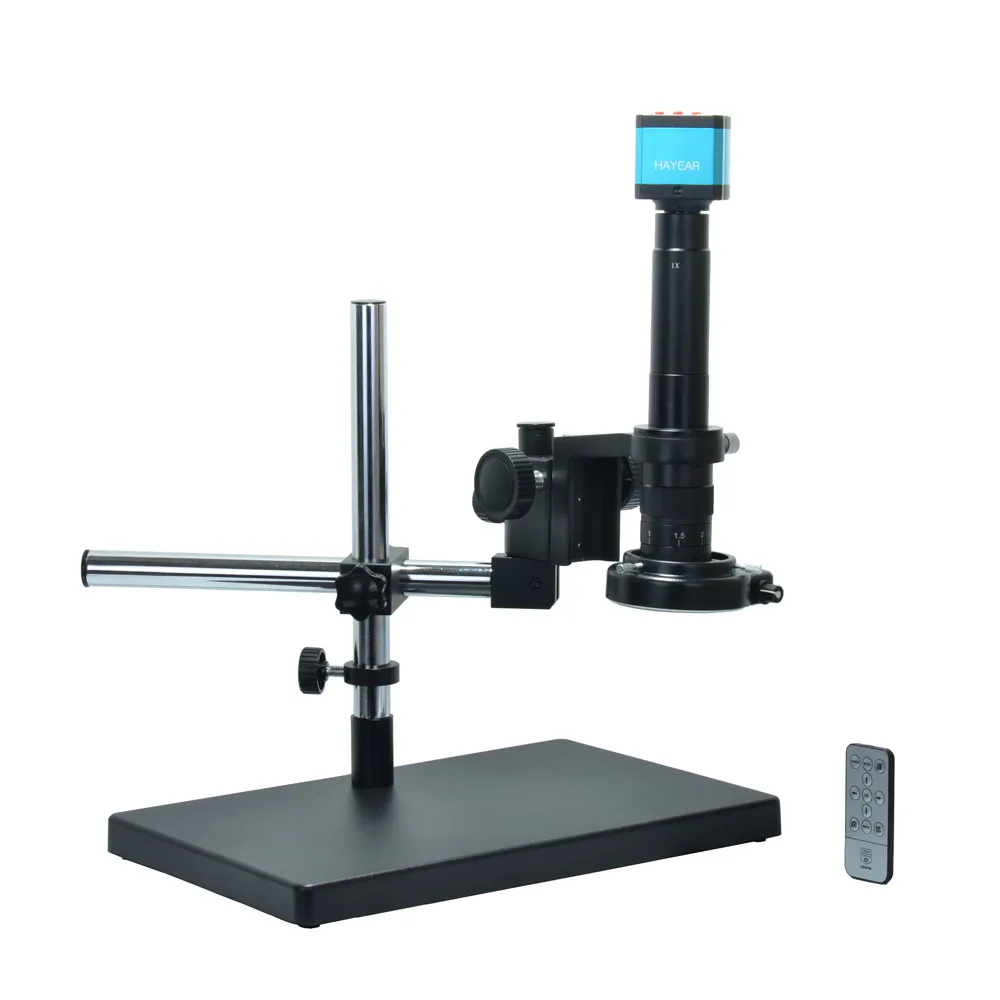

16MP HDMI USB HD Digital Industry Video Microscope Camera+300X C-MOUNT Lens with 144 LED Light+Big Boom Stand Universal Bracket

Note:

For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.

For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.

Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg
Image resolution: 4608*3456 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G

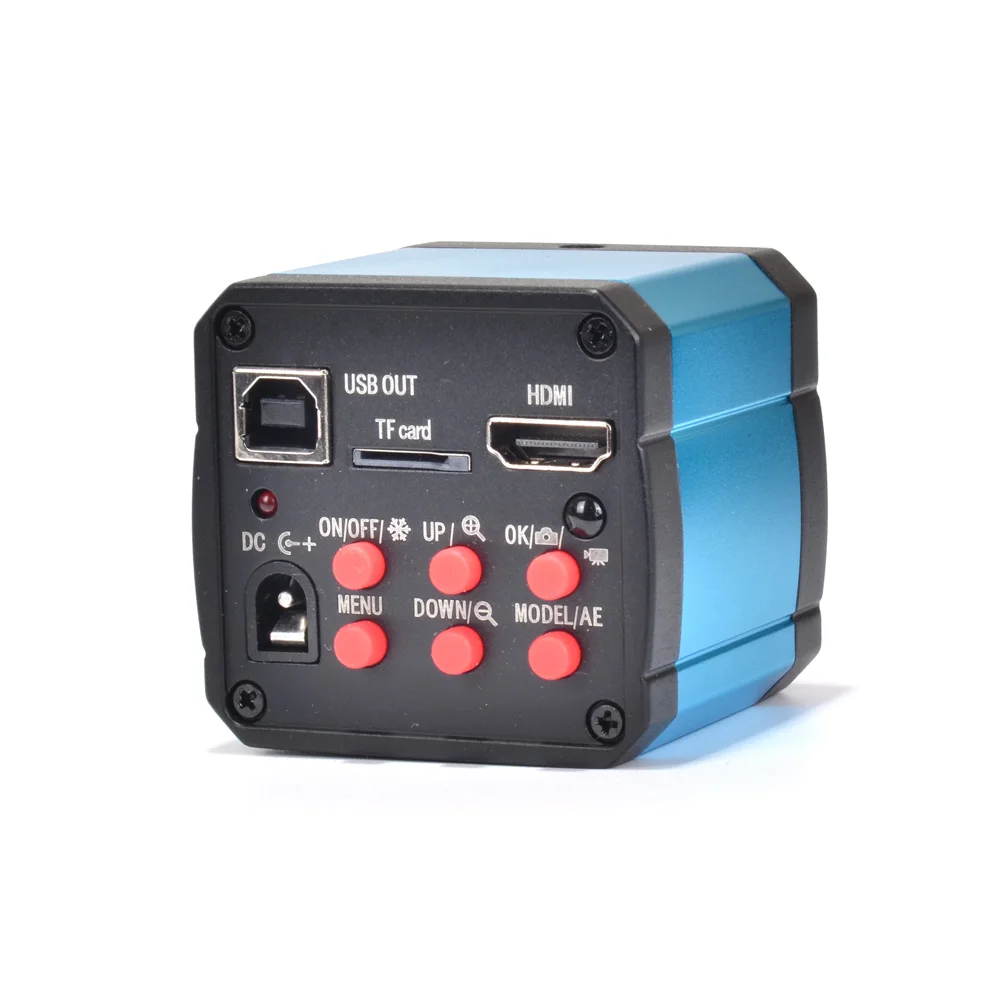

HDMI interface:Standard HDMI output (Type A)
Lens:C/CS
USB interface:Standard usb2.0 interface (Type B)

NOTED!!! TF card storage is only for HDMI output. USB output will be storaged in PC.

Stereo Table Stand Feature:

Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!

This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.

The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.

We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.

Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.

Steel Gears on Focusing Holder.

Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm

Weight: 3.3kg

C-MOUNT Lens:

Working distance: 100mm-110mm

zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)

Size: 245mm(L) * 50mm(DIA)

Weight: 450g
