Noted!!!
When use USB connection, please make sure no SD card in the camera.
Otherwise computer might define the camera as USB disk, can't find it as new device.
Features:
High Quality, High Resolution, Clear Images
1080P HDMI output
SD Card Video Recorder
1920x1080 FULL HD Panasonic Image sensor
1/2.86 inch sensor
1920x1080 pixels
The pixel size is 2.75x2.75um
High Speed which can up to 60FPS
All metal shell
Certificate:CE,FC,RoHS
Industry CMOS Camera. It can Show the live image directly on any HDMI monitor or Projector.

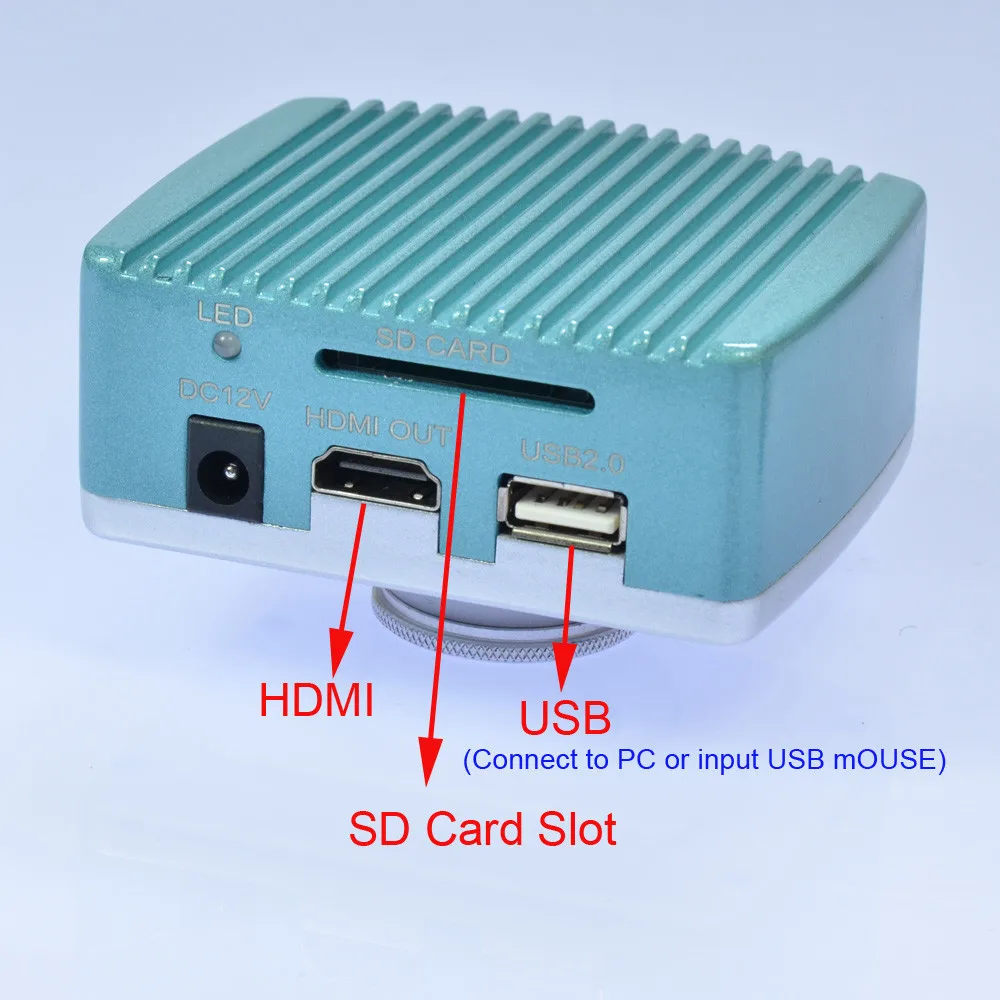

Supply HDMI and USB output ports.
Specification:
Image sensor: 1920x1080 FULL HD Panasonic Sensor
Frame rate: 29fps(USB Output)
Pixel size: 2.75*2.75um
Frame rate: 60fps
Definition: Full HD
Housing: Standard iron/ Alloy
Lens mounting: C mount/ CS mount
White balance: Auto/ manual
Digital magnification: 10 times zoom in or zoom out
Brightness control: Auto/ manual
Color: R/ G/ B adjustable
Freeze: Support
OSD: UI design, mouse control
Edge enhancement: Support
Film and video: Support
Cross cursor: Support, multi-color, size adjustable
Transverse and vertical line: 4pcs of transverse line/vertical line, movable and size adjustable
Image contrast: Support
Wide dynamic: Support
Digital dynamic: Support
HDMI interface: Standard HDMI output
USB interface: Standard USB2.0 output
25FPS@1920x1080 pixels, HDMI output
60FPS@1080 x 720, 30FPS@1920*1080, USB output
C-MOUNT Lens:
Working distance: 100-150mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g
144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

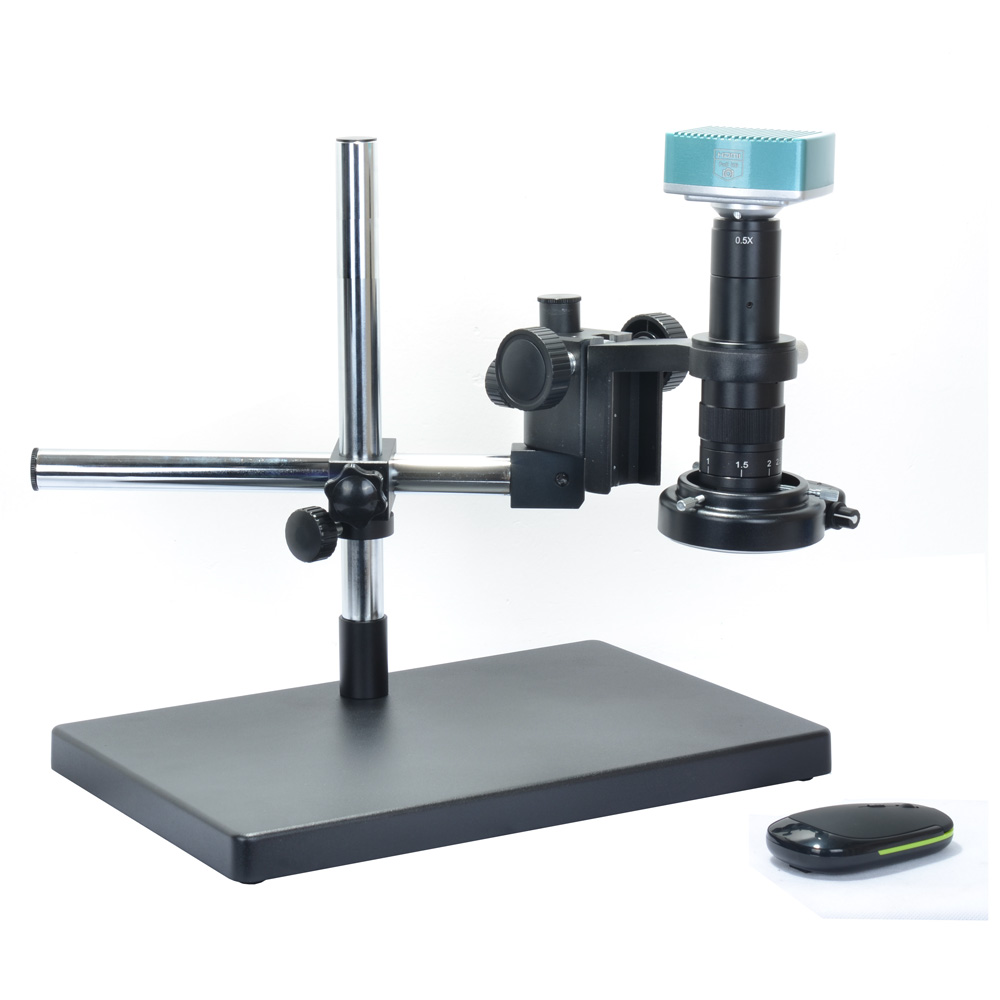

Camera Table Stand
Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
This stand has a dual arm system with a counterweight on the
opposite end of arm to counter the weight of your microscope head. This
gives more stability compared with a common type of boom stand.
The multi-axis rotation feature allows this boom stand to locate your
microscope head to most any position or angle. This can be a greatly
needed tool when you have a hard-to-see location such as inspecting and
searching for cracks on the solder of a circuit board.
We
provide the boom stand only. This is not a complete system. A microscope
head with optics is needed. You provide the head. We have several types
of adapters to fit a variety of microscope heads. Contact us for
details about your specific requirements so we can assist with a smooth
fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Item size: see the 4th picture
Weight: about 4kg
Packing including:
1 x Industry Microscope Camera
1 x 180X C-mount Lens
1 x Big Stand Universal bracket Stand Holder
1 x 144-LED Ring Light with Power Adapter
1 x USB Cable
1 x Wireless USB Mouse
1 x Power supply(100-240V)
Microscope Lens
