USB Camera >> 2.0 MP USB Digital Industrial Eyepiece Electronic Eyepiece Camera + 30mm 30.5mm Adapter Ring For Image Capture
View Larger Image
Share your images of this product

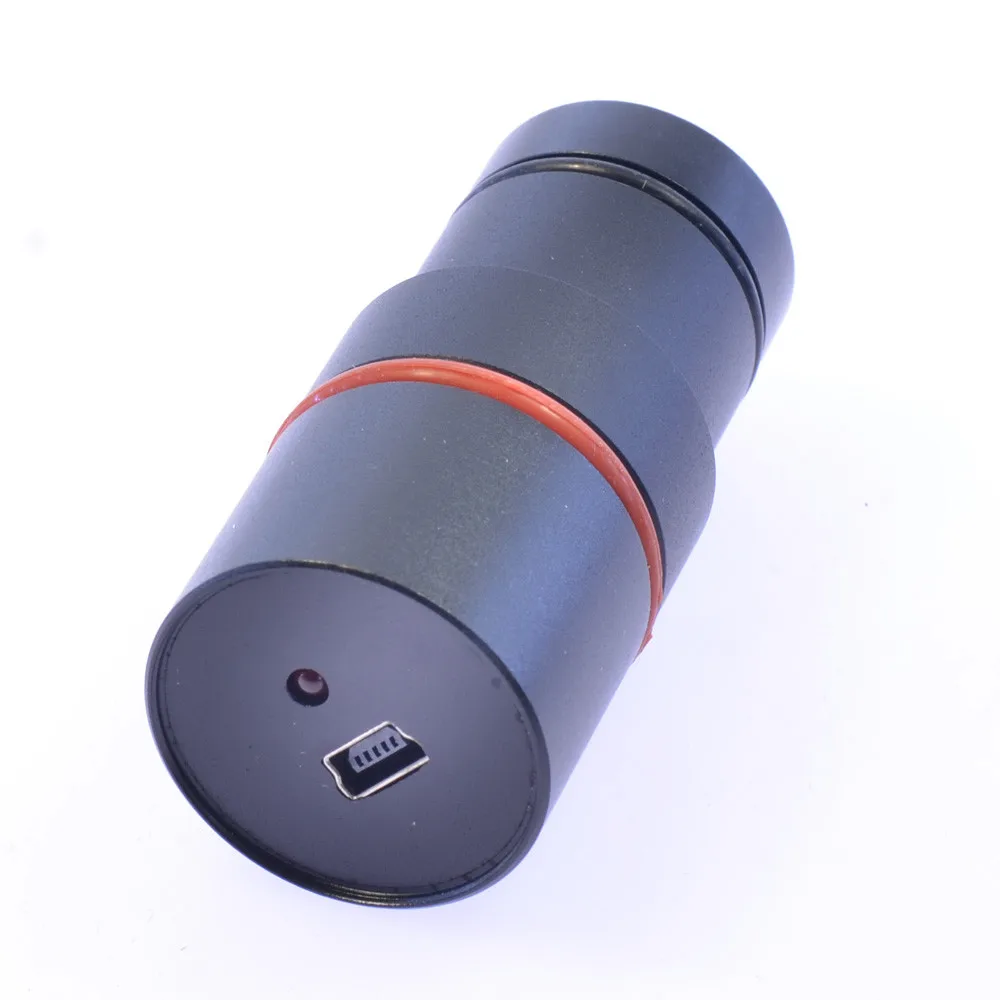

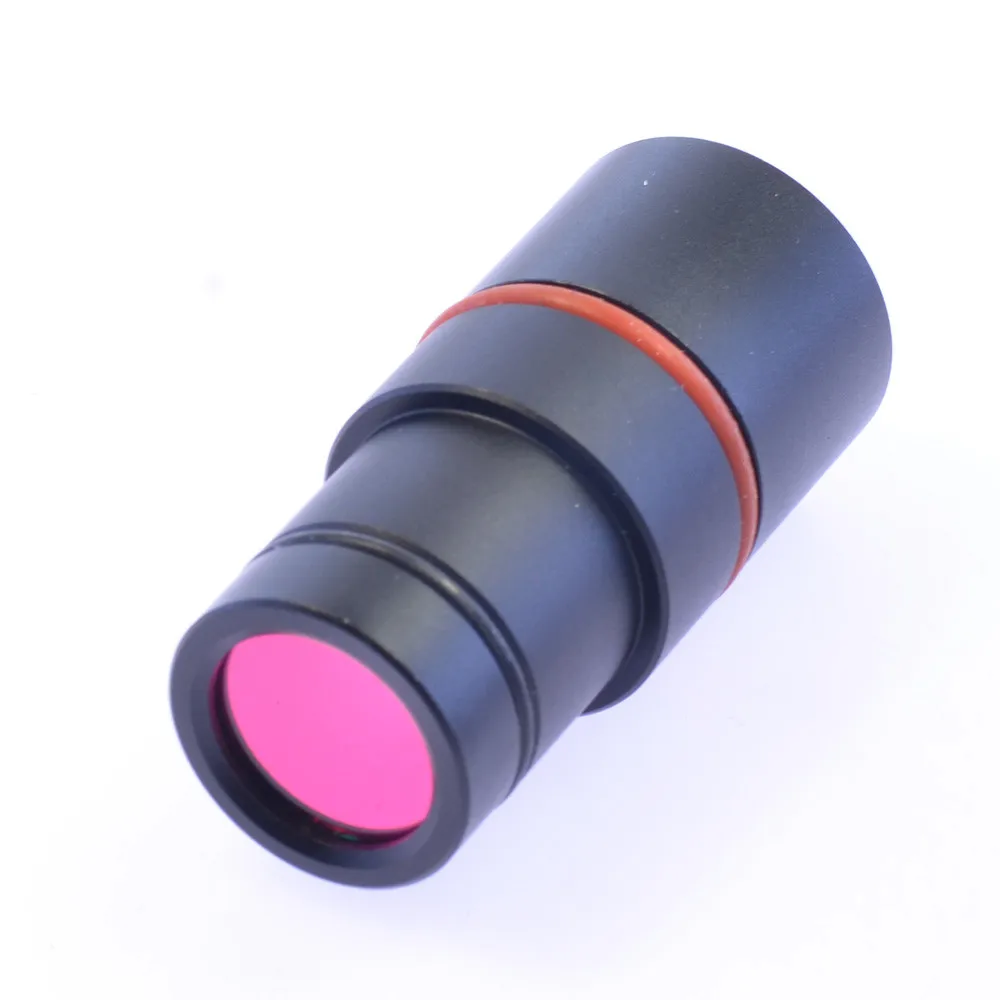

2.0 MP USB Digital Industrial Eyepiece Electronic Eyepiece Camera + 30mm 30.5mm Adapter Ring For Image Capture
Price : US $ 9999.00 9999.00

SKU : 1801273845
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.


the item has stop produced ,  we list a high price to avoid buying.



Feature:
1.1/3.2-inch progressive scan image sensor, and hardware 2 million pixels.
2.USB2.0 digital interface, data transfer rate up to 480MPS.
3.High-resolution image sensor, high-quality color reproduction, and high definition.
4.Brightness, contrast, saturation, sharpness and gamma software adjustable;
5.Auto white balance, auto exposure.
6.Without scheduling driver to support Windows2000/XP2/Vista/Win7 operating system.
7.The maximum resolution of 1600 * 1200.
8.Underlying hardware and software support for the exposure time, color, brightness, contrast, saturation and other image enhancement features late.




Specification:

1. Image 1/3.2" color 2 million COMS

2. Resolution: 1600 x 1200 effective pixels

3. The pixel size: 2.8Umm * 2.8um

4. Frame rate: 15fps @ 1600 * 1200/30 fps @ 640 * 480

5. Shutter: Electronic Shutter

6. SNR: 42.3dB

7. Scan Mode: progressive scan.

8. Working Temperature: 0-50 degrees Celsius.

9. Sensitivity: 1.8v/1ux-sec@550nm

10. Spectral response: 400nm-1000nm

11. Data Interface: USB2.0 (480 Mbit / sec)

12. Power: no external supply

13. Current: 200Ma

14. White Balance: Auto / Manual

15. The Automatic Exposure Control: AE

16. Software Functions: image display / Image Capture / Video

17. Applications: Micro Imaging / general image acquisition / macro imaging.

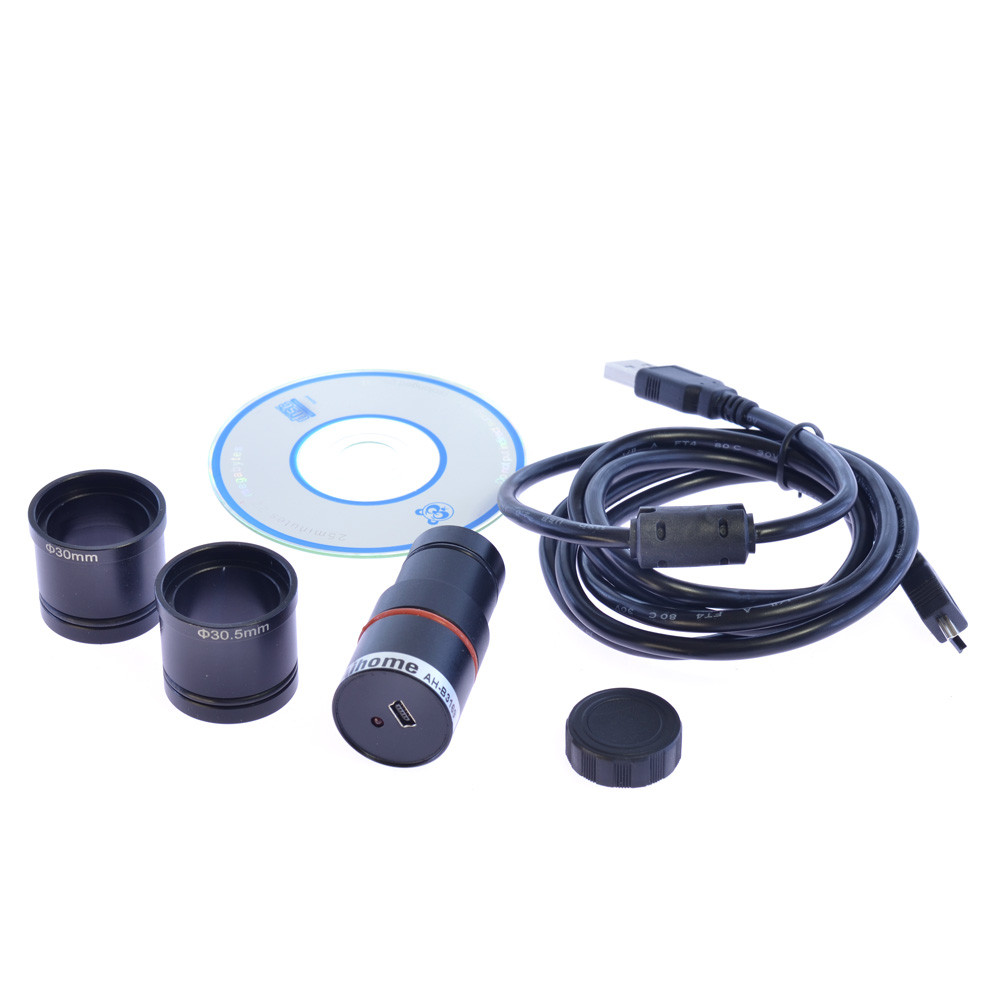

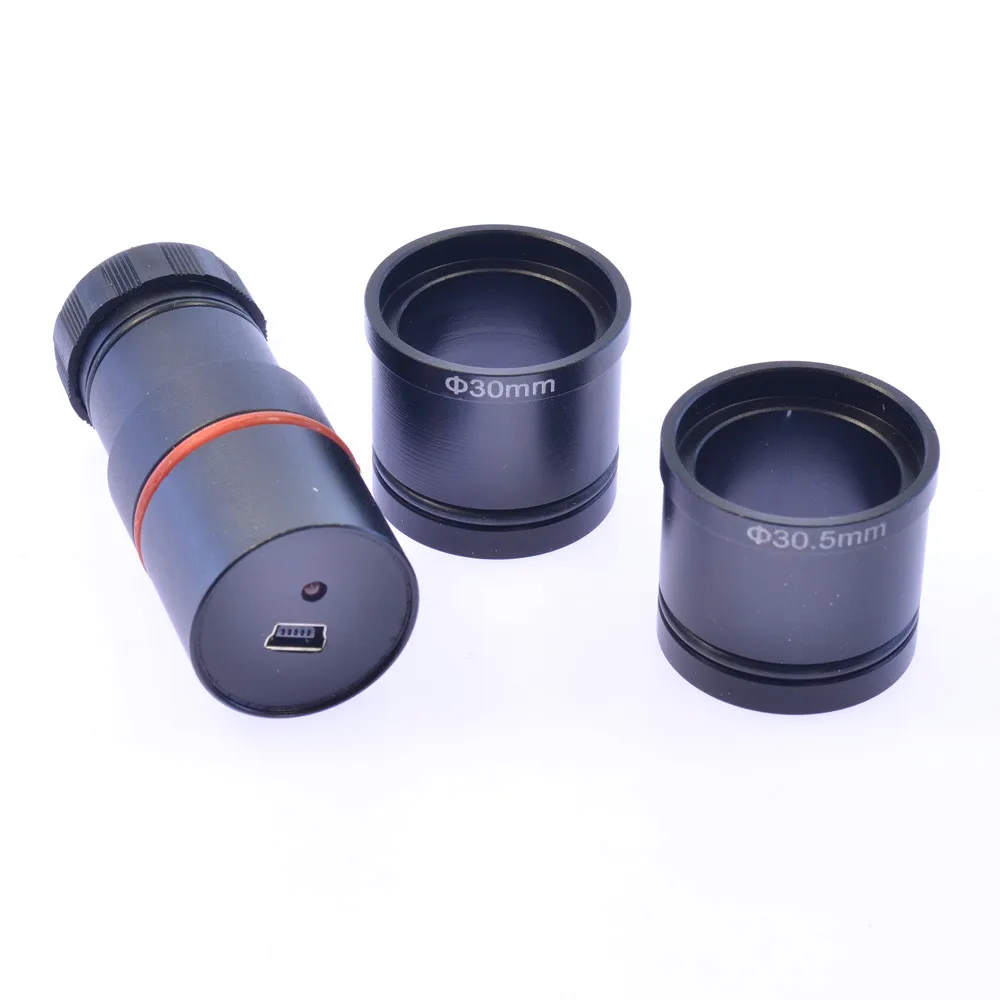

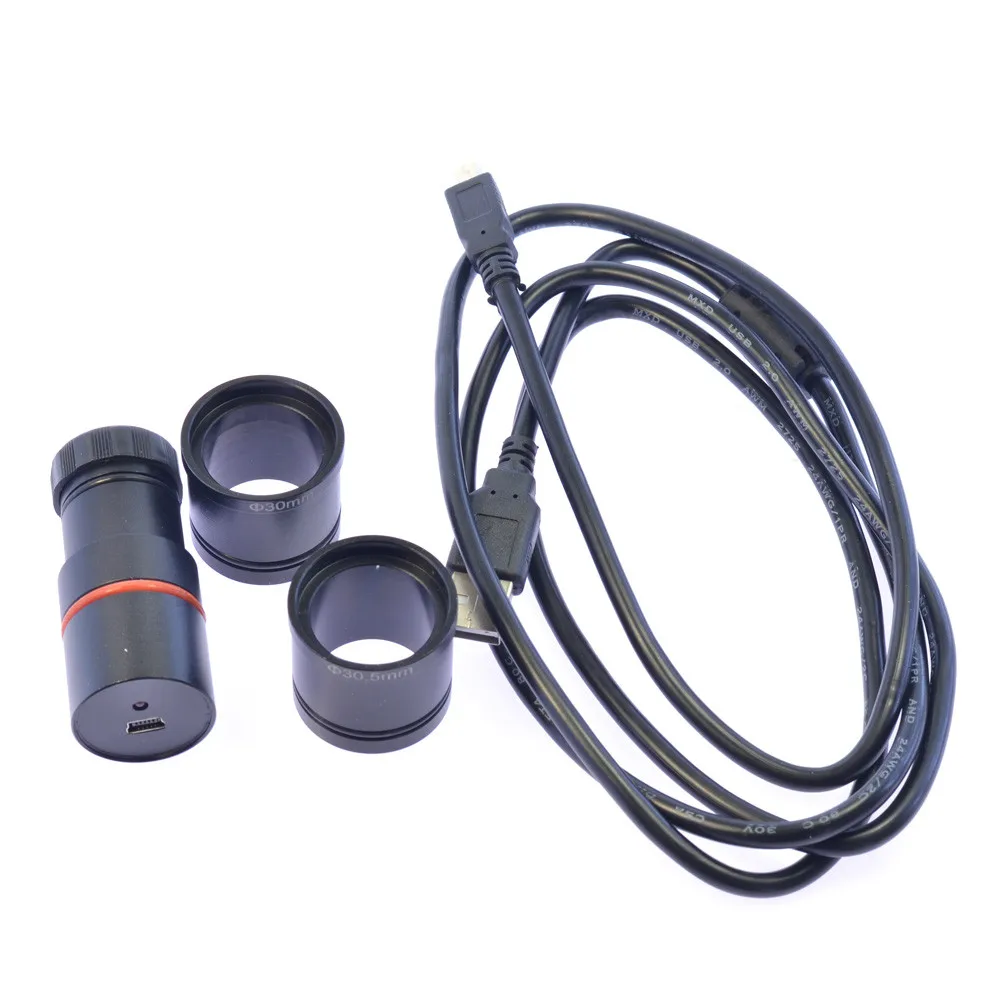

Packaging Including:

1 X 2.0 USB Eyepiece
1 X USB Line
1 X Software DISC
1 X 30mm Adapter Ring

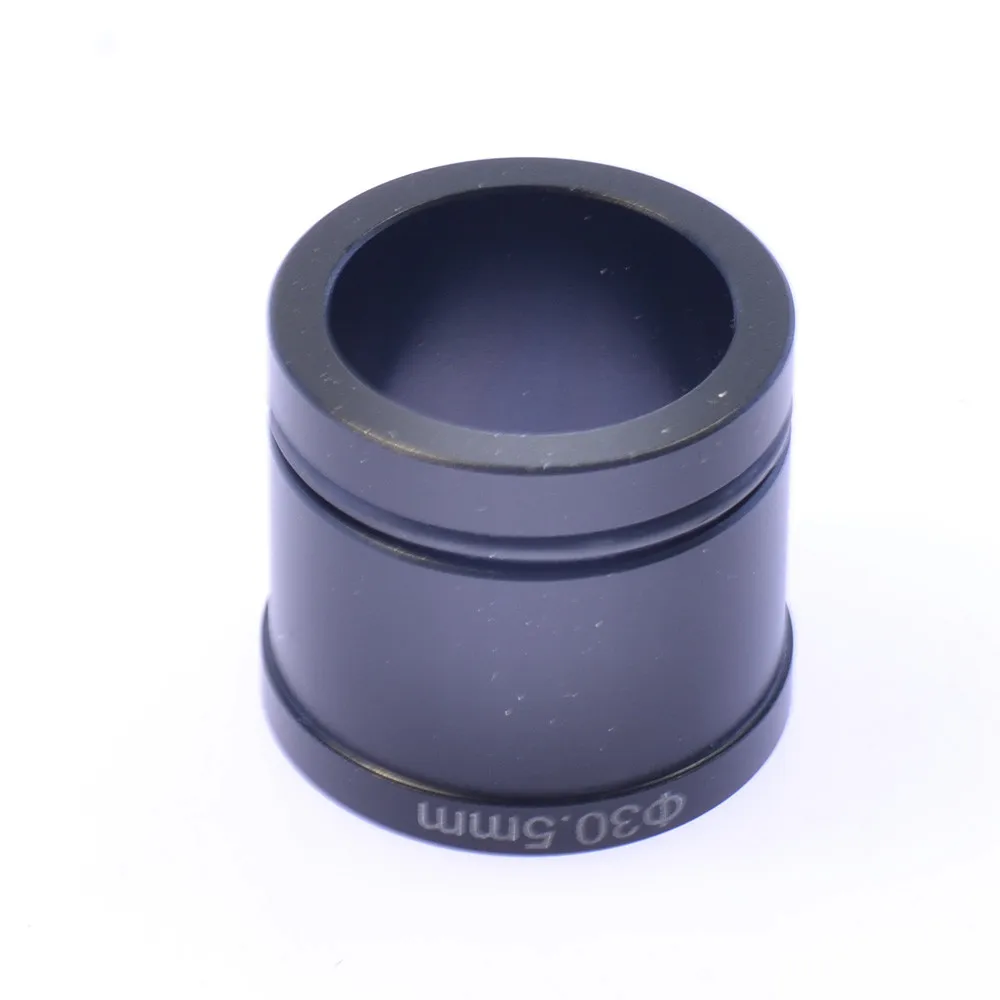

1 X 30.5mm Adapter Ring



DSC_8095DSC_8083DSC_8084DSC_8085DSC_8086DSC_8082
