Feature:

High Quality, High Resolution, Clear Images
800 lines Definition
CMOS
Certificate:CE,FC,RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative
Supply VGA or CVBS output ports.
We sell much to the industy factory, then the works can see the problems directly in the Monitor.


Specification:

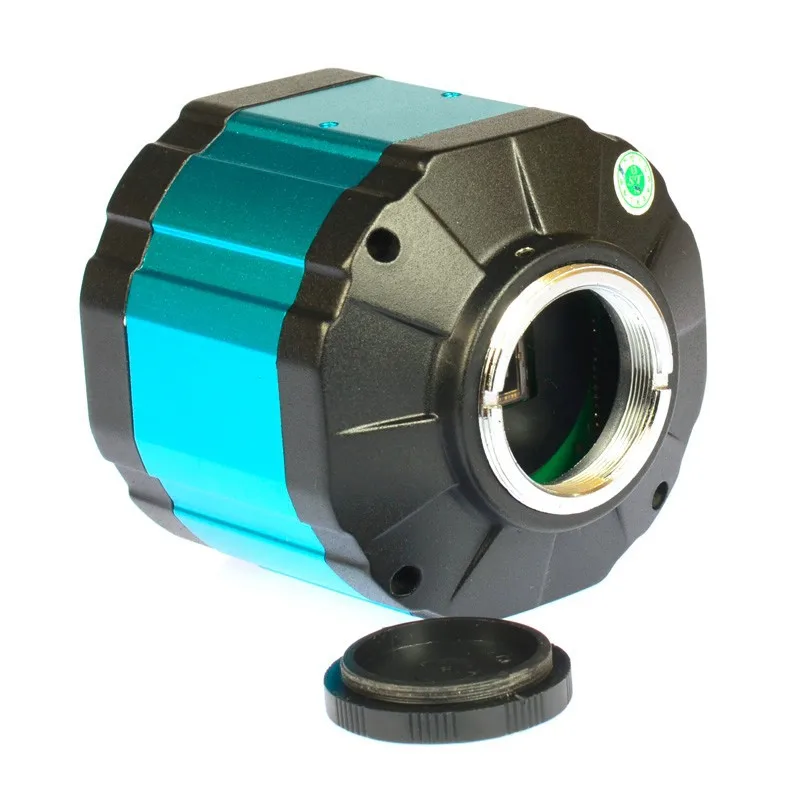

Model: Camera with VGA AV output
Sensor: 2.0mp,1/3 inch
Full Resolution: 1600X1200 (UXGA)
800 lines Definition
VGA output: 1024X768 60Hz,1280X1024 60Hz,1600X1200 60Hz
White Balance: Auto

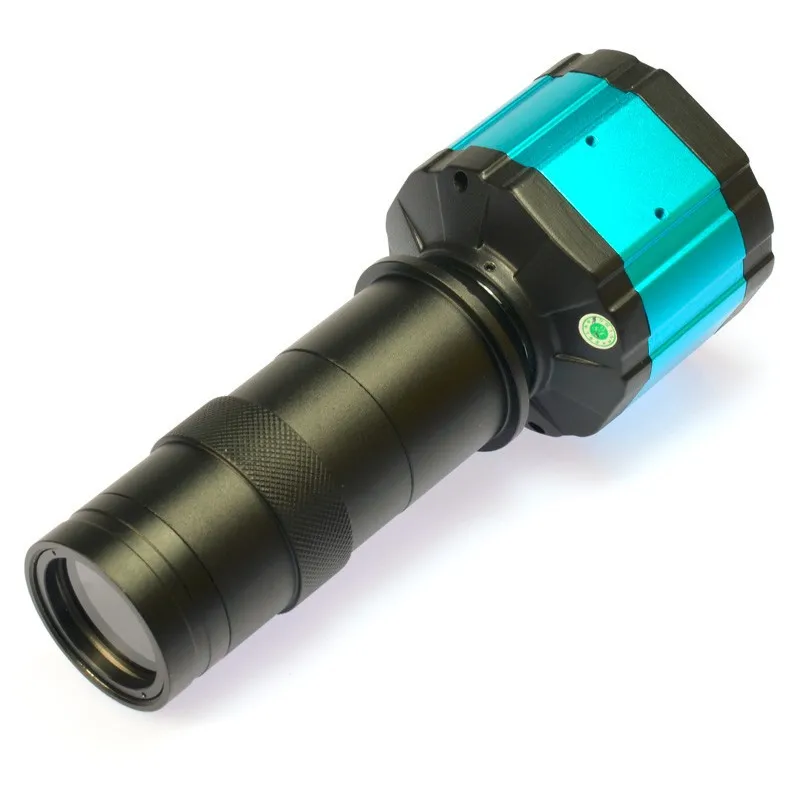

C-MOUNT Lens:
zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8X - 100X on the display)
Work distance: 55mm-130mm
Visual field :43mm-120mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g



40 LED Light:
40 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm

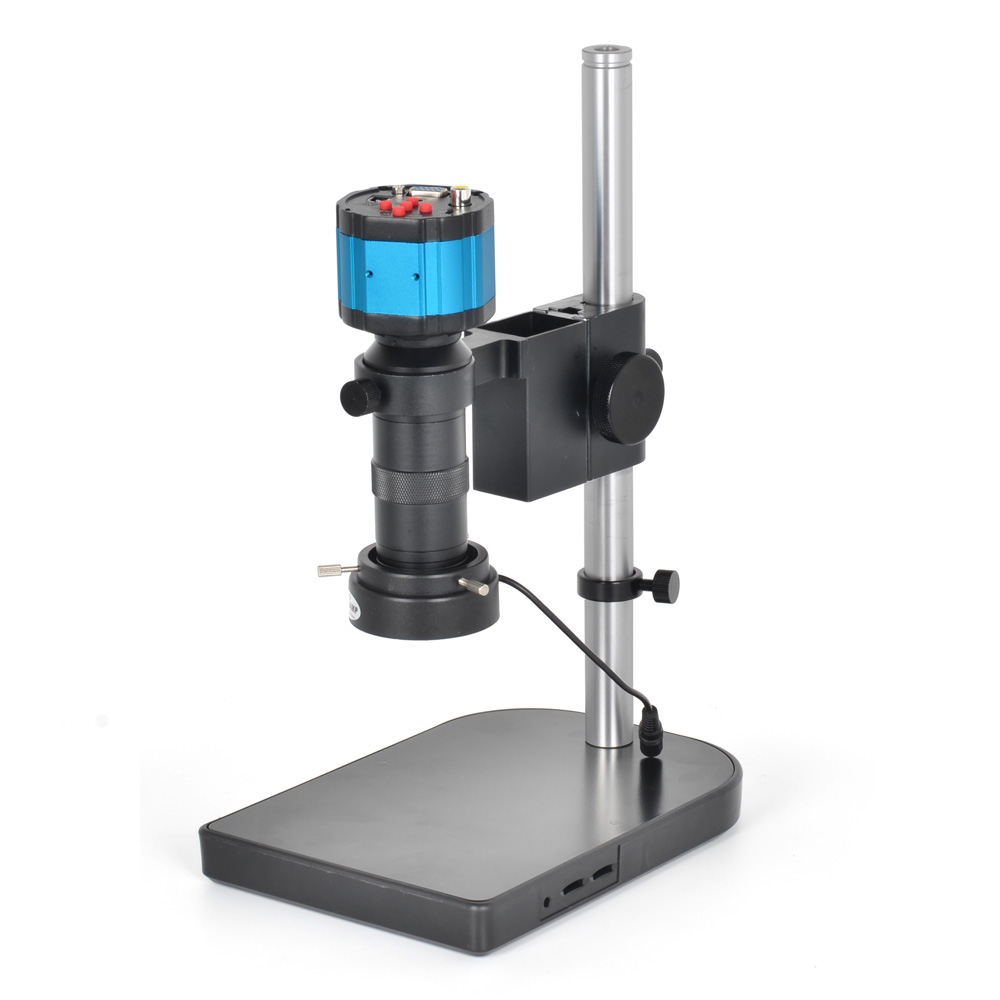

Package Content:

1 x Microscope Camera
1 x  Power Supply
1 x 100X Lens
1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
