Feature

Image format: JPG
Image resolution: 3072x1728 (for SD card) 1280 x720 @ 25FPS(for SD card)
Video format: MOV(for SD card)
Video recorder:
1920 x1080 @ 25FPS(for SD card)
1280 x1024 @ 25FPS(for SD card)
1280 x720 @ 25FPS(for SD card)
 1024 x768 @ 25FPS(for SD card)

High Quality, High Resolution, Clear Images

1080P VGA output

SD Card Video Recorder

1920x1080 FULL HD Panasonic Image sensor

1/2.86 inch sensor

1920*1080 pixels

The pixel size is 2.75x2.75um

All metal shell

Certificate: CE,FC,RoHS

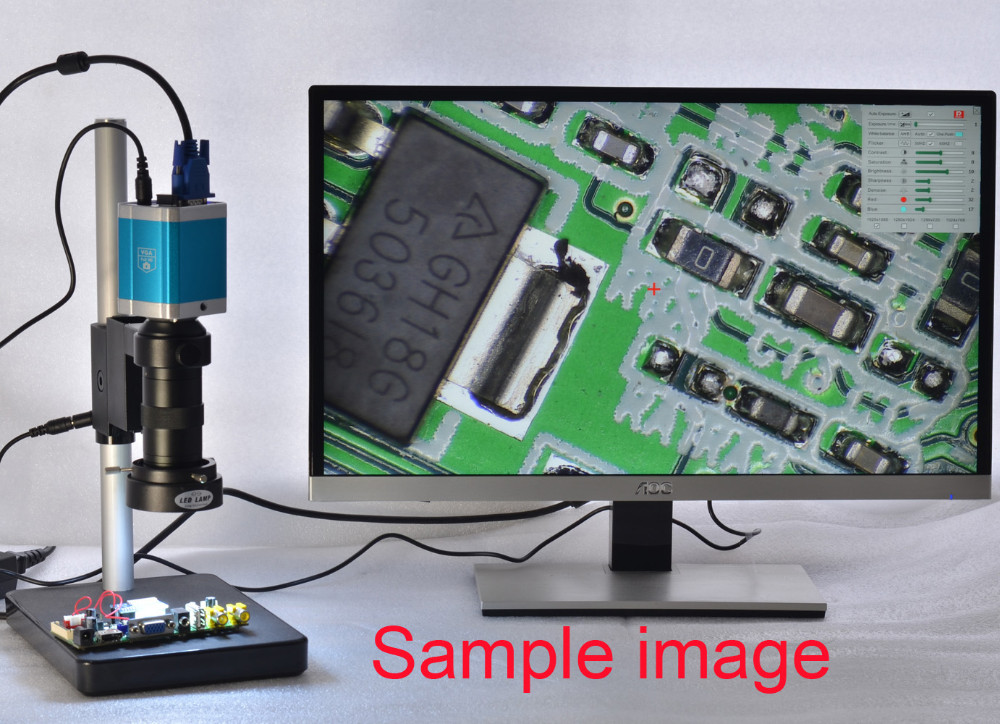

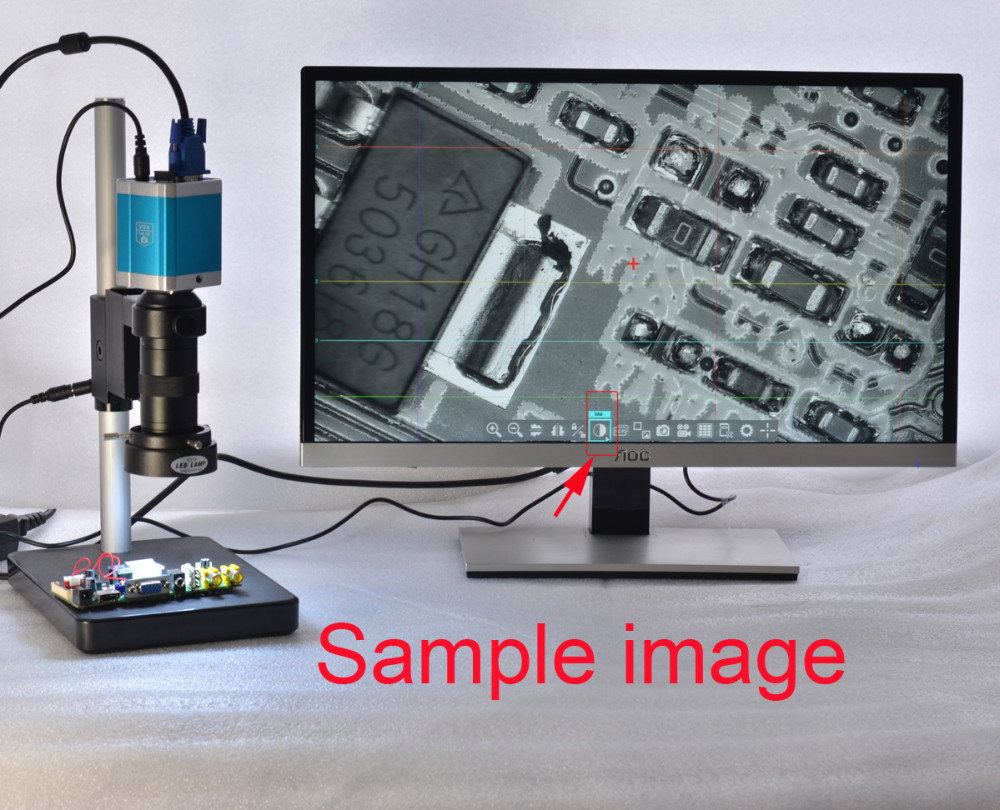

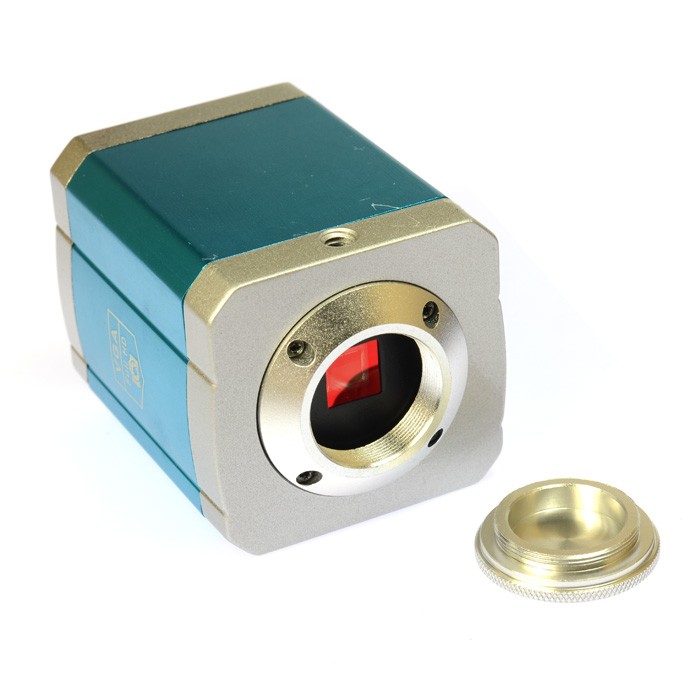

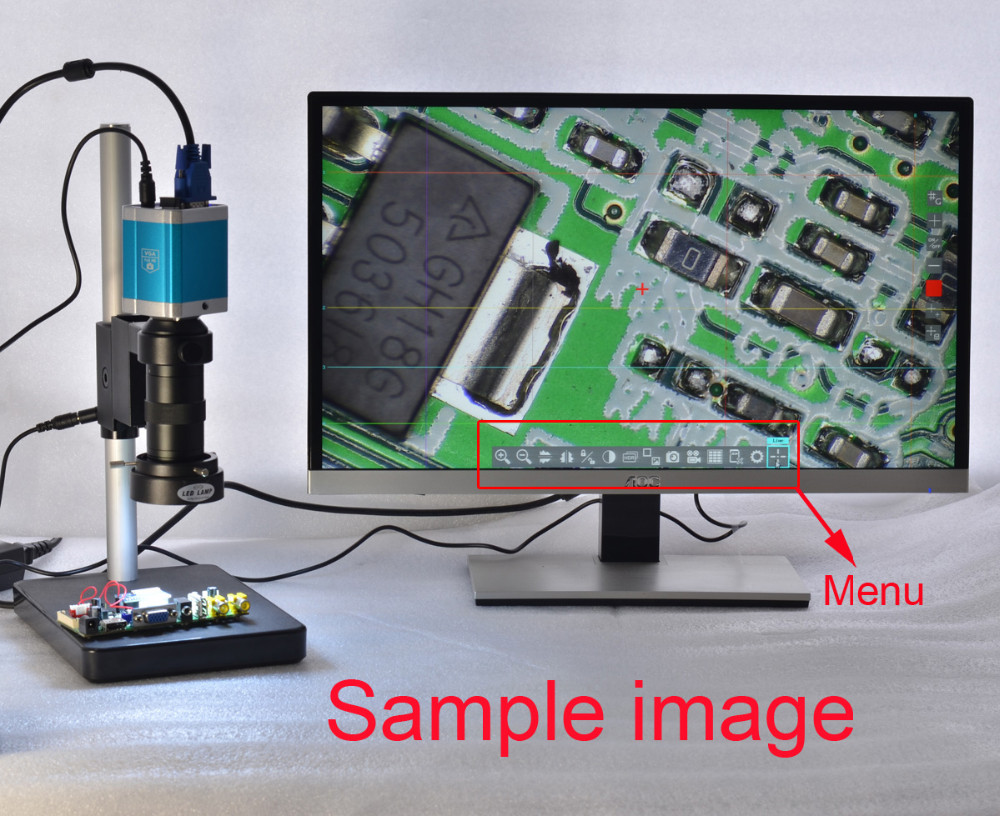

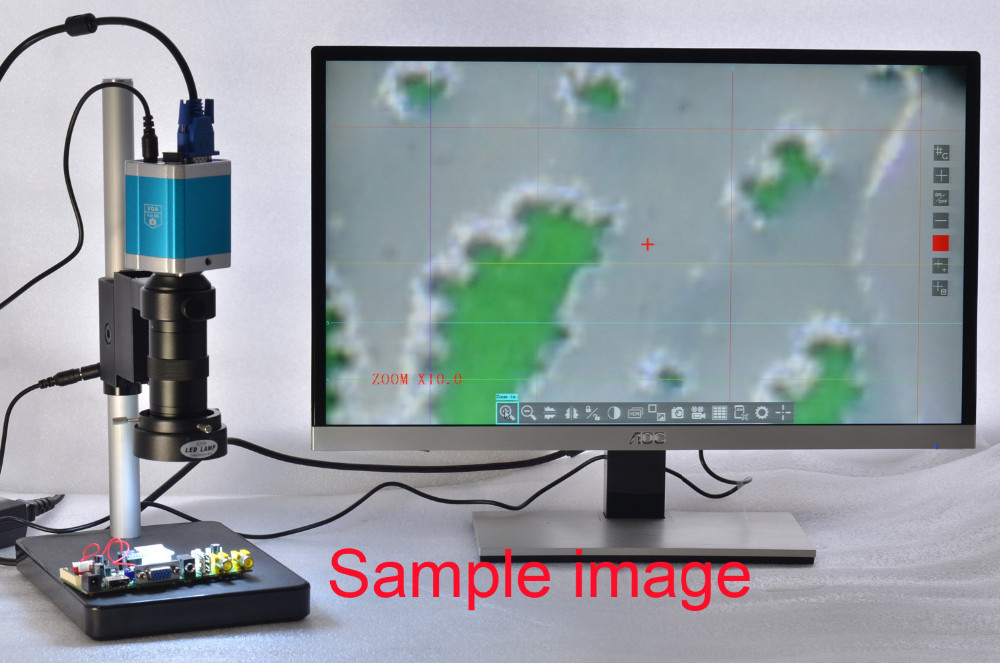

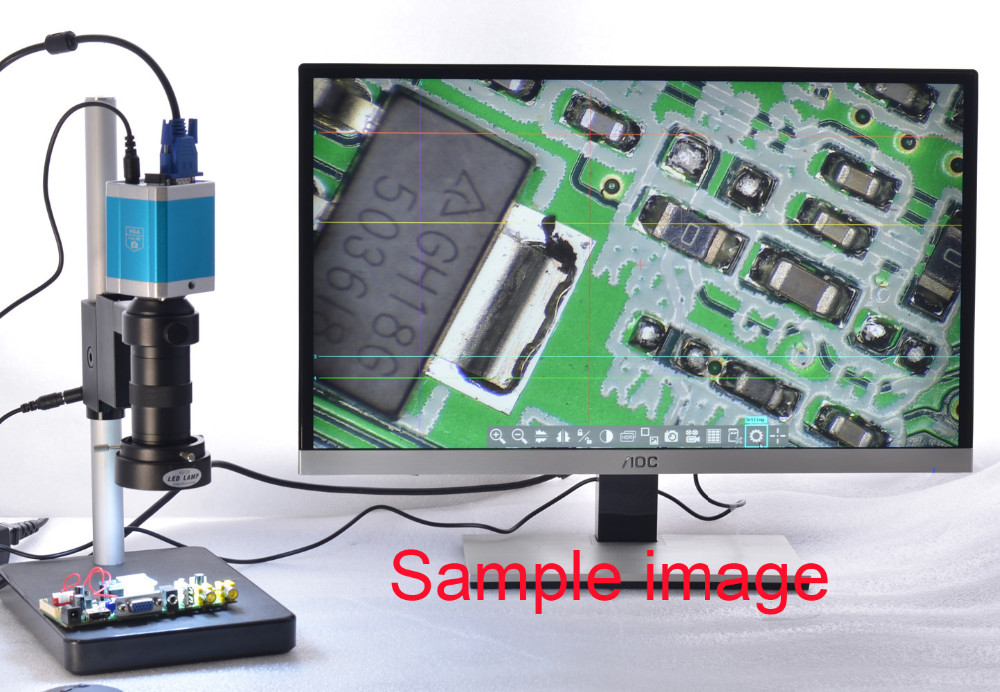

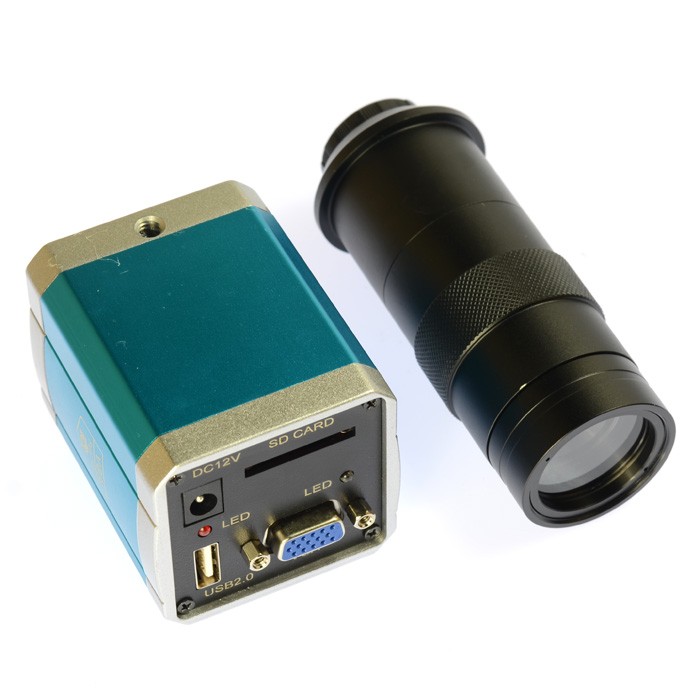

Industry CMOS Camera. It can Show the live image directly on any VGA monitor or Projector.

Supply VGA USB output ports.

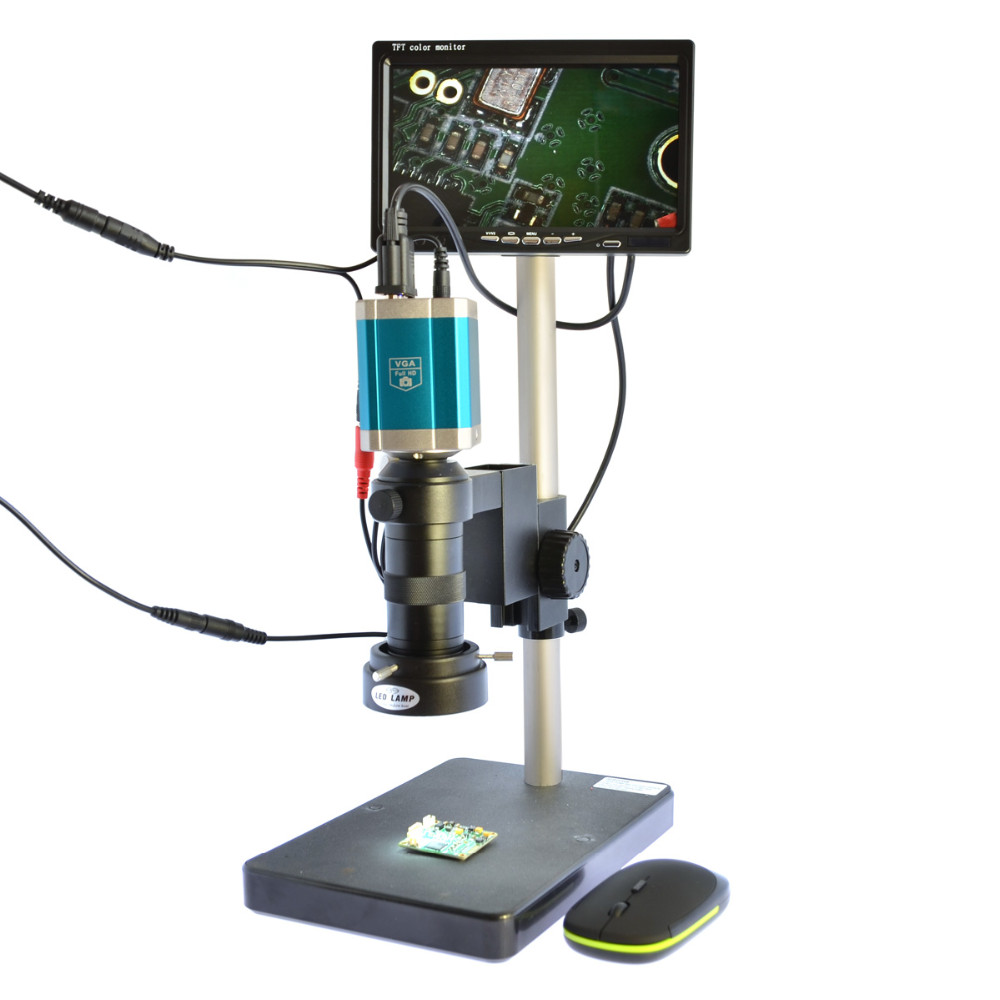

7 inch TFT-LCD monitor

1. Screen Size: 7 inch
2. Resolution:1024 (RGB)x 600Pixels
3. the color system: PAL / NTSC
4. Power supply voltage: 9 ~ 35V
5. Brightness: 400 Contrast Ratio: 400:1

6. Response time: 10/15 (Typ.)(Tr/Td) (ms)
7. Panel brightness: 350 cd/m2 (Typ.)

8. Display mode: TN

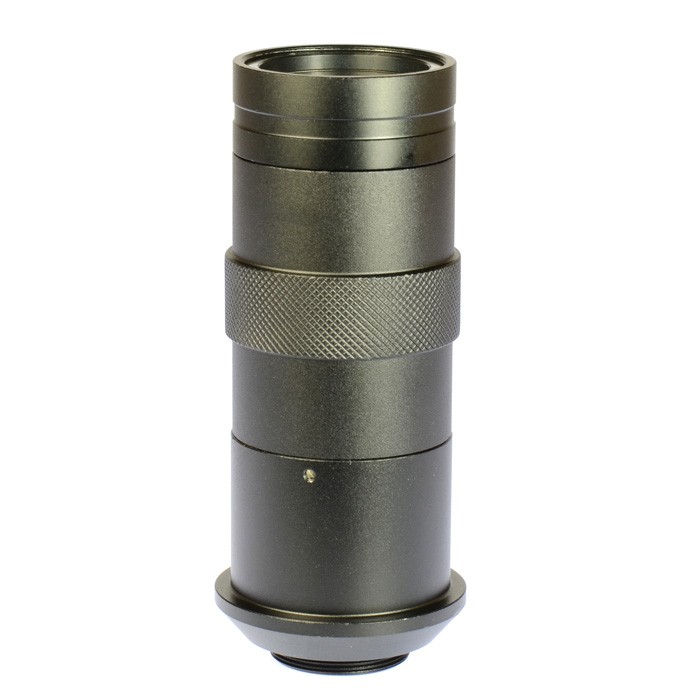

Zoom C-mount Lens

Magnification Power by 0.12 - 2X (about 8 - 100X on the display)

Work distance:55mm-130mm

Visual field :2.4mm-32mm

Size: 115mm(L) * 40mm(DIA)

Weight: 210g

40 LED Adjustable Compact Microscope Ring Light

Provides intense and focused shadow-free illumination

40 bright white LED bulbs

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-450mm

Camera Table Stand

With Dual Ring:42mm(diameter) ,23mm(diameter)

Large table stand for stereo microscopes

29cm microscope high pillar

Size: 22cm x 15.5cm x 33cm(height)

Item weight: 1200g

Material: Alloy Aluminum

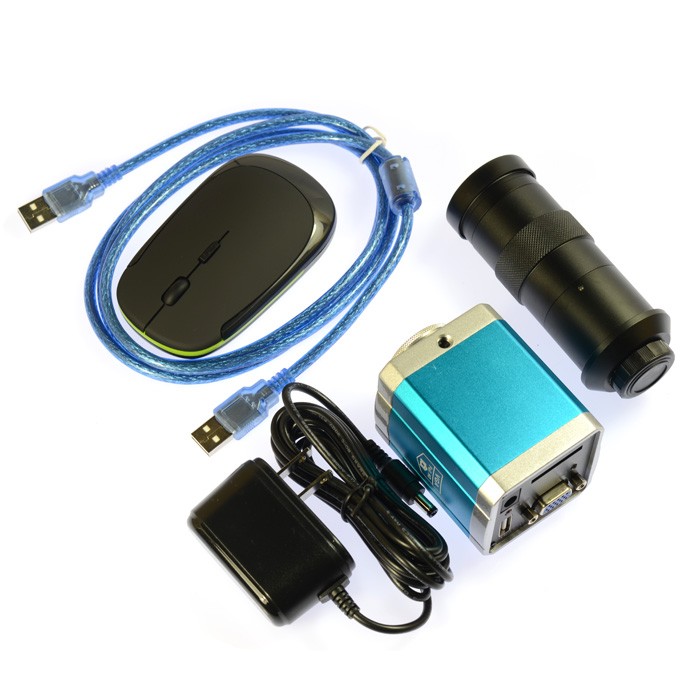

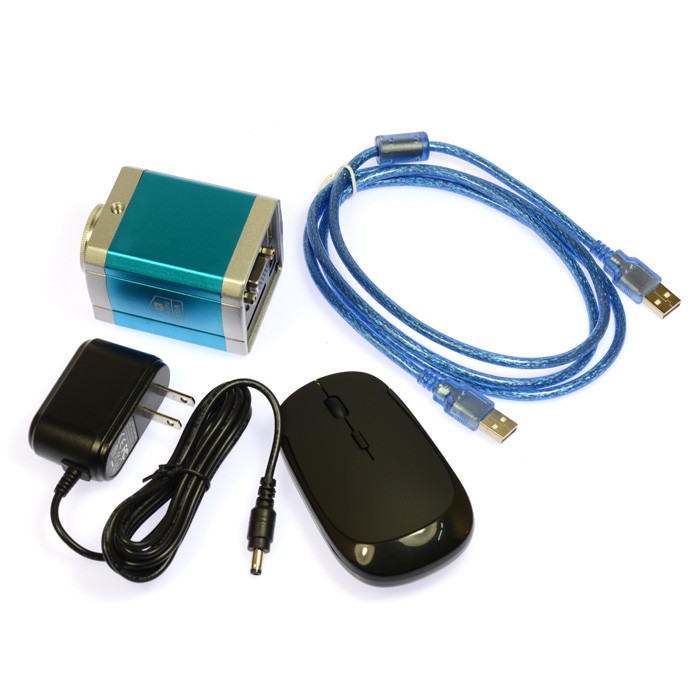

Packing include

1 x Industry Microscope Camera

1 x Wireless USB Mouse

1 x C-mount Lens

1 x 7" LCD Color Monitor

1 x Stand Holder

1 x 40-LED Ring Light with Power Adapter

1 x Power supply(100-240V)
