VGA Camera >> HD 2.0MP VGA AV 1080P Industry Lab Digital Inspection Microscope Camera + 180X C-MOUNT Zoom Lens
View Larger Image
Share your images of this product

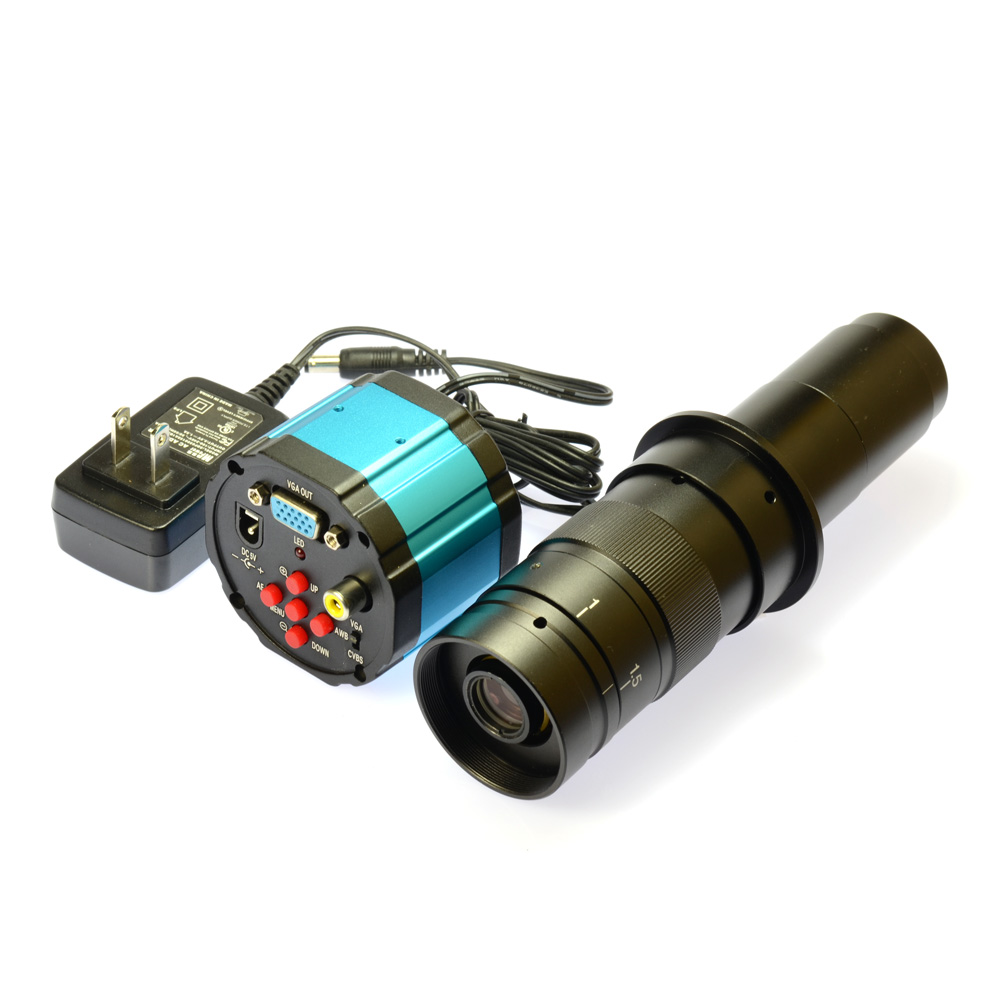

HD 2.0MP VGA AV 1080P Industry Lab Digital Inspection Microscope Camera + 180X C-MOUNT Zoom Lens
Price : US $ 999.00 999.00

SKU : 1801271817
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Features:


mage sensor

2.0Megapixel 1/3 inch

Effective pixel

1600x1200

Frame rate

20FPS

Definition

Max over 800 line(Horizontal)

Housing

Standard iron housing or custom

Lens

CS for test, custom provide

White balance

Auto/manual

Brightness control

Auto

Color

Color/grayscale

Freeze

Support

OSD

English/Chinese

Image digital zoom

Support 10 times digital zoom

Image contrast

Support static and dynamic pictures 1/2 screen contrast

Transverse and vertical line

Support multi-color, 2 pcs of transverse lines/vertical lines, moveable

Digital SNR

Support

Edge enhancement

Support

Contrast

Support

Color scale

Support

Cross cursor

Support multi-color

VGA(RGB)

720P/1024x768/1280x1024/1366x768/1600X1200@HZ

AV interface

 Cvbs output NTSC and pal format


Specification:

Model: Camera with VGA AV output
Sensor: 2.0mp,1/3 inch
Full Resolution: 1600X1200 (UXGA)
VGA output: 1024X768 60Hz,1280X1024 60Hz,1600X1200 60Hz
White Balance: Auto

C-MOUNT Lens:

Working distance: 95mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)
Weight: 450g

Package incluede:

1 x VGA VA Camera Body
1 x 180X Industry Zoom C-mount Lens
1 x 100V-240V Power Supply


Microscope_DSC_4944DSC_4954DSC_4945DSC_3825DSC_1857DSC_1044

DSC_48481DSC_5085





Microscope_Camera_Hayear_2308_2Microscope_Camera_Hayear_2308_1Microscope_Camera_Hayear_DSC_3
