Feature:

High Quality, High Resolution, Clear Images
800 lines Definition
CMOS
Certificate:CE,FC,RoHS

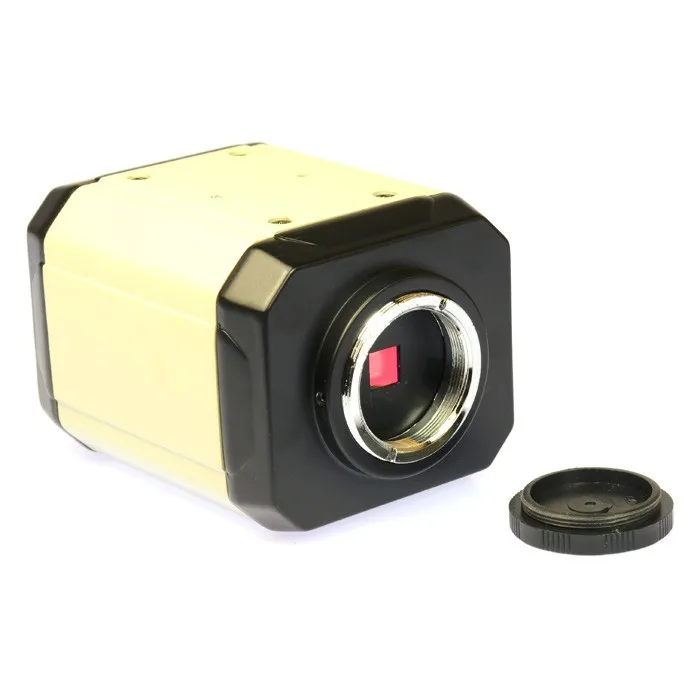

Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
It build in digital crosshairs and color control,add line in the pictures,freeze,Mirror,Rotate, Negative,Compare function
Supply USB2.0, VGA, CVBS three output ports.
Supply USB2.0 + VGA or USB2.0+CVBS output at the same time.
We sell much to the industy factory, then the works can see the problems directly in the Monitor.

Specification:

Model: Camera with VGA AV USB2.0 three output
Sensor: 2.0mp,1/3 inch
Full Resolution: 1600X1200 (UXGA)
800 lines Definition
Frame rate: 10-15(USB2.0)
720P/1024x768/1280x1024/1366x768@60HZ
White Balance: Auto
Light: Auto
Color: Color/B&W
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Picture compare: Captured picture dynamic video 1/2 screen compare
Contrast: Support
Saturation: Support
Cross cursor: Support,different color
Line: different color,2 horizontal line
2 vertical line,any positions
Digital Noise reducer: Support
VGA(RGB): 720P/1024x768/1280x1024/1366x768@60HZ
USB2.0

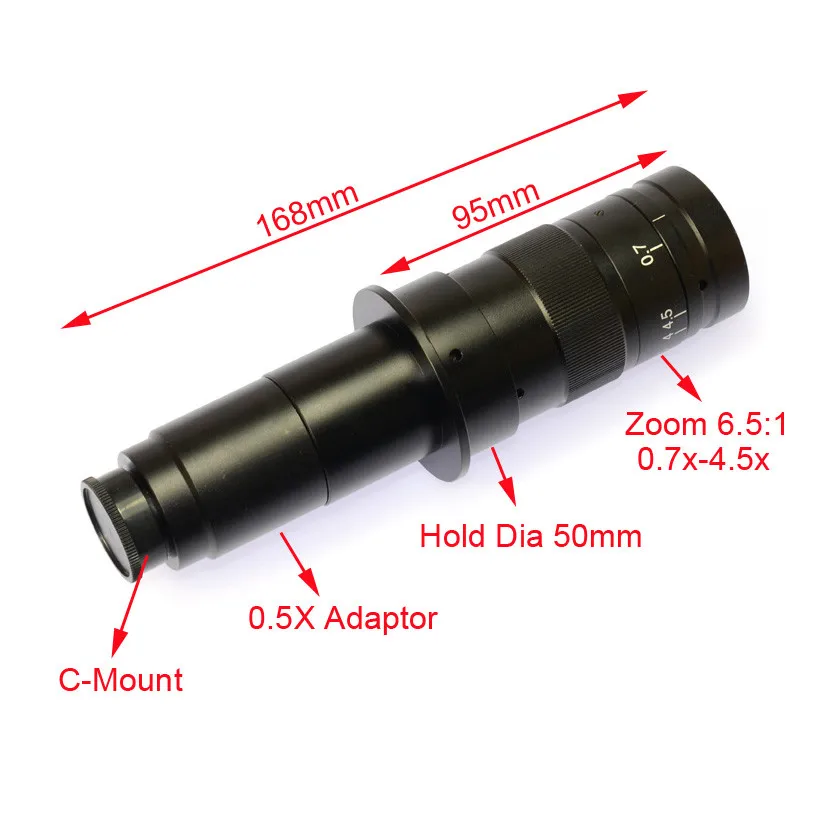

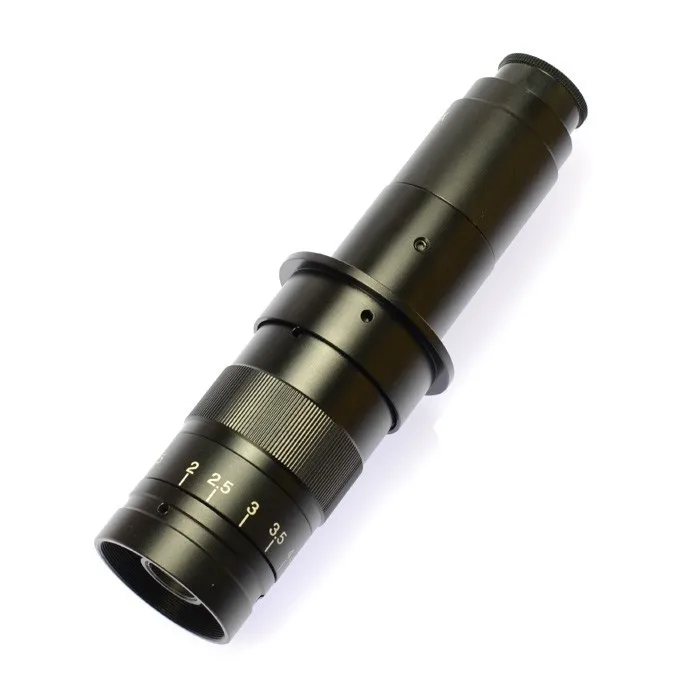

C-MOUNT Lens:

Working distance: 95mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g

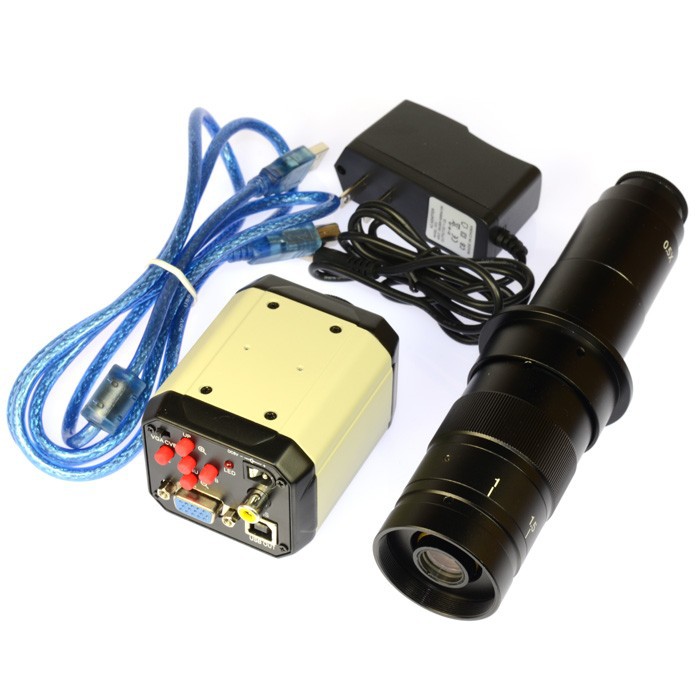

Packing including:

1 x Microscope Camera
1 x 180X C-MOUNT Lens
1 x Power Supply
1 x USB Line
1 x Software DISC
