VGA Camera >> 2.0MP VGA AV Industry Digital Microscope Camera+180X Zoon C-MOUNT Lens+Big Stand Universal Bracket+144 LED Light for Lab
View Larger Image
Share your images of this product

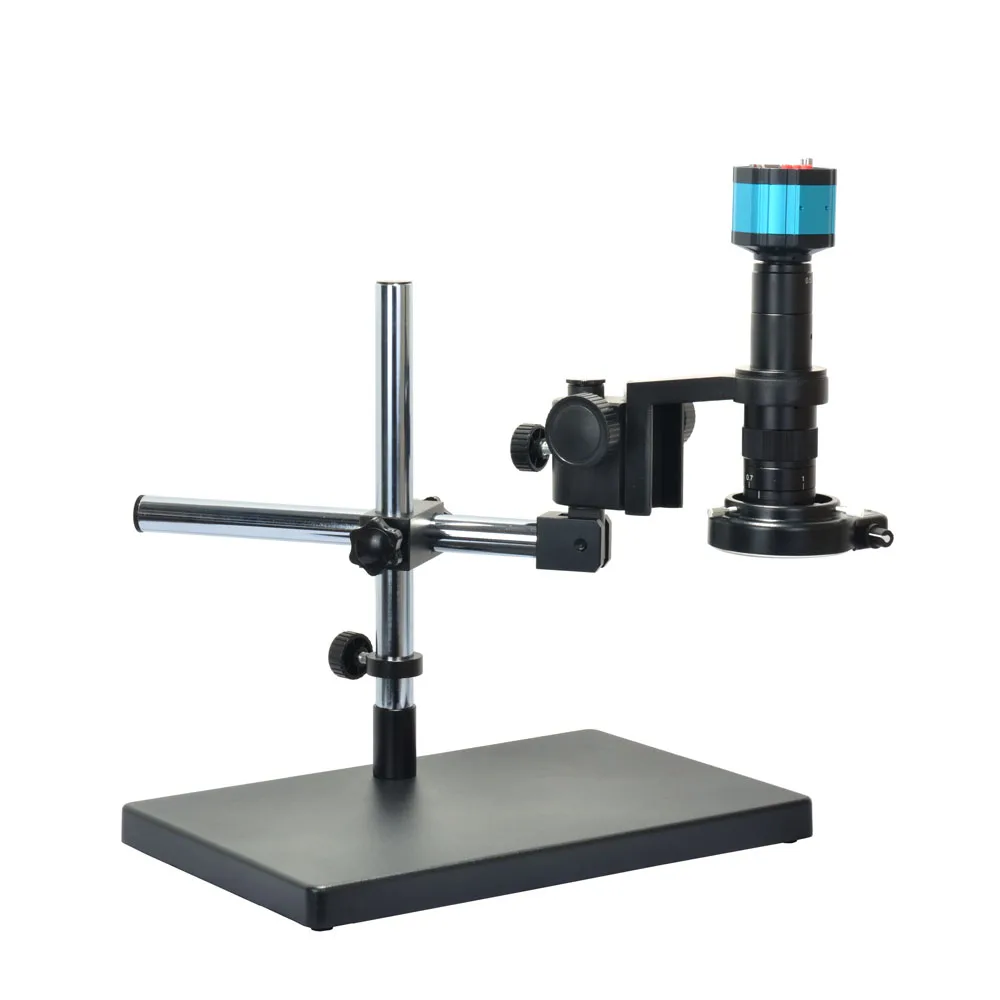

2.0MP VGA AV Industry Digital Microscope Camera+180X Zoon C-MOUNT Lens+Big Stand Universal Bracket+144 LED Light for Lab
Price : US $ 999.00 999.00

SKU : 1801273734
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Feature:

High Quality, High Resolution, Clear Image
Japan CMOS
Certificate:CE,FC,RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative
Supply VGA or CVBS output ports.

We sell much to the industy factory, then the works can see the problems directly in the Monitor.



Specification:

Model: Camera with VGA AV output
Sensor: 2.0mp,1/3 inch
Full Resolution: 1600X1200 (UXGA)
800 lines Definition
VGA output: 1024X768 60Hz,1280X1024 60Hz,1600X1200 60Hz
White Balance: Auto
Red and Blue color is available for this camera

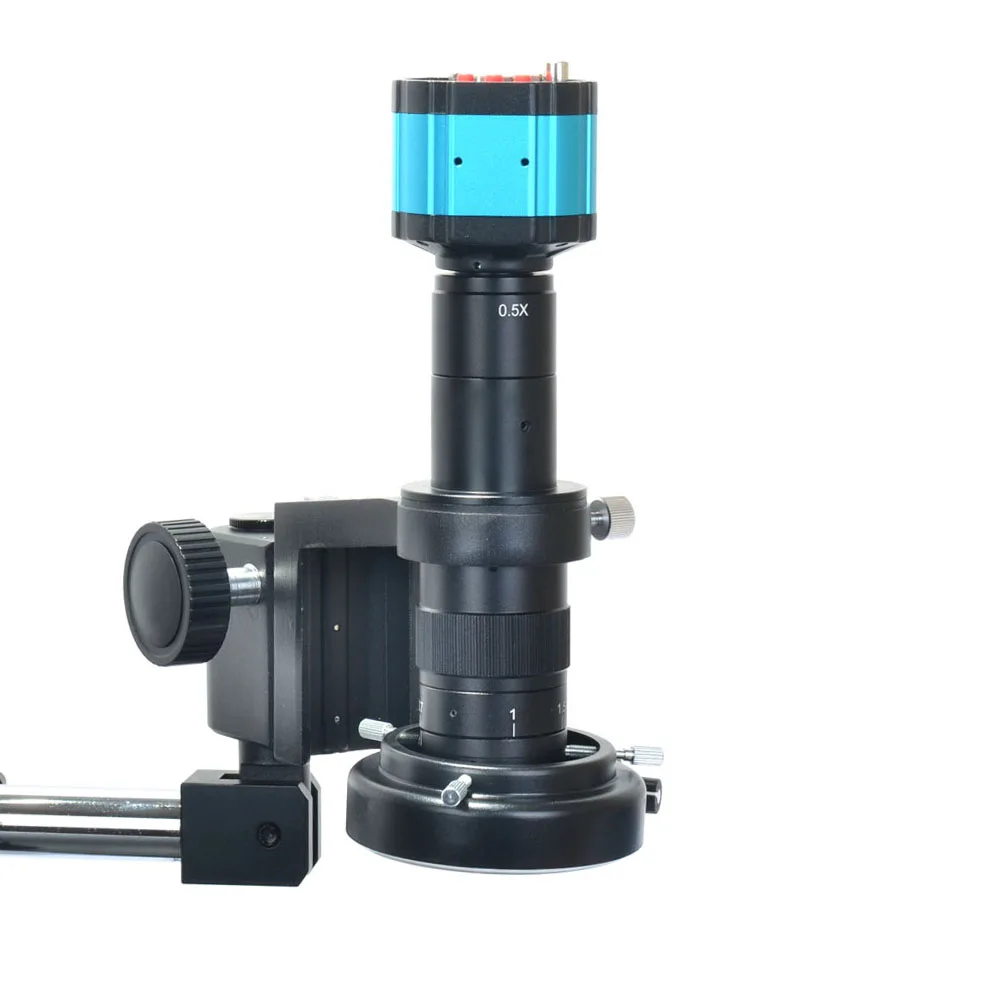

 C-MOUNT Lens:

Working distance: 95-125mm

zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 180mm(L) * 50mm(DIA)

Weight: 500g



144 Bulbs Microscope LED Ring Light:

144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm


Camera Table Stand
Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Weight: about 4kg


Packing Including:
1 x Industry Microscope Camera
1 x 180X C-mount Lens
1 x Big Stand Universal bracket Stand Holder
1 x 144-LED Ring Light with Power Adapter
1 x Power Supply(100-240V)
DSC_3890DSC_3859DSC_3817Microscope_DSC_4716




DSC_7506DSC_48481
DSC_3746
DSC_7993
