Features:

High Quality, High Resolution, Clear Images

900TV-Lines Definition

Japan CMOS

Certificate: CE,FC,RoHS

Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.

Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative

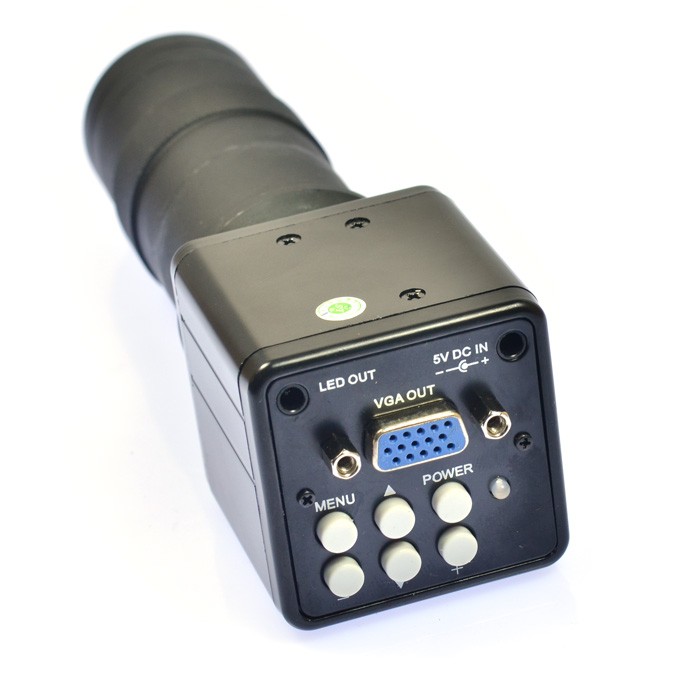

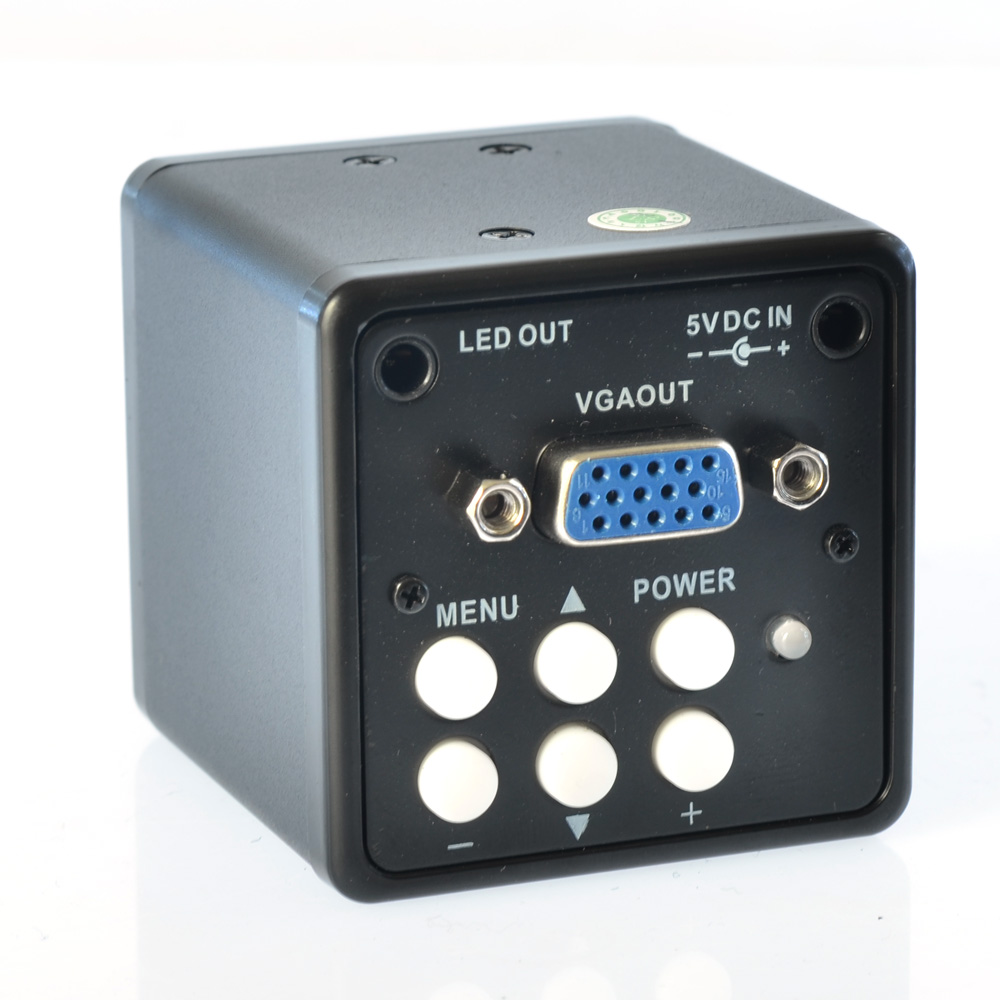

Supply VGA or CVBS output ports.

We sell much to the industry factory, then the works can see the problems directly in the Monitor.

Specification:

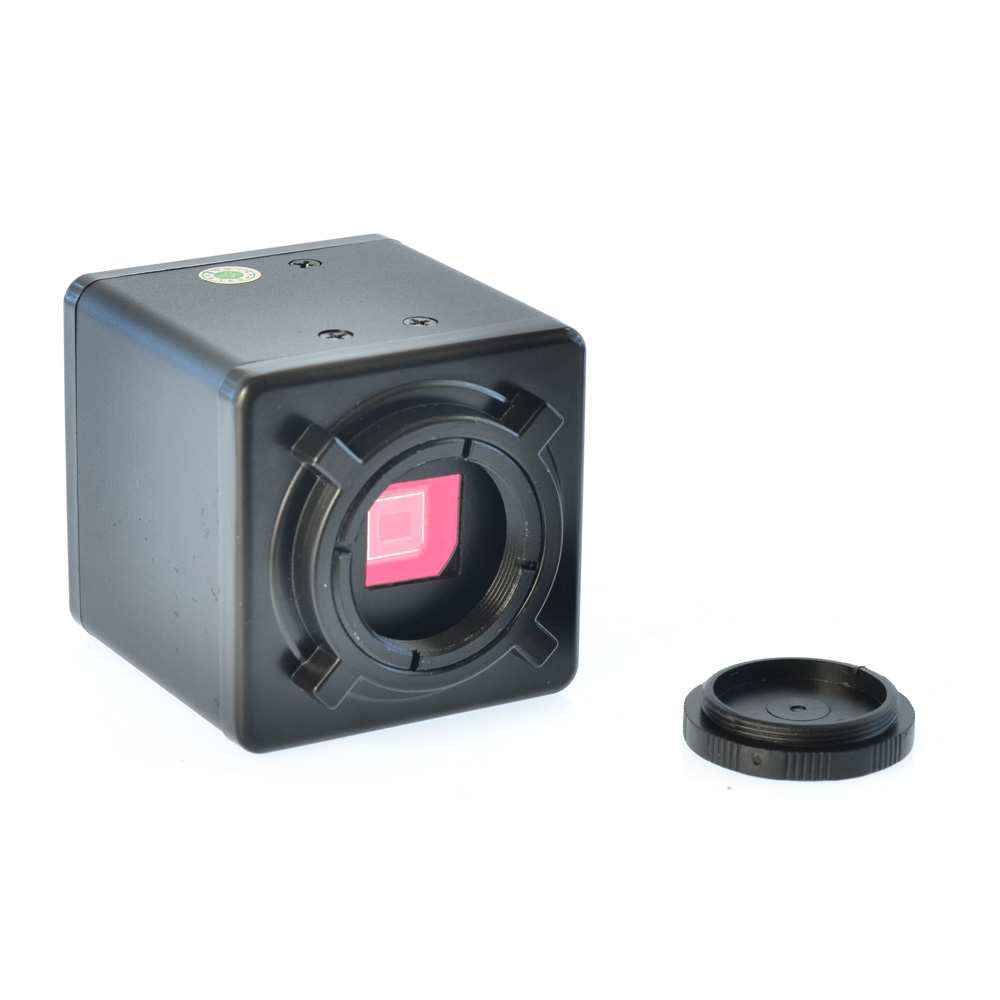

Model: Camera with VGA AV output

Sensor: 2.0MP

Full Resolution: 1920X1080 (UXGA)

800 lines Definition

VGA output: 800X600 60Hz,1024X768 60Hz,1280X1024 60Hz,1366x768 60Hz,1440x900 60Hz, 1600X1200 60Hz,1920x1080 60Hz.

White Balance: Auto

Lens Mount: CS

Power input: DC5V 1A

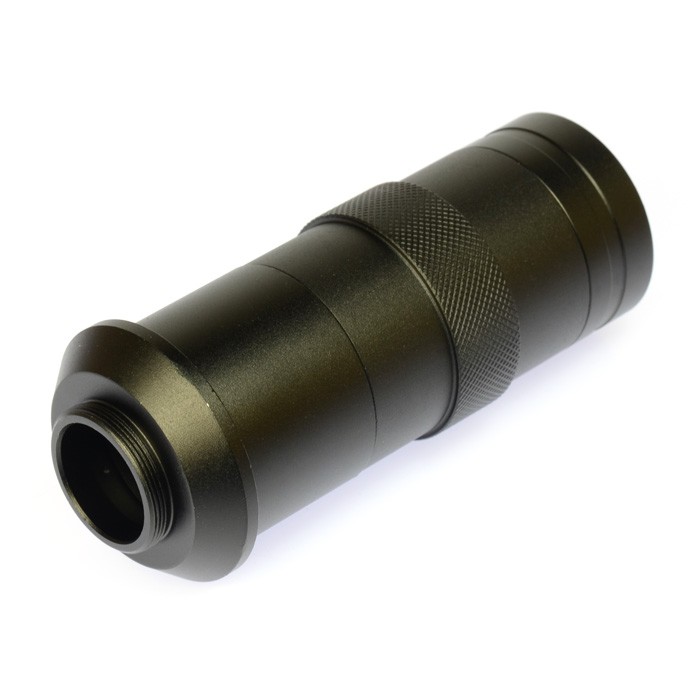

C-MOUNT Lens:

zoom c-mount Lens

Magnification Power by 0.12 - 2X (about 8 - 100X on the display)

Work distance:55mm-130mm

Visual field :2.4mm-32mm

Size: 115mm(L) x 40mm(DIA)

Weight: 210g

Package include:

1 x Microscope Camera Body

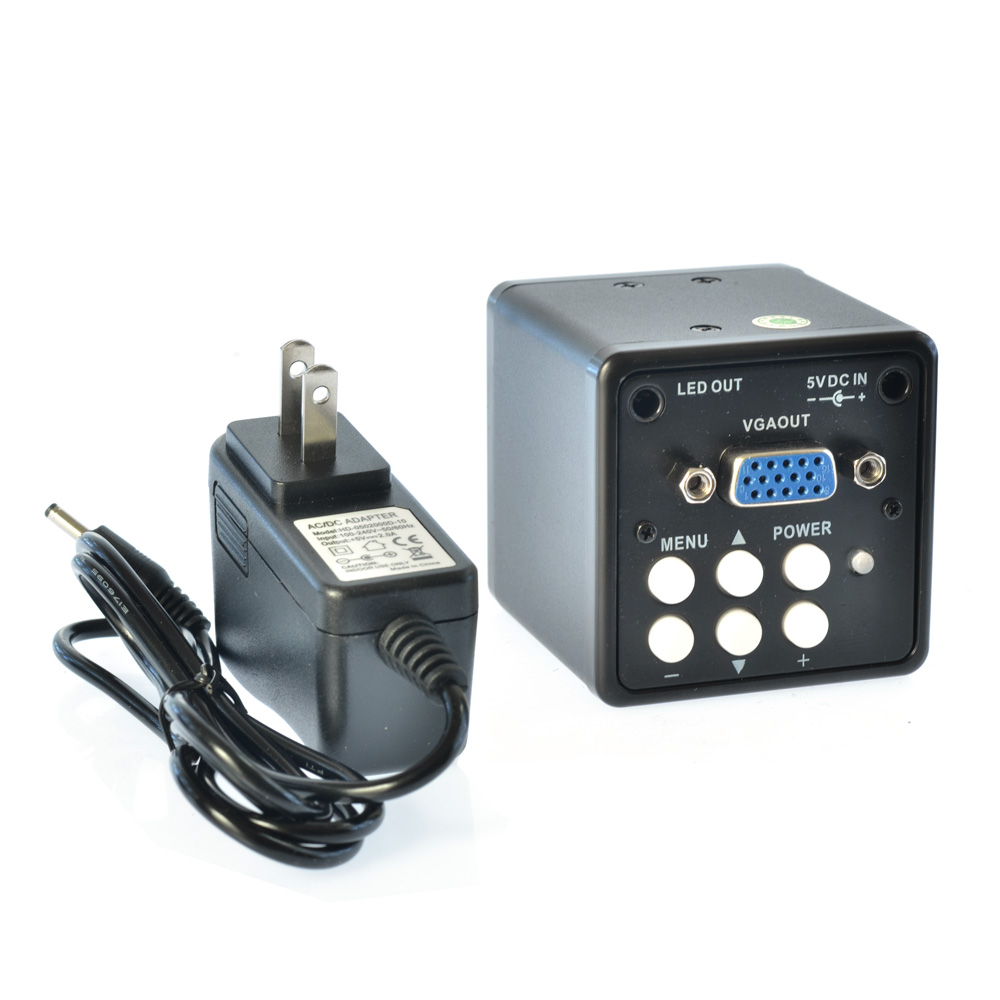

1 x 100V-240V power supply

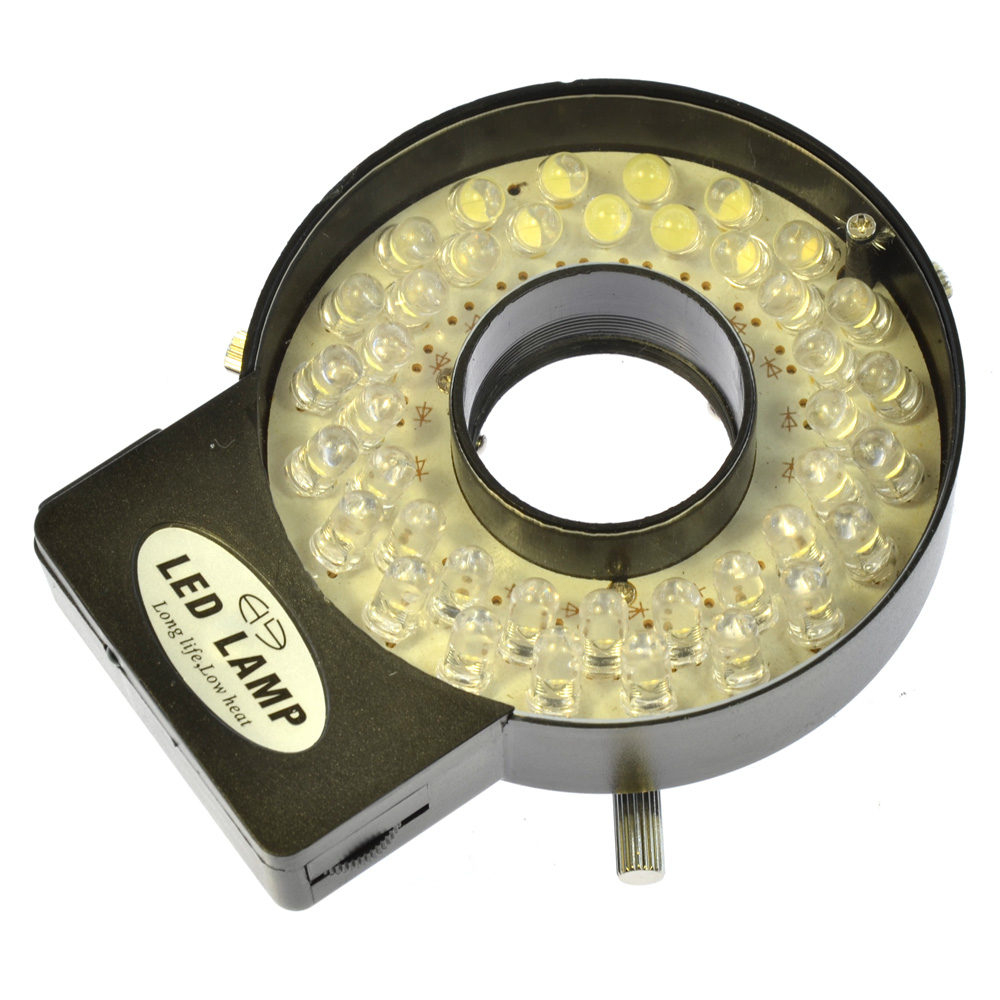

1 x 144-LED Ring Light

1 x  LED  Power Adapter

1 x 100X  Industry Zoom C-mount Lens
