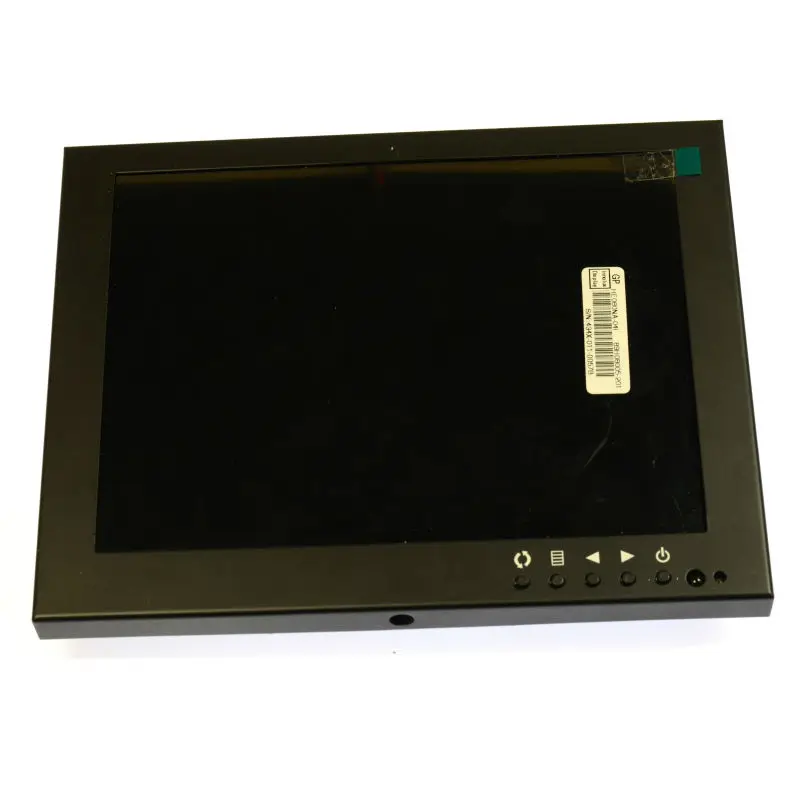

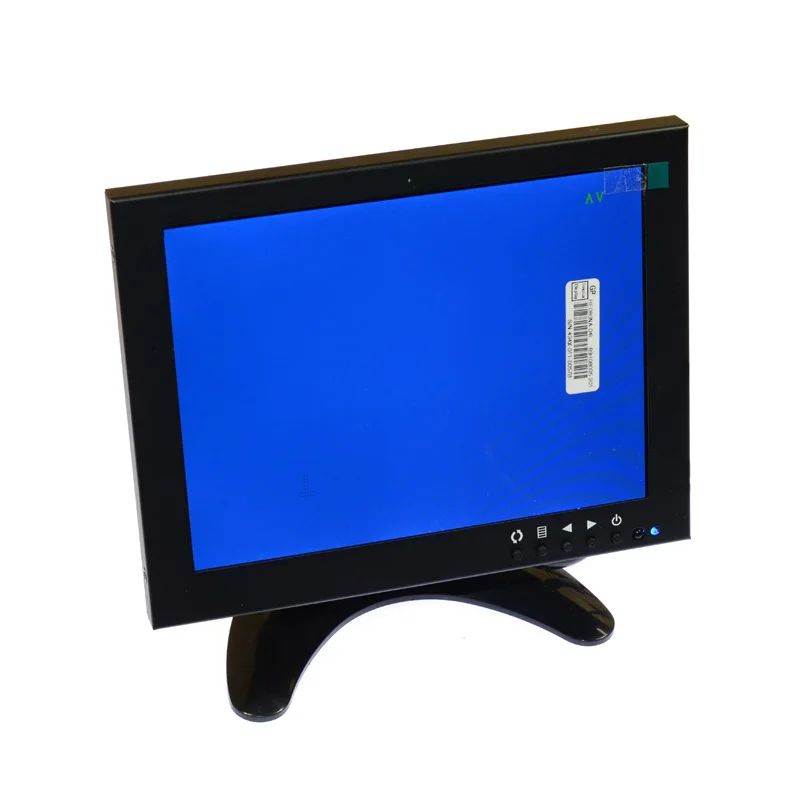

Display Type
|
4:3 wide 8 inch Active Matrix TFT LED
|
|
Colors
|
16.7 million
|
|
Brightness
|
4000 cd/m2
|
|
Contrast Ratio
|
400:1
|
|
Active Display Area
|
152.4(H) X 91.44(V) mm
|
|
Resolution
|
1024x768
|
|
Sychronization Range
|
30-80 KHz horizontal, 55-75 Hz Vertical
|
|
Viewing Angle
|
(left/right):170° (85°/85°),(up/down): 160° (70°/90°)
|
|
Pixel Pitch
|
0.264(W) X 0.264(H) mm
|
|
Pixel Response Time
|
8ms
|
|

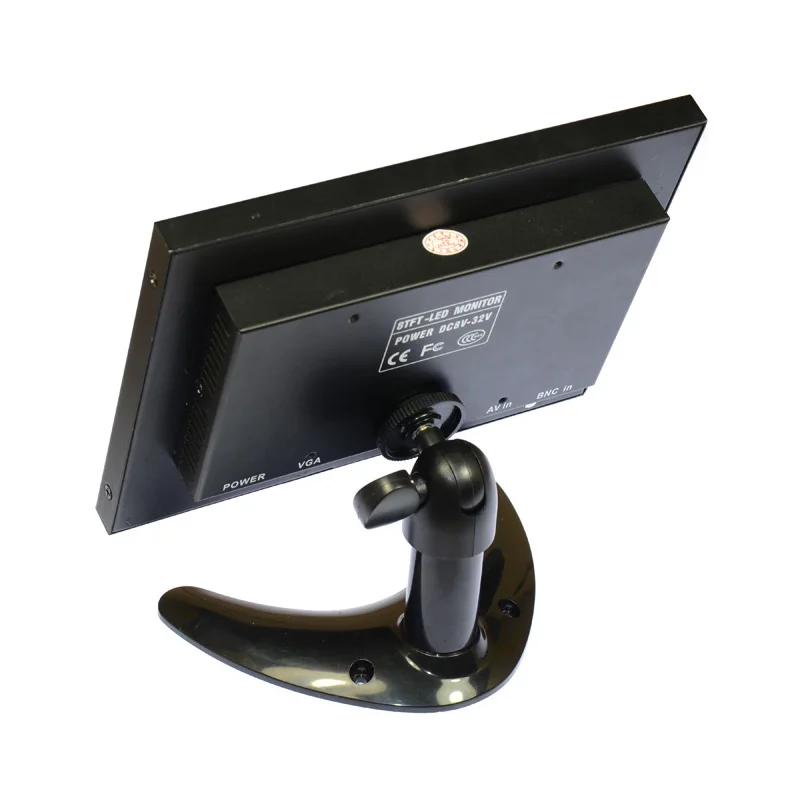

Mounting
|
VESA DDC 1/2B ,75*75mm
|
|
OSD
|
Remote OSD
|
|
OS
|
DOS/Windows 9X ME 2K XP 7 Vista NT CE / LINUX / Mac,etc
|
|
LED Backlight life Hrs
|
50,000
|
|

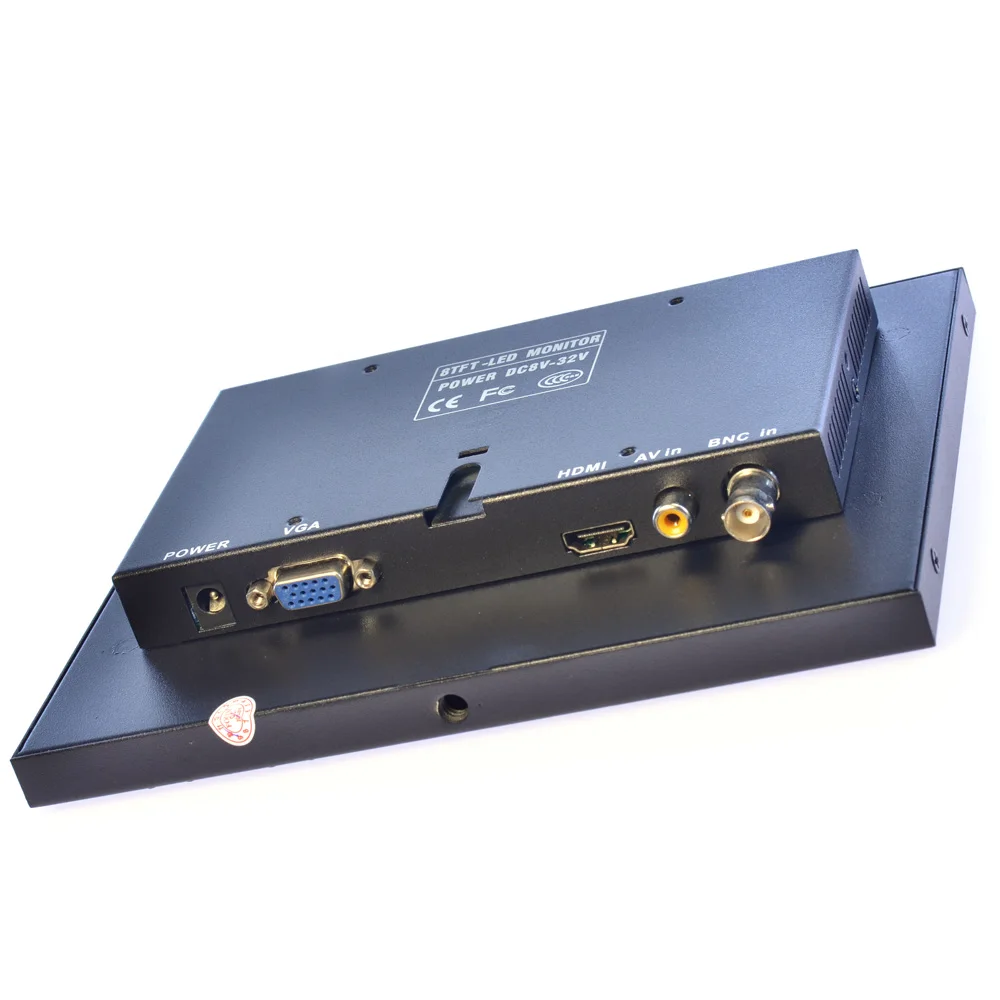

Input Video Format
|
1080P HDMI / VGA (15 pin D-SUB RGB) and Two RCA/BNC video
|
|
Audio Input
|
Built-in speaker amplifier/PC audio input and earphone jack
|
|
Support
|
mini VGA/AV/BNC/HDMI
|
|
OS
|
DOS/Windows 9X ME 2K XP 7 Vista NT CE / LINUX / Mac,etc
|
|
Touch Data (for touch function only)
|
Touch type: 4 wires resistive touch
Touch interface: Serial COM(RS232) or USB
Touch Response Time Serial/USB: 10.4ms
Touch Sensitivity: Fixed
Touch Pen Hitting Life: >= 1milions times
|
|
Power Supply
|
External: 85-265VAC, 50-60 Hz ; DC output: 12V,2A
|
|
Power Consumption
|
10 W Typ
|
|
Relative Humidity Non Condensing
|
Operating:10%-90%, Storage 5%-90%
|
|
Temperature Range
|
Operating:0-50degree, Storage:-20-80degree
|
|
Warranty
|
1 year
|
|
Certificate
|
CE/FCC/RoHs
|

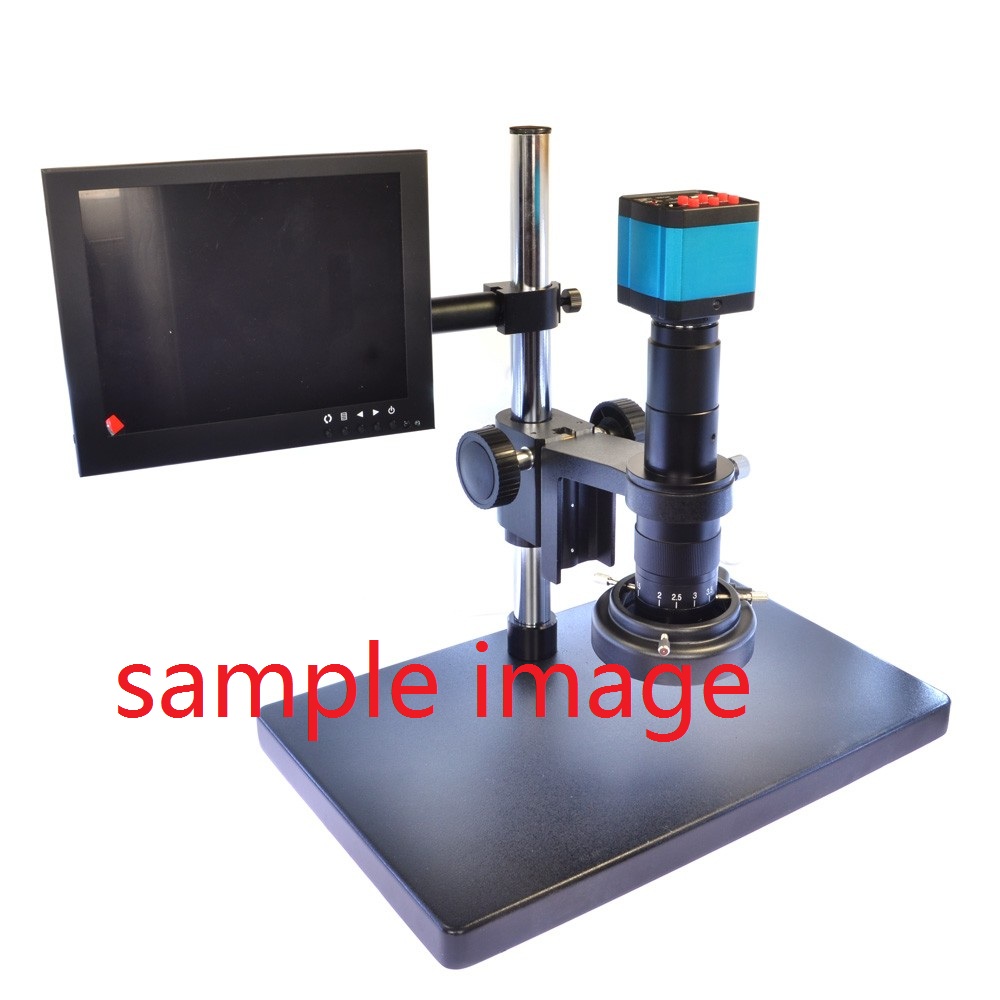

Microscope Lens
