Specifications:
Image Sensor: 0.3M HD CMOS Sensor (Digital 2M)
Controller: High Speed DSP
Lens: Micro-Scope Lens
Focus Range: Manual Focus from 0~200mm
Snap Shot: Software and Hardware
Video Capture Resolution: 640x480
Still Image Capture Resolution: 1600x1200(2M Pixel),1280x960(1.3M Pixel),800x600, 640x480
Frame Rate: Max. 30f/s Under 600 Lux Brightness
Flicker Control: 50Hz / 60Hz Option
Video Format: AVI
Snap Shot Format: JEPG

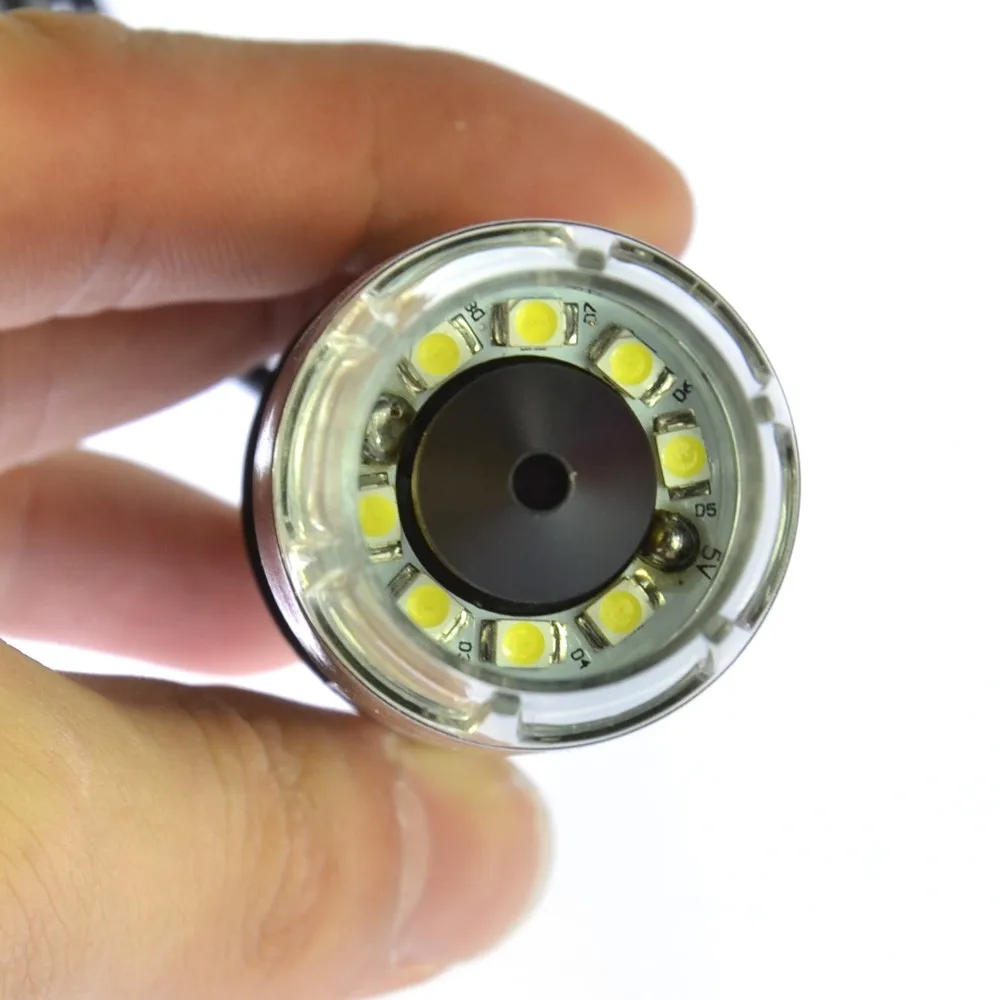

Light Source: 8 White Light LED (with controller on USB cable)
Magnification Ratio: 50X ~ 500X (Manual)
Power Supply: USB Port (5V DC)
Software : Driver and Measurement
System Requirement: Pentium Computer with 700MHz & Above, 20M HD Space CD ROM Driver, 128MB RAM, Direct X VGA Card
PC Interface: USB2.0 & USB1.1
Operation System: Windows 7 32 bit /Vista/XP (Not Support Windows 8)

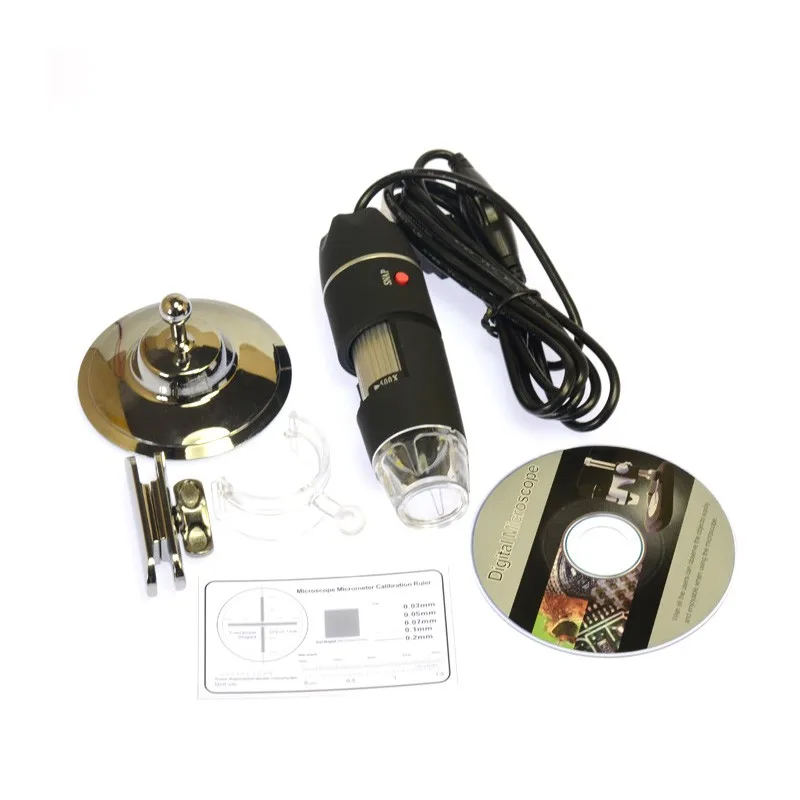

Package contents:
1 x Microscope
1 x Metal stand
1 x Software CD
1 x User manual
1 x Calibration Ruler
Note:
1. Don’t dissemble the digital Microscope or change the interior parts,it can cause damage.
2. Don’t clean the Microscope with alcohol organic solvents
3. Don’t touch the lens with your fingers.
4. Avoid outdoor use if possible.
5. Storage temperature , 0°C ~ 40°C,Humidity:45%RH ~ 85RH%.
6. In case the product gets wet, leave PC connection immediately. And
do not dissemble or dry by hair dryer. Send to repair center if the
digit microscope was effected by liquid or other elements.
7. Measurement Data only for reference.
Microscope Lens
