16MP HDMI 1080P HD usb digital Industry Video Inspection Microscope Camera Set TF Card Video Recorder for mobile phone PCBrepair
Price : US $ 159.99 209.99

SKU : 1806263052
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Features:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 30FPS (for TF Card)
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080 1280*720 640*480 320*240 @ 30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German

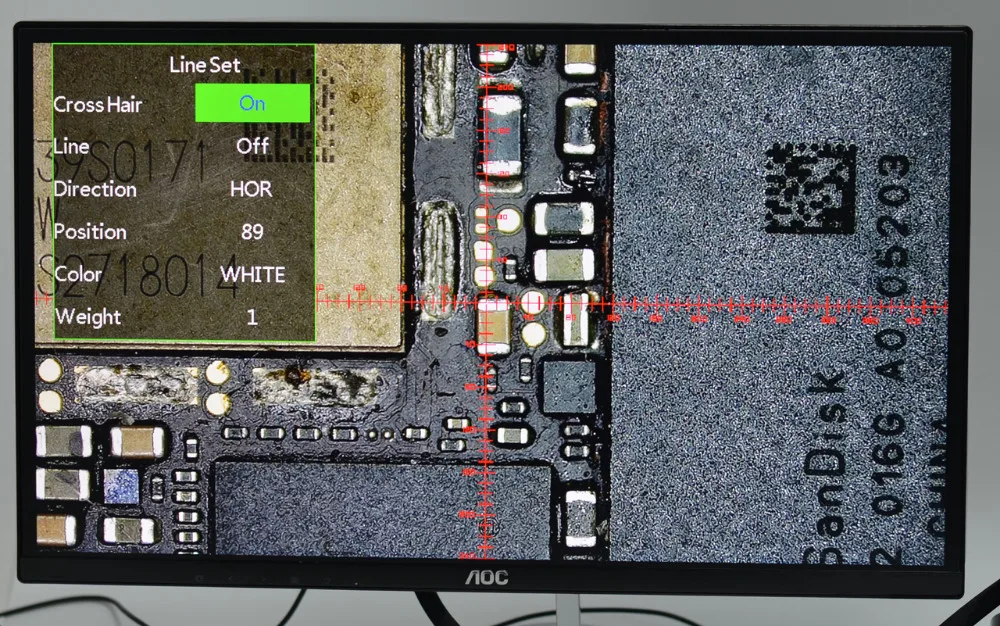

Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MP4, AVI
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G

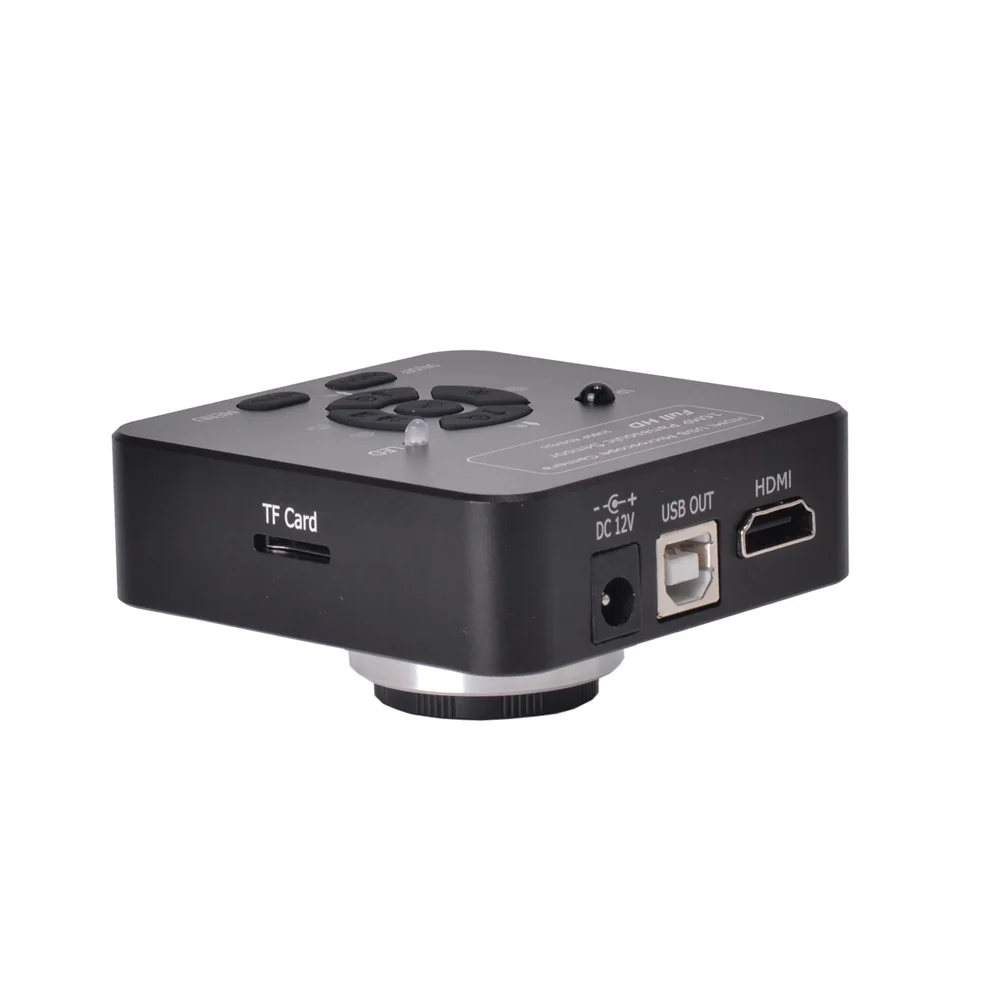

HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

0.5X lens:

This 0.5X C-mount adpater is for  microscope .
It can be used in all eyepiece position with 23.2mm or 30mm or 30.5mm.

Of course, it can be used in phototube and trinocular tube  with 23.2mm or 30mm or 30.5mm.

Noting: the 0.5x lens can not use alone, it should work with phototube or trinocular tube with 23.2mm or 30mm or 30.5mm

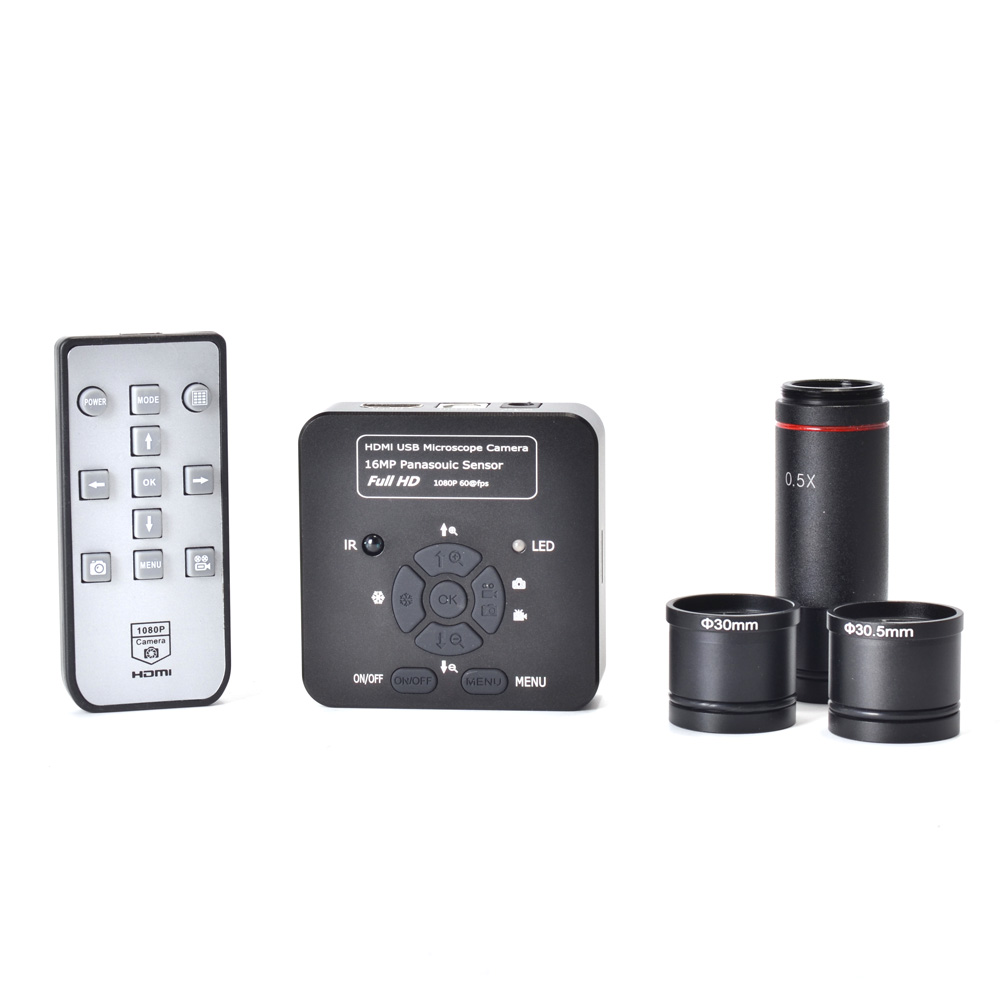

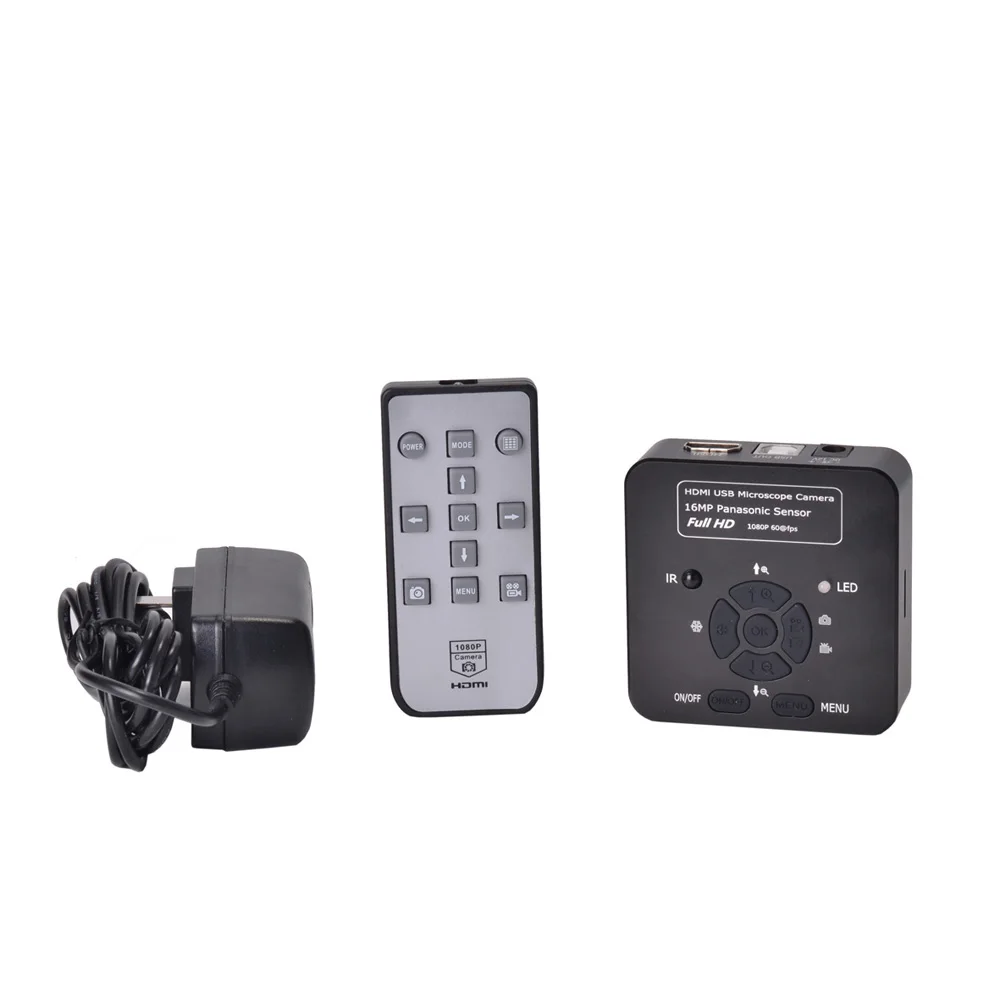

Package including:

1 x Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC
1 x 0.5x lens
1 x 30.0mm adapter
1 x 30.5mm adapter0.5X
2 3 1 4

sample1

sample233sample4
