HDMI Camera >> 16MP HDMI USB Industry Microscope Camera TF Video Recorder + 100X C-mount Lens + 56 LED Light
View Larger Image
Share your images of this product

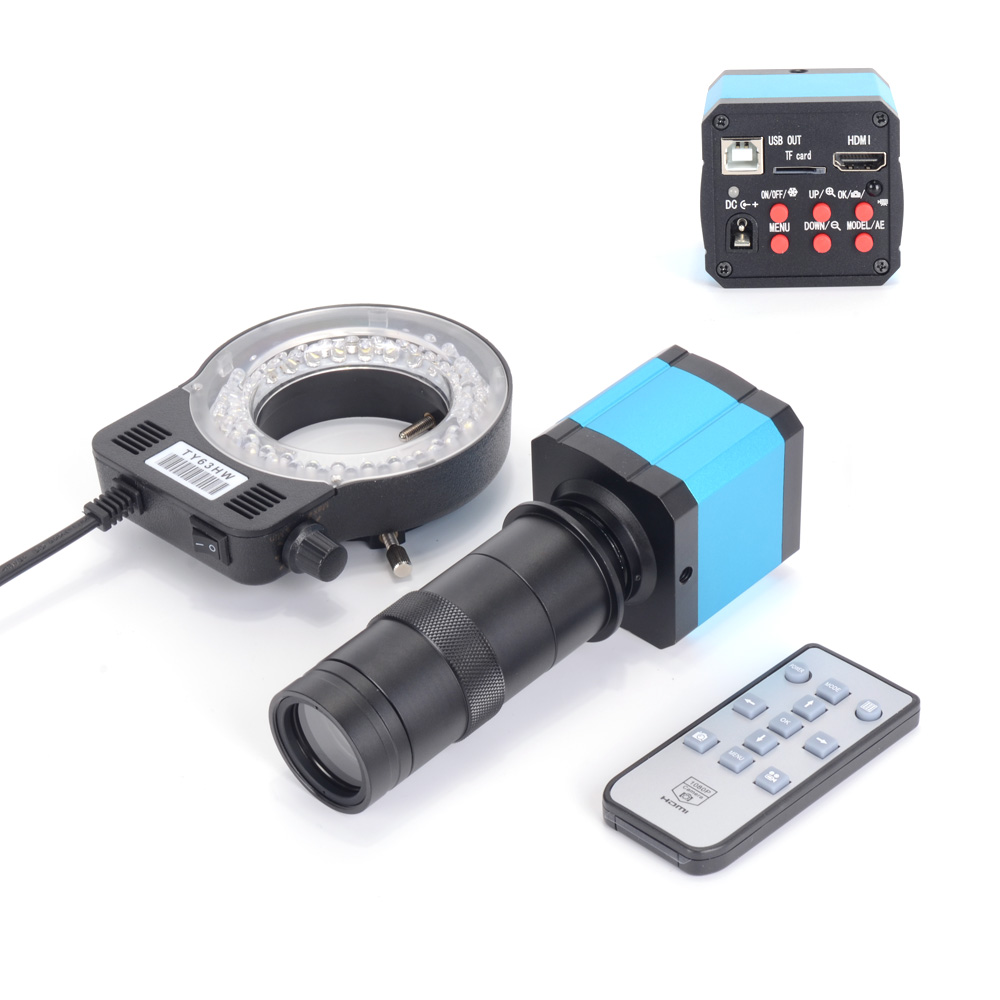

16MP HDMI USB Industry Microscope Camera TF Video Recorder + 100X C-mount Lens + 56 LED Light
Price : US $ 149.86 218.65

SKU : 1812035755
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting:

For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.

For HDMI ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg
Image resolution: 4608*3456 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel

Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)

NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.


C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g


LED Lights:

The 110V-220V 56LED ring light is designed especially for stereo microscope, and is an excellent companion to various kinds of microscopes and camera. It can offer an optimum amount of lights to the microscope or camera when additional light sources are required or there was not enough light! Inspection and quality control is no longer a problem to view surface defects and overcome the visibility problems related. It can also used as light source for cameras to focus while hunting viewing in dark places or areas.

110V-240V 56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: AC100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Also we have black color, you can leave us a message when you pay.
LED Lamp Chip(Cool White)


Package including:

1 x Microscope Camera

1 x 12V/1A Power supply

1 x USB line

1 x remote control

1 x Software DISC

1 x 100X Zoom C-mount Lens

1 x LED Light with power supply
