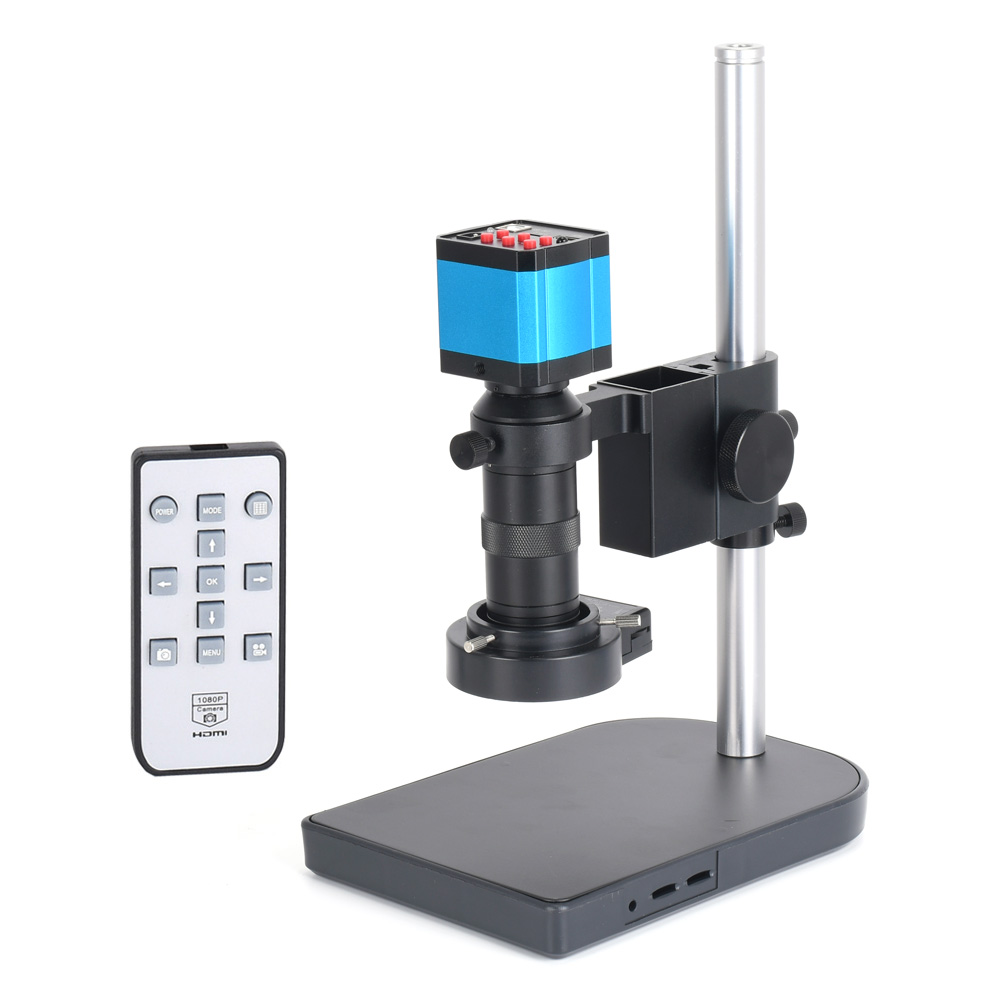

16MP HDMI USB Industry Microscope Kit Camera Set Remote Control 100X C-Mount Lens Video Recorder 40 LED Ring Light
Price : US $ 198.64 258.32

SKU : 1812035806
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting:

For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.

For HDMI ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


Features:

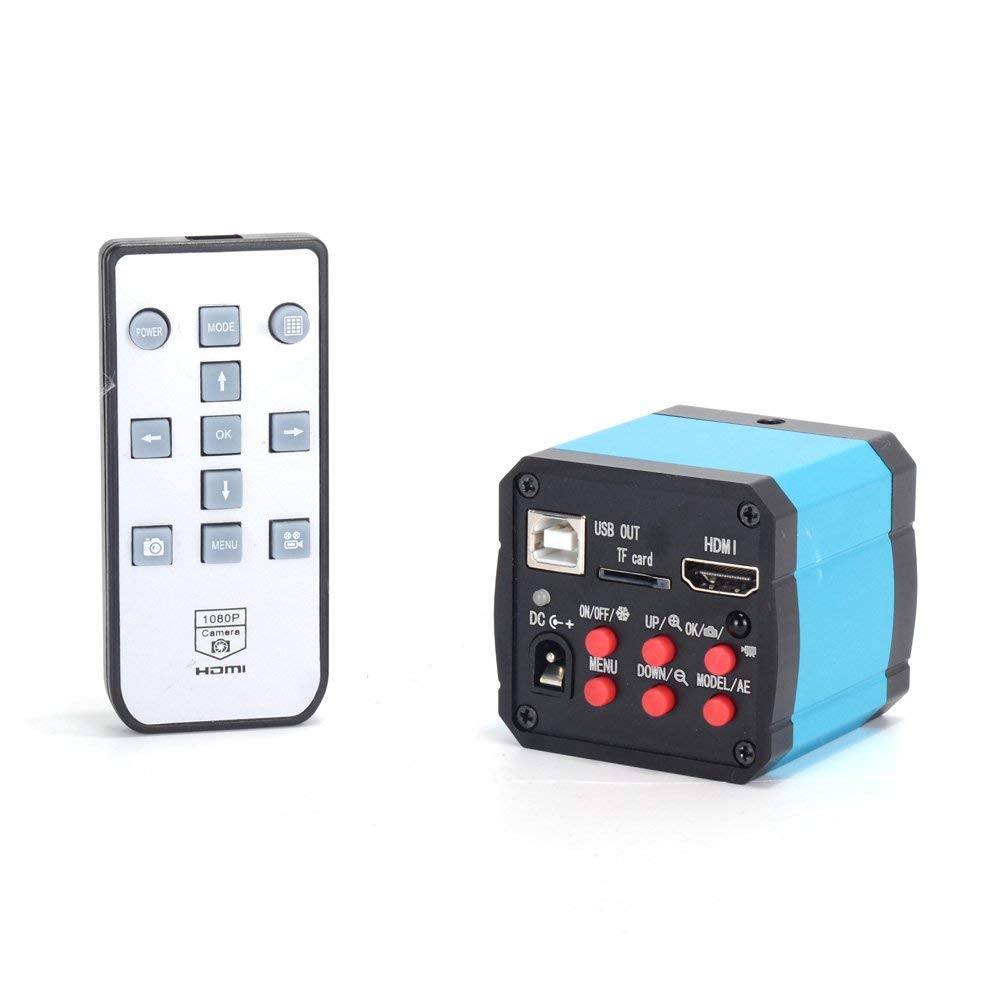

Model: Camera with HDMI USB2.0 two output

Image format: jpg
Image resolution: 4608*3456 (for TF card) 1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions


Specification:

Image sensor: 16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel: 16 megapixel
Pixel size: 1.43*1.43um
Frame rate: 60fps
Definition: FULL HD
Image resolution: 4608x3456 (for TF Card), 1920x1080(for TF Card),1920x1080 (for USB)
Video recorder: 1920x1080 @ 60fps(for TF card)
White balance: Auto/manual
Digital magnification: 5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Freeze: Support
OSD: Support
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 4 pcs of transverse lines/vertical lines, movable
SNR: Support
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
Lens: C
USB interface : Standard usb2.0 interface (Type B)

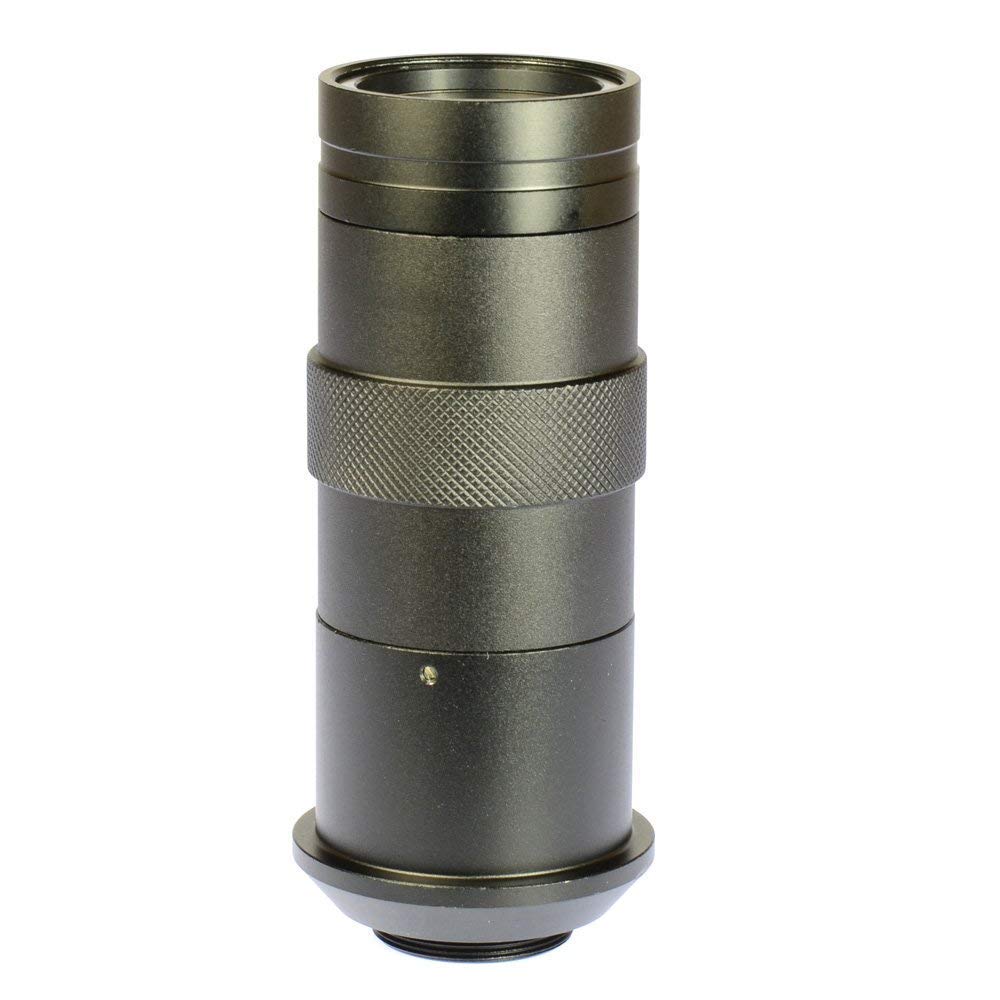

C-MOUNT Lens:

Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)


40 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm


Package Including:

1 x Camera
1 x power supply
1 x USB line
1 x Software DISC
1 x Zoom C-mount Lens

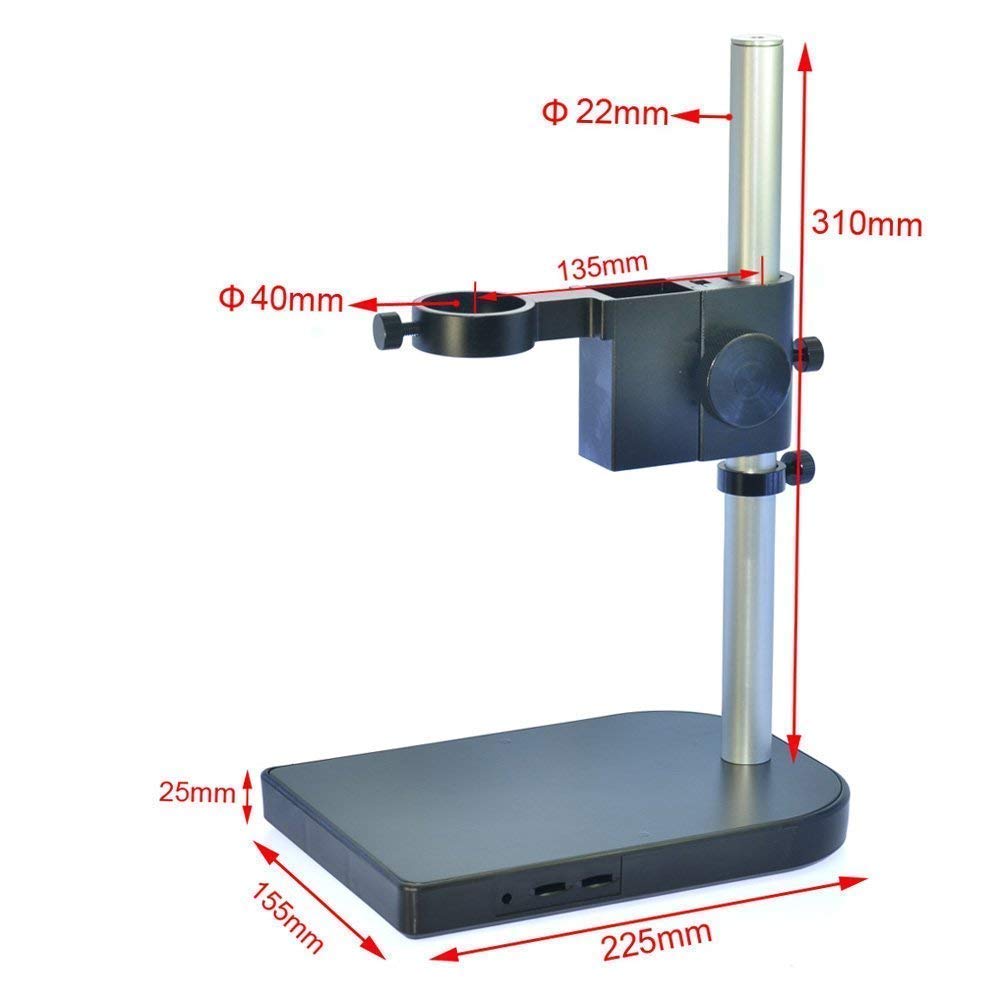

1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
