Microscope Camera Kit >> 16MP HDMI USB Digital Industry Video Microscope Camera+Big Boom Stand Universal Bracket+10.1" inch LCD Monitor+180X C-MOUNT Lens
View Larger Image
Share your images of this product

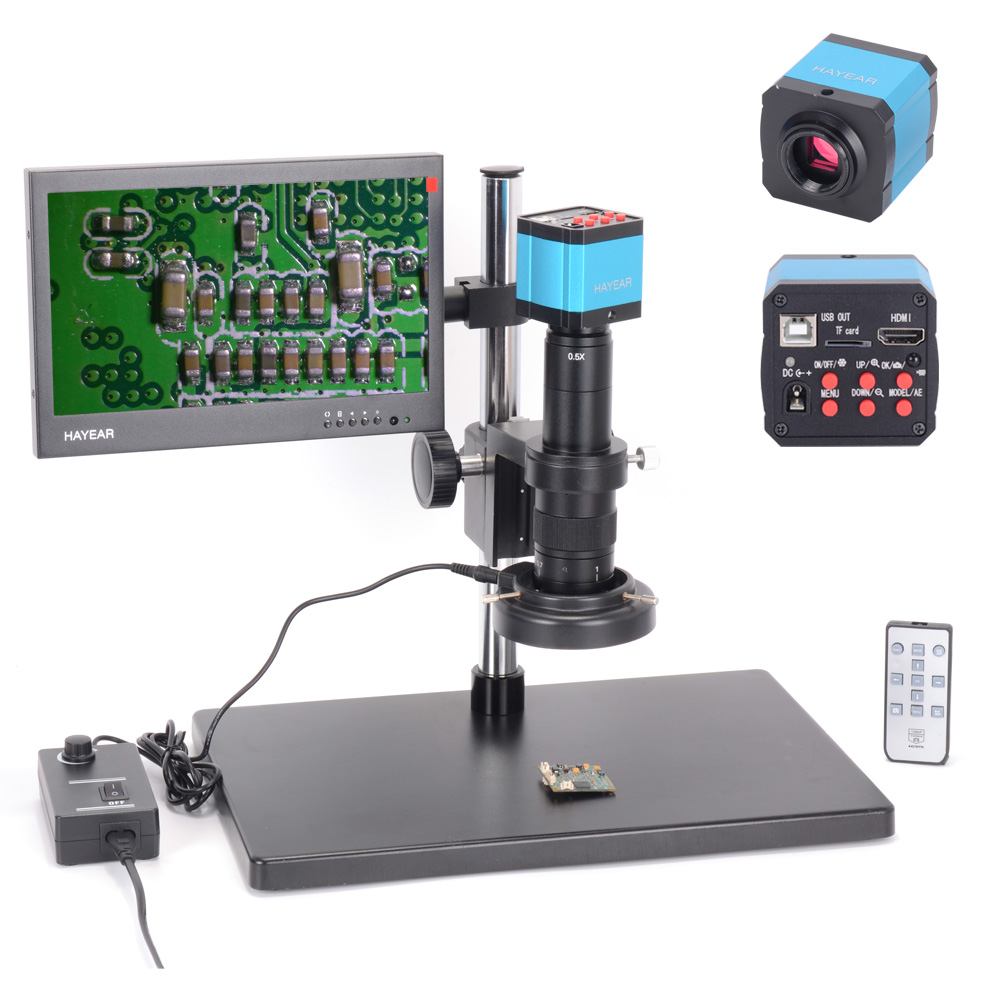

16MP HDMI USB Digital Industry Video Microscope Camera+Big Boom Stand Universal Bracket+10.1" inch LCD Monitor+180X C-MOUNT Lens
Price : US $ 318.21 468.74

SKU : 1902161007
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

other sellers pls do not steal our product and description for resell !!!!!

thank you for your cooperation.

\\\\


Noting:

1: pc support: windows XP/7/8/10 system

2: for USB output, the white balance, exposure and color adjustament are automatic, they can't be adjusted; for HDMI output, the function can only be adjusted while connecting with monitor, if you connect the camera with computer, the function also can not be adjusted.

3: when use usb connection, make sure no TF card in the camera, TF card storage is only for HDMI output, usb output will be stotaged in PC


Features:

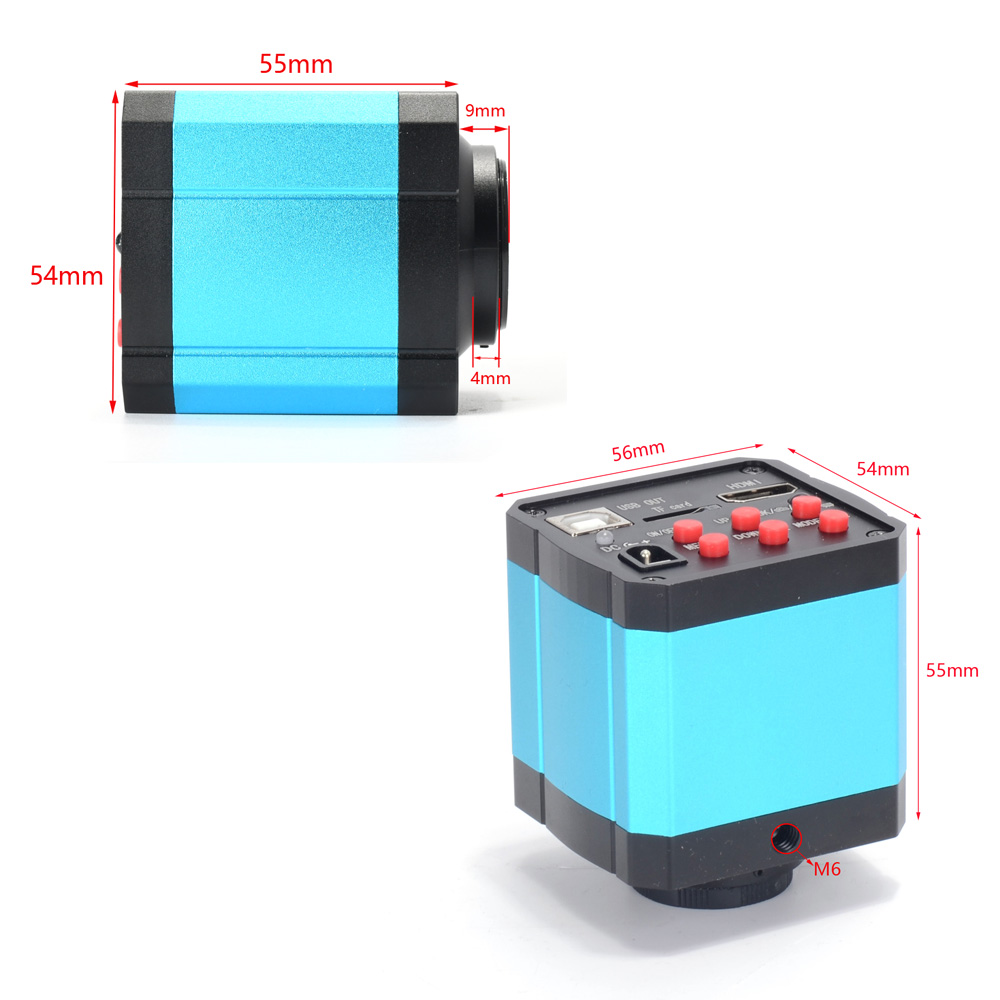

Model: Camera with HDMI USB2.0 two output

Image format: jpg
Image resolution: 4608*3456 (for TF card)  1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C/CS
USB interface:Standard usb2.0 interface (Type B)


Stereo Table Stand Feature:

Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!

This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.

The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.

We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.

Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.

Steel Gears on Focusing Holder.

Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm

Weight: 3.3kg

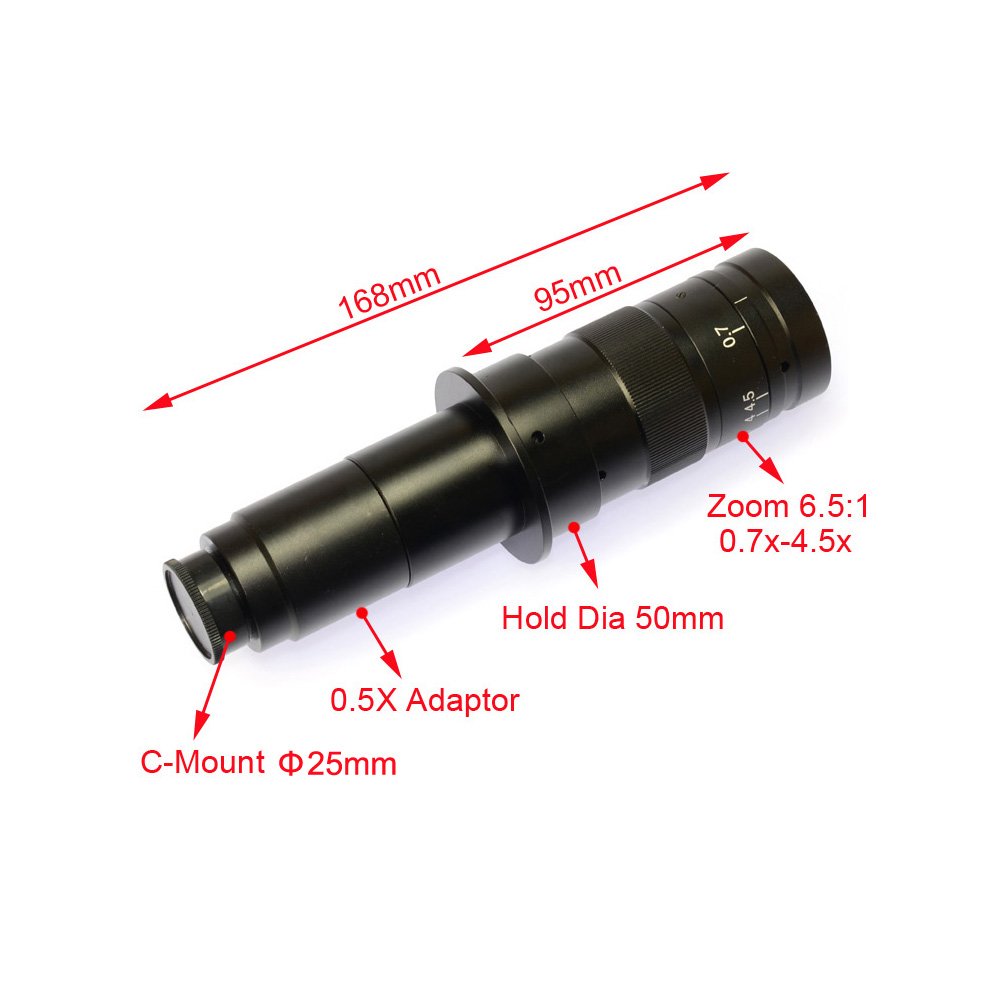

C-MOUNT Lens:

Working distance: 95mm-115mm

zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 245mm(L) * 50mm(DIA)

Weight: 550g





Package Including:

1 x Camera

1 x 180x C-MOUNT Lens

1 x Power supply

1 x 10.1" inch LCD Monitor

1 x USB line

1 x Software DISC

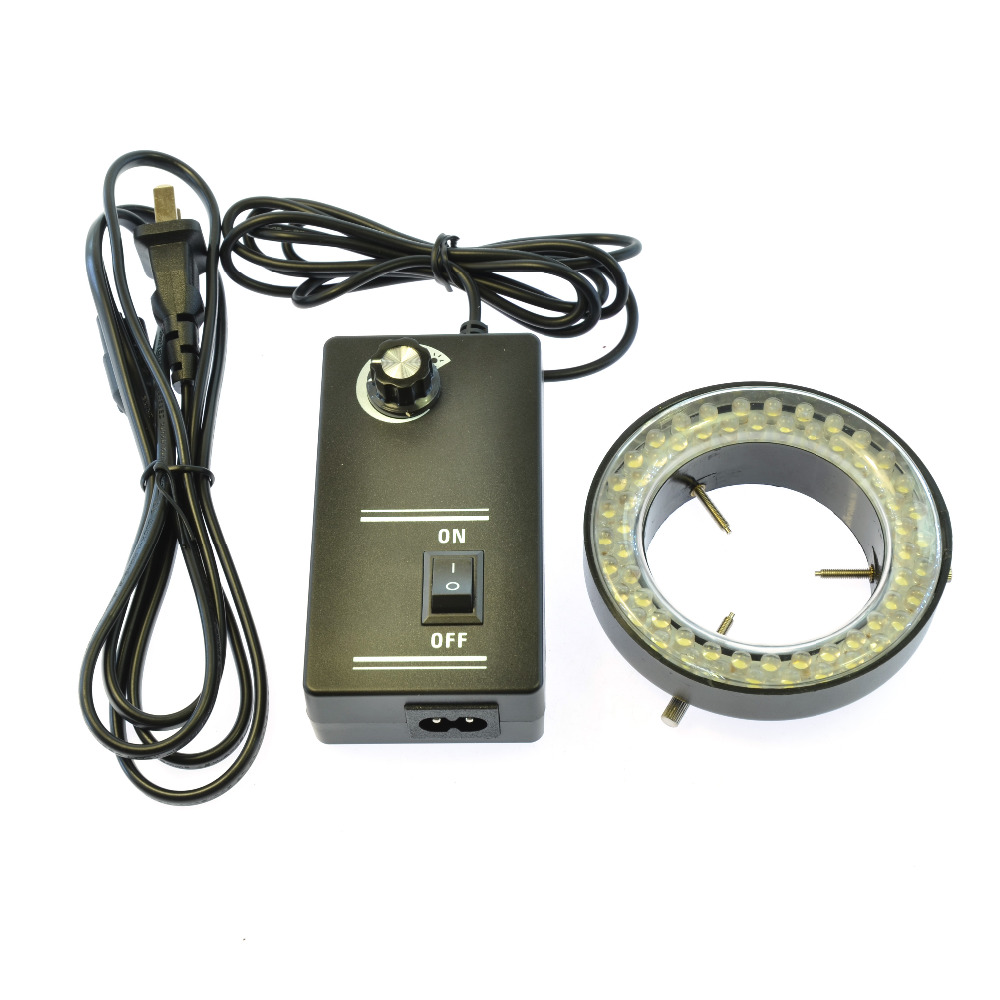

1 x LED Ring light with power adapter

1 x Digital Microscope Table Stand

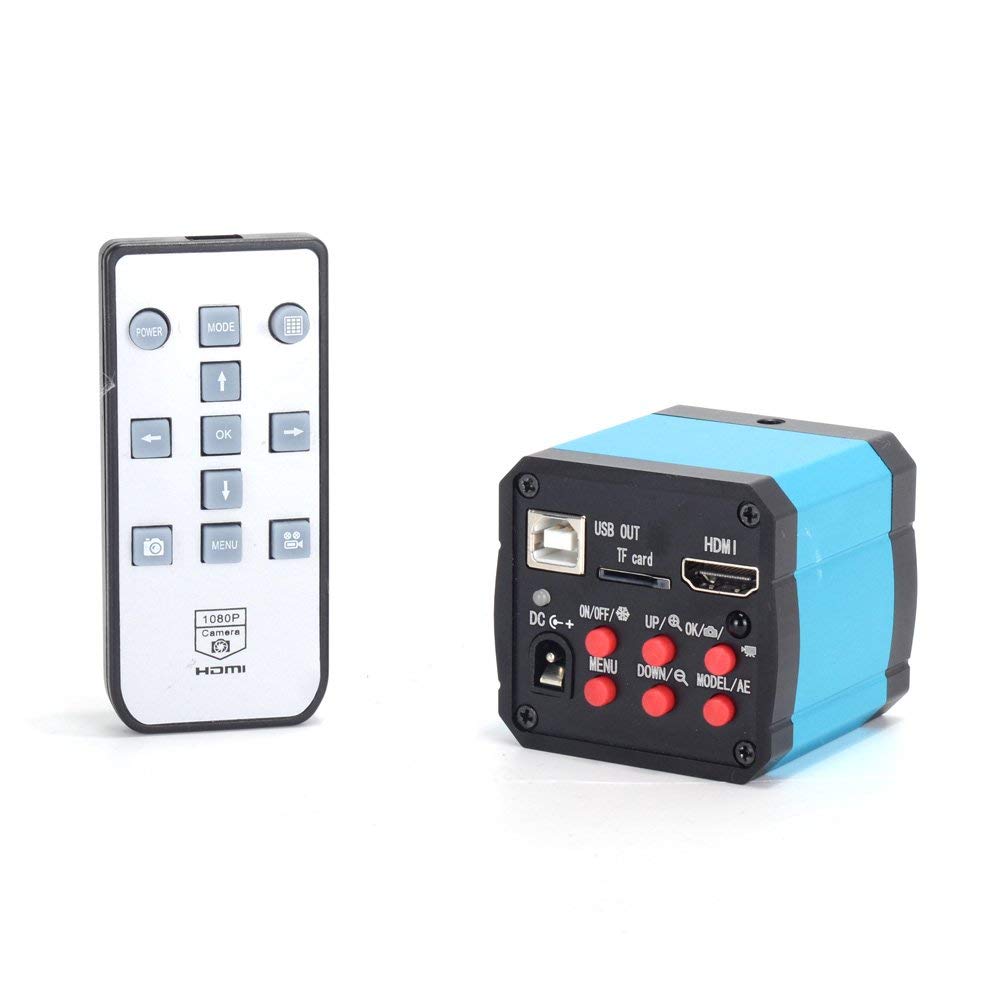

1 x Remote Control
