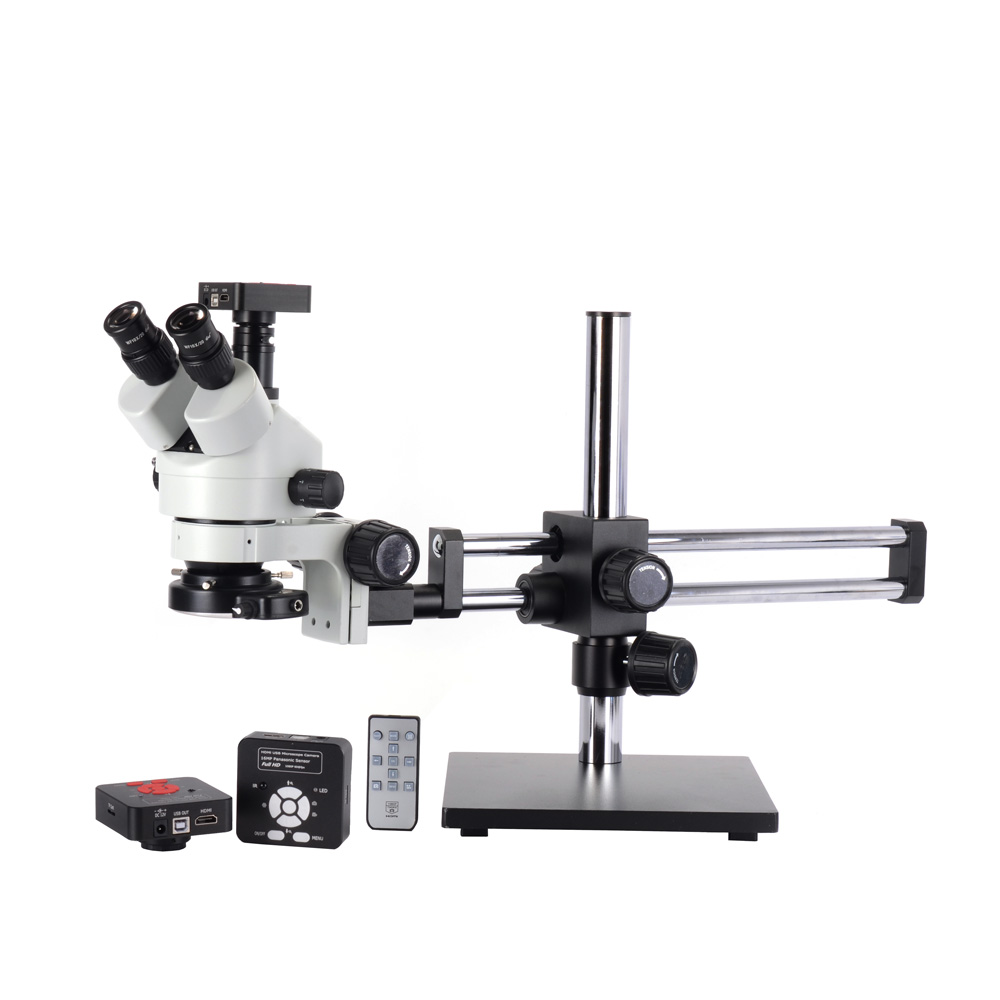

Features:
3.5X-90X Extremely Large Zoom Magnification Power
Simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port
Have well-focused, clear images on your PC or video Screen AND through the microscope eyepieces at the same time.
No need to switch between the trinocular port and the eyepiece
No need to re-focus the microscope after each "switch"
Trinocular Design for High Quality Photo, USB PC and CCD Video Imaging
Upright Tube for USB Digital Camera, Video Camcorder or CCD Camera
High Resolution with Great Flatness and Contrast
Erect Stereo Sharp Images Over a SUPER Widefield of View
Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
Crystal Clear Original True Color Images
45° Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
30mm SUPER Widefield Eyepieces (see the difference in the above picture)
Both Ocular-Tubes with Adjustable Diopter
Adjustable Interpupillary Distance
Full Optical Glass Elements
Precise Ground Glass Lenses
8" (200mm) Extremely Large Working Distance

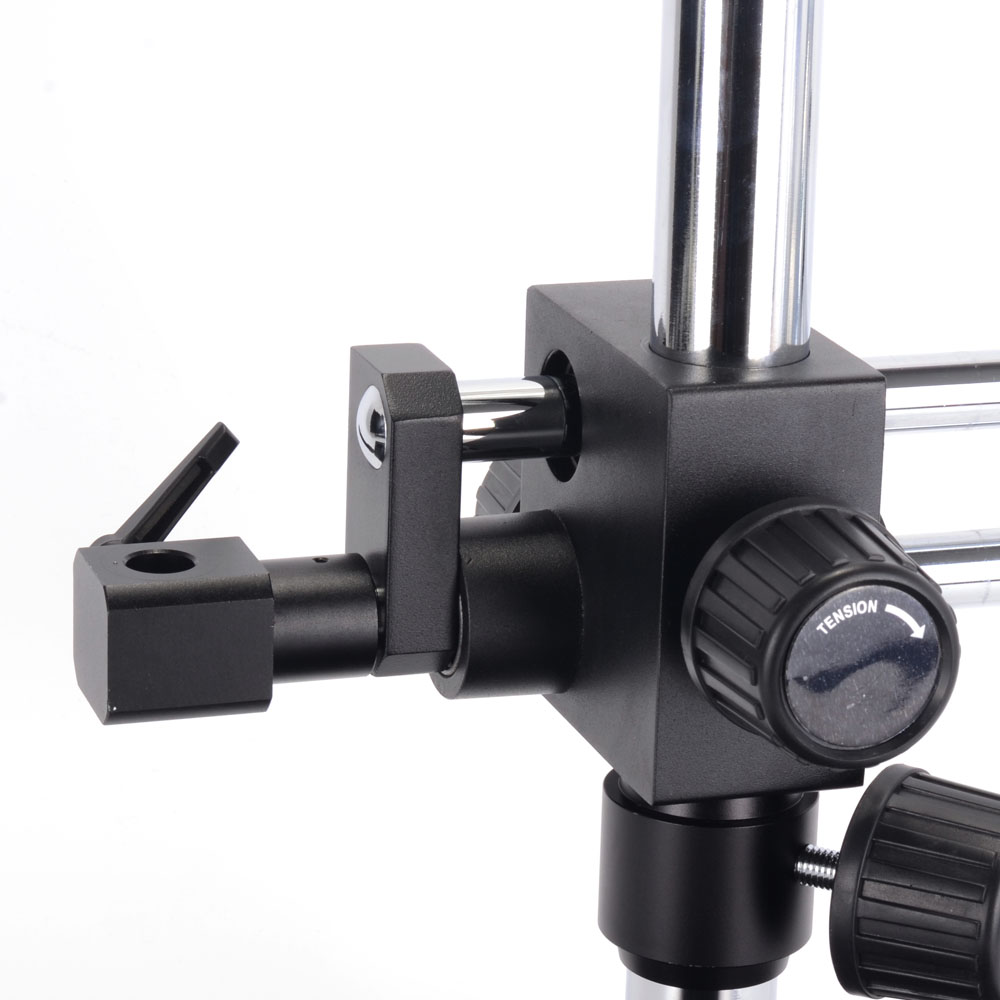

Versatile Boom Stand Covering Large Working Area
Double-Arm Design for 3-Degree Freedom
Able to Place Microscope Head Toward to Any Direction
Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
Rugged Solid Cast Steel Base
30mm SUPER Widefield Eyepieces Included
0.5X and 2.0X Barlow Objective Lens Included
Rubber Eye-Guards Included
Specification:
Head: 45° inclined 360° swiveling trinocular
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Auxiliary Objective Lens: 0.5X & 2.0X
Objective: 0.35-9.0X
Zoom Range: 26:1
Diopter Adjustment: ±5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Field of View: 2-1/2" (65mm) in diameter
Working Distance: 8" (200mm)
Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
Camera Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4608*3456 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video format: MP4(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080 1280*720 640*480 320*240 @ 30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions
Camera Specification:
Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
Package Including:

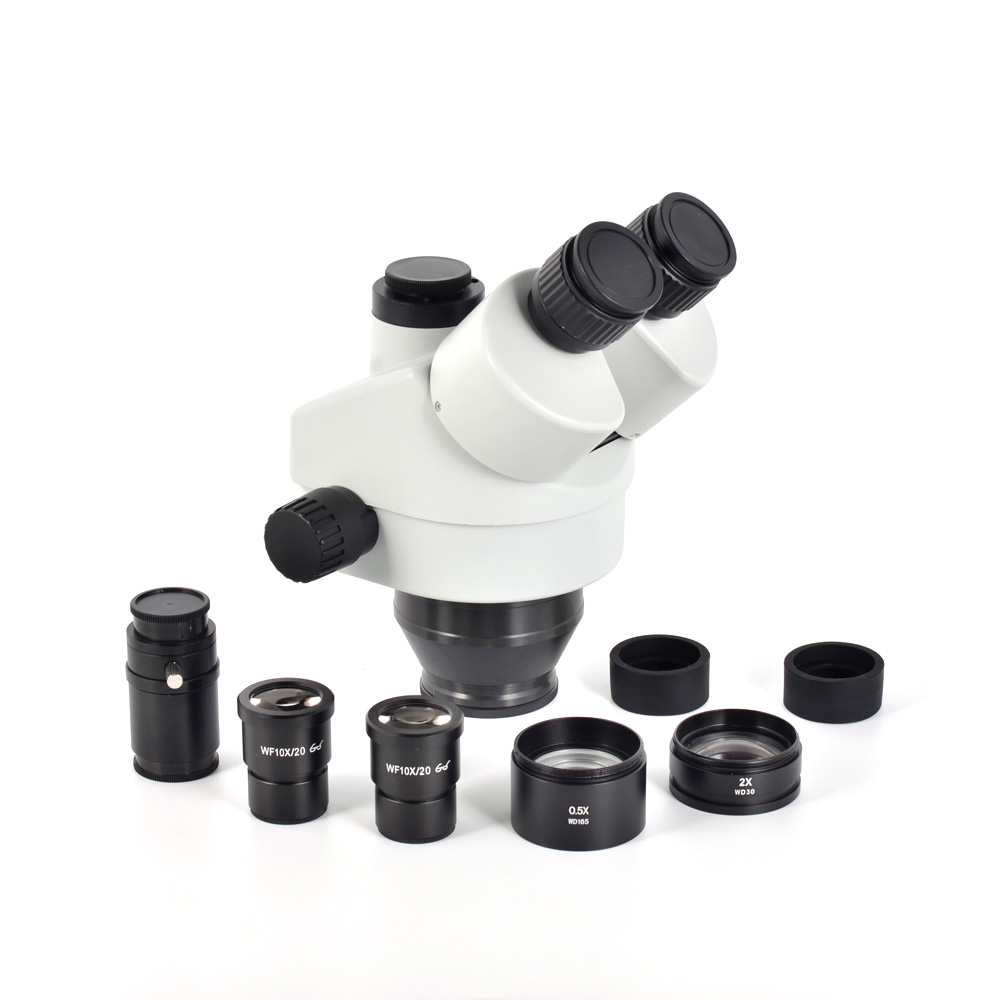

1 x Trinocular Stereo Zoom Head
1 x Pair of WF10X eyepieces
1 x Pair of eye-guards
1 x 1/1 CTV C-mount Adapter
1 x 2.0X Barlow auxiliary objective lens
1 x 0.5X Barlow auxiliary objective lens
1 x Double-Arm Boom Stand
1 x Focus Rack
1 x 16MP HDMI camera
1 x 144 led light with power supply
