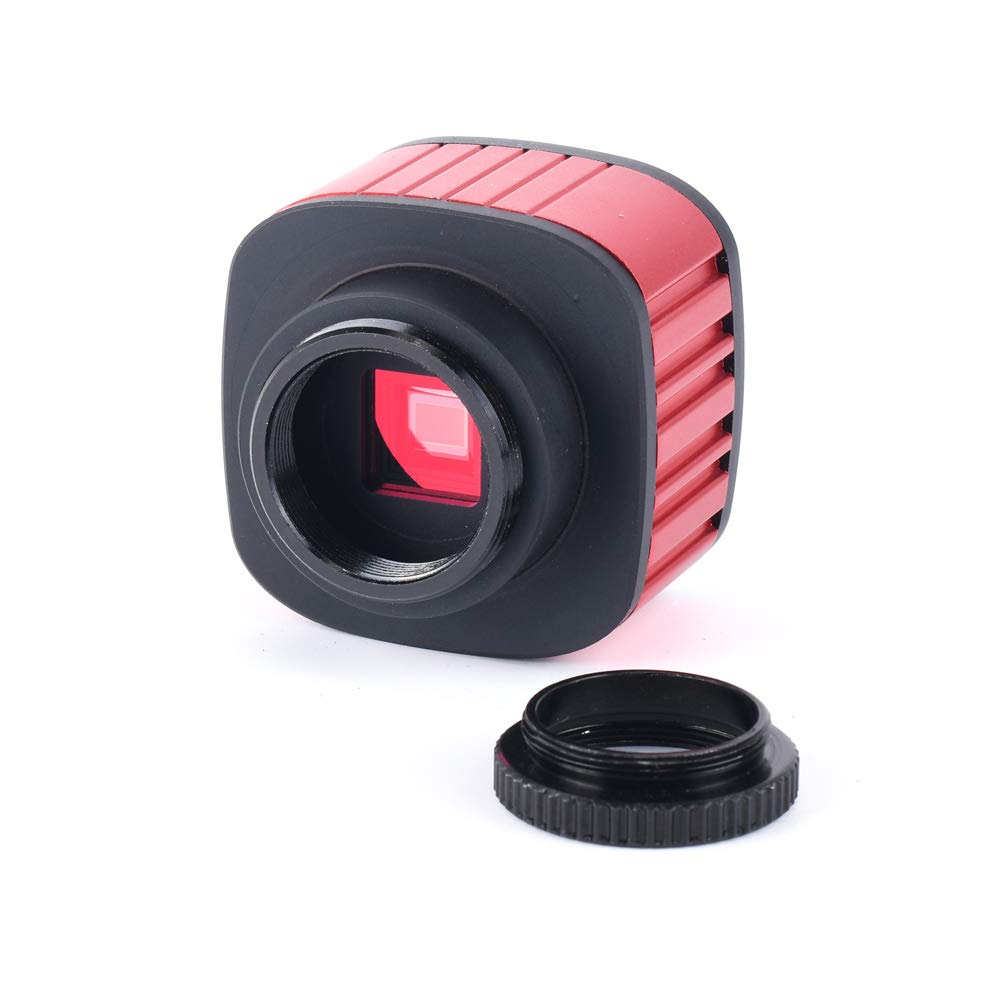

12MP USB Camera:
Model: USB2.0 Output
Sensor: 12MP, 1/2.3 inch
Image equipment: SONY IMX CMOS
Full Resolution: 3840 x 2880
Frame rate: (MJPEG) 3840 x 2880@15FPS; 3840 x 2160@25FPS; 3264x2448@15FPS; 2592 x 1944@25FPS;
1920 x 1080@25FPS; 1024 x 768@30FPS; 800 x 600@30FPS; 640 x 480@30FPS
Frame rate: (YUV )3840 x 2880@1FPS; 3840 x 2160@1FPS; 3264 x 2448@1FPS; 2592 x 1944@1FPS; 1920 x 1080@5FPS; 1600 x 1200@5FPS;
800 x 600@20FPS; 640 x 480@30FPS
Pixel size: 1.55μmm x 1.55μm
Programmable control: The size of the image, image photographing, exposure time, gain, GAMMA,
White Balance: Adjustable
Data output: 16bit
Light: Auto
Electronic shutter: 20-100000
White balance (dB): 38.1 dB,
Color: Color
Sensitivity: 1.4V/lux-sec@550nm
Spectral response: 400nm-1000nm

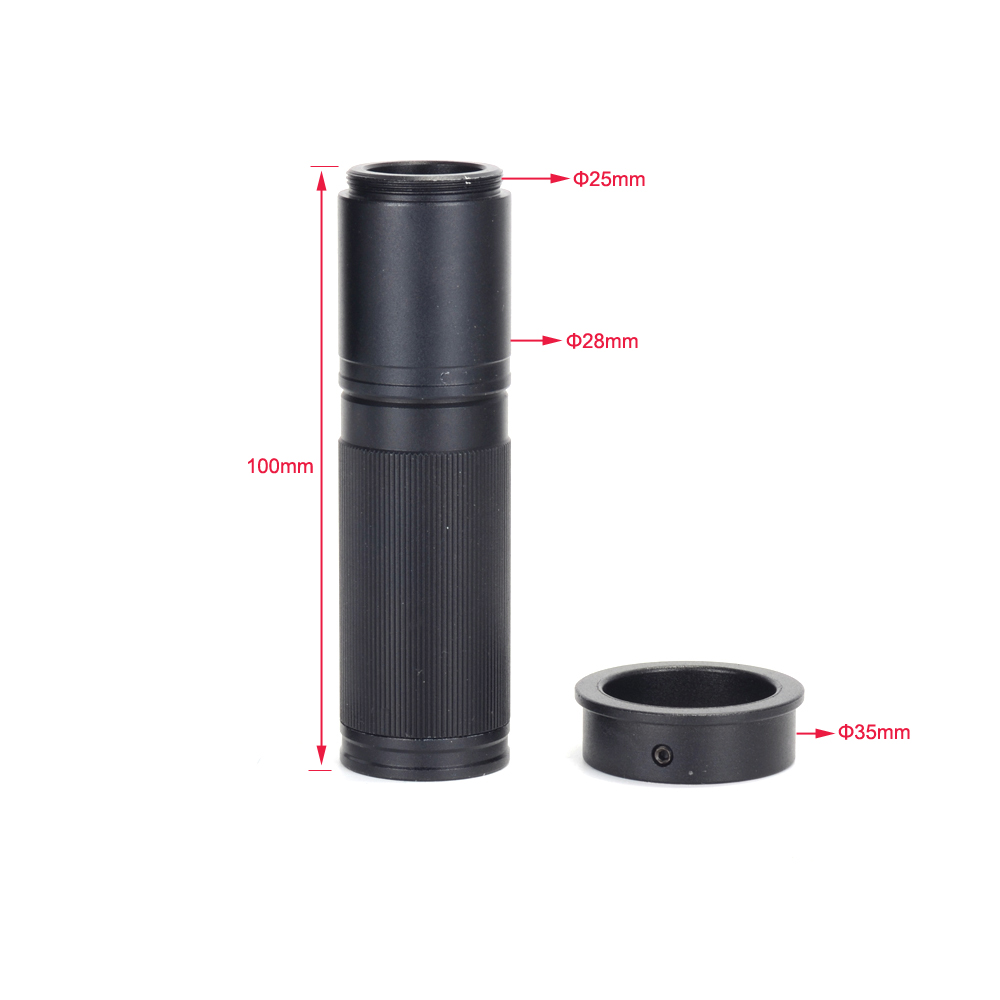

zoom c-mount lens
zoom ratio: 5:1
magnification: 0.11X-2X （ about 5x-150x on the 21 inch display )
visual field: 3.1mm-66mm
working distance: 55mm—68000mm
with 35mm ring adapter

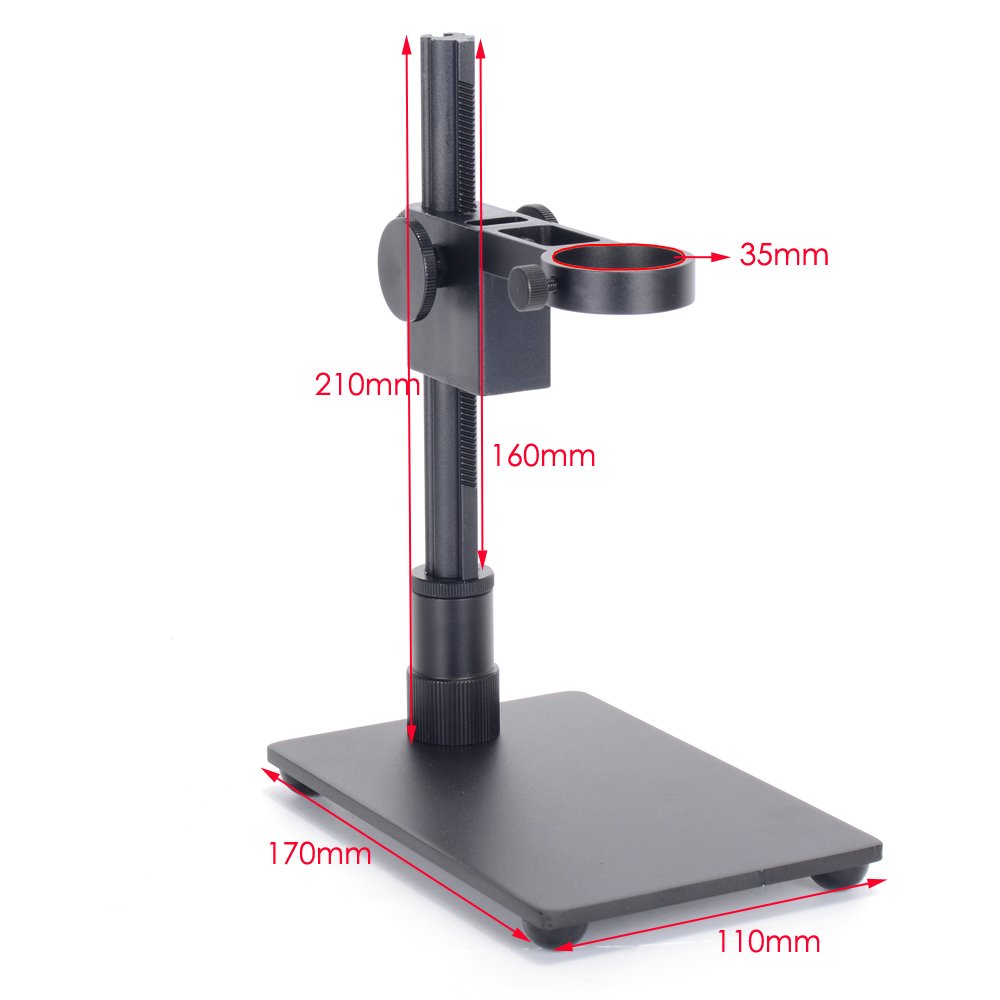

Camera stand:
Material: Alloy Aluminu
Ring Diameter:35mm(diameter)
solid base plate, high quality
simple design, beauty appearance
Dimension: please check the picture
with adjustable illumination

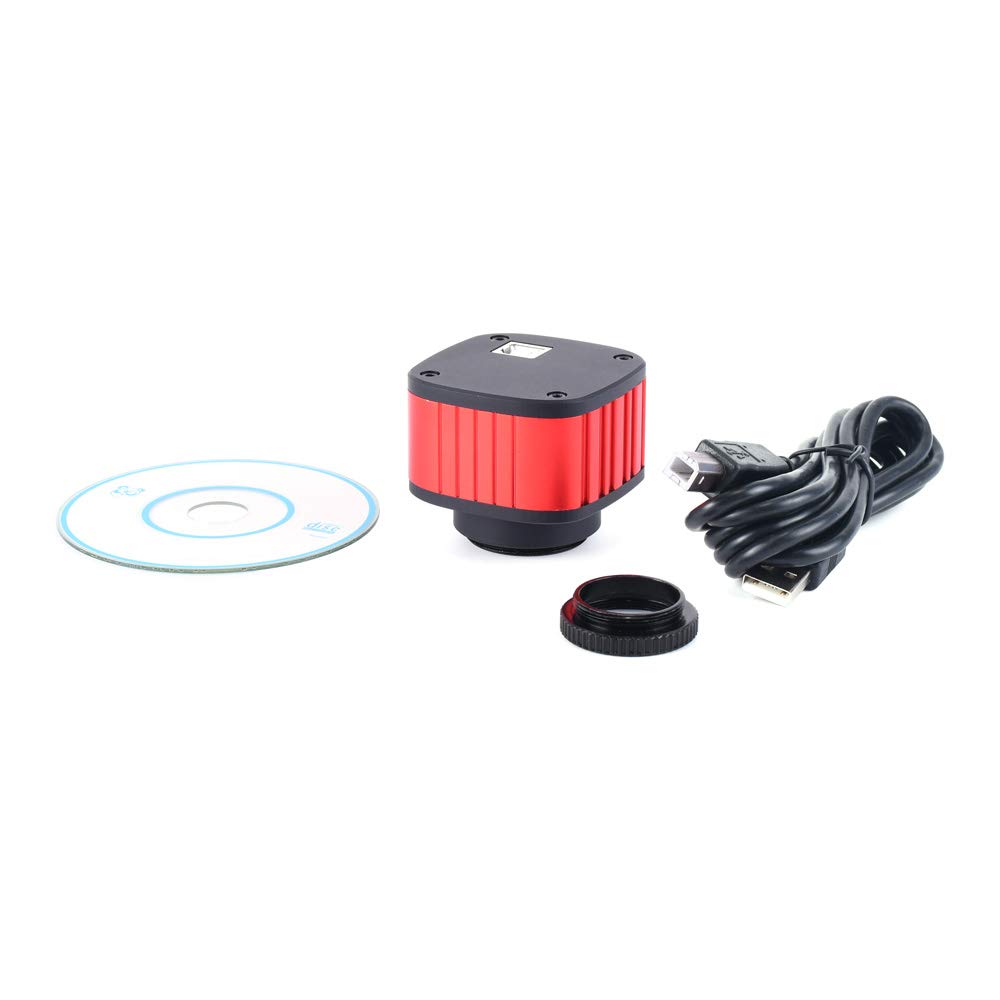

Package Including:
1 X 12MP USB Camera
1 X c-mount lens
1 X camera stand with adjustable light
Microscope Lens
