Microscope Camera Kit >> Full Set 34MP HD HDMI Microscope Camera 100X Lens 60LED Light Lamp 8 Inch Monitor Bracket
View Larger Image
Share your images of this product


Full Set 34MP HD HDMI Microscope Camera 100X Lens 60LED Light Lamp 8 Inch Monitor Bracket
Price : US $ 211.19 283.39

SKU : 1912262203
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.

Specification:
Image sensor:34 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps / 2k
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

100X C-MOUNT Lens:
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:40mm-210mm
Visual field :2.4mm-32mm


60 LED Light:
Light source: 60pcs LED
Input Voltage: AC90-240V
Output Voltage: DC12V
Output frequency: 4.5W
Working Distance: 40-160mm
Illumination: 30000LUX-35000LUX
color temperature: 6500K-7000K
brightness range control: 0% - 100%
light Color: cool white
Product Light:  >30000HRS
Valid optical length: 75mm
Valid optical path: 30mm
Power box size: 110 x 60 x 30mm
Material of power box: Plastic
Color: Black
Inside dia. Of Ring Light: 61.5mm
Outside dia. Of Ring Light: 94mm
Inside dia. Of ring holder: 26mm
Outside dia. Of ring holder: 45mm


8 Inch Monitor:

Panel Size: 8 inches
LCD Type: TFT LED
Physical Resolution: 800 × 600
Display Ratio: 4: 3
Display Color: 16.7M
Point Distance (mm): 0.264
Brightness (nits): 250cd / ㎡
Contrast Ratio: 300: 1
View (Up / Down / Left / Right): 160 ° / 160 °
Response Time: 6ms
Power Supply DC: 12V 1A
Field Frequency: 50Hz, 60Hz, 70Hz
Signal Interface: AVC × 1, BNC × 1, VGA × 1, HDMI × 1
Color Format: PAL / NTSC / SECAM
Menu Operation OSD: keypad / remote control
Menu Language (optional): Simplified Chinese, Traditional Chinese, English, Russian, French, Spainish, German, Italian
Installation: Base Support / Wall

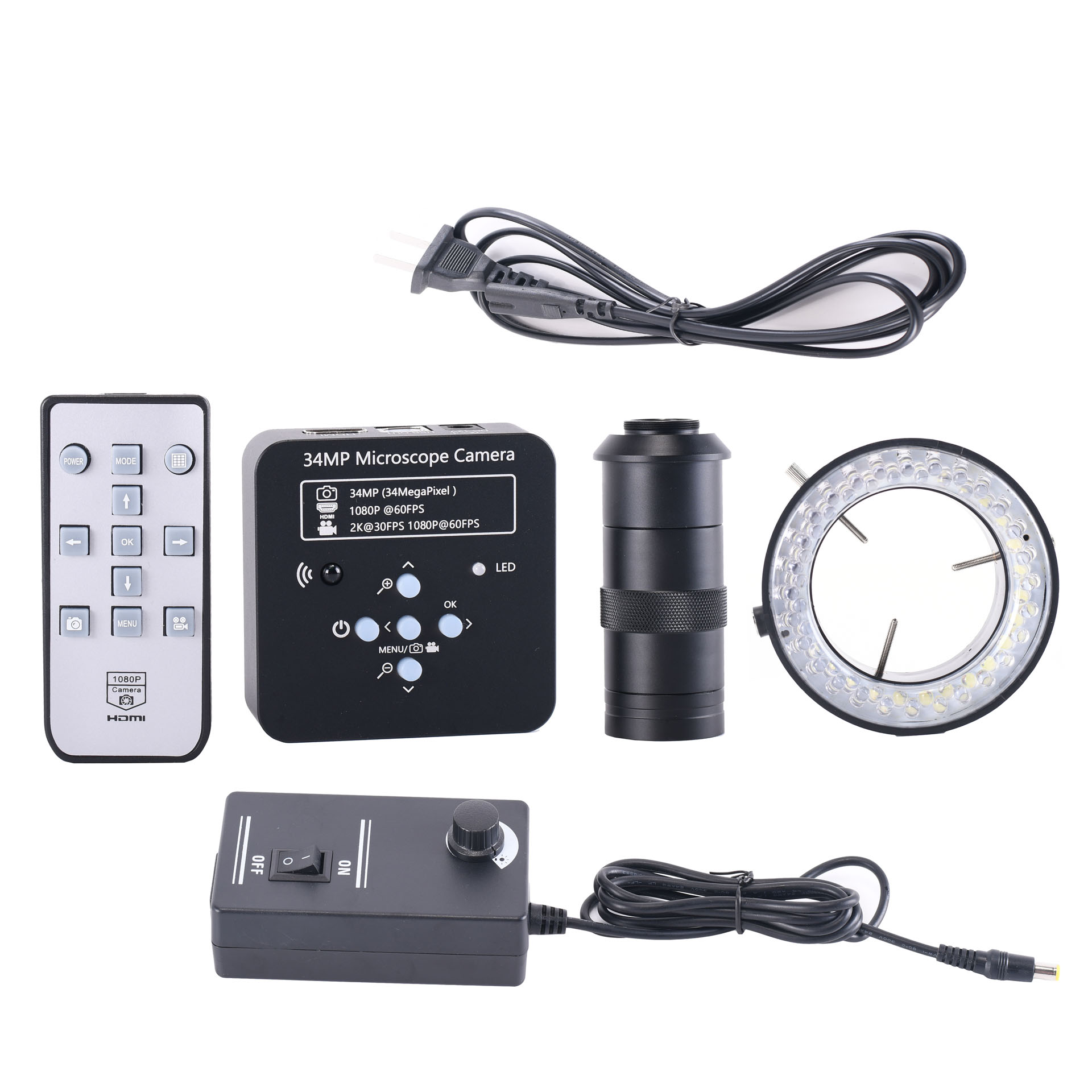

Package Including

1 x Camera with power supply
1 x remote control
1 x USB line
1 x Zoom C-Mount lens
1 x 60-LED light with power adapter
1 x Camera Stand
1 x 8 Inch monitor
