Resolution

4K/2K/1080P(HDMI only ) 1080P（USB）

Sensor Size

1/2.33inch

Pixel Size

1.55 × 1.55μm

Image Resolution

4032 × 3024? (12MP)

Frame rate

30@FPS (4K)???????????????????????????????????????????????

Image Format

JPEG

WaveLength[nm]

400nm~700nm

Frame Fate

3840×2160@60FPS(4K); ? 1080P 120@FPS; 720P 240@FPS

Lens Fype

C / CS

Timing Photo/Record

Support Timing ? Photo/Record

Storage

TF Card, Max 256G

PC Support

Windows / Mac / Linux System PC Software with Measuring Function

Image Measurement

Support HAYEAR ? Measurement

Language

EN /FR /ES ? /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP

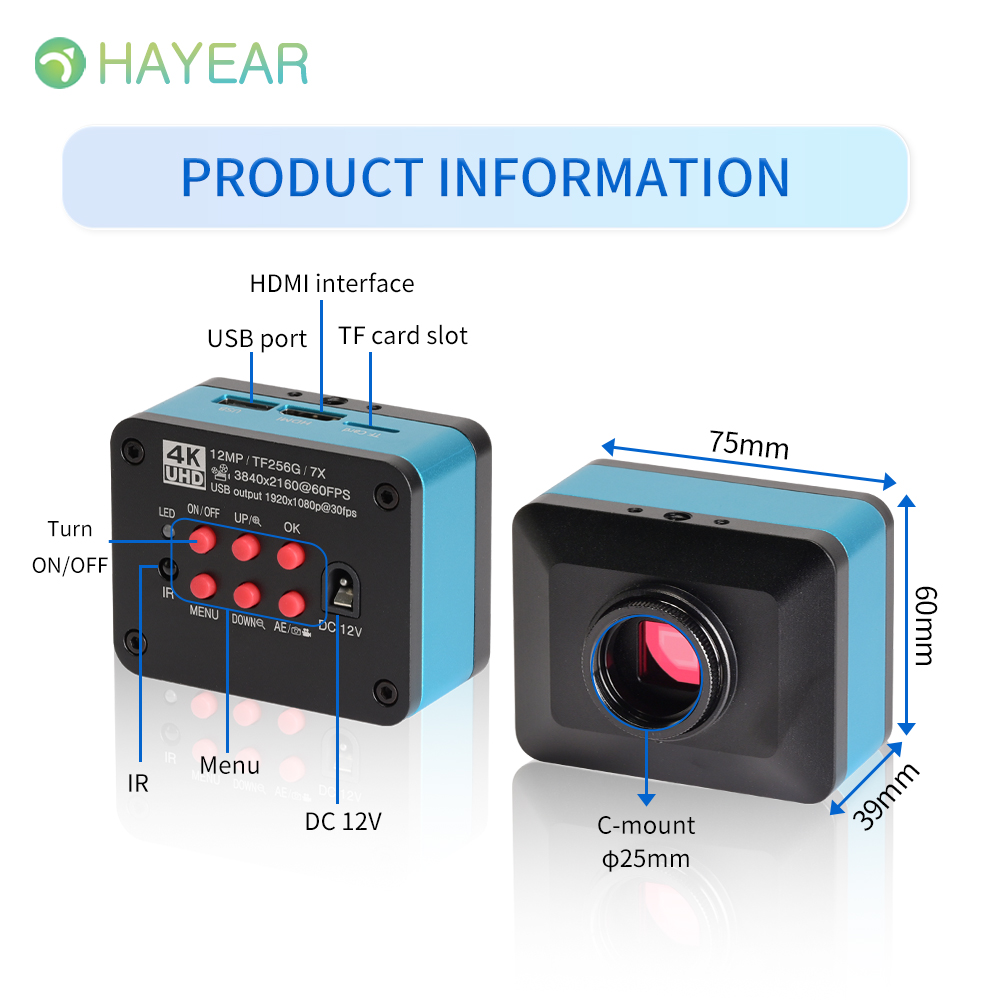

Output Interface

HDMI/USB Standard ? usb2.0 interface (Type B)

Image?Scaling

7-Fold zoom

Transverse ? and vertical line

Support ? multi-color, 5 pcs of transverse lines/vertical lines, movable
? Different color,5 horizontal line , 5 vertical line,any positions

Encode

H.264 /H.265 ? (High Profile)

Video format

MP4

Input Voltage

DC 12V 1A

Exposure

Auto/Manual, ? value adjustable

Size

75×60×39mm(LxWxH)
