Description

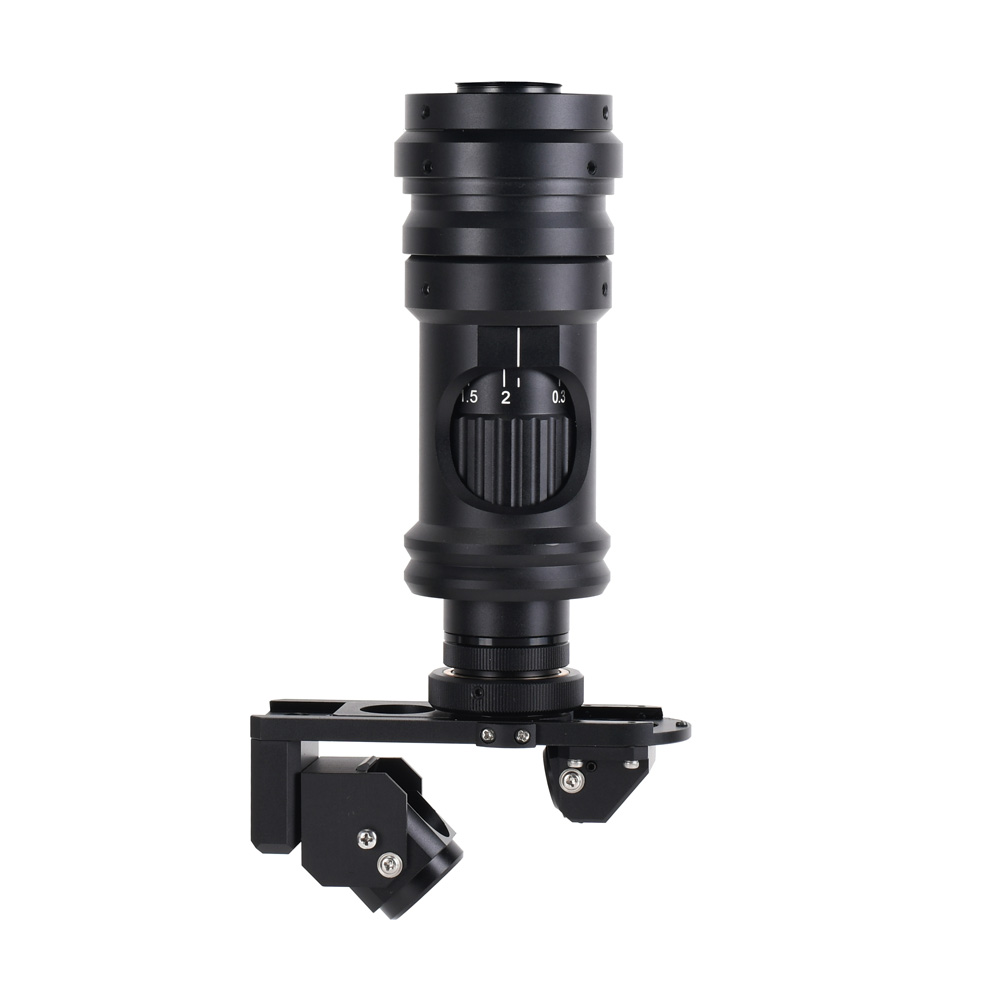

HY-6020 Microscope optical system features the quality optical system, low distortion, high resolution, flat and large field of view, high depth of field and superior parfocality. The novel design and one-up-technology make it easy for operation.
The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.
When the manual zoom with detents is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are at 0.3X, 0.5X,1X, 1.5X, 2.2X.
The 3D 36" rotary observation lens can achieve 95mm (Max) working distance, which is the highest level in the world so far.
By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired. Digital and Analog video systems can meet the different users' demands.
3D Video Microscope can be widely used in the areas of micro-electronics, precision electronic inspection, PCB solder testing industries, hardware & precision parts, criminal investigation and life sciences, as well as plant morphology, etc.
Features
1.Large Field of View
2.Low Distortion and High Resolution
3.Flat and High Depth of Field (≥6mm)
4.Auto-focus for Different Digital and Analog Camera
5.Compact, Practical and Cost-effective
Specification
|
Zoom Range
|
0.3X-2.2X
|
|
Zoom Ratio
|
1:7
|
|
Standard Objective Lens and Coupler
|
1X
|
|
Total Magnification
|
7X—150X (17"LCD,Maximum 300X)
|
|
Field of View
|
3.5-25mm
|
|
Working Distance
|
45.66-99mm
|
|
Optional Objective Lenses
|
0.5X, 2.0X (Can't Work with 2D/ 3D Rotary Observation Lens Attachment)
|
Optical Parameter
|
Objective Lens
|
0.5X
|
1X
|
2X
|
|
N.A.
|
0.0058-0.041
|
0.012-0.08
|
0.014-0.1
|
|
Res.(lp/mm)
|
17.3-122
|
35.8-238
|
41-298
|
|
MAG.
|
0.16X-1.13X
|
0.32X-2.27X
|
0.65X-4.55X
|
|
D.O.F.(mm)
|
16.3-0.33
|
6-0.086
|
2.8-0.055
|
|
W.D.(mm)
|
190
|
95
|
45.6
|
|
F.O.V(mm) 1.2"
|
50-7
|
25-3.5
|
12.3-1.8
|

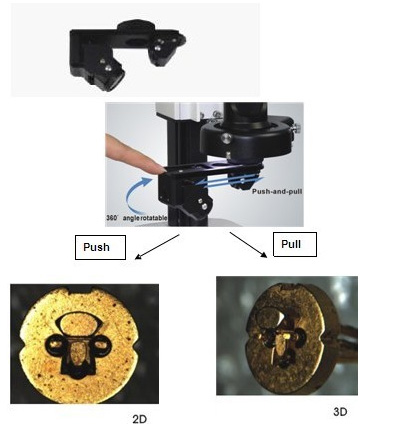

2D/3D Angle

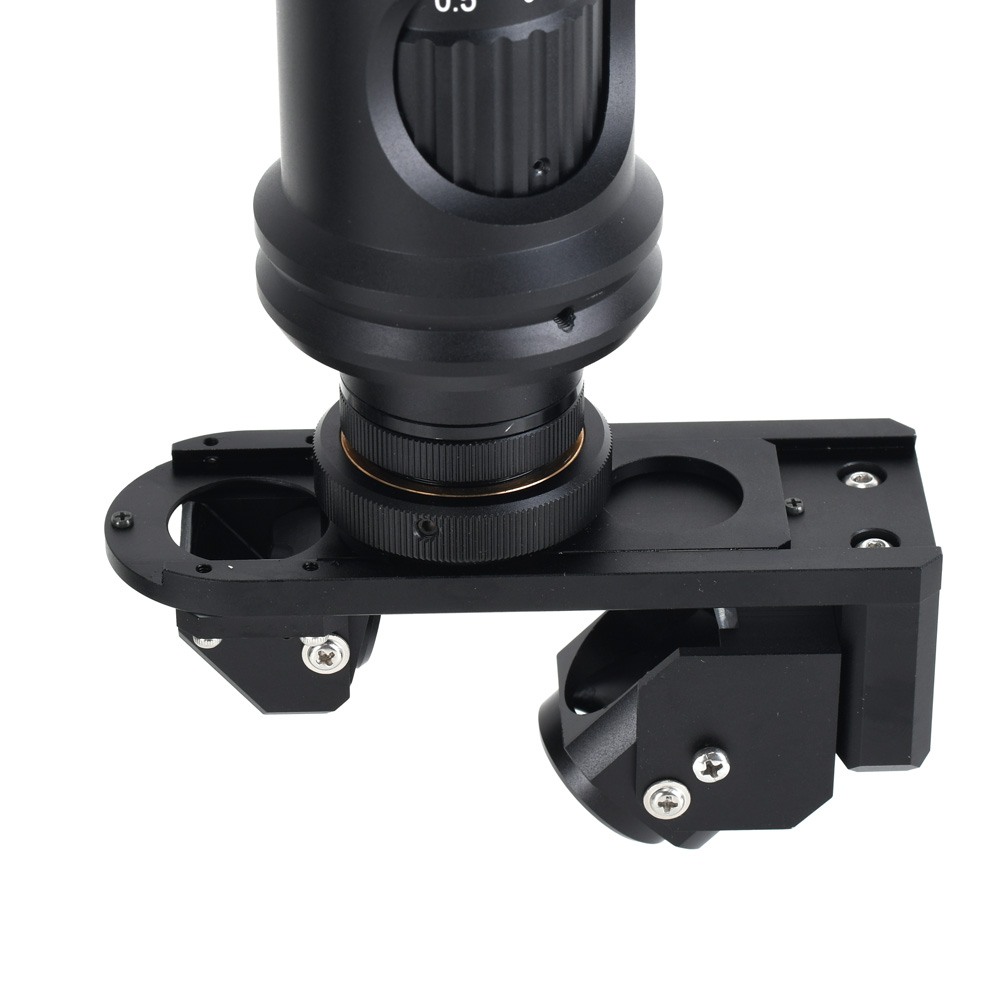

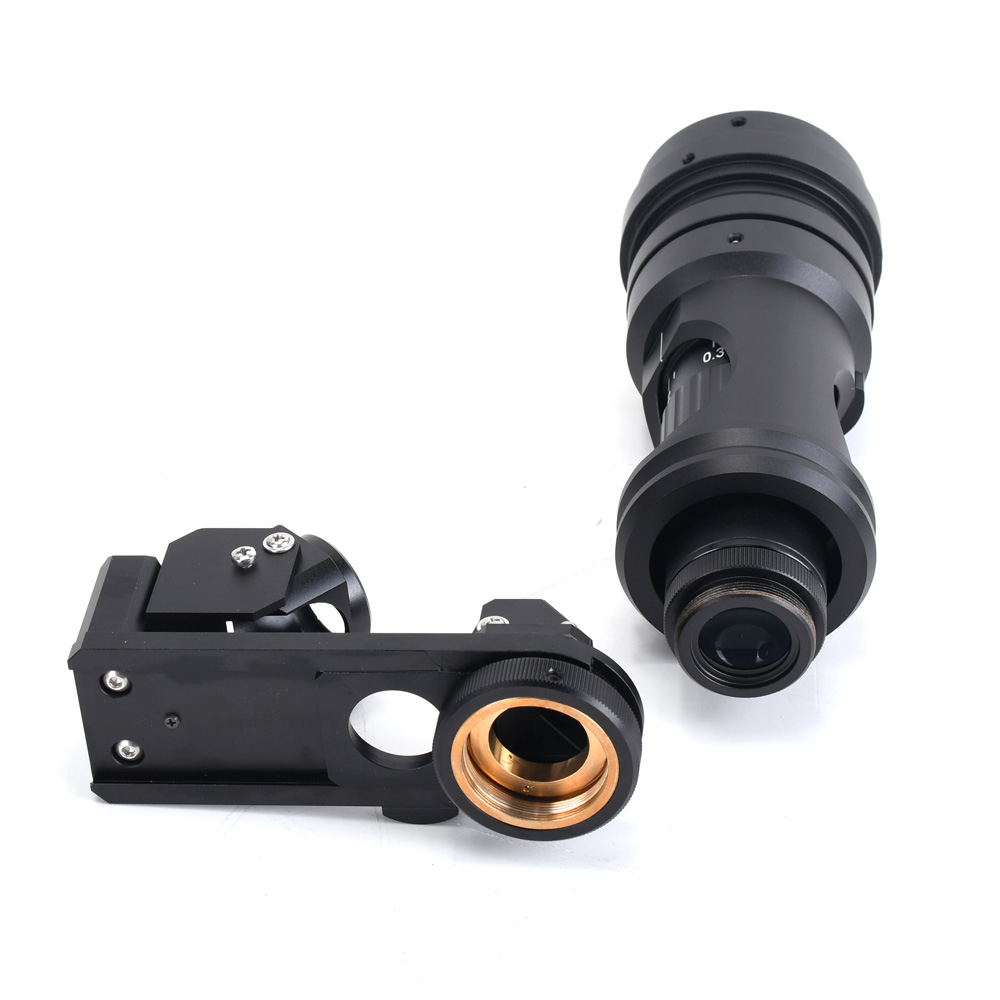

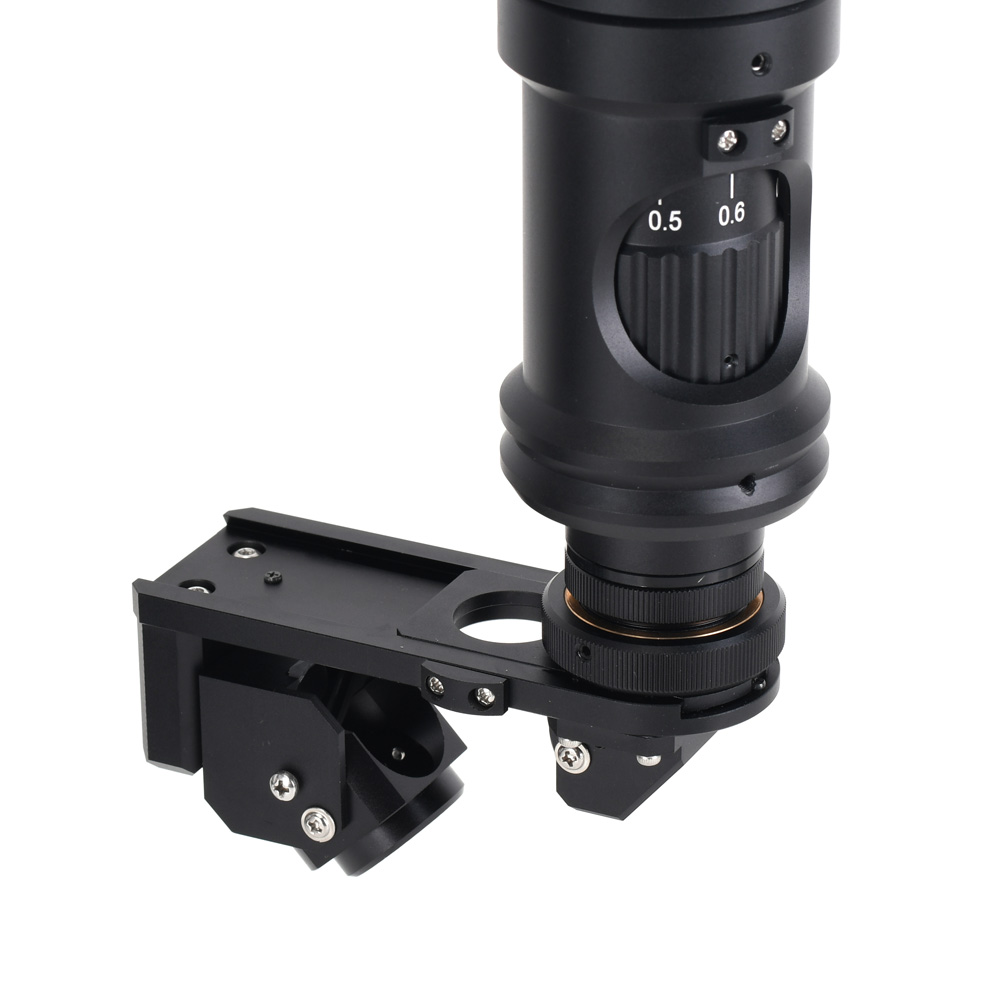

Rotary Observation: 36 degree Angle 3D Attachment for a 1X Objective Lens (Standard)
1.Depth of Field: 6mm
2.W.B: Manual
3.W.D: 95mm(Long Working Distance)
4.Change 2D to 3D Image
5.Same Working Distance, Superior Resolution
6.Consistent Centre Position

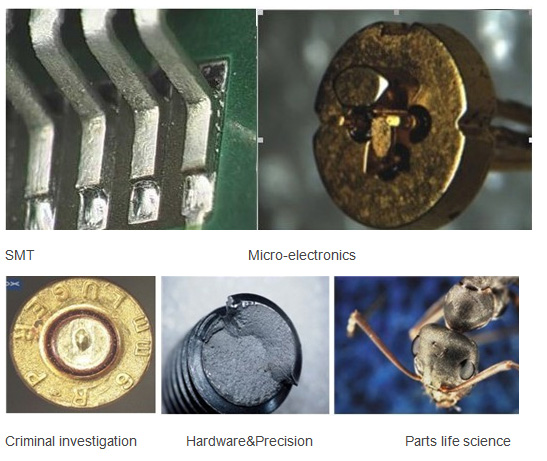

Applications
Microscope Lens
