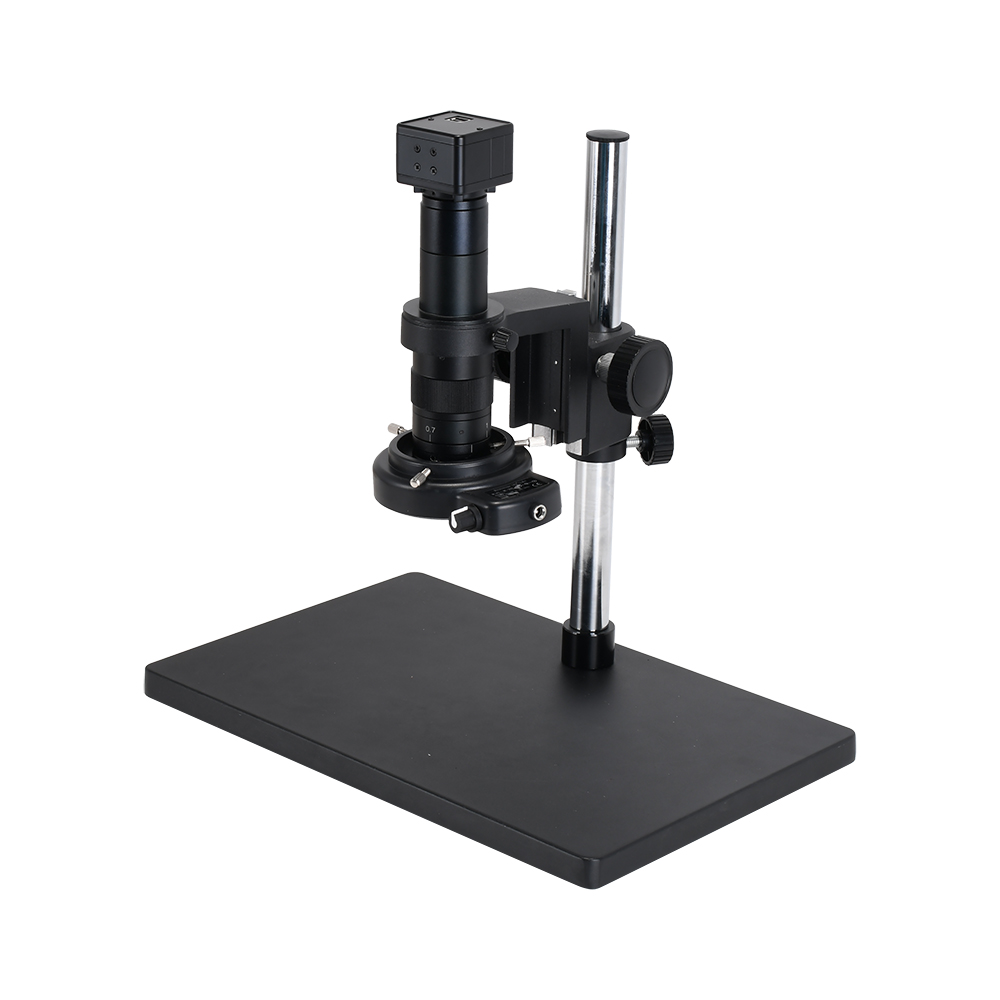

HAYEAR Industrial Microscope camera 5MP USB Microscope camera 3M USB cable & 1/2.5 CMOS Image Sensor with 180X Zoom Lens 144LED Ring Light Stereo Stand
Price : US $ 158.51 199.00

SKU : 2204184919
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Specification:
Model: USB output
Sensor: 5MP 1/2.5 inch
Image equipment:CMOS
Sensor: 5MP
Full Resolution: 2592 x 1944
Frame rate:(MJPG) 2592 x 1944@30FPS ;2048x1536@30FPS ; 1920x1080@15FPS ;1600x1200@30FPS; 1280x720@30FPS;1280x960@30FPS;1024x768@30FPS; 800x600@30FPS;640x480@30FPS
Frame rate:(YUY2) 2592 x 1944@2FPS ;2048x1536@2FPS ; 1920x1080@4FPS ;1600x1200@4FPS; 1280x720@4FPS;1280x960@4FPS;1024x768@6FPS; 800x600@15FPS;640x480@30FPSPixel size: 2.2μmm x 2.2μm

Support interface: DirectShow,TWAIN,SDK,Redistributable

Programmable control:The size of the image, image photographing,
exposure time, gain, GAMMA,

White Balance: Auto
Data output:16bit
Light: Auto
Electronic shutter:20-100000
White balance (dB):38.1 dB,
Color: Color
Sensitivity: 1.4V/lux-sec@550nm
Spectral response:400nm~1000nm


LENS:
model number: HY-180XA
zoom c-mount lens
0.5X eyepiece adapter
zoom ratios: 6.5:1
working distance: 95mm
objective magnification power by 0.7 - 4.5X (about 10 - 180X on the display)
size: 24.5mm(long) * 50mm(diameter)
weight: 500g

Stand
This base is all metal, very heavy, make sure you can get a steady base when operation.
We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.

Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm


Package including :
1 x 5.0MP Microscope Camera
1 x USB line
1 x Software DISC
1 x 180X zoom c-mount lens
1 x144LED ring light
1 x Digital Microscope Table Stand
