Microscope Camera Kit >> HAYEAR Industry Live Digital HDMI USB Camera 35mm F1.7 CS Mount Low distortion Lens for broadcast camera piano circuit board maintenance teaching
View Larger Image
Share your images of this product
HAYEAR Industry Live Digital HDMI USB Camera 35mm F1.7 CS Mount Low distortion Lens for broadcast camera piano circuit board maintenance teaching
Price : US $ 212.56 229.00
SKU : 2205164851
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

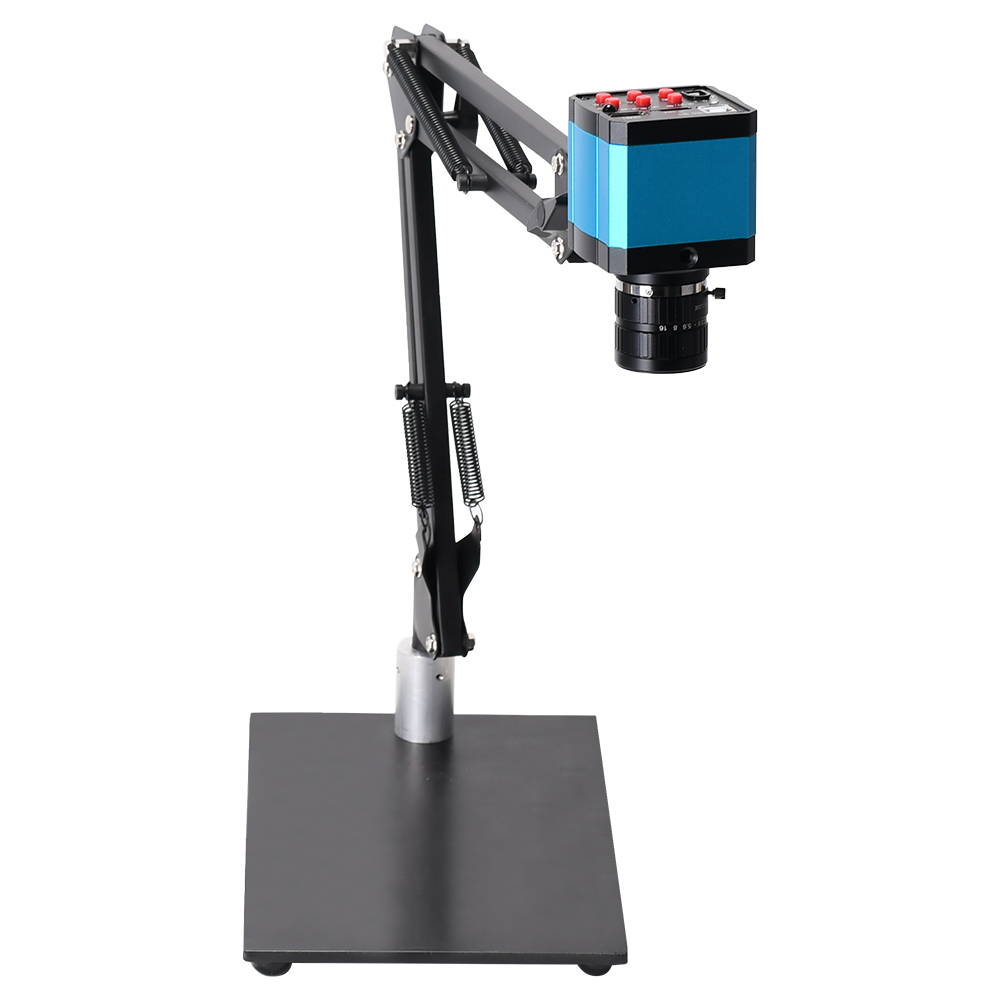

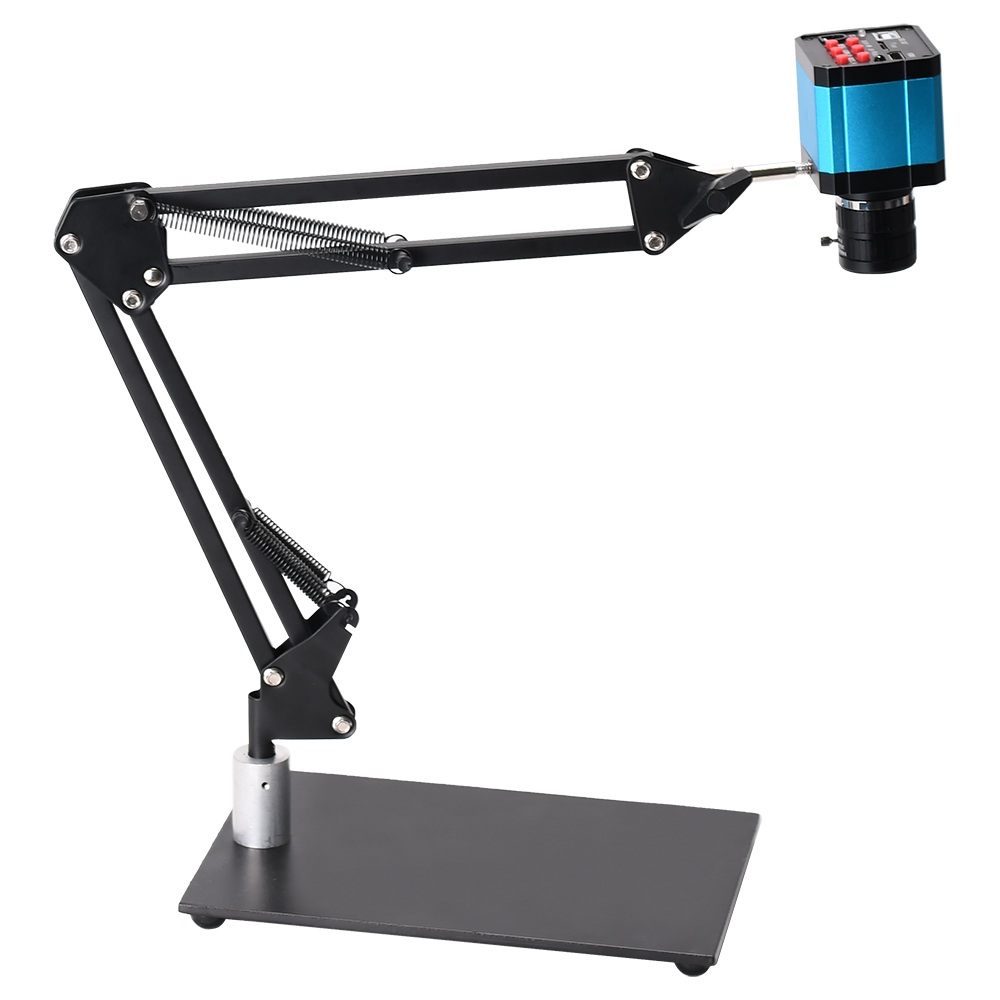

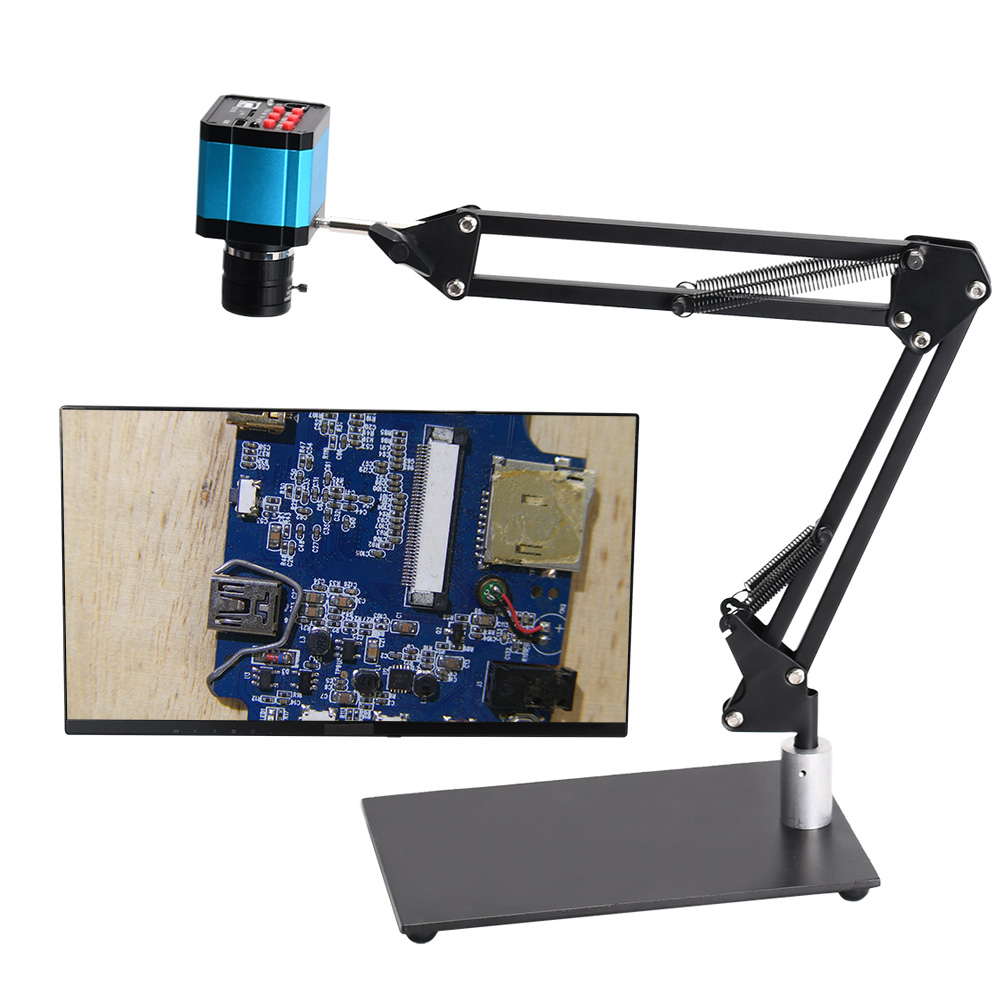

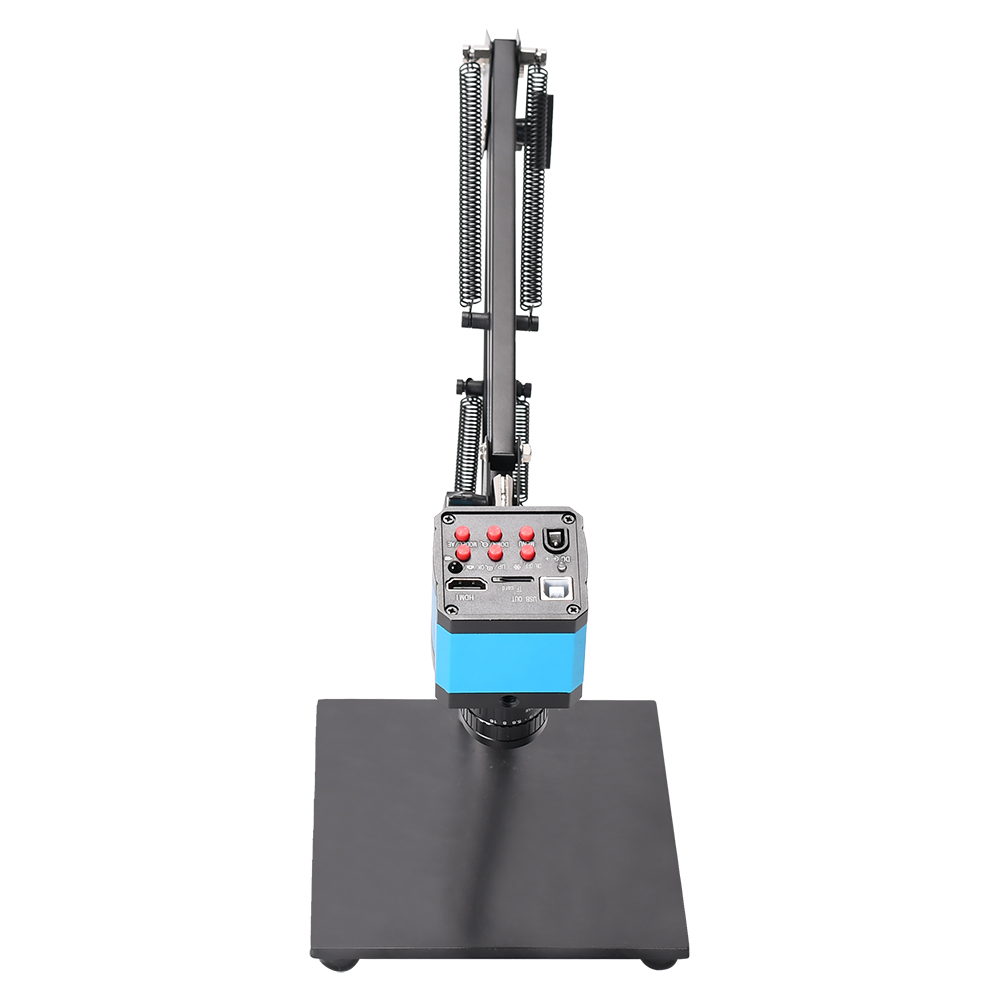

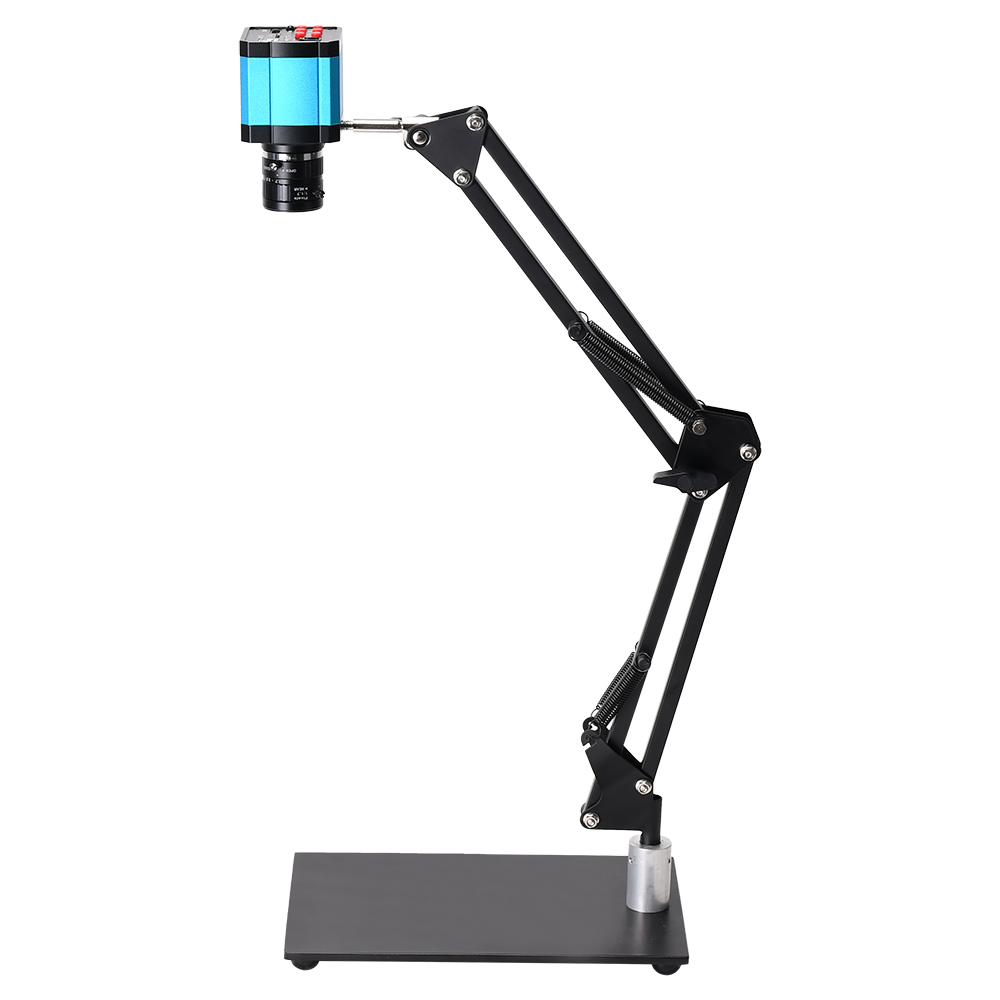

1.The head can be adjusted 220 ° up and down, and 360 °
swivel. 33cm+33cm retractable long arms,180°/135° can be adjusted.

HDMI USB Camera 35mm F1.7 Lens Industry Live Digital Camera

Full 1080p HDMI USB Digital Cameras, Industry Live Digital Camera,
Equipped with 35mm 1/3" CS Mount CCTV Lens IR F1.7 Manual Zoom Manual Iris Camera Lens.

HDMI USB Camera Features:

High Quality, High Resolution, Clear Images
1080P 1920*1080 Video Camera
HDMI USB Video Model
Industry Cmos Camera. It can Show the live image directly on any HDMI
monitor , Projector or TV.


Item Type: Microscope Camera
Sensor: 14MP CMOS
Optical Format: 1/2.3 inch
Pixel Size: 1.335μmx1.335μm
Interface: HDMI (Type A). USB (Type B). Small memory card
HDMI Image Resolution: 14MP
Video Resolution: 2K at 30FPS 1080p at 60FPS
HDMI Resolution: 1920 x 1080p 60FPS
HDMI Scale: Support 4: 3,16: 9,16: 10 screen
USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPS
Small Memory Card: Up to 128GB (not included)
AWB: AWB color correction/automatic/manual
R.G.B value setting independent
Exposure: Automatic/manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dotted Line: 2 lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.
Digital Zoom: Support
Infrared Remote Control: Support
Voltage Input: DC 12V
Power Supply Voltage: Input: AC100-240V
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port
Remote Control Battery: 1 x 2302 button battery (delivered without battery)

35mm F1.7 Lens Specification:

Focal-Length: 35mm
Relative Aperture D/f': F1.7
Mount: C
Image Format: 1/1.8in
Field of View: W14.8°xT10.8°
Dimension: Approx. 35 x 22mm
Resolution: 5MP
Flange BFL: 17.53
High resolution : 5 megapixel covering 5MP & 1080P
Large format: 1/1.8" size covering 1/1.8", 1/2" camera
Big aperture : F1.7 big aperture makes imaging far better
Low distortion :<0.1% low distortion use machine vision FA automatic
Application :Biochemical, surveillance, FA, face recognition etc.

Lens Features:

1.35mm F1.7 Len
2. Varifocal length cctv lens, optical lens, CCTV camera lens, CS Mount Lens
3. focal length Function Manual Iris Lens, security lens
4. Low distortion Lens for box camera, Security Camera Lens,
Surveillance Lens
5. This high resolution CCTV lens can capture the all resolution of mega
pixel camera, IP camera & High resolution camera.
6. Suitable for live stream cameras, surveillance camera, etc.

Packing list:

1 X 1080P HDMI Camera
1 X 35mm F1.7 Lens
1 X Remote control
1 X DC12V power supply
1 X usb line
1x HDMI line
1x stents
