Microscope Camera Kit >> HAYEAR Industrial Microscope camera 5MP USB 2.0 Microscope Camera 3M USB cable Include 1/2.5 CMOS Image Senso Standard base trinocular microscope Zoom 7X-45X Microscope Set For education, scientific research, PCB Soldering
View Larger Image
Share your images of this product


HAYEAR Industrial Microscope camera 5MP USB 2.0 Microscope Camera 3M USB cable Include 1/2.5 CMOS Image Senso Standard base trinocular microscope Zoom 7X-45X Microscope Set For education, scientific research, PCB Soldering
Price : US $ 289.00 303.00

SKU : 2205245710
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
pecification:
Model: USB output
Sensor: 5.0mp,1/2.5 inch
Image equipment:CMOS
Sensor: 5MP
Full Resolution: 2592 x 1944
Frame rate:(MJPG) 5MP: 2592x1944 HDR @ 30fps;3MP: 2084x1536 HDR @ 30fps; 2MP:1920x1080 HDR @ 15fps;2MP:1600x1200 HDR @ 15fps 1MP:1280x720 HDR @ 30fps 800x600@30FPS;640x480@30FPS
Frame rate:(YUY2) 2592 x 1944@2FPS ;2048x1536@2FPS ;
1920x1080@4FPS ;1600x1200@4FPS;1280x720@4FPS;1280x960@4FPS;1024x768@6FPS; 800x600@15FPS;640x480@30FPS
Pixel size: 2.2μmm x 2.2μm
Support interface: DirectShow,TWAIN,SDK,Redistributable
Programmable control:The size of the image, image photographing, exposure time, gain, GAMMA,
White Balance: Auto
Data output:16bit
Light: Auto
Electronic shutter:20-100000
White balance (dB):38.1 dB,
Color: Color
Sensitivity: 1.4V/lux-sec@550nm
Spectral response:400nm~1000nm

This stereo microscope Set , the trinocular zoom stereo microscope can adjust the wide zoom magnification from 3.5 x to 90 x, connect an eyepiece with a wide angle high eye point, and rotate the trinocular zoom stereo head to 45 degrees. A tilted 360-degree binocular eyepiece can be used to observe and provide sharp stereo upright images in a wide field of view.
Microscope head: 360 degree rotatable binoculars tilted 45 degrees
Eyepiece: About 30 mm, wide field of view, high point eyepiece (WF 10 x / 20 mm)
Objective zoom range: 0.35 x --9.0 x
Working distance: 40mm

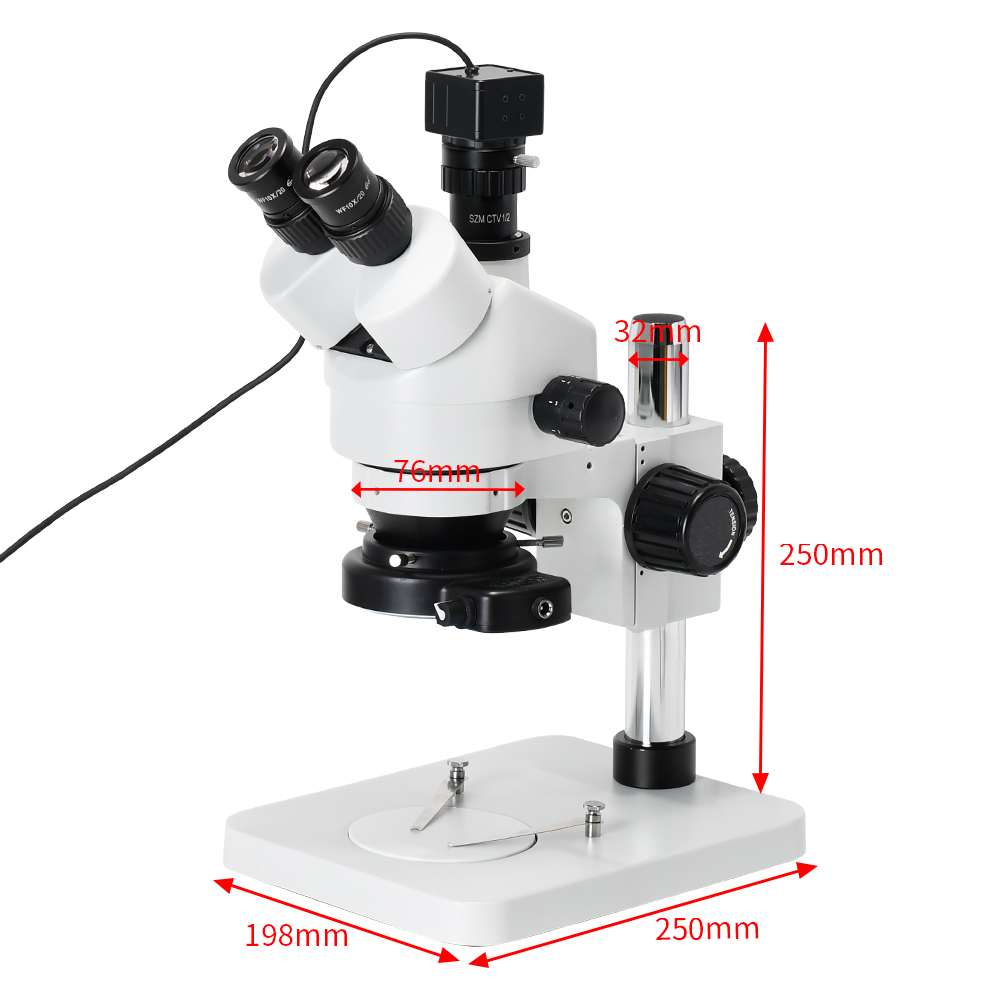

Stage size254(L)*200(W)*275(H) mm Illumination controllable 144--LED ring light consists of 144 bright white LED bulbs with adjustable brightness intensity and long service life, about 10,000 hours.
Provides powerful, focused, shadow-free illumination when using the microscope, when supported.

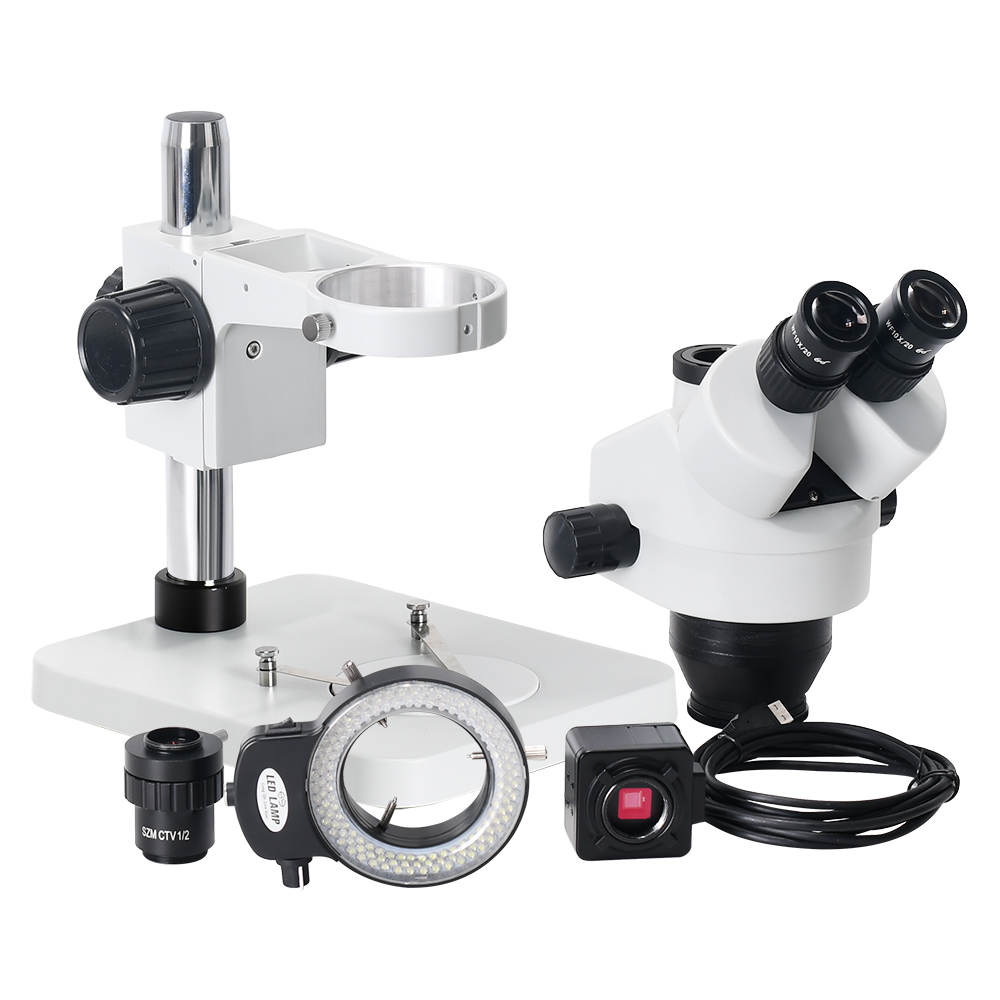

Package Includes:
1XUSB microscope camera (3MUSB cable included)
1X 180 x Zoom Lens
1X Standard base trinocular microscope
1X144 LED ring light
1X CD software
