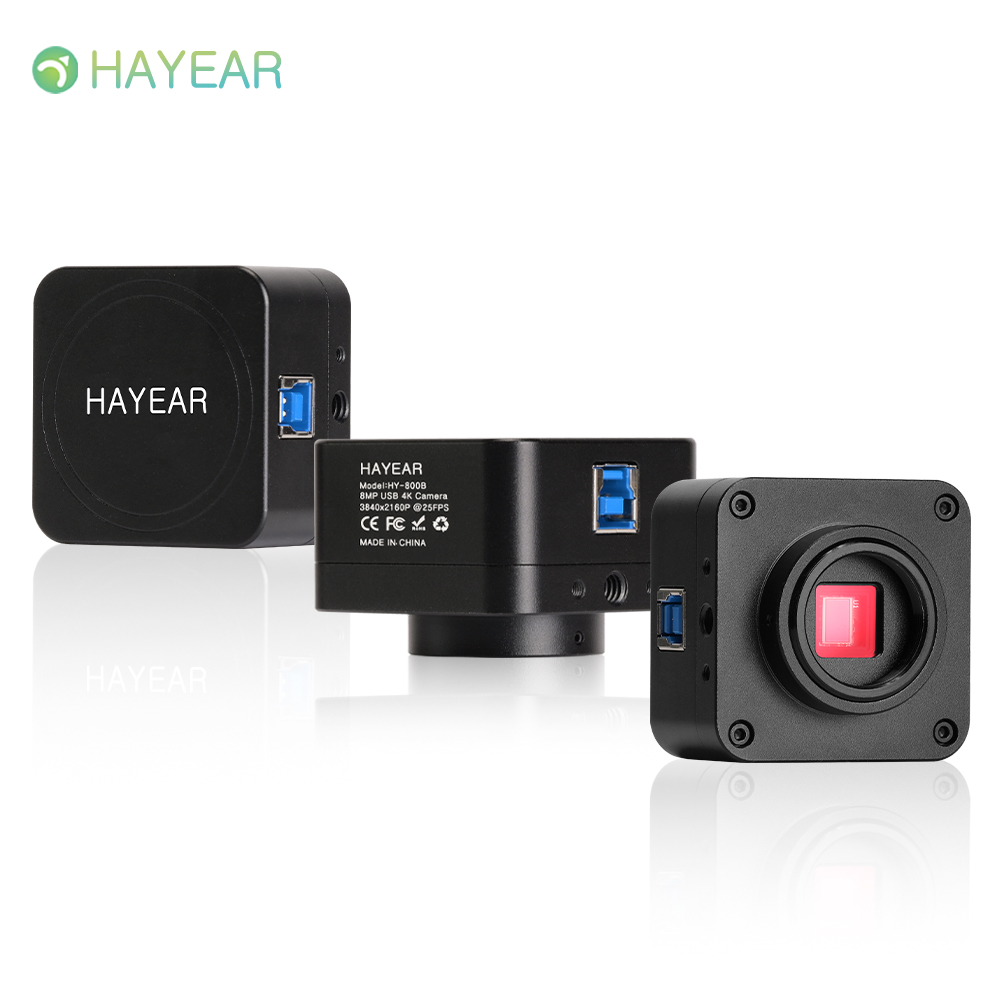

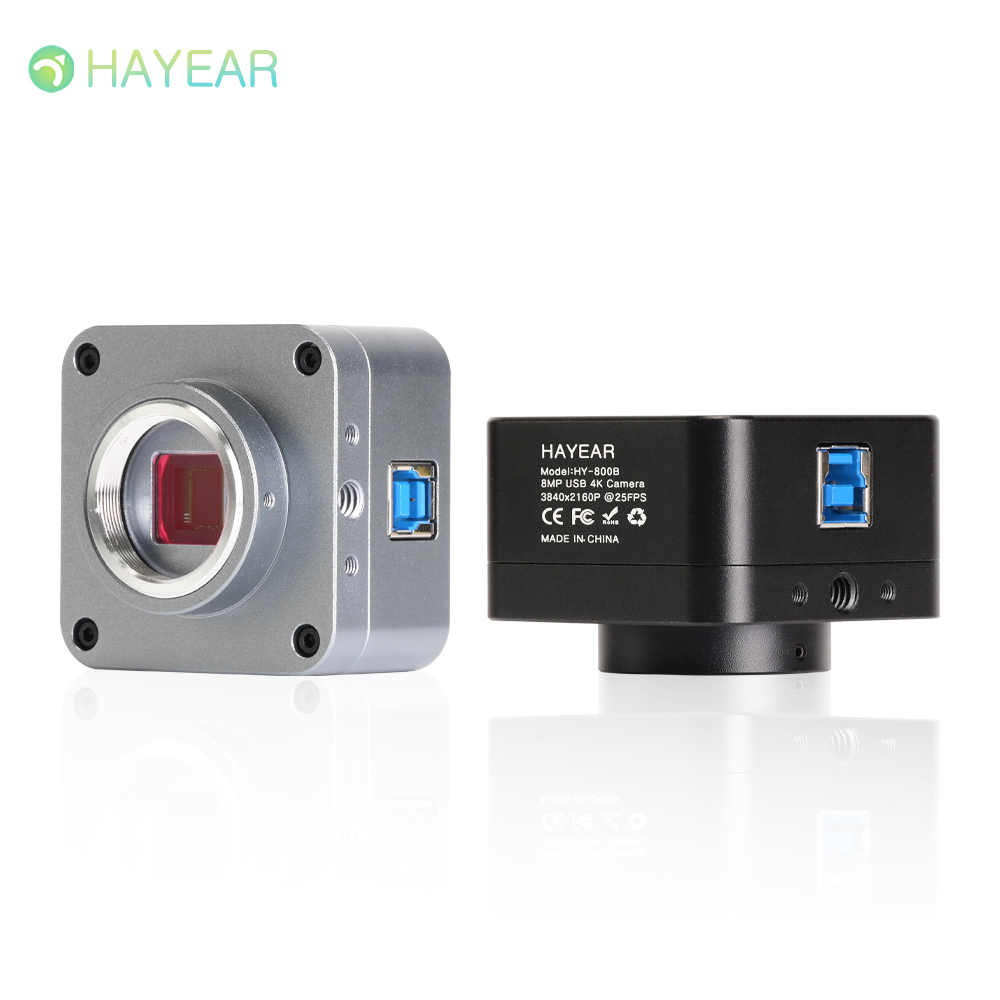

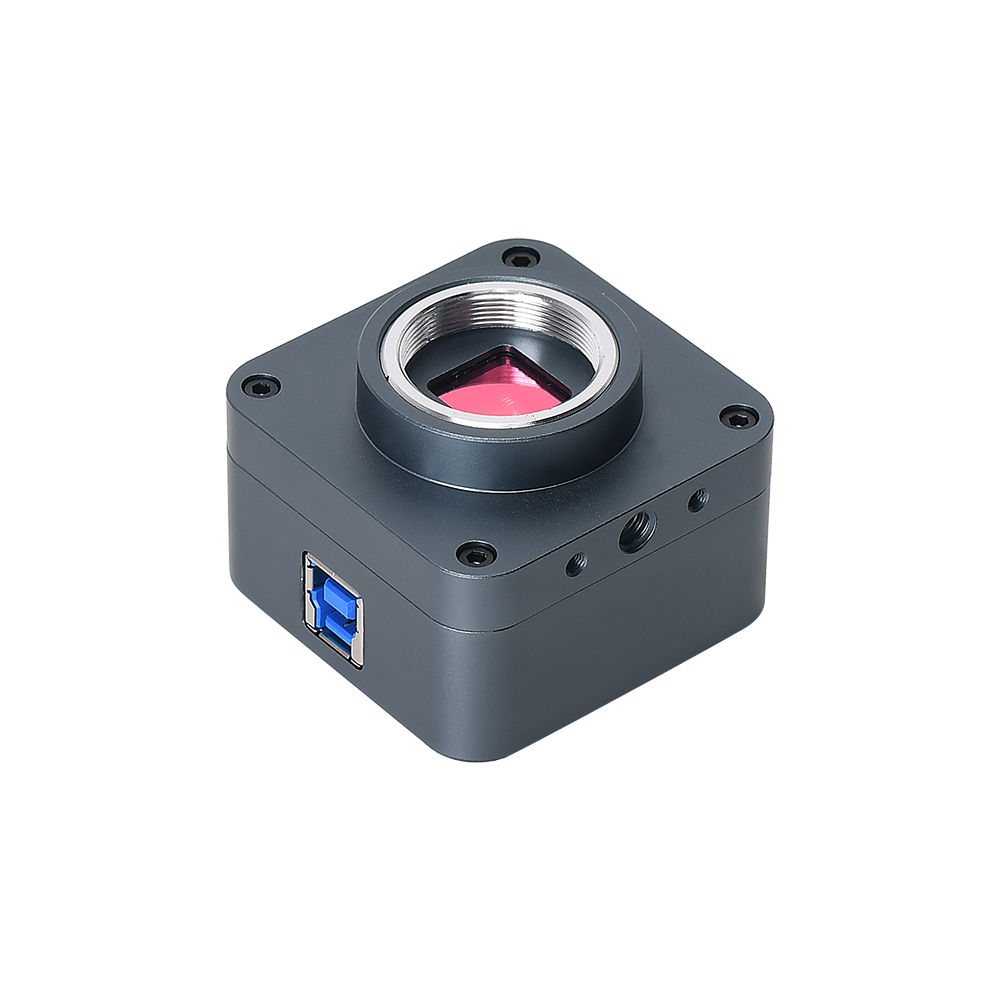

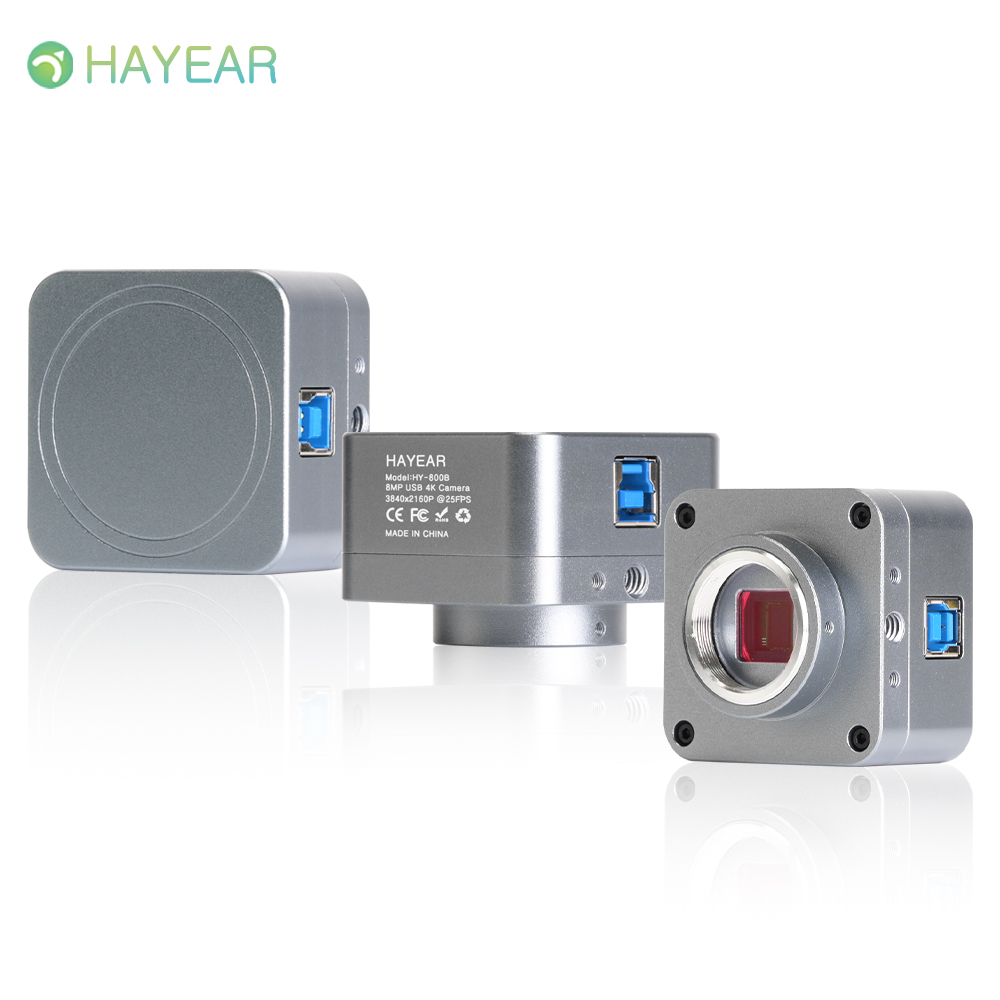

Model HY-800B
Name USB2.0 Color 800W driver-free UVC digital camera
Image Sensor SONY 1/1.8" Color IMX CMOS Image Sensor
Pixel size 2μm（H）×2μm(V)
Spectral response 400nm～1000nm
Scanning method Progressive scanning, real 8MP image sensor no compression, no interpolation
Resolution 3840x2160;2592x1944;2560x1440;1920x1080;1280x720;640x480
Image format MJPEG (Compression format) YUV422 (Compression format)
Video recording 3840x2160 @ 25fps;
2592x1944 @ 25fps;
2560x1440 @ 45fps;
1920x1080 HDR @ 60fps;
1280x960 HDR @ 60fps；
1280x720 HDR @ 60fps;
640x480 HDR @ 60fps
320x240 HDR @ 60fps
3840x2160 @ 1fps;
2592x1944 @ 1fps;
1920x1080 @ 5fps;
1280x720 @ 10fps;
640x480 @ 30fps
640x360 @ 60fps
320x240 @ 60fps

Dynamic Range 74 dB (Linear)-85 dB (HDR)
Sensitive 2400 mV/Lux-sec
White balance Auto/manual
Data output USB2.0，480Mb/s
SNR 39dB
Working temperature -30℃～75℃
Storage temperature -30℃～60℃
Preservable parameters Brightness, Contrast, Color saturation,Hue,
Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure Support UVC USB Video Class（UVC）
White balance Auto/Manual
One-click
white balance Support
Exposure control Auto/Manual
Eyepiece 0.5X eyepiece (Support 30.0mm/23.2mm diameter)
supports output formats 12-/10-bit RAW RGB
supports 2x2 binning
ISP clock up to 240MHz
Support systems Win XP/Win7/Win10/win11
Linux / Android (Devices that comply with the UVC protocol)
MAC OS X10.4.8 or later (Devices that comply with the UVC protocol)
Support OTG USB2.0 OTG

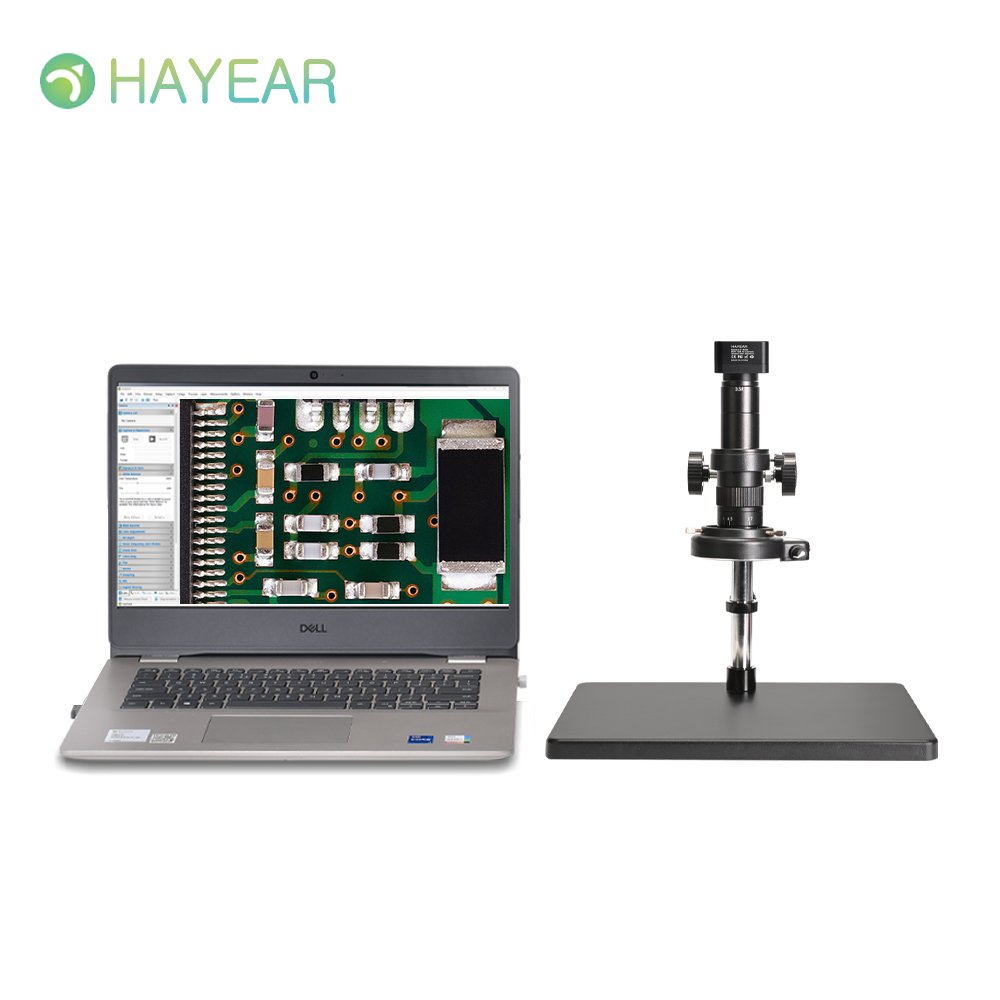

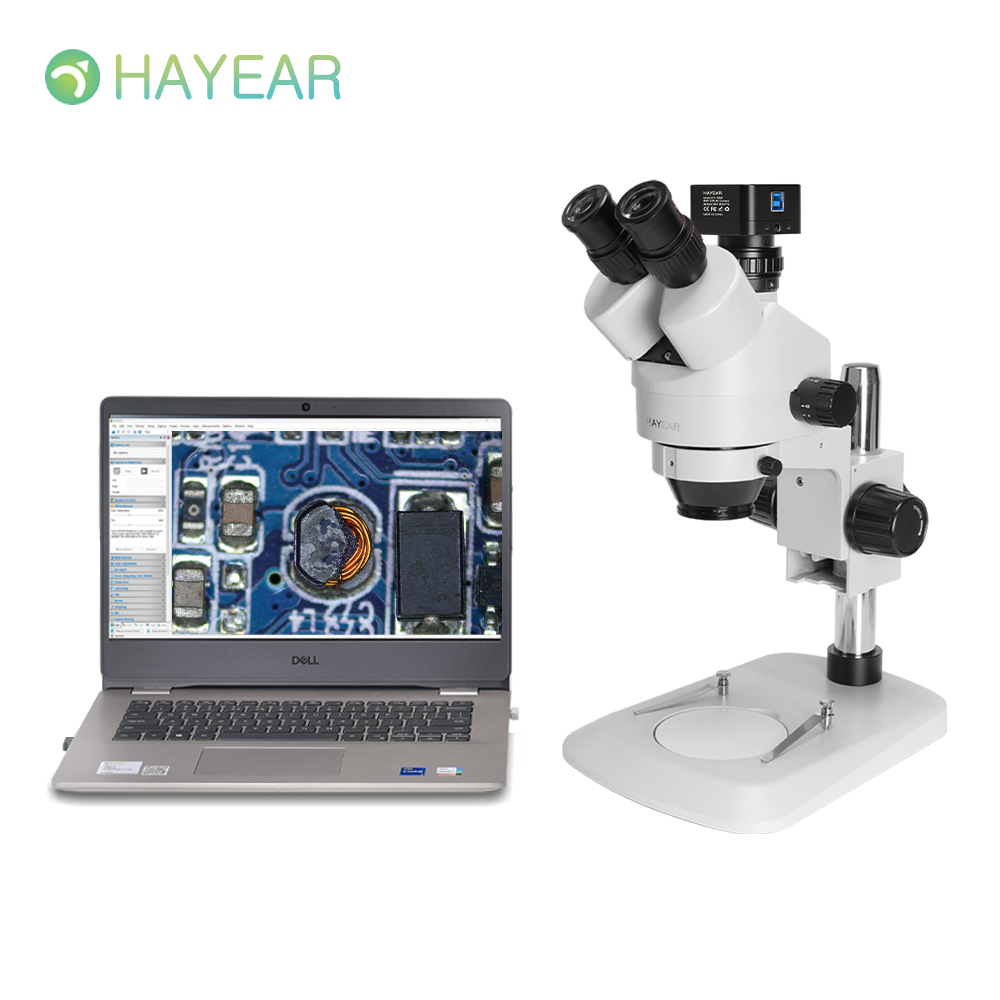

Range of uses: Industrial vision, visual inspection, microscope,
astronomical telescope, intelligent terminal equipment, face
recognition, advertising machine, dish recognition, smart vending
camera, electronic weighing object recognition, USB Raspberry Pi camera, code scanning camera, etc...

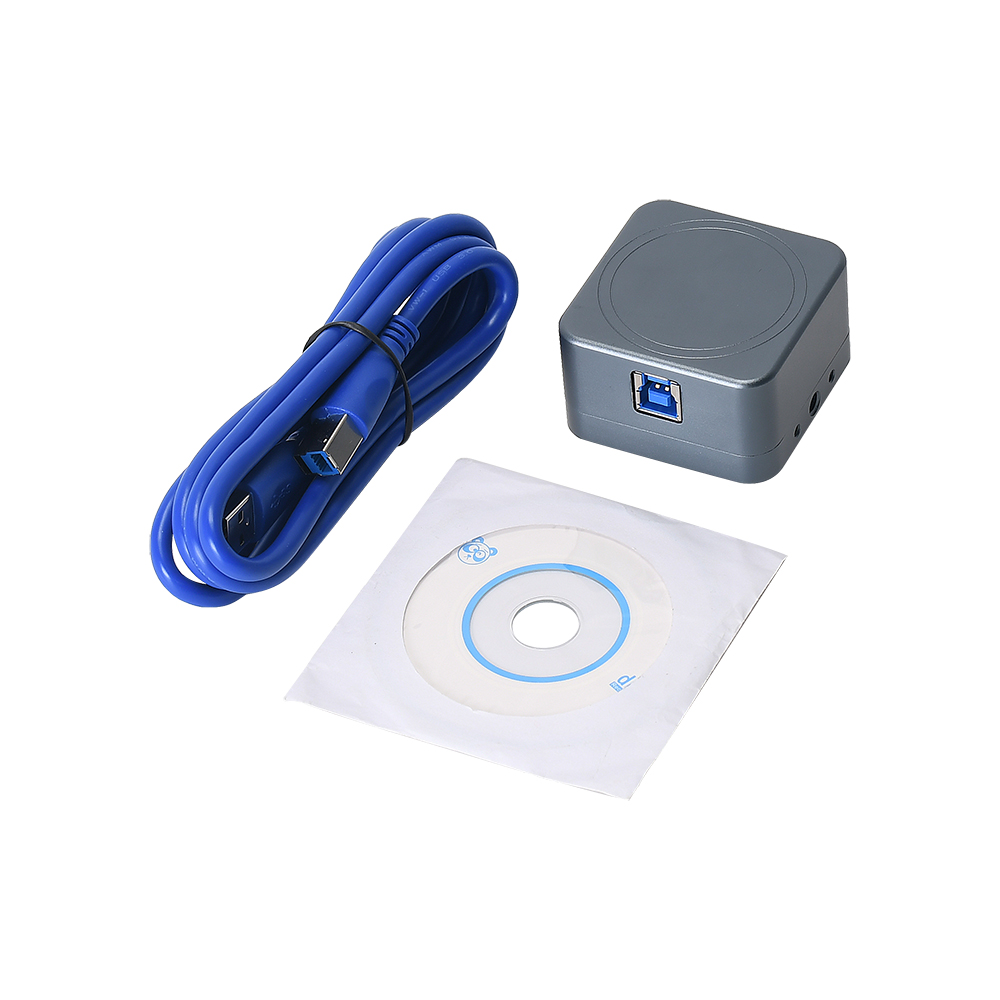

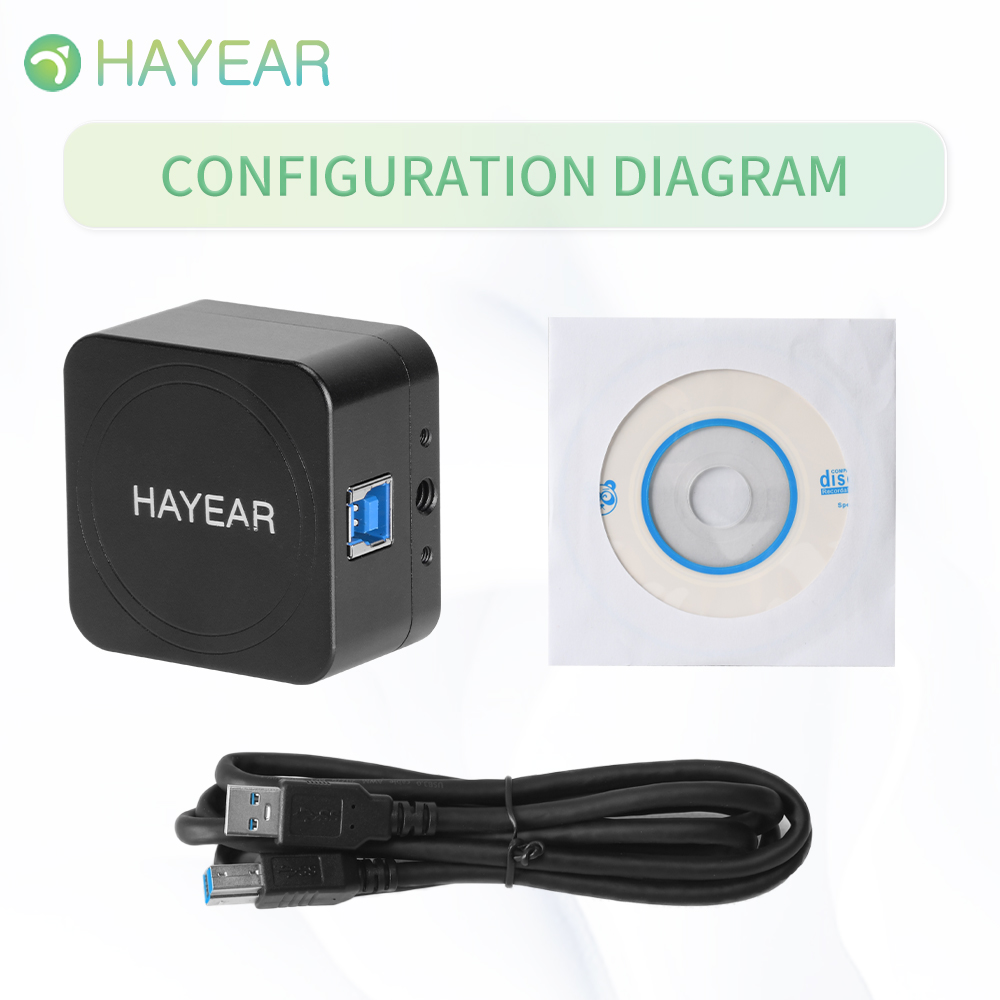

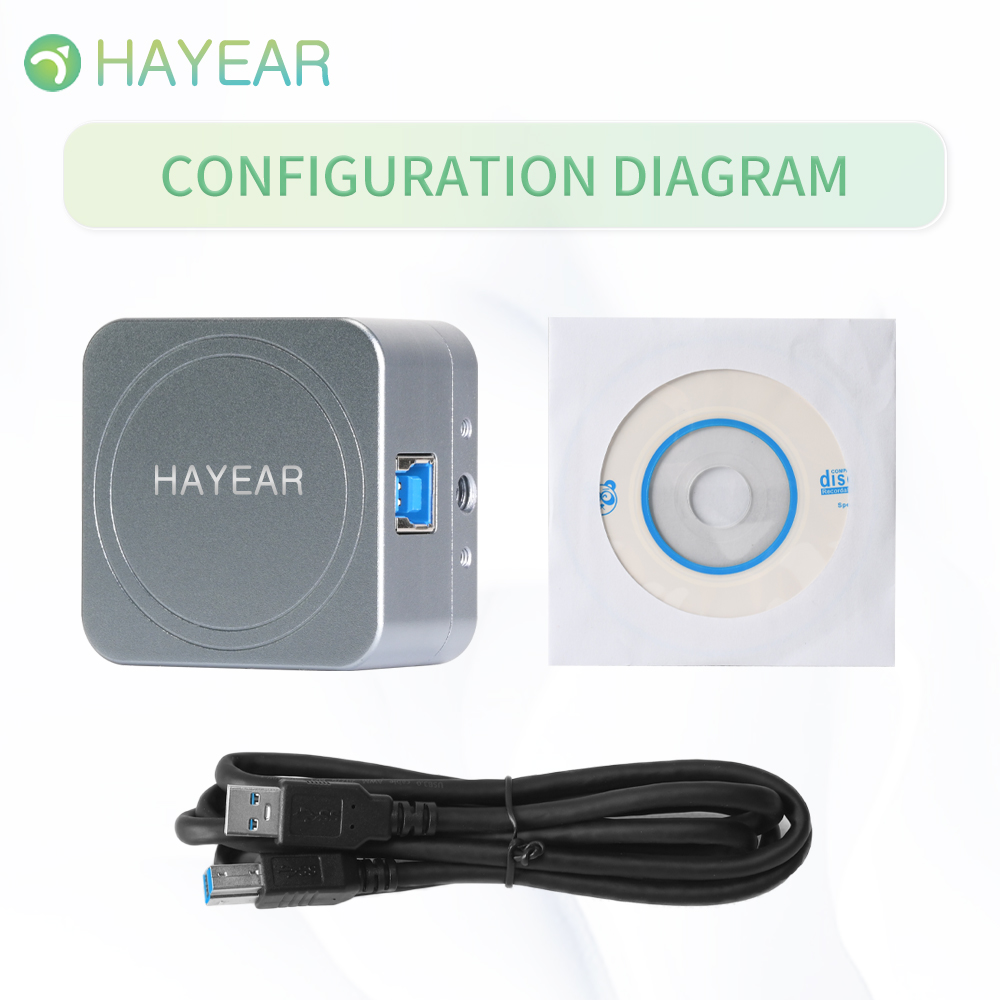

Package including:
1 x 8MP Microscope Camera
1 x USB line
