USB Camera >> HAYEAR 5MP Type-C USB2.0 Ocular Adapter Electronic Digital Eyepiece Build-in 0.5X HD Microscope Camera for Stereo Microscope Biological
View Larger Image
Share your images of this product


HAYEAR 5MP Type-C USB2.0 Ocular Adapter Electronic Digital Eyepiece Build-in 0.5X HD Microscope Camera for Stereo Microscope Biological
Price : US $ 61.39 86.69

SKU : 2211152006
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Name:TYPE-C USB 5MP Build-in 0.5X adapter Color UVC Microscope Camera
Image sensor:1/2.5" Color CMOS Sensor
Pixel size:2.20μm(H)×2.20μm(V)
Spectral response:400nm~1000nm
Shutter type:rolling shutter

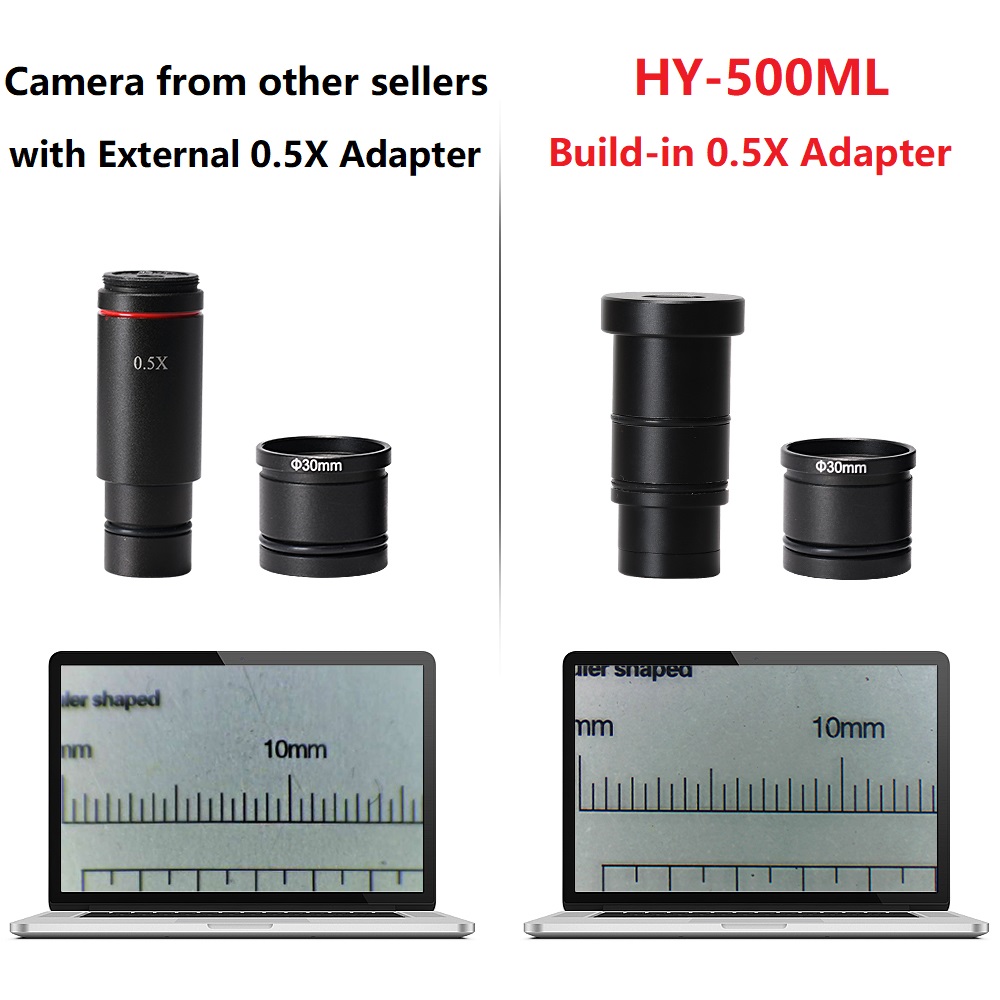

Magnification reduction:0.5X (increase the FOV by 6mm)

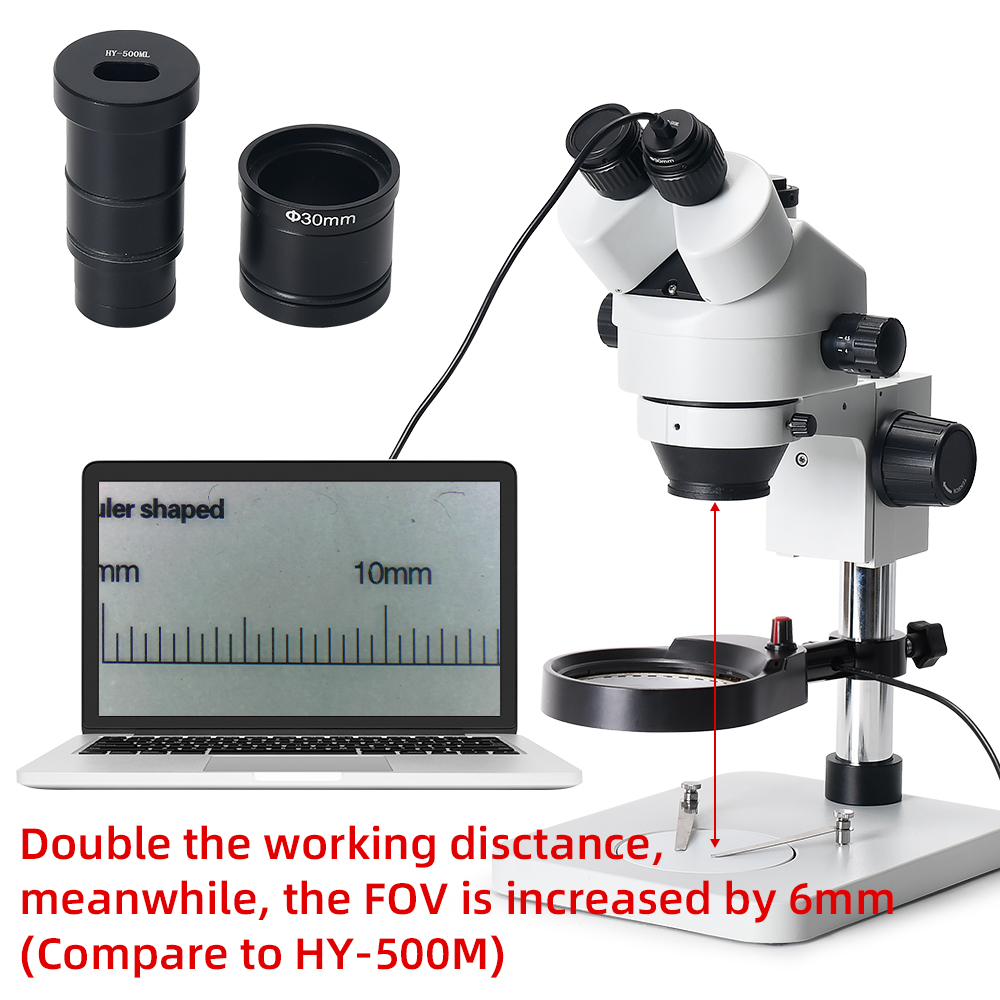

Working distance:Double the working distance (compare to HY-500M)
Frame rate:@30FPS
Output video format:MJPEG / YUV2(YUYV)
Video recording:
(MJPEG)
2592x1944 @ 2fps;
2084x1536 @ 2fps
1920x1080 @ 5fps;
1600x1200 @ 5fps
1280x720 @ 10fps;
800x600 @ 20fps
640x480 @ 30fps;
320x240 @ 30fps
(YUY)
2592x1944 @ 30fps;
2084x1536 @ 30fps
1920x1080 @ 30fps;
1600x1200 @ 30fps
1280x720 @ 30fps;
800x600 @ 30fps
640x480 @ 30fps;
320x240 @ 30fps

Dynamic range:74 dB (Linear) 85 dB (HDR)
Sensitivity:18.8 ke-/lux*sec

Filter :Standard 650nm IR cut-off filter
Depth of pixel bit :10bit
SNR:39dB
Exposure time range (ms):0.02~155.5 ms
Working temperature range:-20℃~65℃
Storage temperature range:-30℃~60℃
Other function:Gamma adjustment, Saturation adjustment, White balance
correction, Noise reduction, Frame rate, Brightness, Contrast, Color tone, Clarity, Gain (adjustable range 100), Backlight contrast,
Exposure adjustment, Low brightness compensation, Monochrome adjustable

Support UVC protocol:USB Video Class(UVC)
Exposure control:Auto/Manual
Frame Cache:32M Bytes
Operation system:WIN XP, WIN 7/8/10/11, 32/64 bit system
Driver :Directshow component, Halcon Specialized component, TWAIN component

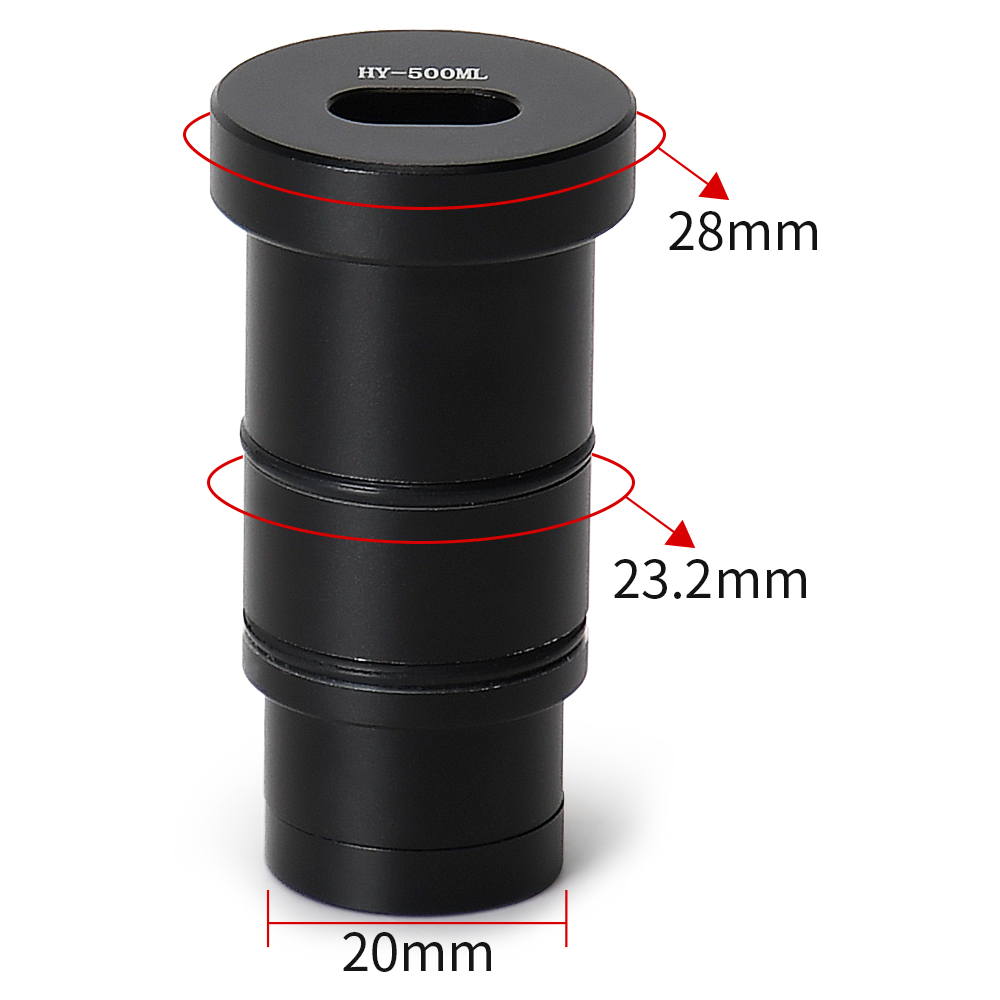

Lens interface:20/23.2mm interface (C-mount adapter optional),
30mm,30.5mm adapter are included
Wattage:<2.5W
Data cable:1 meter Type-C 2.0 data cable



Package including:
1 x 5MP Microscope Camera
1 x USB line
