Details
Camera:
Model: HY-6110
Sensor: SONY CMOS 1/1.8 IMX334 Sensor
Video Output Interface: Camera with HDMI USB2.0 two output
HDMI OutPut Resolution: 4K@30FPS / 1080p@30FPS
USB-PC OutPut Resolution: 3840x2160 @30FPS; 2592x1944 @40FPS;2592x1944 @40FPS;2084X1536 @60FPS; 1920x1080P @60FPS
Pixel size: 2.0μm × 2.0μm
Housing: metal
HDR: Support HDR,Multiple exposure HDR, Digital overlap HDR
Definition: FULL HD
Housing: metal
Lens: C / CS
Video format: MOV
Digital Zoom: Support
Brightness control: Auto / manual
Color: R / G / B adjustable
Film and recor d: Support
Cross cursor: Support multi-color, size adjustable
PC Support:Windows / Miac  PC Software with Measuring Function
Image Measurement：Support Measurement
Language:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines / vertical lines, moveable Different color, 5 horizontal line, 5 vertical line, any positions
TF card interface: Max 256G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

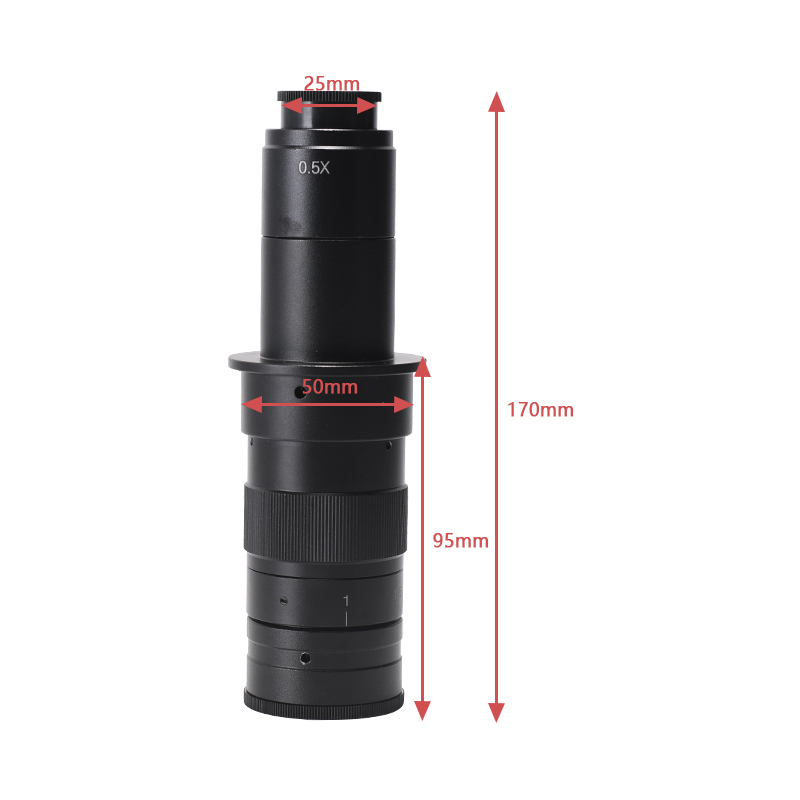

Lens:180X
Working distance:95mm
Interface:C-Mount
Diameter of pick-in and out: Ø50mm
Eyepiece: 0.5X
Zoom magnification: 6.5:1
Objective lens magnification：0.7X-4.5X

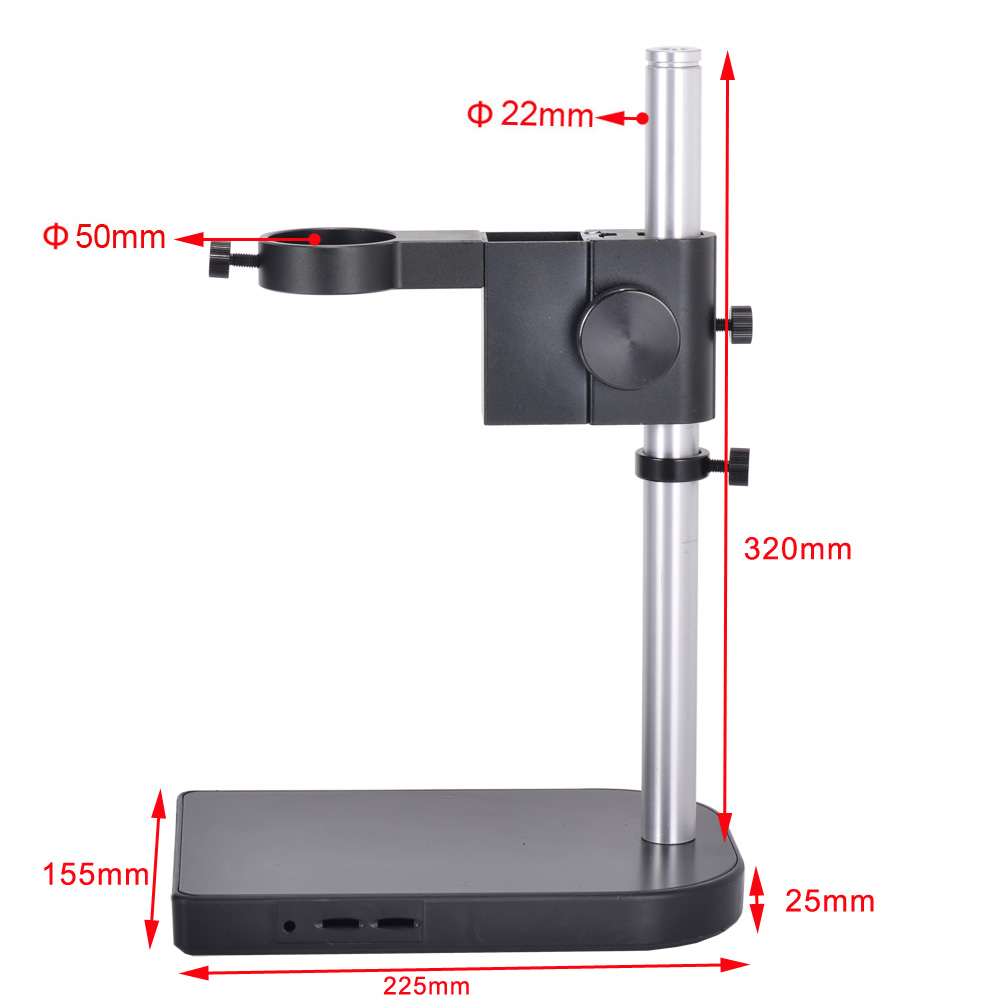

Stand:
Base length: 225mm
Base width: 155mm
Column height: 320mm
Bracket mounting diameter: Ø50mm
Stand column diameter: Ø22mm
Weight: 1.35kg

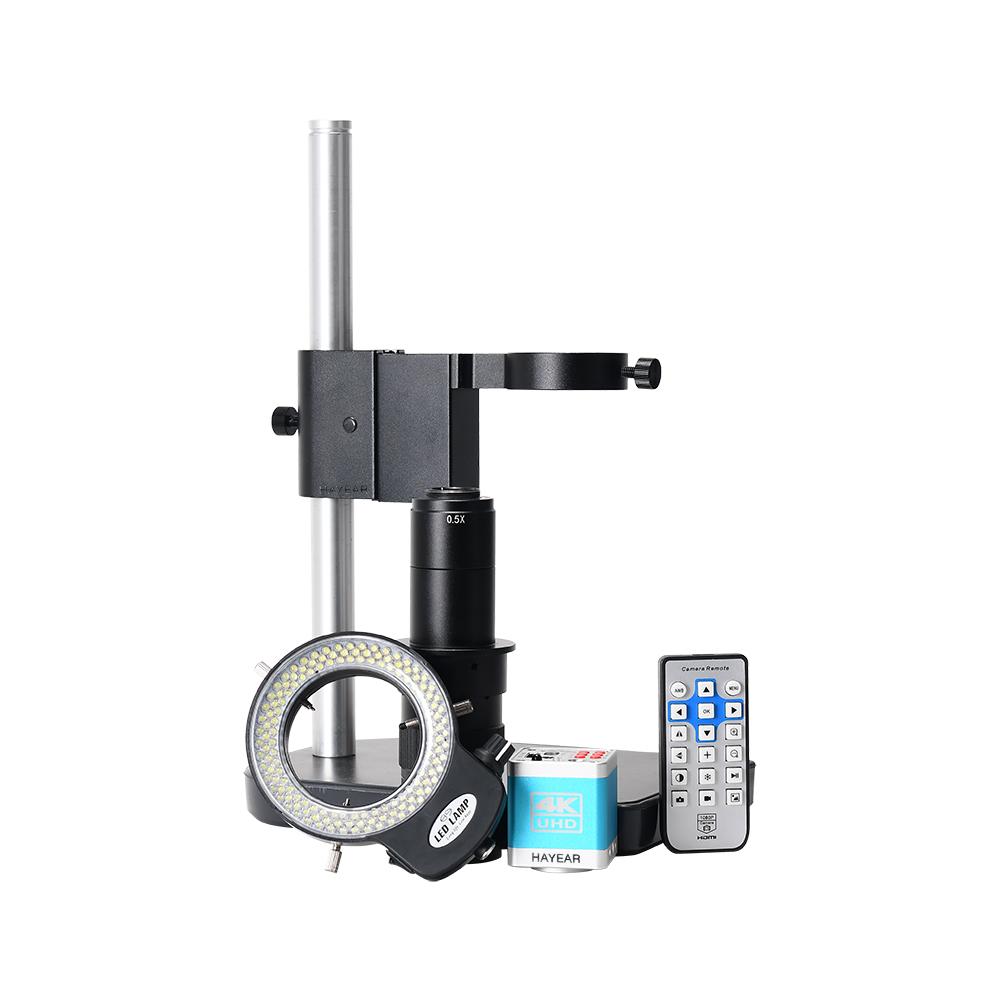

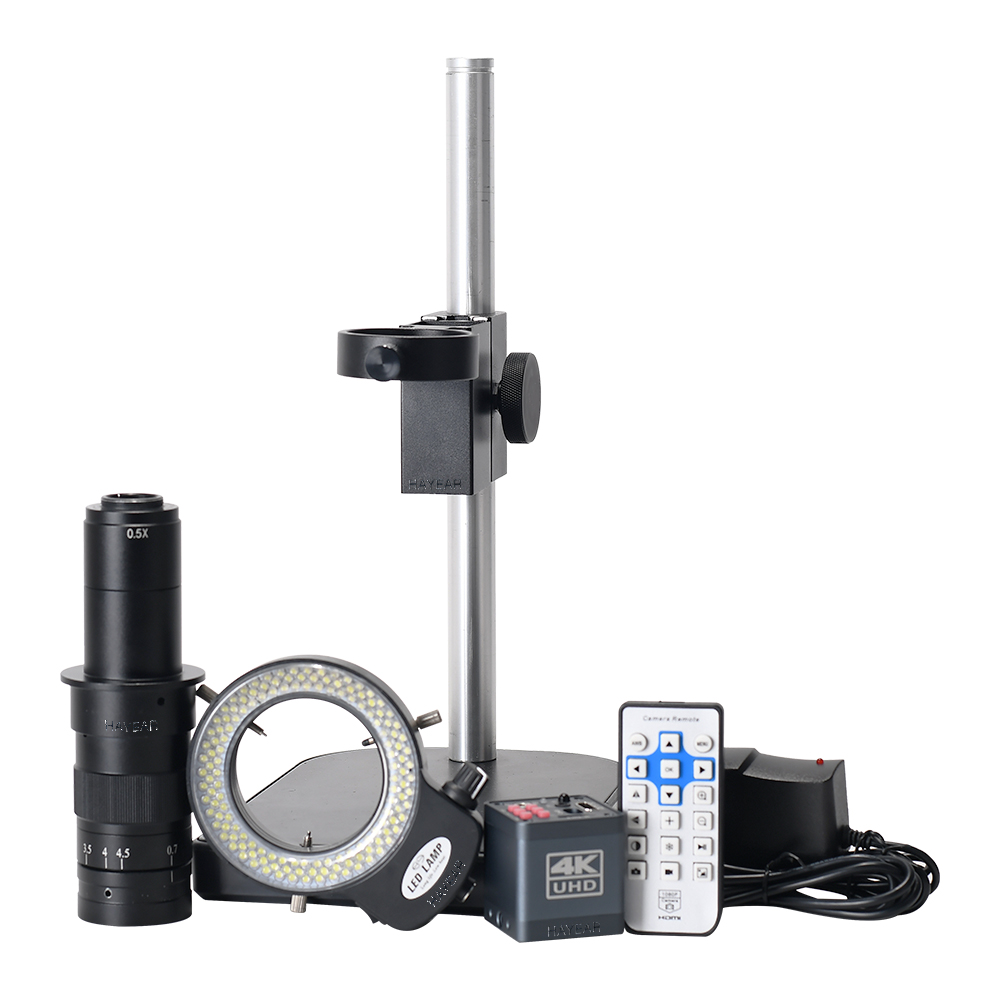

Package include:
1x4k microscope camera
1X power adapter
1X remote control
1X stand
1X bracket
1x180 x zoom lens
1x144 LED ring light
