Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)


Camera Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 51 MegaPixel
Video format: MP4(for TF card)
Video recorder: 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions


Camera Specification:
Image sensor: 51 megapixel CMOS sensor 1/2.33 inch
Effective pixel: 51 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
180X C-Mount Objective Lens:
Working distance: 95mm
zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)

Weight: 450g



144 LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

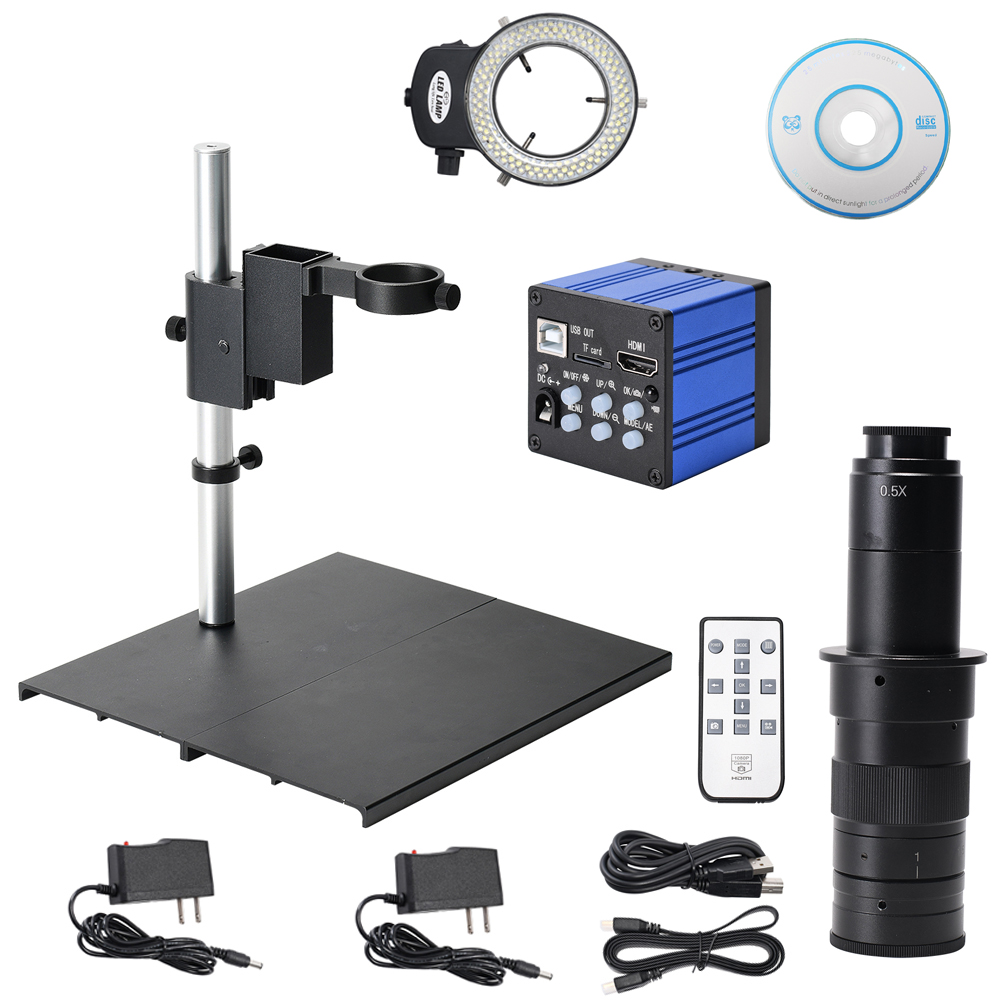

Package Includes:

1 x51MP Microscope Camera
1 x Power Supply
1 x USB Cable
1 x High Definition Multimedia Interface Cable
1 x Software CD
1 x Remote Control (Battery Not Included)
1 x180X Lens
1 x Microscope light source
1 x Camera Stand
1 x High temperature resistant working pad
