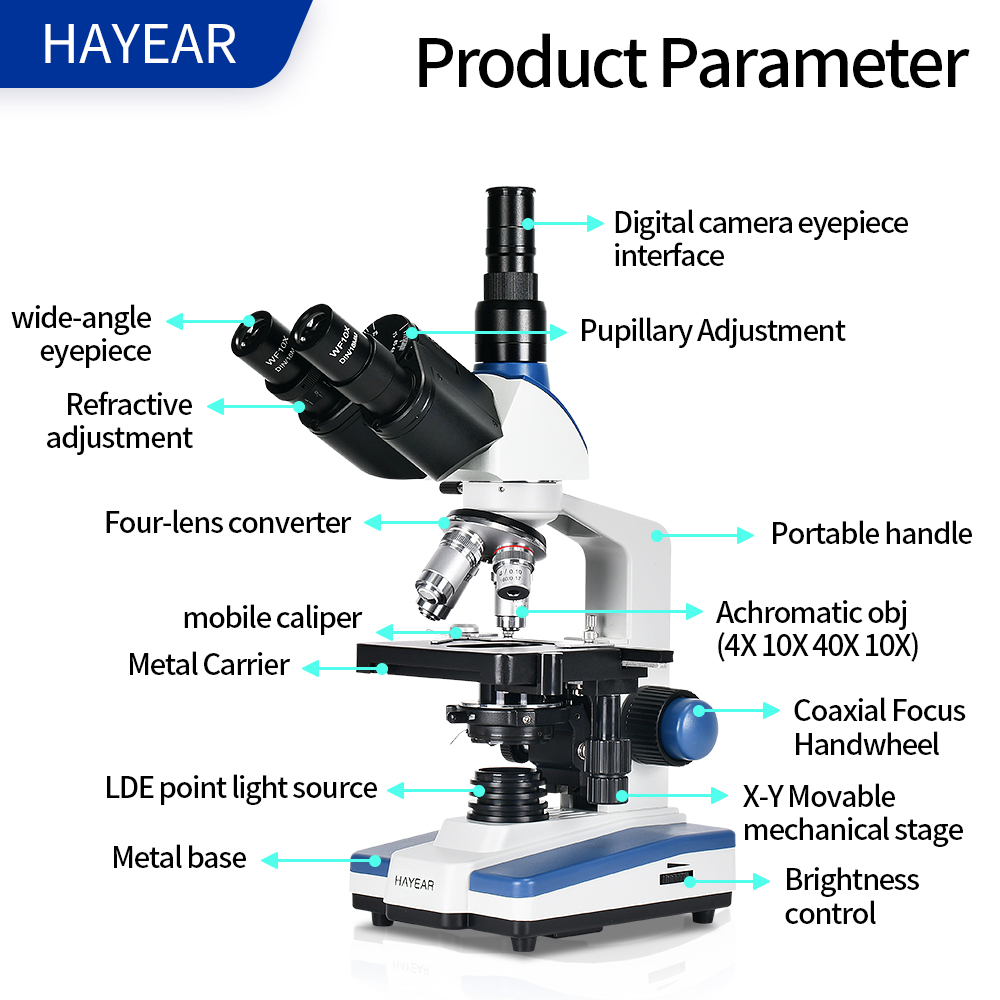

Specifications

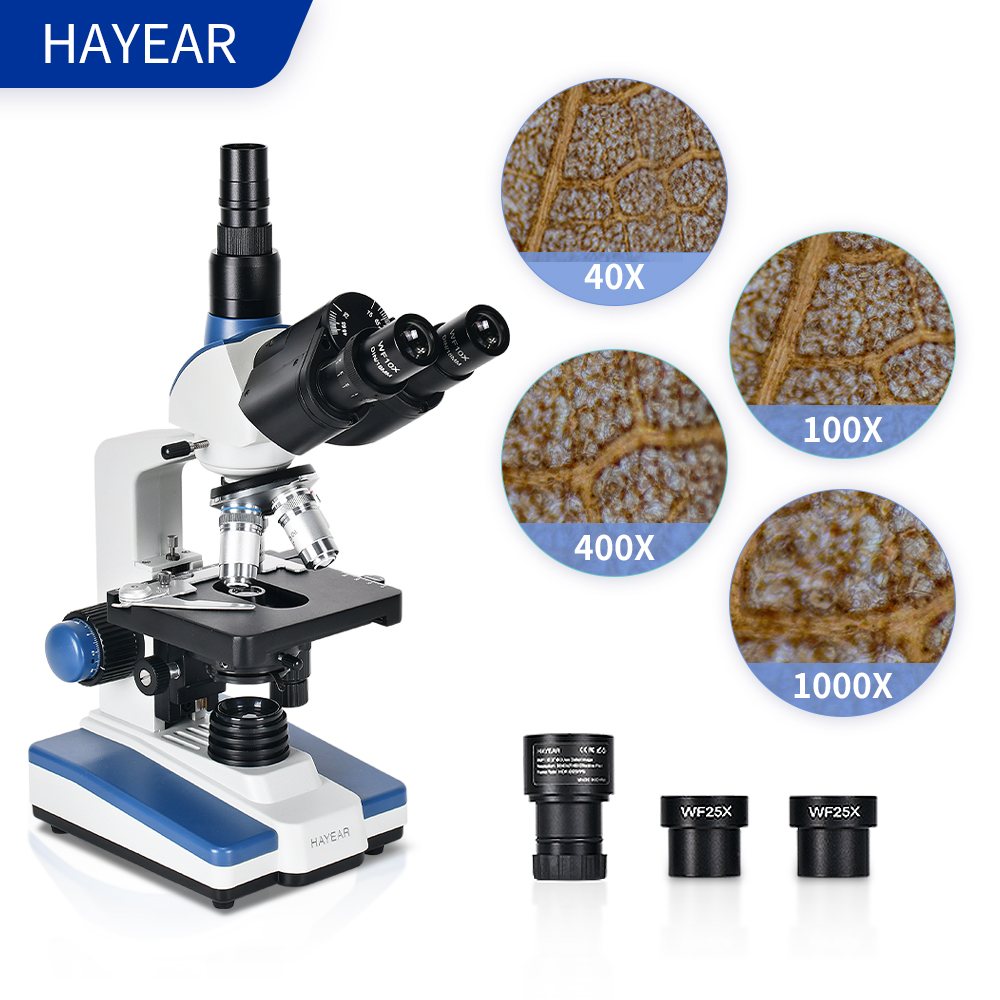

Item Name: biological microscope

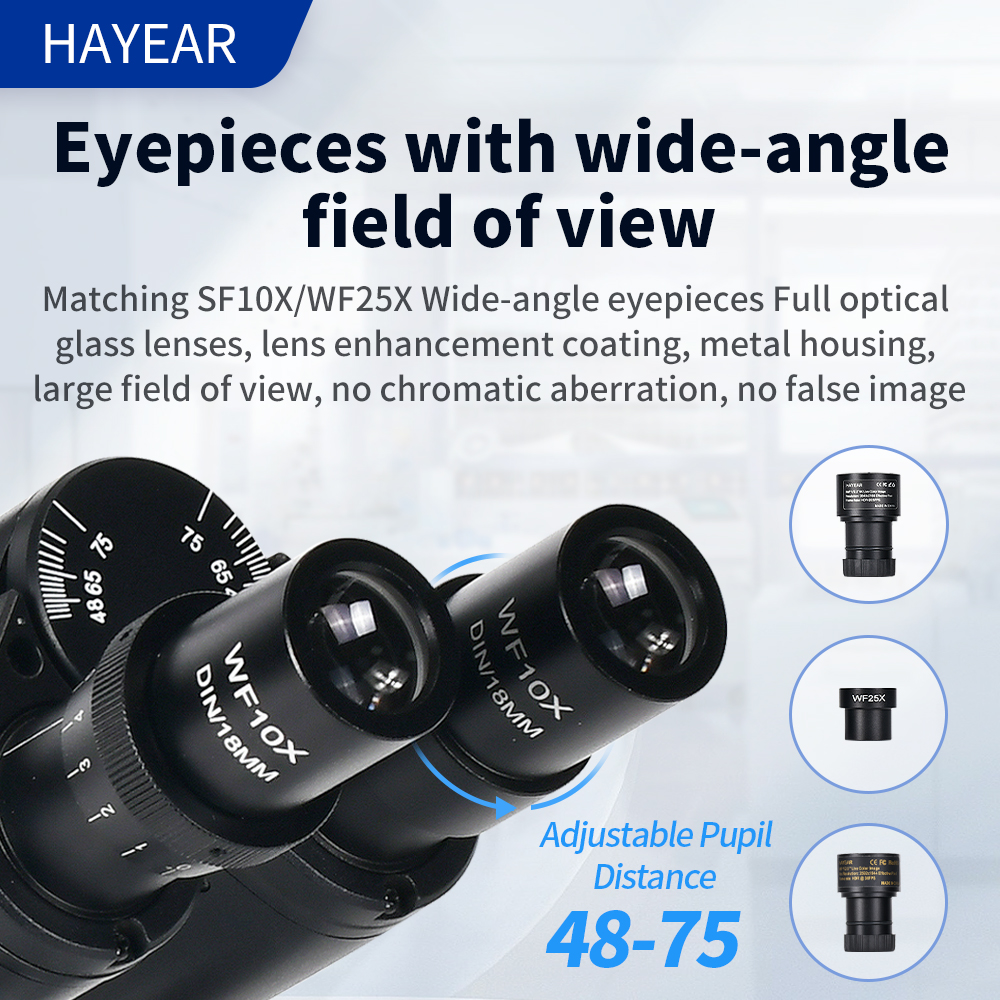

Eyepiece: WF10X, WF25X

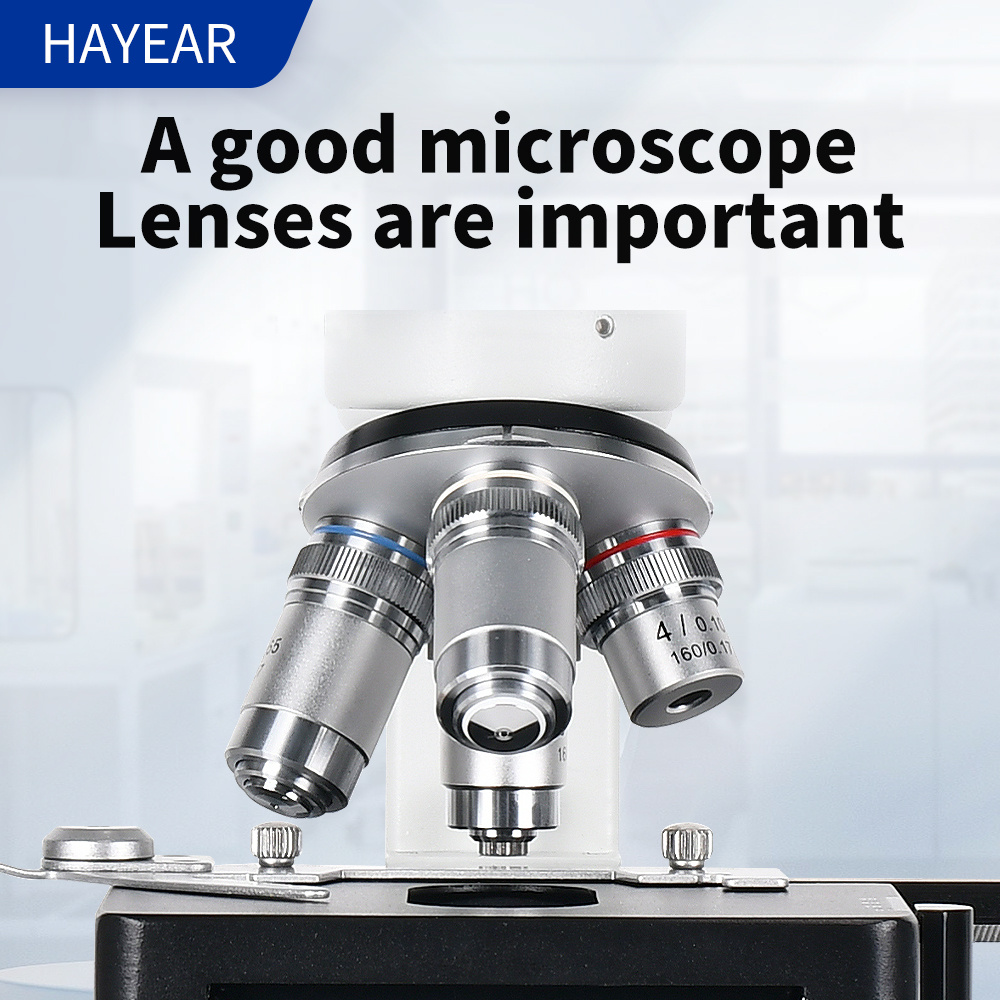

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100(S, Oil)
Material of the body: metal
Material of the lens: optical glass
Head: articulated free trinocular head, interpupillary distance: 48-75mm; 30° inclined, 360°rotatable
Illumination: Built-in adjustable brightness 1W LED lamp
Condenser: ABBE condenser: N.A.1.25; Ф2-Ф30mm iris diaphragm and Ф32 Filter
Focusing Adjustment: coaxial coarse and fine focusing adjustable mechanism: 20mm,

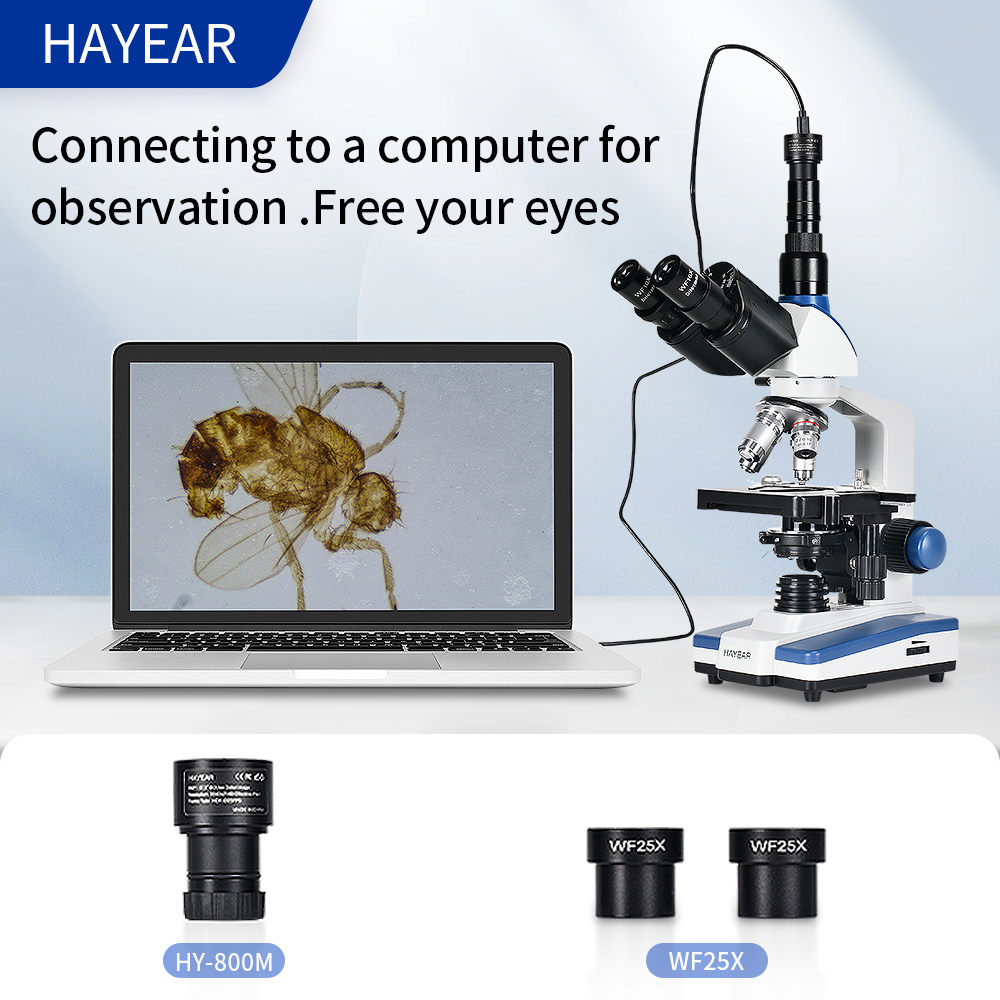

Model :HY-800M
Name :4K USB2.0 color 8MP UVC Digital Camera
Image Sensor :SONY 1/2.3" Color IMX377 CMOS Image sensor
Pixel Size :1.55μm（H）×1.55μm(V)
Frame rate: @25FPS
Spectral response: 400nm～700nm
Scanning method :line by line scanning，Real 8 megapixel image sensor, no compression, no interpolation
Resolution
:3840x2160;2592x1944;2084x1536;1920x1080;1280x720;640x480
Image output format :MJPEG (compressed format)
Video record: 3840x2160 @ 25fps; 2592x1944 @ 25fps;
2084x1536 @ 25fps; 1920x1080 @ 25fps;
1280x720 @ 25fps; 800x600 @ 25fps
640x480 HDR @ 25fps;
YUV422 (compressed format)
3840x2160 @ 1fps; 2592x1944 @ 1fps;
2084x1536 @ 1fps; 1920x1080 @ 5fps;
1280x720 @ 10fps; 800x600 @ 15fps
640x480 HDR @ 15fps;



Features

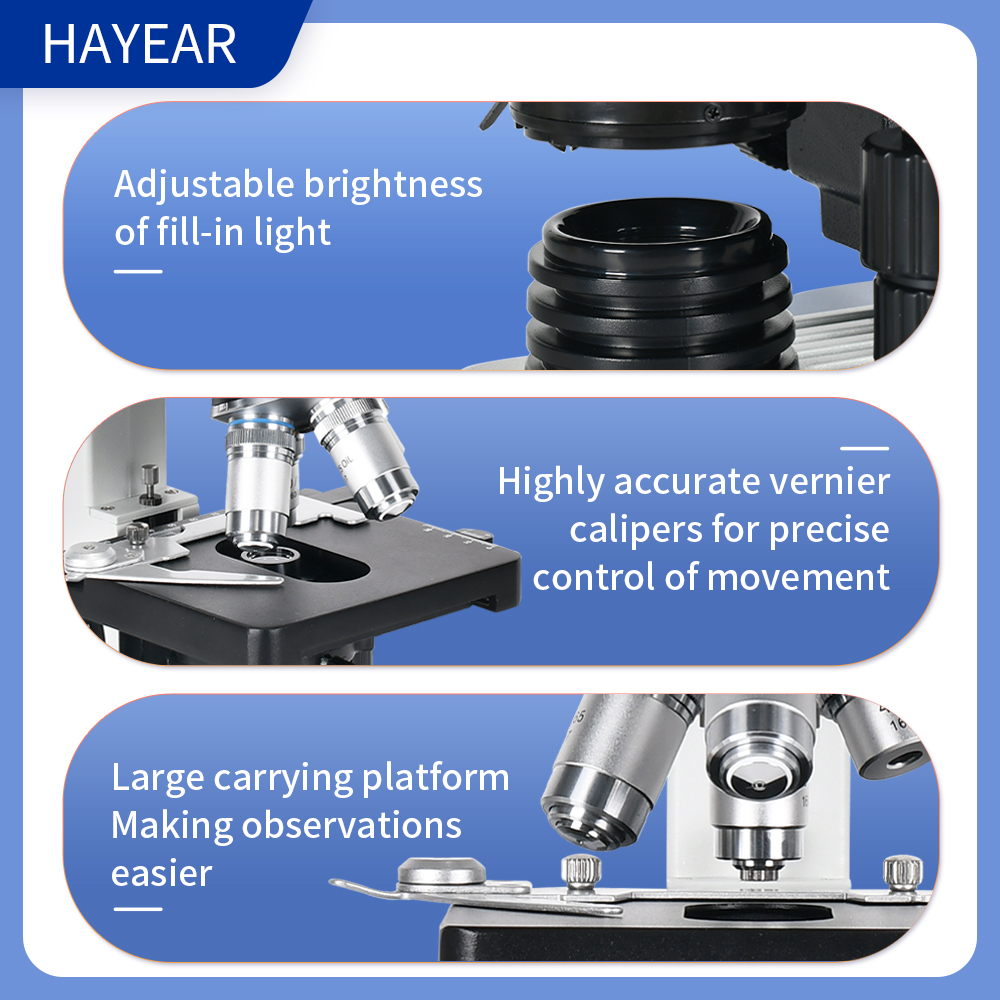

1.Two-Layer mechanical stage,horizontal and vertical coaxial adjustment, easier to move specimens.
2.Three thimble hoop, fix and adjust the position of the condenser,adjustable height of condenser.
3.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural
science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.



Package Including
1x Digital Eyepiece Camera
1x Microscope,
1x 4X Objective,
1x 10X Objective,
1x 40X Objective,
1x 100X Objective,
2x WF10 Eypieces,
2x WF25 Eypieces,
