Product Description
Model:HY-800AS
Sensor:1/2.8" CMOS, 2MP
Video Format：(MJPEG)1920x1080@60FPS;1280x720@60FPS;640x480@60FPS
Zoom：15X Optical Zooming
Aperture: F1.6~1.8
Lens Focal Distance: 5.1±5%~51±5%mm
TV Distortion: Wide>40% ; TELE>45%
CRA: Wide<6% ;TELE<3%
Relative Illumination: Wide：-2.0% ;TELE：1.5%
Focus Range: Wide:0.2M, TELE:1M--∞


Field of view:
D：Wide: 68°±5% ; TELE: 6.7°±5%
H：Wide: 54°±5% ; TELE: 4.9°±5%
V：Wide: 31°±5% ; TELE: 4°±5%
Focus System: Autofocus/Manual Focus
Minimum Illumination: Daytime 0.05LUX, Night 0.013LUX
Shutter Speed:1/1 to 1/10000s
Gain：Auto/Manual, Maximum gain limited (-3dB to 28dB, 2dB each level)
White Balance:Auto/Manual
WDR：ON/OFF/AUTO
Exposure:Auto/Manual, Shutter priority, aperture priority, brightness priority
SNR：>50dB

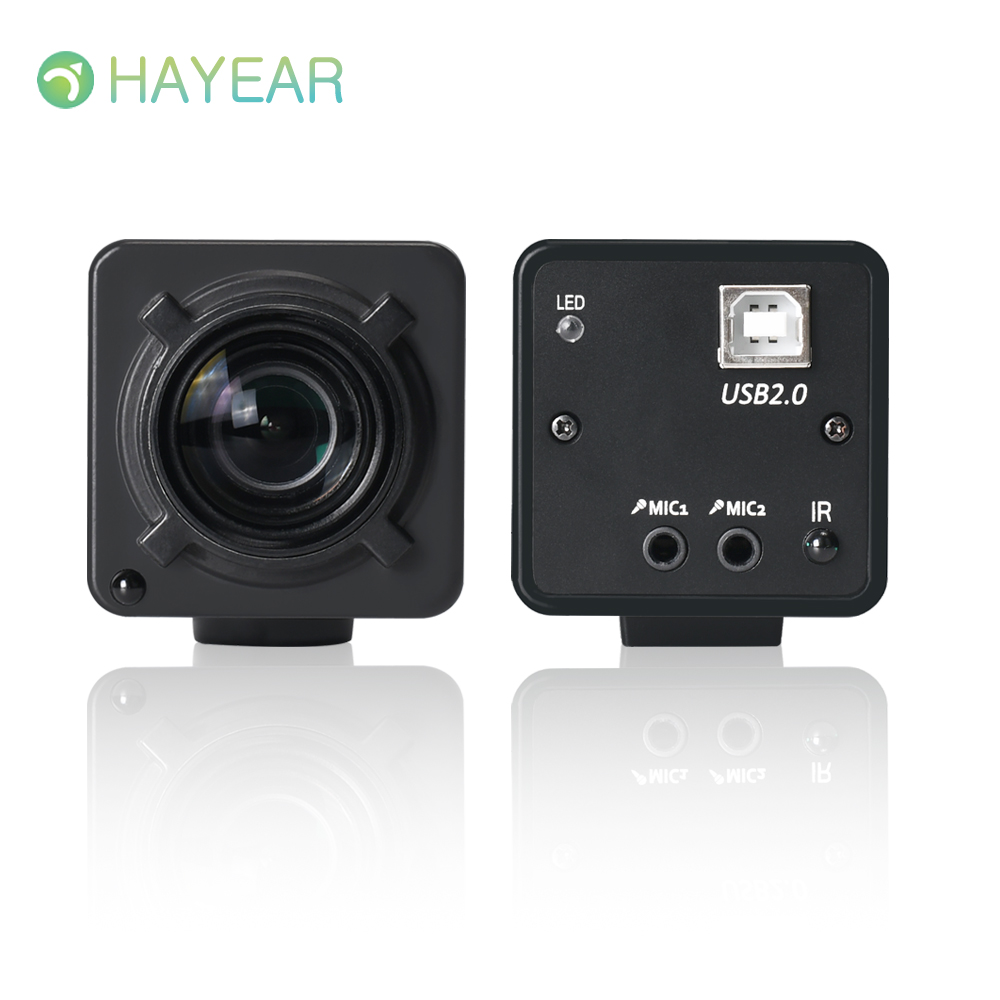

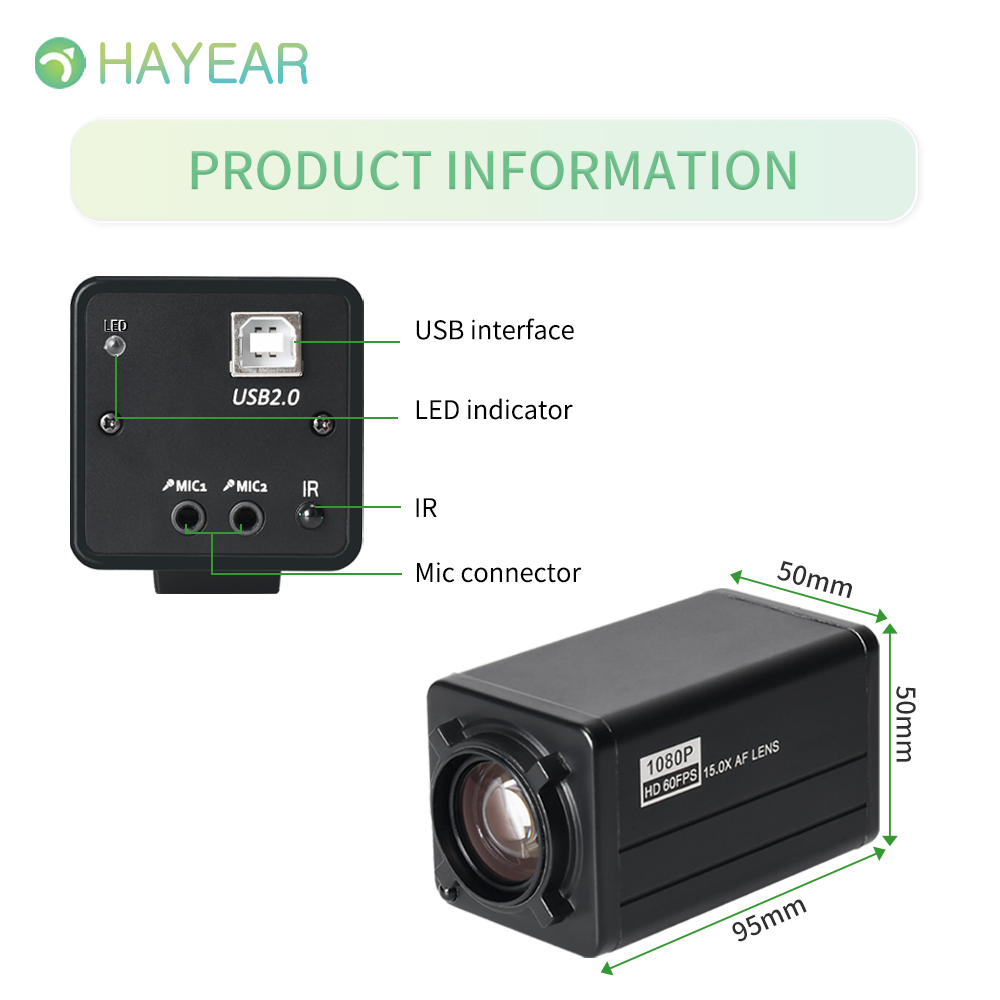

Video Output:USB 2.0
Camera Control：RS232/RS485, IR remote control, Control protocols: VISCA, PELCO
Power Supply:USB 5V
Power Wastage：2.5W
