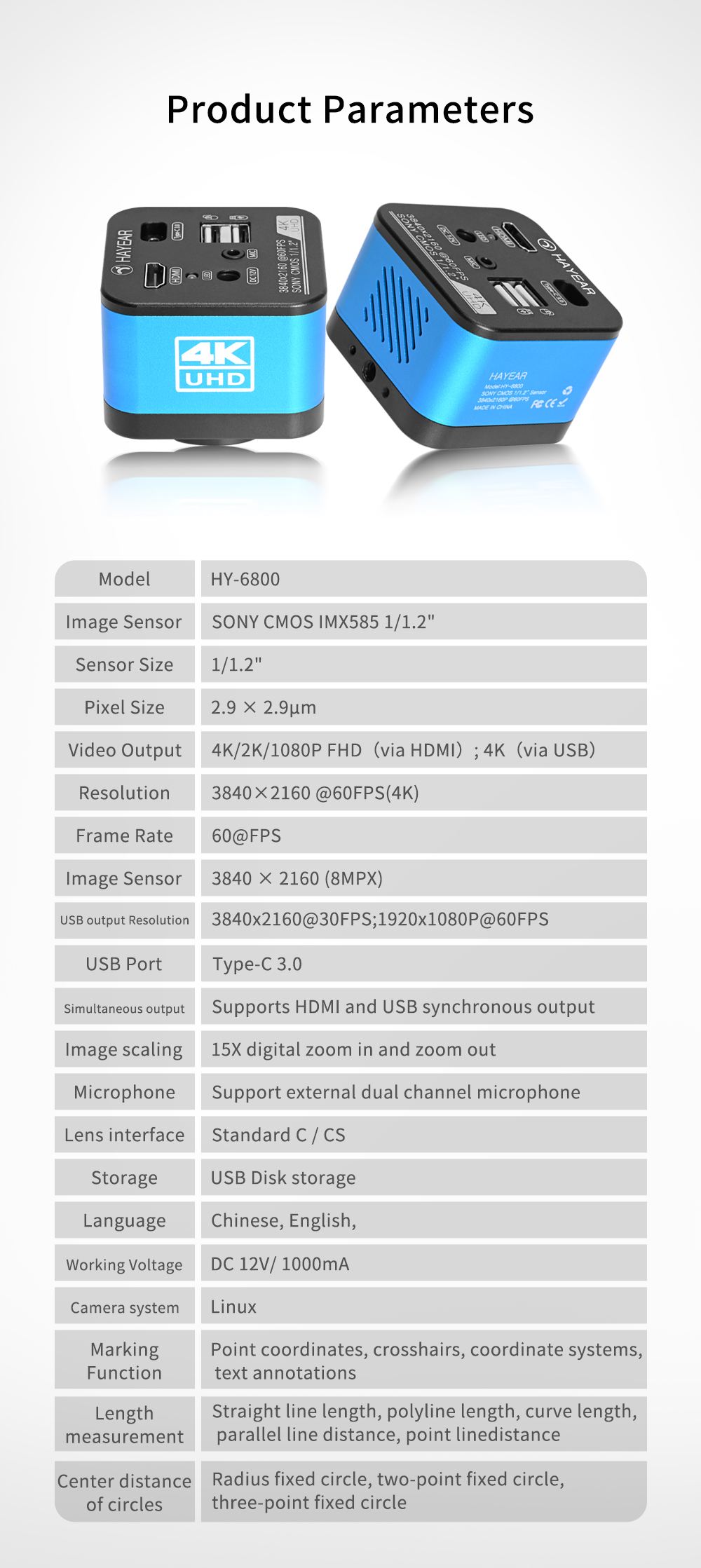

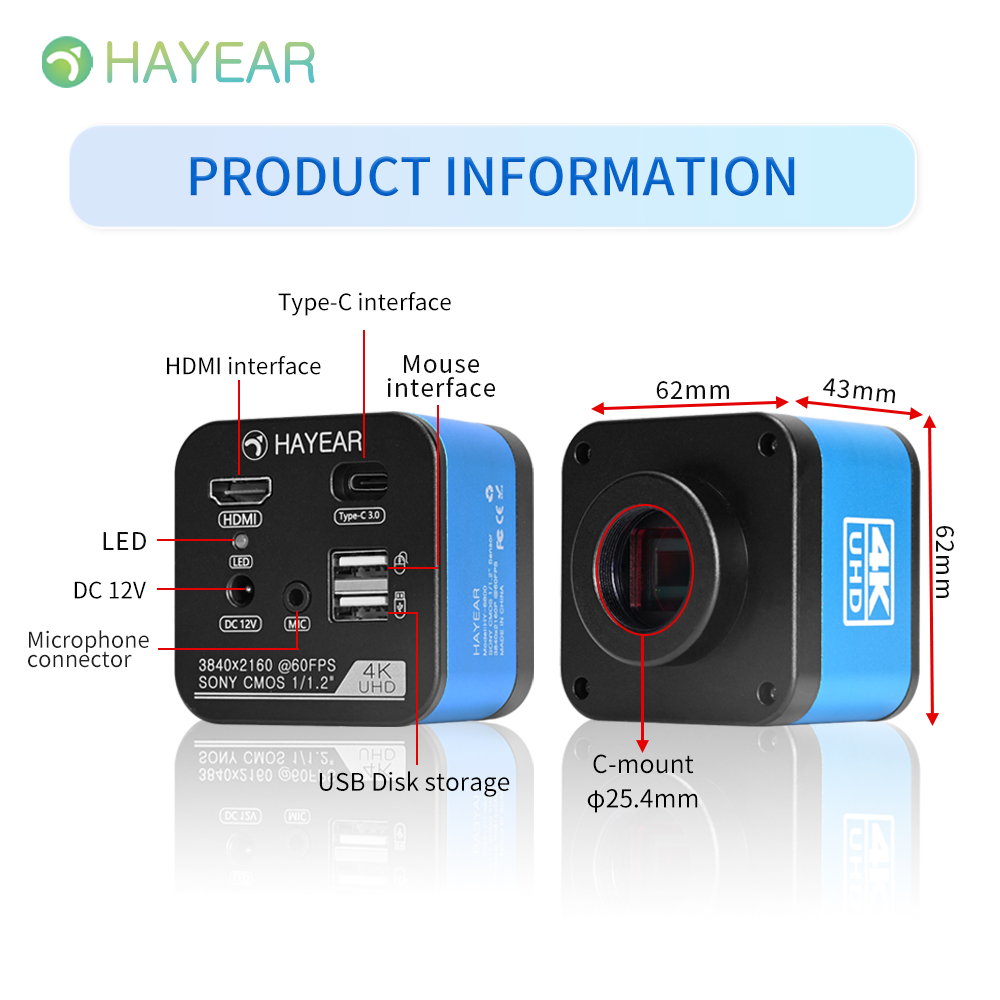

Model :HY-6800
Image Sensor :SONY CMOS IMX585 1/1.2"
Sensor Size: 1/1.2"
Pixel Size :2.9 × 2.9μm
Video Output :4K/2K/1080P FHD（via HDMI）; 4K（via USB）
Resolution:3840×2160 @60FPS(4K)
Frame Rate :60@FPS
Image resolution :3840 × 2160 (8MPX)
USB output Resolution :3840x2160@30FPS;1920x1080P@60FPS
USB Port :Type-C 3.0
Simultaneous output : Supports HDMI and USB synchronous output
Image scaling: 15X digital zoom in and zoom out
Microphone :Support external dual channel microphone
Lens interface :Standard C / CS
Storage: USB Disk storage
Language: Chinese, English,
Working Voltage :DC 12V/ 1000mA
Camera system:Linux

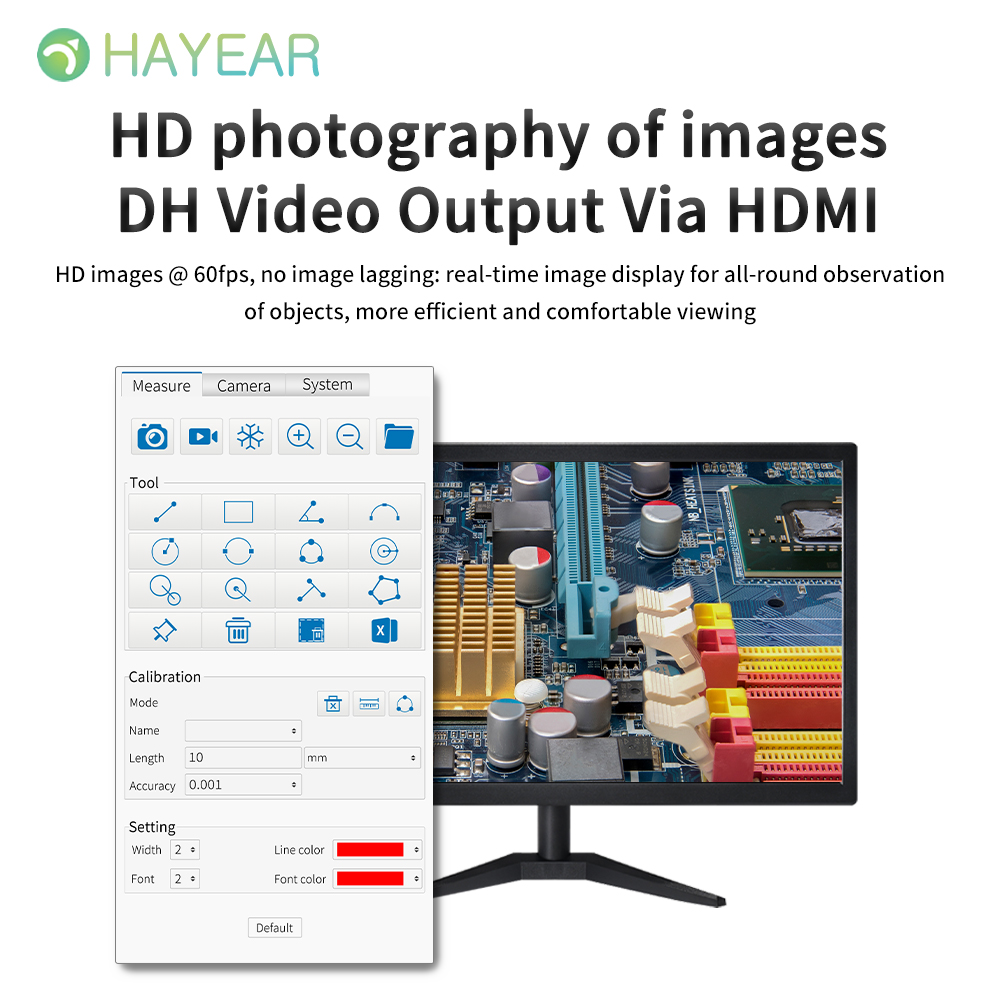

Marking Function: Point coordinates, crosshairs, coordinate systems, text annotations
Length measurement: Straight line length, polyline length, curve length, parallel line distance, point line distance
Center distance of circles: Radius fixed circle, two-point fixed circle, three-point fixed circle
Geometric measurement: Line segment length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circle
Geometric area :Polygon, square
USB measure: HAYEARmesurement software
Shutter mode :progressive scanning
Other functions: Support ONE PUSH WB/ Auto / Manual, Vertical rotation/horizontal
mirroring/monochrome (black and white) image/image comparison/same screen comparison


Model?number: HY-180XA
Mount?: C-Mount zoom lens
Eyepiece? :0.5X
Zoom range: 0.7-4.5x continual zoom
Zoom?ratios: 6.5:1
Working?distance: 100-150mm
Mount?: C-Mount zoom lens
Eyepiece?: 0.5X
Zoom range: 0.7-4.5x continual zoom
Zoom?ratios :6.5:1
Working?distance :100-150mm
Magnification :20X~180X(21.5 inches monitor)
size :170mm(long)*50mm(diameter)
weight :500g

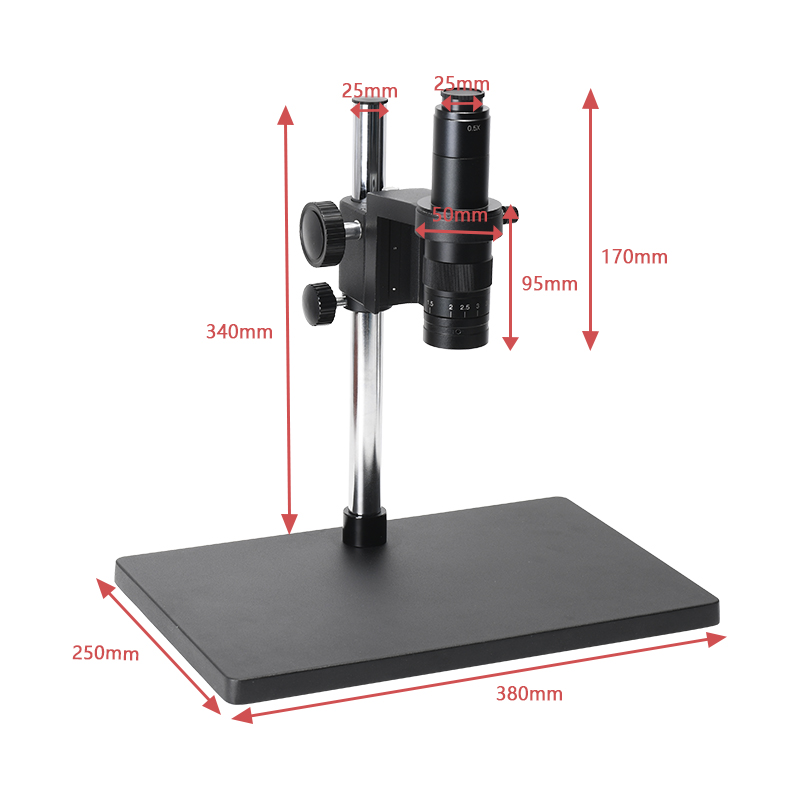

Model: HY-XDS-10A
Total height :340mm(can be extended to 650mm)
Rod dia. :25mm
Focus rack :dia. 50mm
Base size : 380mm×250mm
Product material: Aluminum alloy



Model :HY-209-144B
Input voltage: 100-240V/50Hz,60Hz
Output voltage?: DC 12V 1A
?Brightness: 3000olx~4000olx(at working distance is 80mm)?
?Internal diameter: 63.5mm?
The dimming range?: 0~100%?
Working distance?: 50-250mm?
Chimney?: Full transparency?
Package size?: ?21×10×4.5cm
Wide aperture diameter?: Medium 60.5mm?
Maximum (power) output? :3W?
Color temperature :6500K
Power supply: US/EU/UK/AU optional
Case color: Black/white
