High Quality, High Resolution, Clear Images
Model : HY-2317 Camera with HDMI USB2.0 two output
Image format : JPG
Image resolution : 6800*5100 (for TF Card) 1920 *1080 @ 60FPS(for TF card);1920x1080 (for USB)
Video format : MP4(for TF card)
Video recorder : 1920 *1080 @ 60fps (for TF Card)
USB Video resolution : 1920 *1080 @ 30FPS


pecification:

Image sensor : 34 megapixel Panasonic sensor 1/2.3 inch
Effective pixel : 34 megapixel
Pixel size : 1.43*1.43um
Frame rate : 60fps
Definition : FULL HD
White balance : Auto/manual
Digital magnification: 5 times digital zoom
Brightness control: Auto/manual
Color : R/G/B adjustable
Freeze : Support
OSD :English/Chinese/French/Spanish/Portuguese
Film and record :Support
Cross cursor : Support multi-color, size adjustable
Transverse and vertical line : Support multi-color, 5 pcs of transverse lines/vertical lines, movable
SNR : Support
TF card interface : Max 64G
HDMI interface : Standard HDMI output (Type A)
Lens : C
USB interface : Standard USB 2.0 interface (Type B)



56 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm

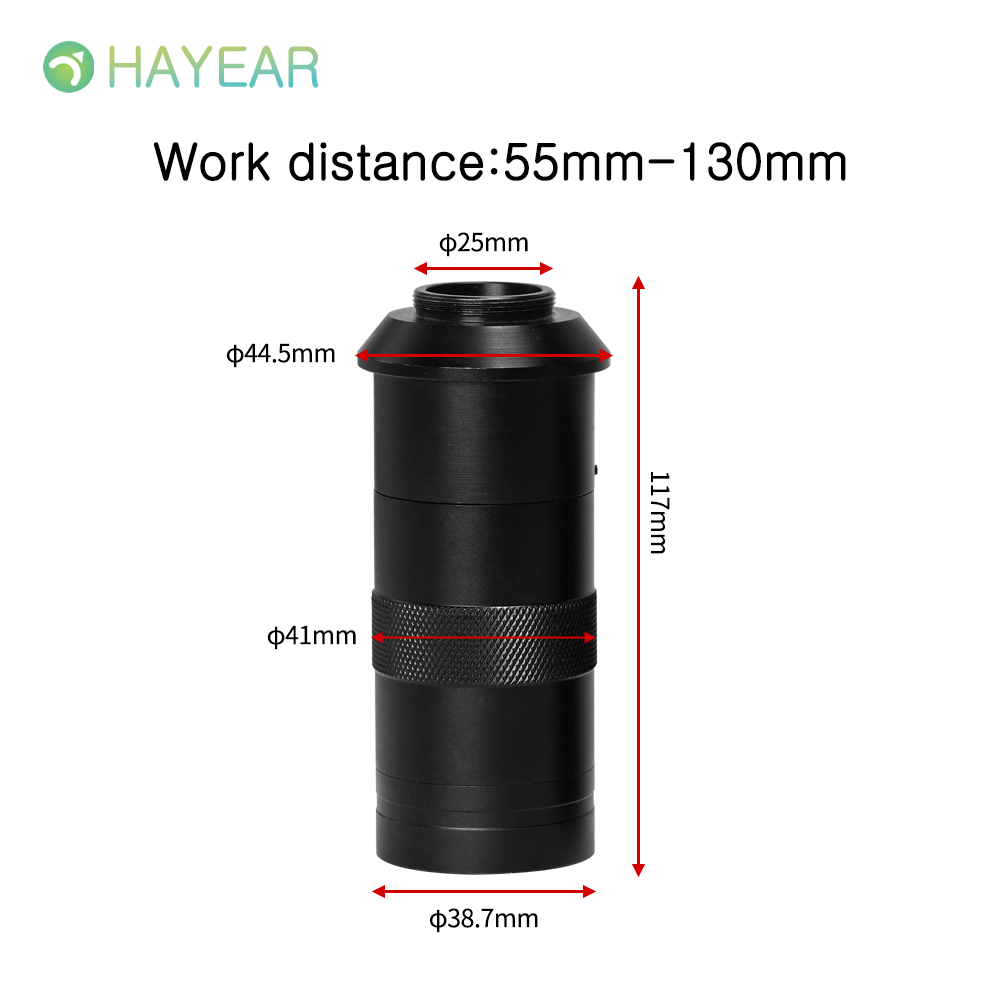

zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :45mm-290mm
Size: 115mm(L) * 40mm(DIA)
Weight:210g
