Model:HY-5100
Sensor:SONY 24MP CMOS Sensor
Video Output:1080P FHD(HDMI Output)
Sensor Size:1/2.9 inch

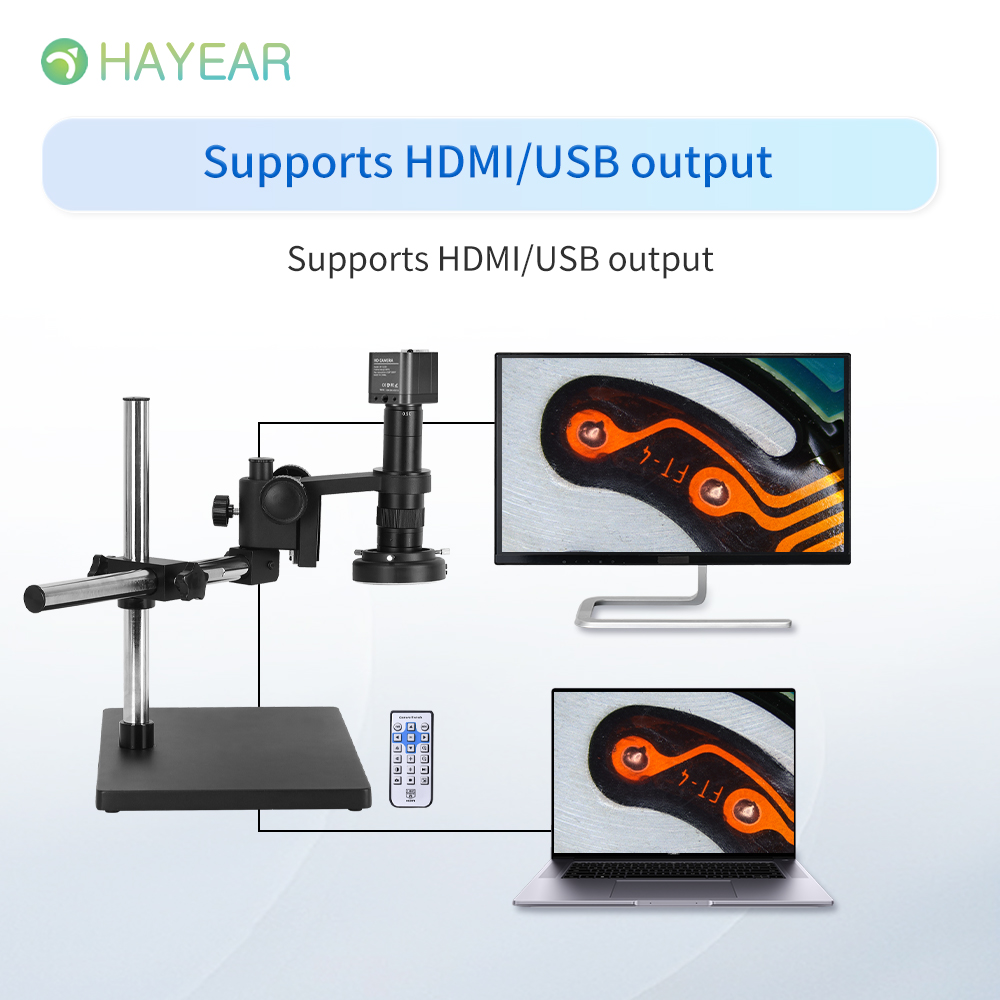

Video Output Interface:HDMI & USB
Video Output Ratio:Support 16:9，4:3 ratio
Pixel Size:2.85 × 2.85μm
Frame Rate:30@FPS(HDMI); 30@FPS(USB)
Color:R/G/B Support Manual Adjustment
Crosshair:5 horizontal,5 vertical, Color/Size Adjustable Digital Zoom:8X Digital Zoom
USB Output:1920x1080P @30FPS; 1280x720P @30FPS
Sensitive:Strong (Can be used without light source)
Interface for Lens:Standard C/CS Interface
Resolution:1920x1080@30FPS; 720P 60@FPS;
Dynamic Range:60dB
PC Measurement:Support
Working Voltage:5V/1000mA (Standard Type-C interface)
Spectral response (wavelength):400nm~1000nm (Strong)
White Balance:Support Auto/Manual (HDMI)
SNR:45dB
Mirror:Support Left & Right/Up & Down
Black & White Mode:Support
Storage:TF?Card, Maximum support 128GB
Language Setting:Chinese、English、Japanese、French、German、Russian、Italian、Korean、Turkish and other languages
Working Temperature:-40°C~65°C


Stand Model: HY-180XA
Mount: C-Mount zoom lens
Eyepiece :0.5X
Zoom range: 0.7-4.5x continual zoom
Zoom?ratios: 6.5:1
Working?distance: 100-150mm
Mount?: C-Mount zoom lens
Eyepiece?: 0.5X
Zoom range: 0.7-4.5x continual zoom
Zoom?ratios :6.5:1
Working?distance :100-150mm
Magnification :20X~180X(21.5 inches monitor)
size :170mm(long)*50mm(diameter)
weight :500g

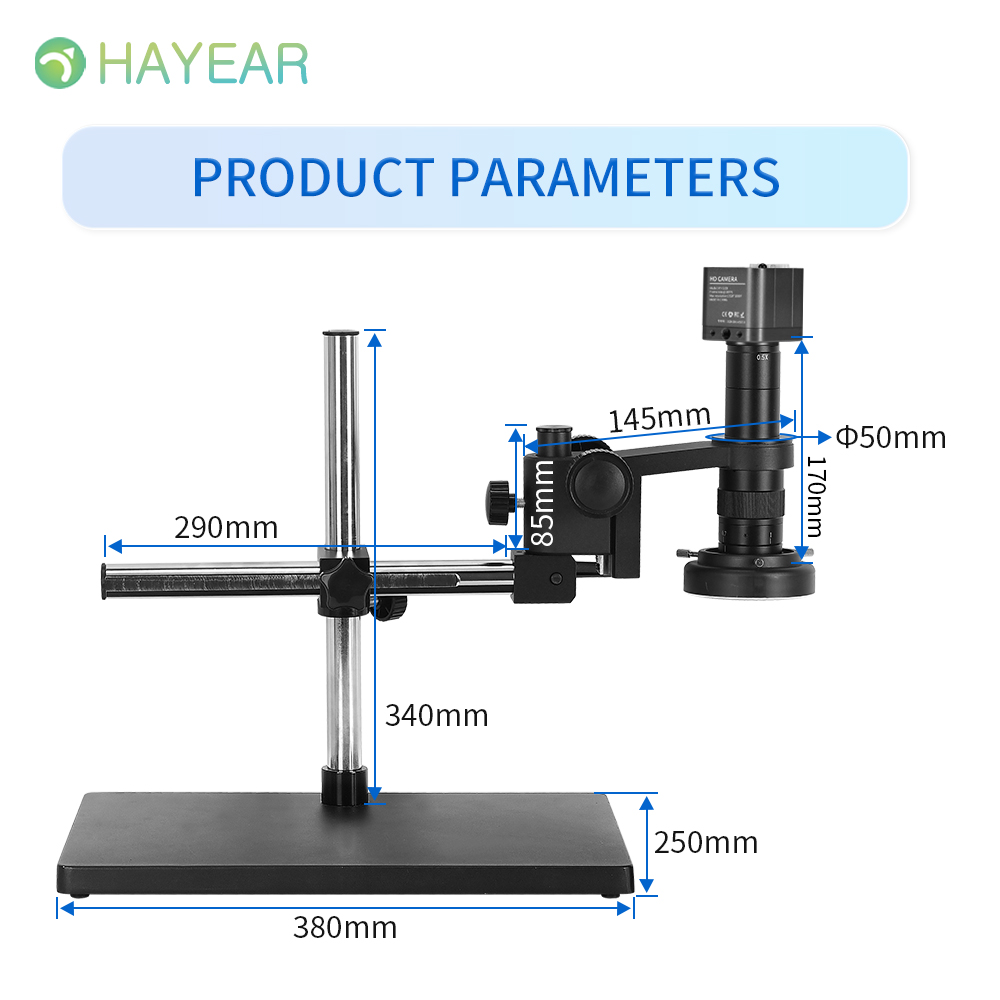

Model: HY-XDS-10A
Total height :340mm(can be extended to 650mm)
Rod dia. :25mm
Focus rack :dia. 50mm
Base size : 380mm×250mm
Product material: Aluminum alloy

Model :HY-209-144B
Input voltage: 100-240V/50Hz,60Hz
Output voltage: DC 12V 1A
?Brightness: 3000olx~4000olx(at working distance is 80mm)
?Internal diameter: 63.5mm
The dimming range?: 0~100%
Working distance?: 50-250mm
Chimney?: Full transparency
Package size: 21×10×4.5cm
Wide aperture diameter?: Medium 60.5mm
Maximum (power) output :3W
Color temperature :6500K
Power supply: US/EU/UK/AU optional
Case color: Black/white
