Fiber Tools >> RY-F600 Fusion Splicer include Optical Fiber Cleaver automatic focus function
View Larger Image
Share your images of this product

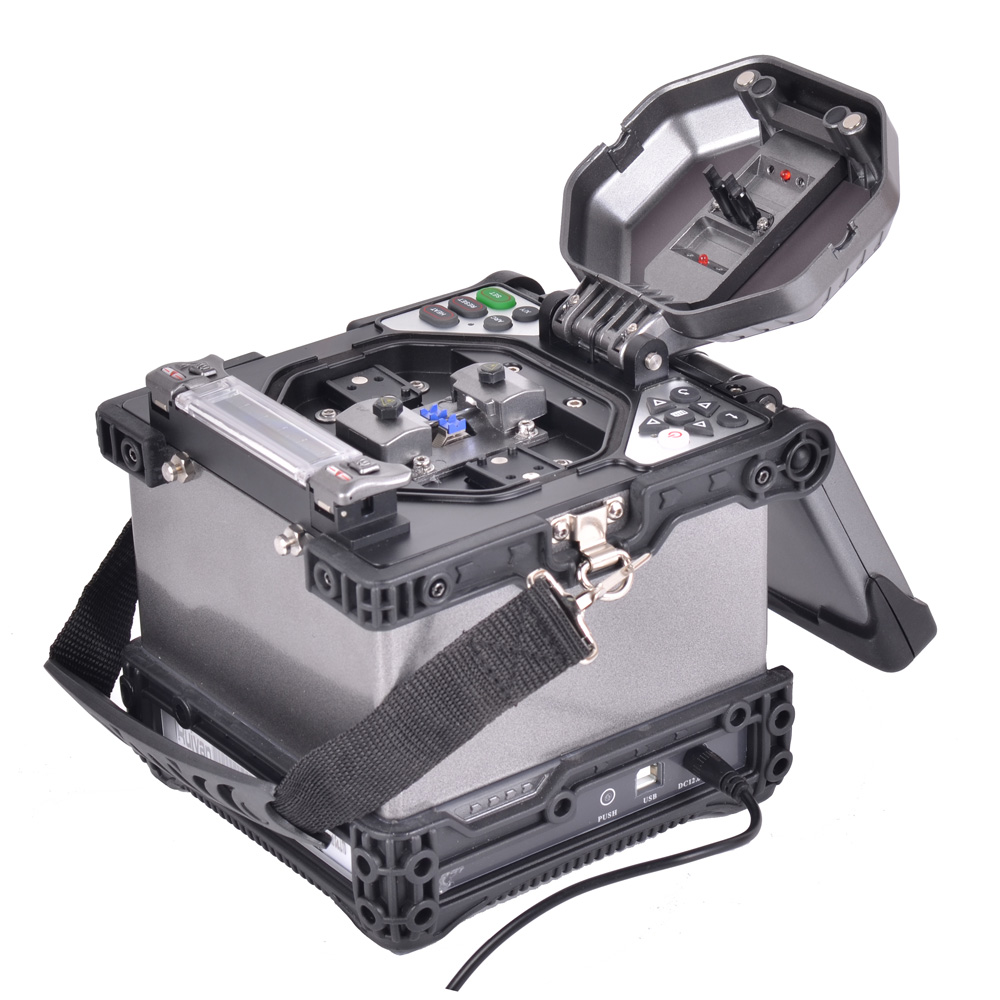

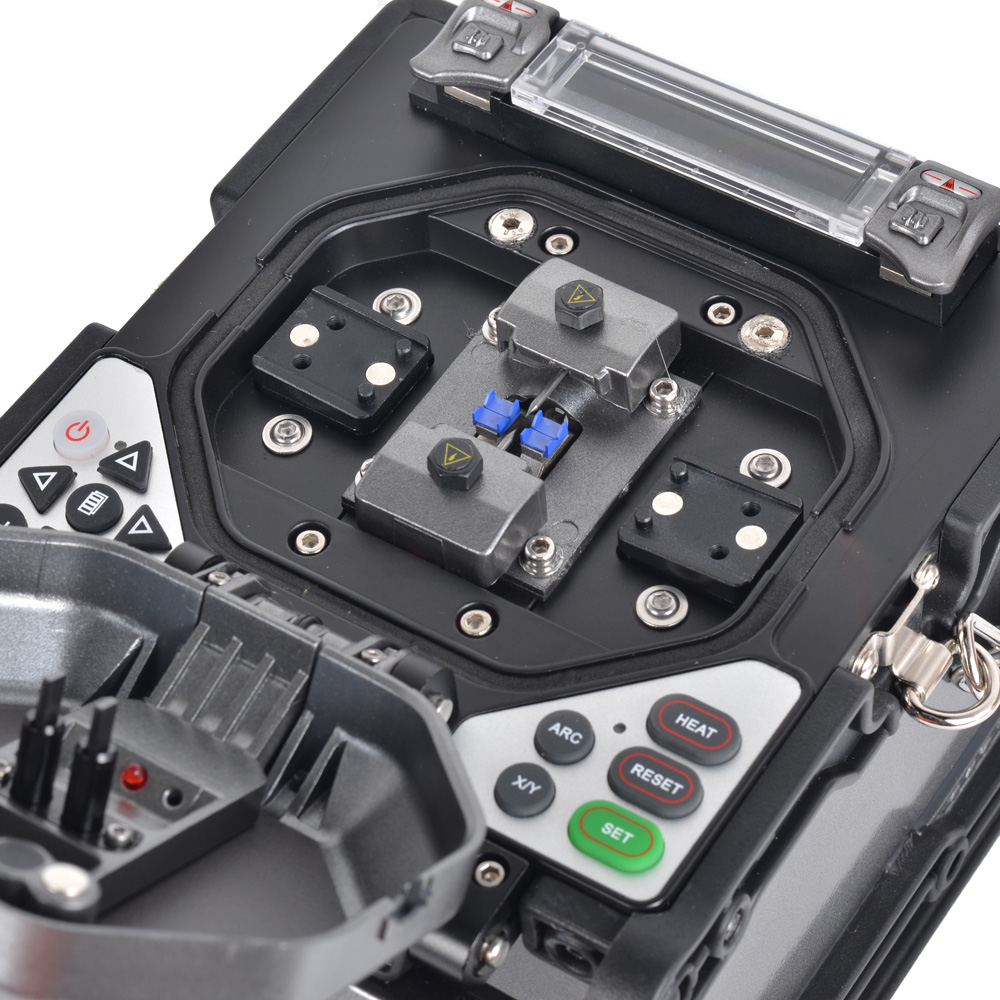

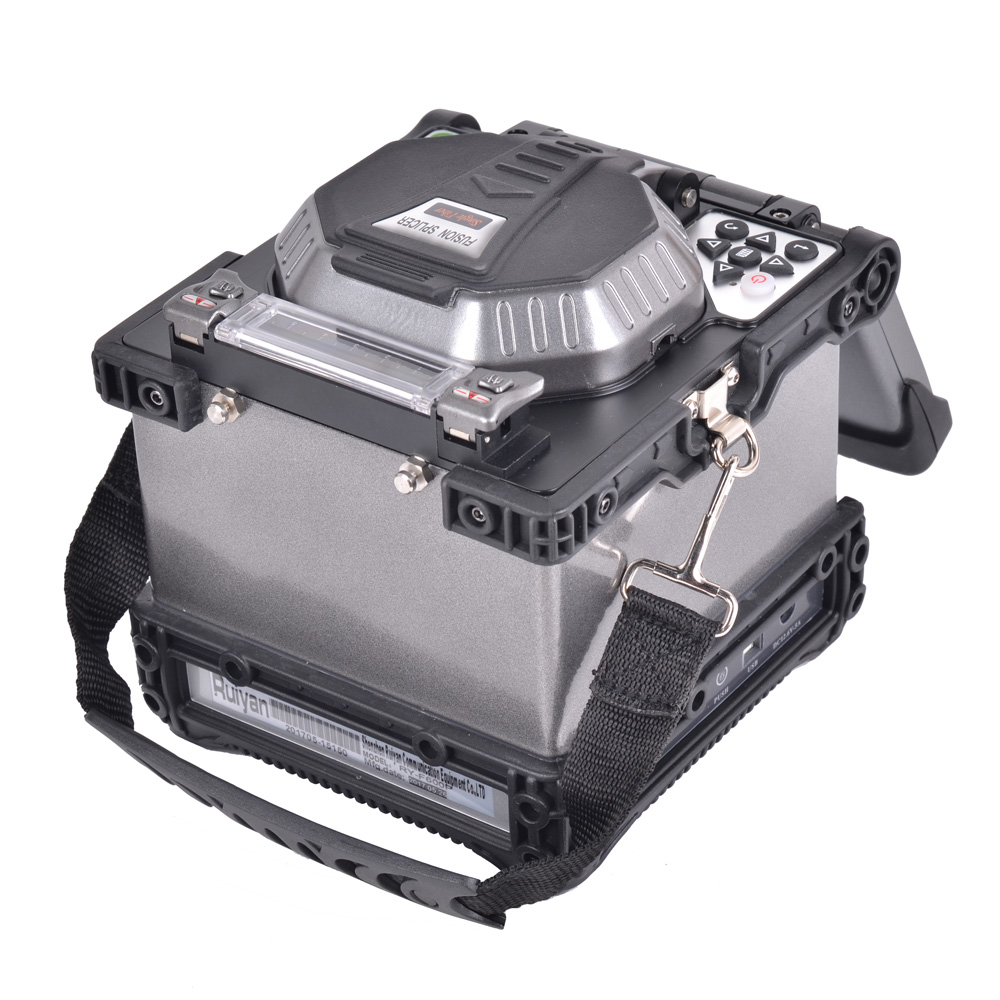

RY-F600 Fusion Splicer include Optical Fiber Cleaver automatic focus function
Price : US $ 1259.99 1299.99

SKU : 1801133339
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

    Digital fusion splicer with automatic focus function
    Fiber core can be display clearly
    Single X or Y view and X & Y view simultaneously
    Auto detect cleaved endface fault
    Display fiber cleaved and offset angle
    Display core and clad offset

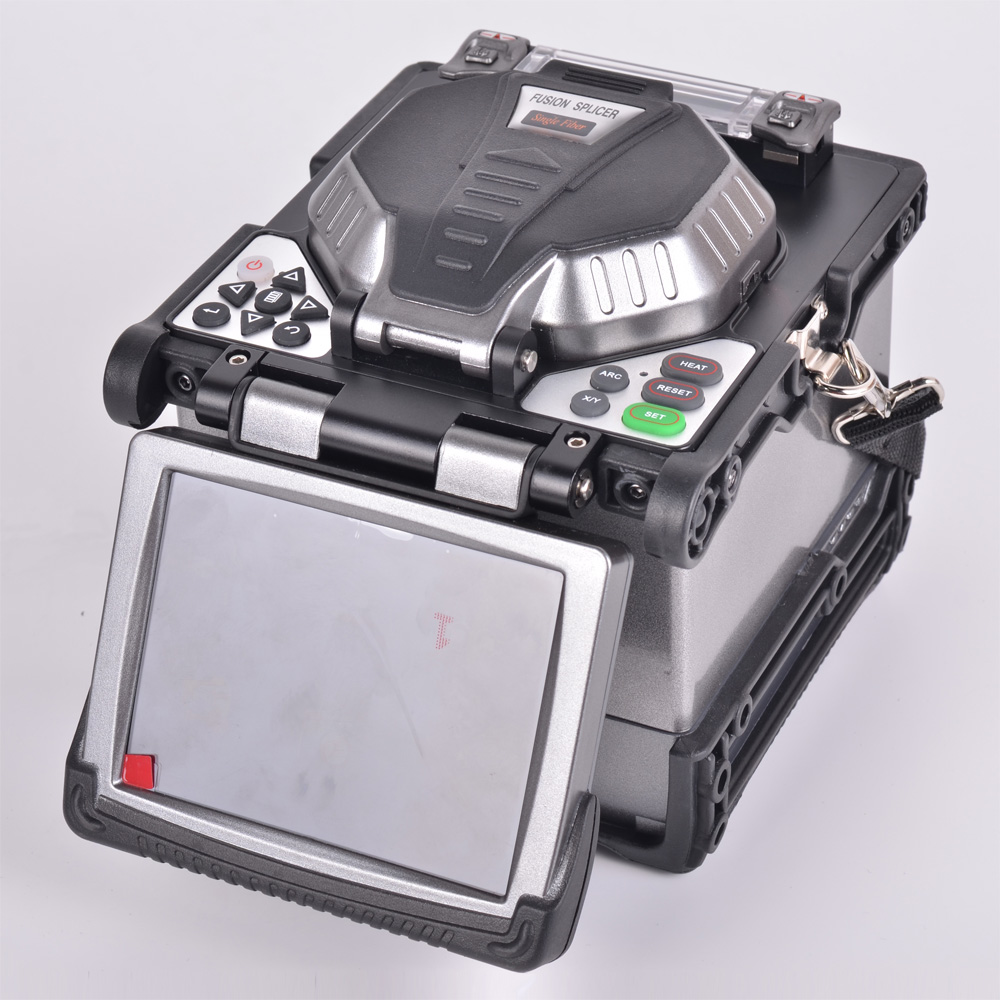

    5.6 inch TFT color LCD monitor with clear digital image display
    USB & VGA interface
    Software upgrade via USB interface

Specifications:

Model RY-F600
Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length 10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)
Fiber diameter Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm
Auto focusing Available
Fiber aligning method Core aligning, clad aligning, manual aligning
Average splice loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time Typical 9 sec,with standard SM fiber
Heating time Typical 36 sec
Applicable sleeves  60mm, 40mm and a series of micro sleeves
Tension test 2N(option)
Electrode life 5000
Battery capacity Typical 400 cycles (splice and heat)
Monitor 5.1 inch TFT color monitor
Terminal USB 1.1 and VGA,   software upgrade via USB interface
Operating condition 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50℃, respectively, Max. wind velocity of 15m/s
Splicing mode Auto,normal
Fiber cleaved angle threshold set 0.1 ~ 10.0℃ , 0.℃ step
Power supply Li-battery 11.8V  , AC100-240V  DC12.6V/5.0A
Dimension L169xW152xH155mm
weight 2.4kg   2.9kg(battery)

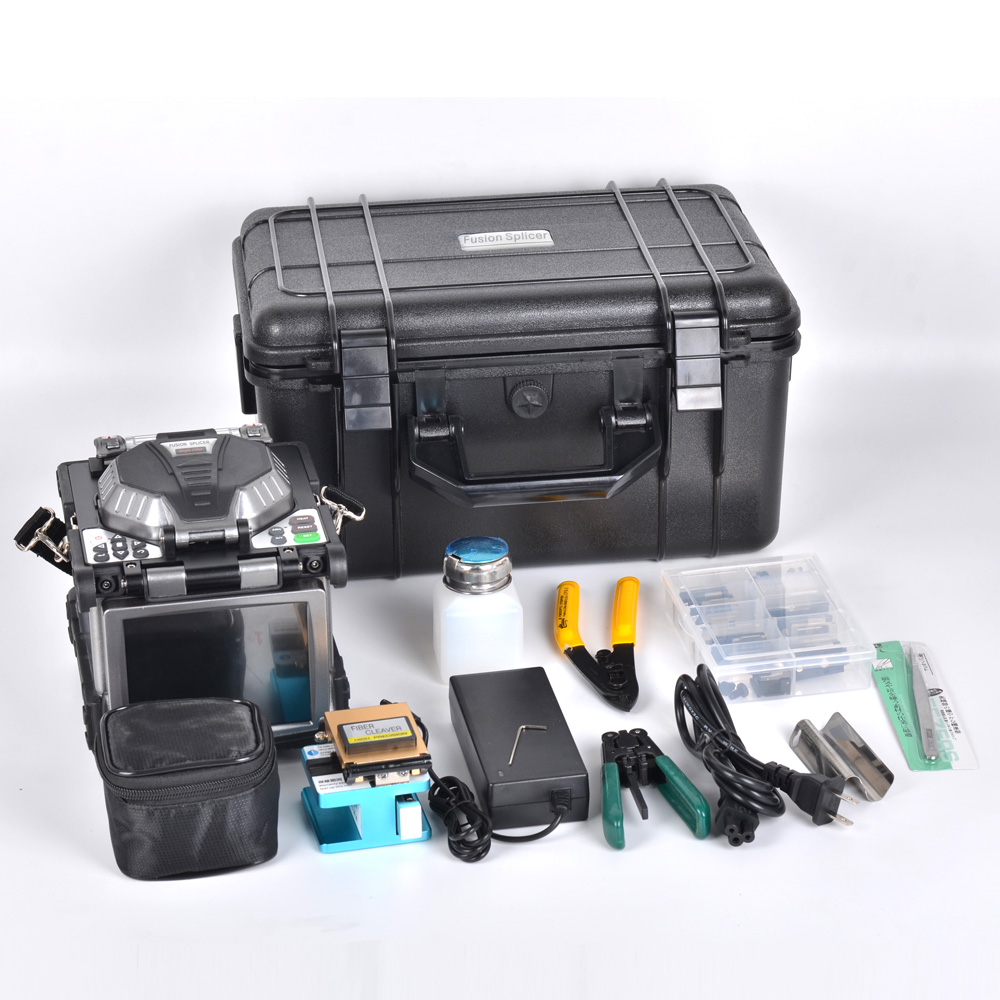

Package Include

1 x Fusion Splicer Machine
1 x Fiber Stripper
1 x Optical Fiber Cleaver
1 x Battery(Built-in)
1 x Power adapter

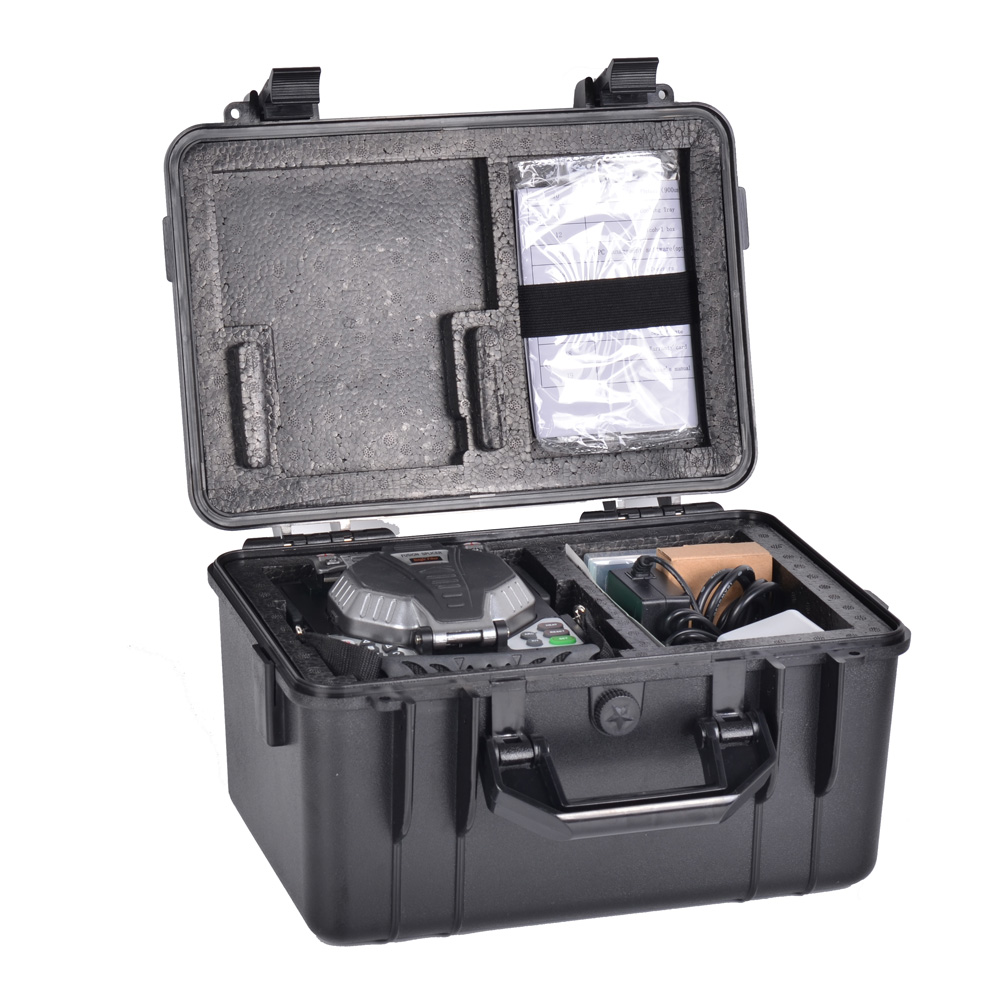

1 x Carrying Case
1 x Fiber Fixture(Skin line fixture)
1 x Optical Fiber Connector Fixture(SC)
1 x Fiber Fixture(Patch cord Fixture)
1 x Fiber Fixture(900um)
1 x Cooling Tray
1 x Alcohol Box
1 x PC Management software(Optical disk)
1 x Tweezers
1 x Spare Electrodes
1 x Cotton swab
1 x Product Qualification Certificate
1 x Warranty card
1 x User's manual
