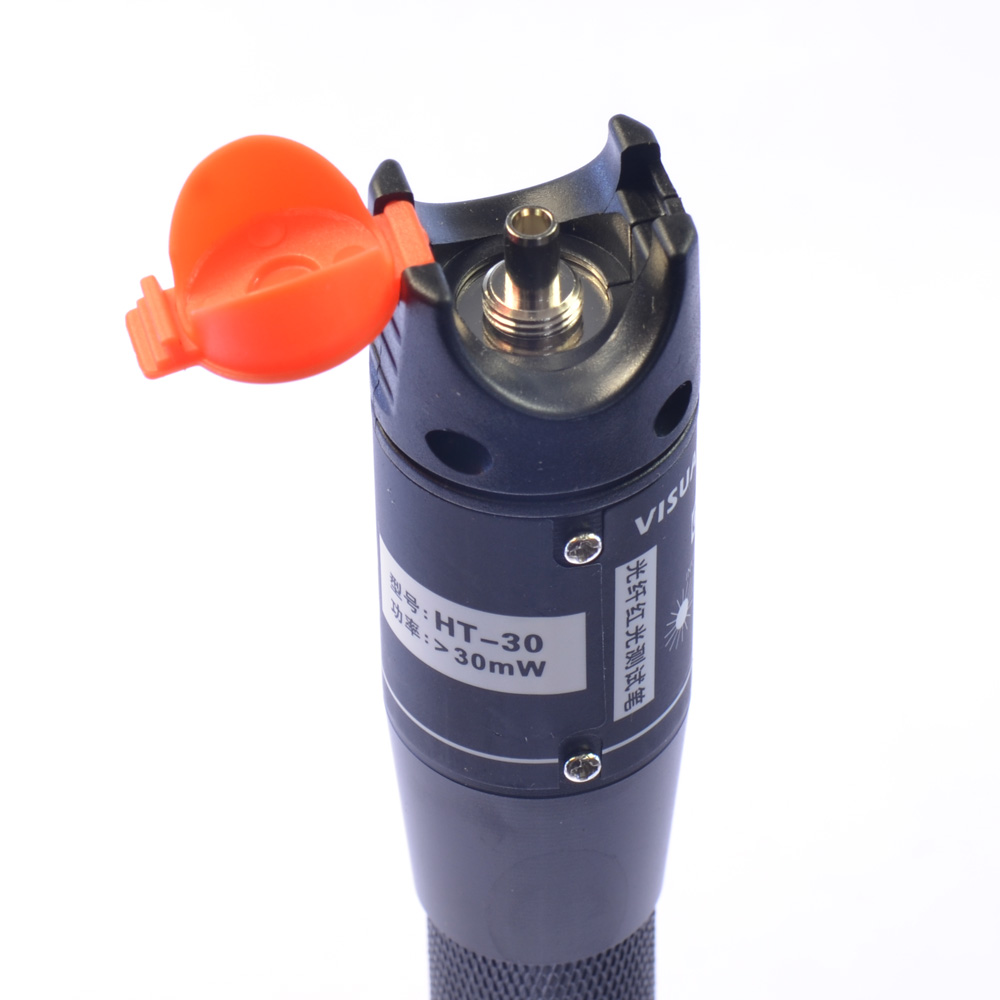

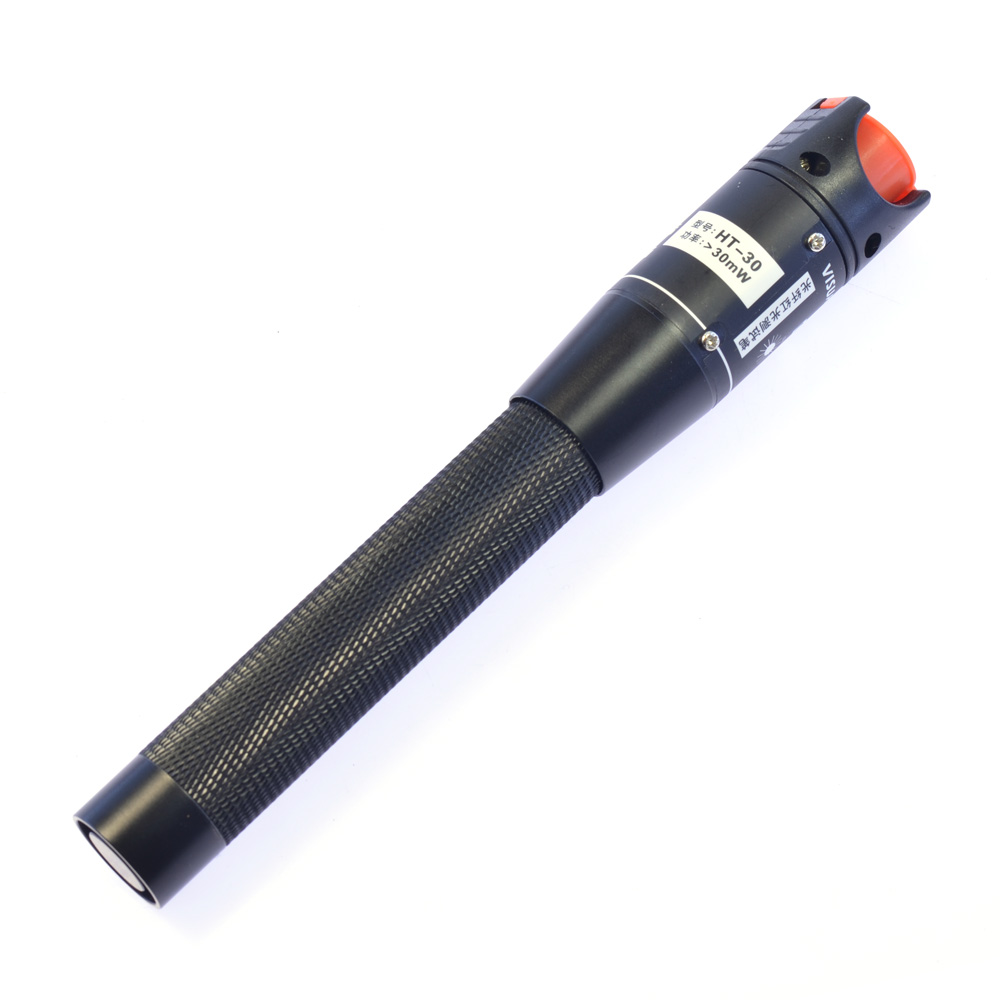

10mW 650nm Pen-type Visual Fault Fiber
The 650nm Pen-type Visual Fault Finder is specially designed for field personnel who need an efficient and
economical tool for fiber tracing, fiber routing and continuity cheching in an optical network during and after installation.
It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR
2.5mm universal connector
Operates either in CW or Pulsed
Constant output power
Lower Battery warning
Long battery life(up to 60 hours)
Specifications:
| Wavelength |
650nm±10nm |
| Emitter Type |
FP-LD laser |
| Output power |
10mW(10-12km) |
| connector |
2.5mm universal adapter |
| Working mode |
Both CW and Pules available |
| Operating temperature |
-10~+45 °C |
| Storage temperature |
-40~+70 °C |
| Power |
2pcs AA battery |
| Working hours |
≥ 60 |
| Weight |
100g (excluding batteries) |
| Dimension (mm) |
220 X 27 |
Package Include
1 x Fiber Checker

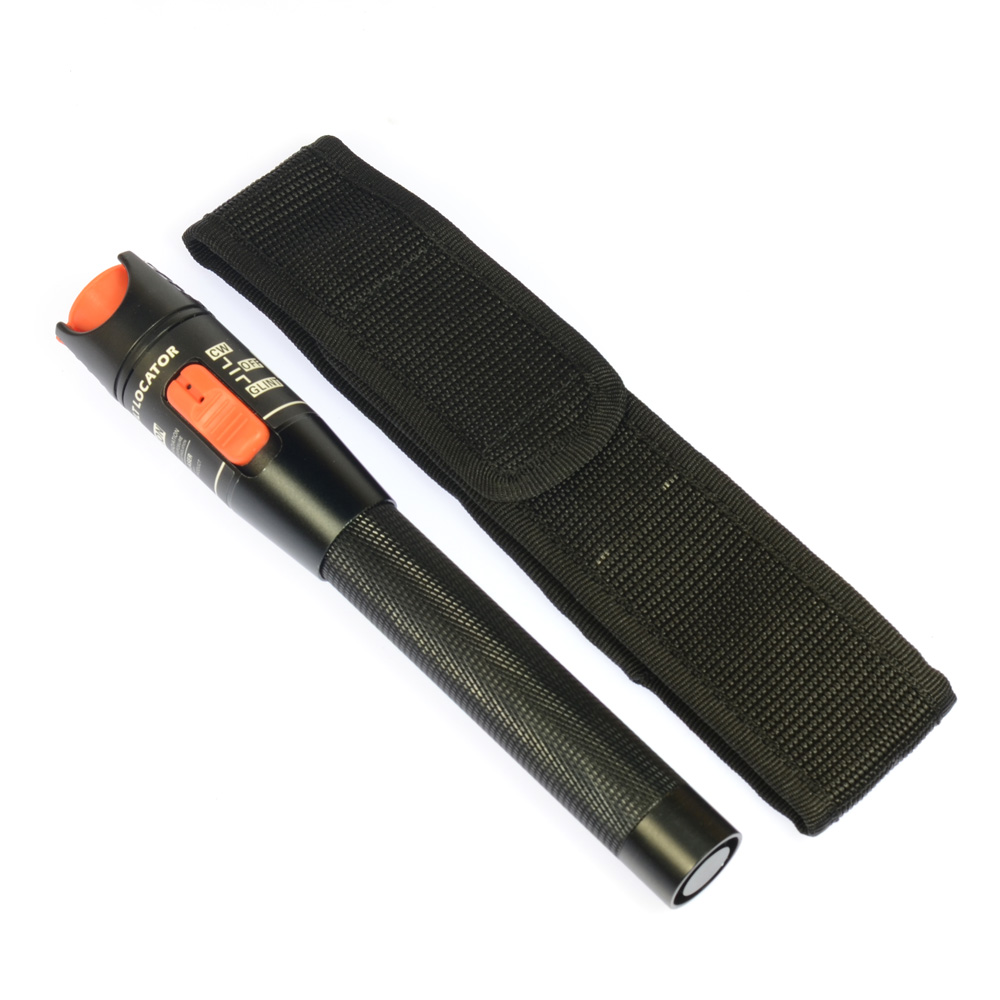

1 x Black bag
Microscope Lens
