Features:
 High Quality, High Resolution, Clear Images
 Auto IRIS
 800 lines Definition (PAL)
 With C-Mount to CS-Mount adapter
 Industry CCD Camera. It can Show the live image directly on any BNC AV monitor or Projector.
 We sell much to the industry factory, then the works can see the problems directly in the Monitor.

Specification:
    Sensor: CCD,1/3 inch
    Full Resolution: 537pixels * 597pixels
    800 lines Definition
    White Balance: Auto
    Color: Color
    BNC Output
    Video input standard: PAL( if you need NTSC one, please kindly contact us )

    Power by DC 12V adapter
    Size of camera body: 7cm * 5cm * 5cm
    Net weight: 218g

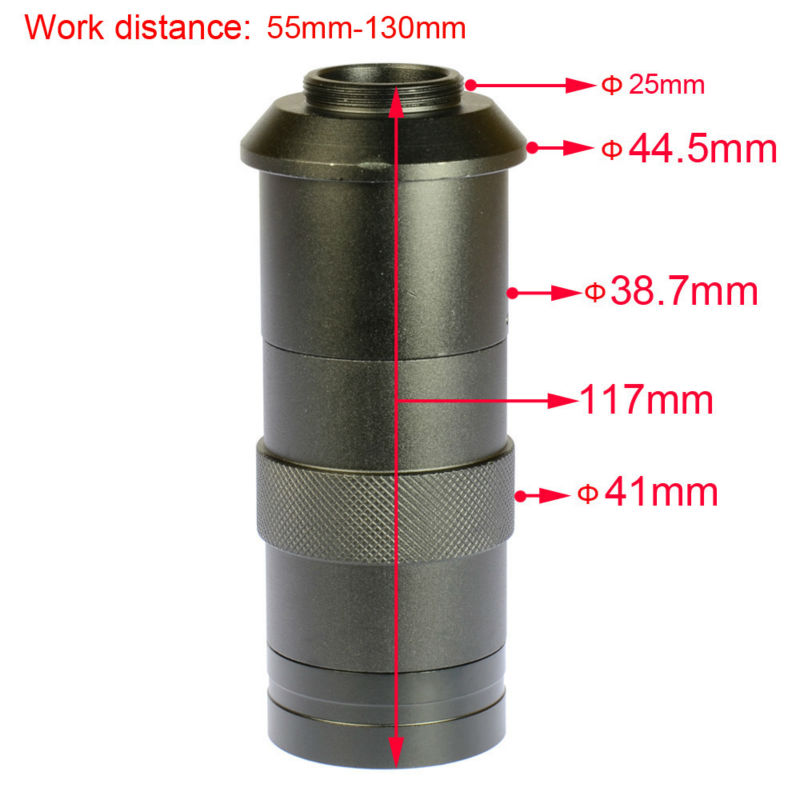

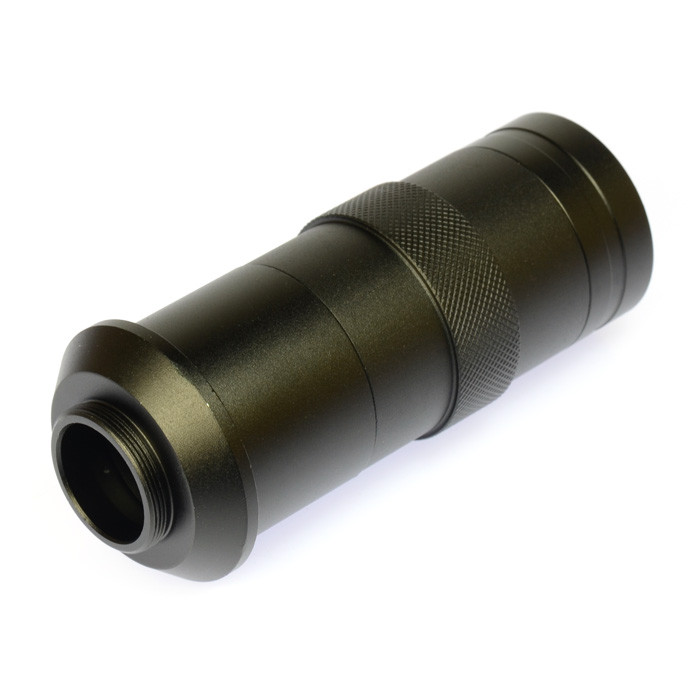

C-MOUNCT Lens:
    zoom c-mount Lens
    Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
    Work distance:55mm-130mm
    Visual field :2.4mm-18mm
    Size: 115mm(L) * 40mm(DIA)
    Weight: 210g

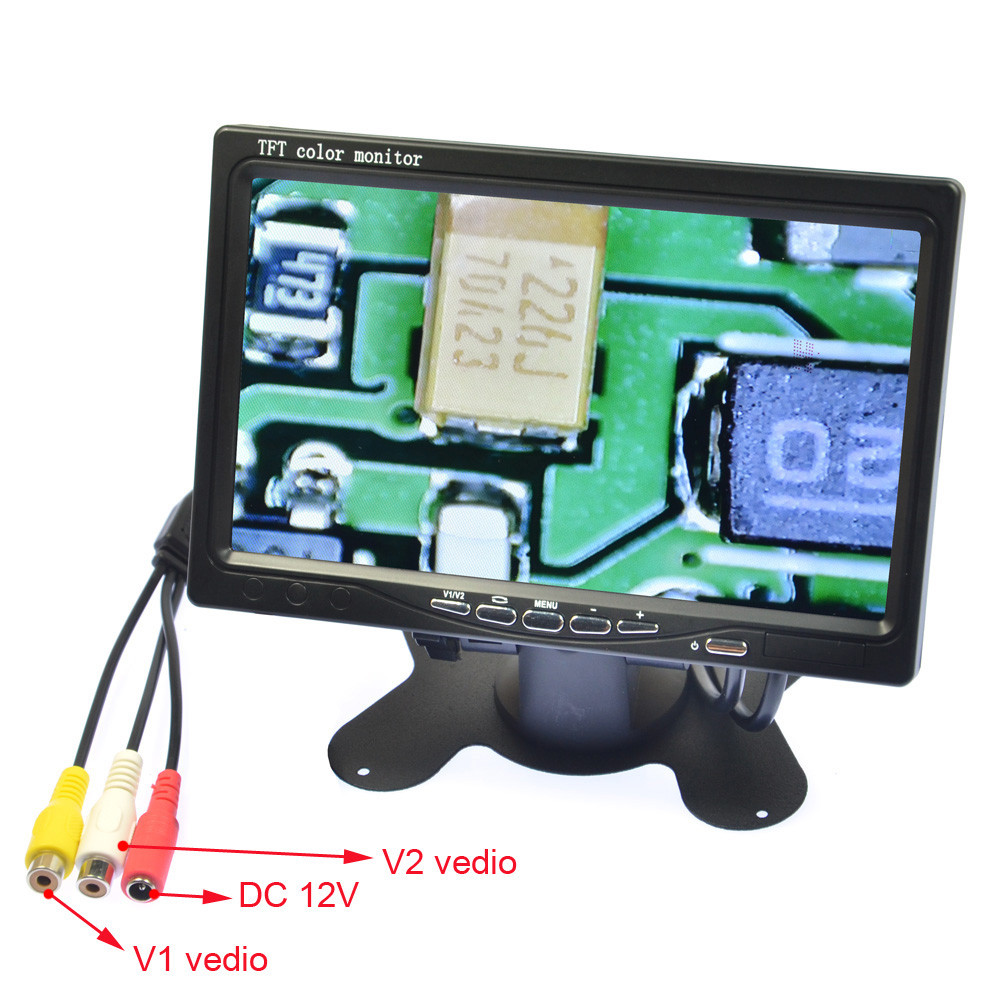

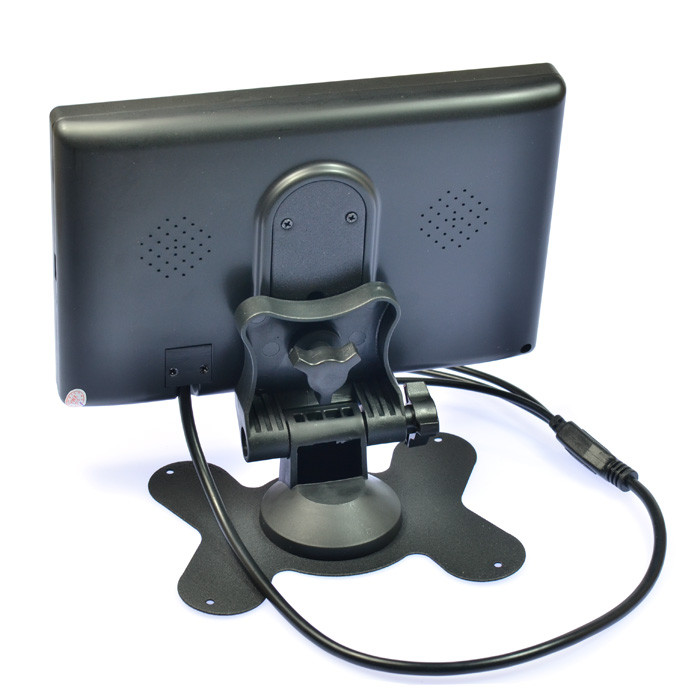

7 inch Monitor:

    Low power consumption.
    400 : 1 contrast Ratio
    With 2 Video input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car backup camera.
    No Audio input or output.
    Support rotating the screen.
    Compact and ultra-thin design.
    Support adjusting the brightness, contrast, color.
    With 7 inch LED backlight color TFT LCD display monitor.
    Comes with an IR remote controller for a easy operation.
    Working perfectly with Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.
    Consumption: 10W
    Power supply: DC 12V
    Display Scale: 16: 9
    Housing Material: ABS
    Compatible: Universal
    System: PAL/ NTSC(Video)
    Resolution: 800 x 600Pixels
    Video Input: Two way video input
    Display Component: Color TFT LCD
    Work Temperature: -10 to 45 degrees
    Cable Length of Screen: Approx.56cm
    2 ways to install: standing or mounting
    Length of Video & Power Cable :Approx.35cm
    Dimension of item (not including the stand size): 18.0(W) x 12.5(L) x 2.8(H)cm
    Size of Screen: Approx 15.6(W) x 9(L)cm
    Monitor Net Weight: 450g

Package Content:
    1 x Camera Body
    1 x C-mount Lens

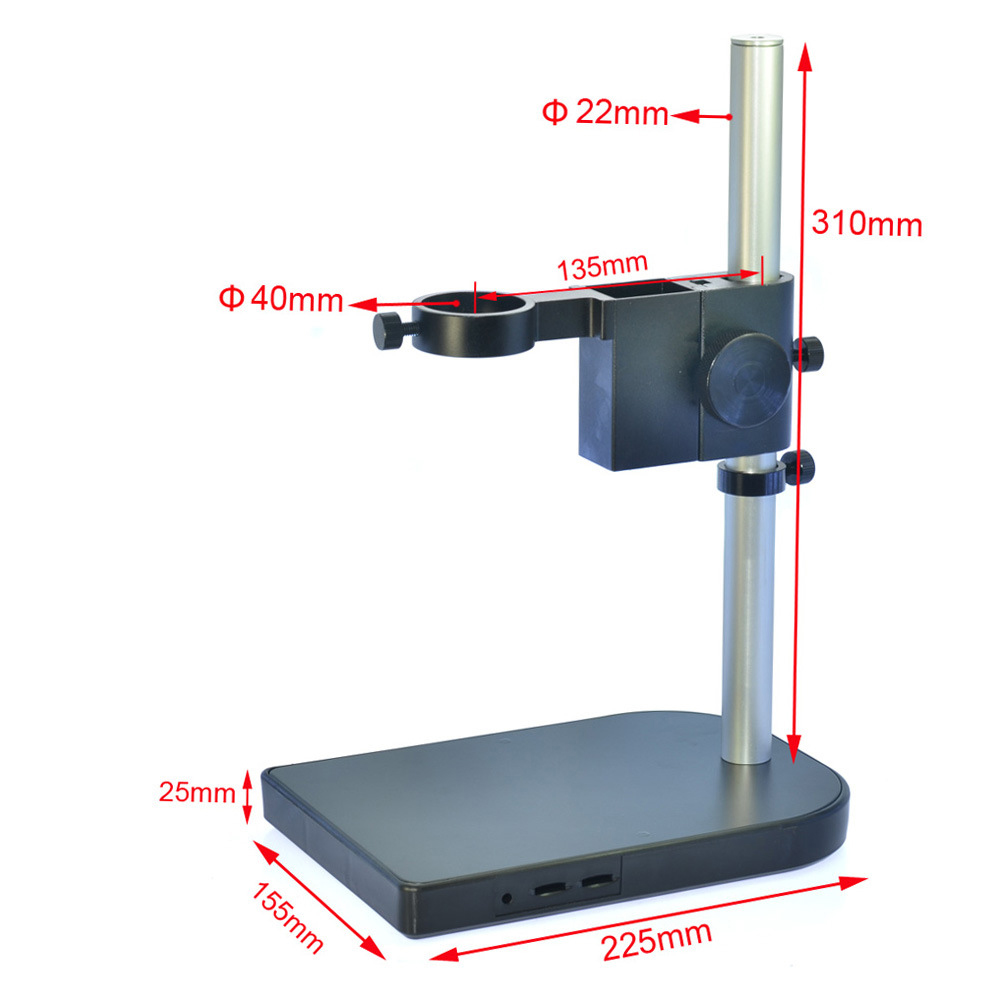

    1 x Stand
    1 x 7 inch Monitor 800*600
    1 x Monitor Power Supper
    1 x 40 LED Ring Light
    1 x LED Light Power Supper
    1 x C-Mount to CS-Mount adapter
    1 x BNC Cable
    1 x AV Cable
    1 x AC to 12V DC adapter
