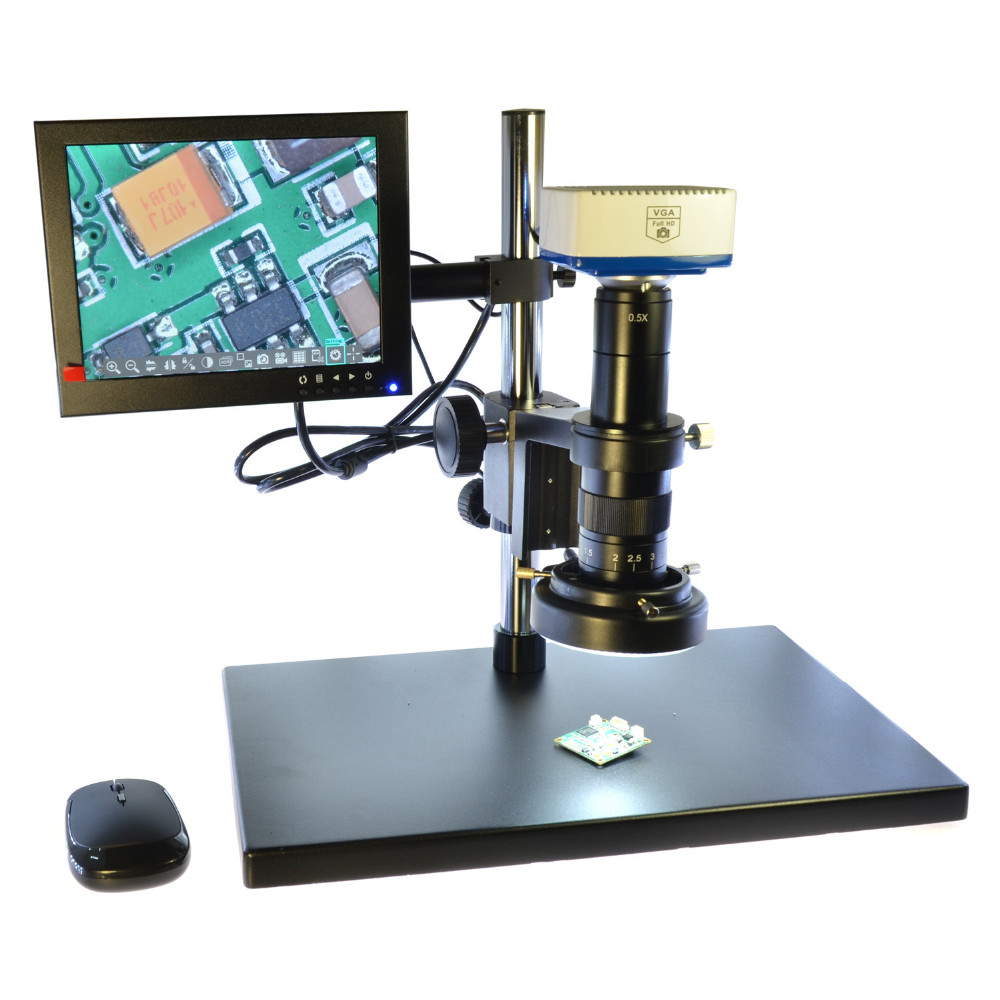

1080P Full HD Industrial Microscope Camera VGA SD Video Recorder Kit 8" HDMI LCD Monitor Stand Holder 180X C-Mount Lens144 LED
Price : US $ 299.52 330.58

SKU : 0911173319
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Features:
    High Quality, High Resolution, Clear Images
    SD Card Video Recorder
    1920*1080 FULL HD Panasonic Image sensor
    1/2.86 inch sensor
    1920*1080 pixels
    The pixel size is 2.75*2.75um
    60@FPS
    All metal shell
    Certificate: CE,FC,RoHS
    Industry CMOS Camera. It can Show the live image directly on any VGA monitor or Projector.
    Supply VAG USB output ports.
    We sell much to the industry factory, then the works can see the problems directly in the Monitor.

Specification:

    Image sensor 1920*1080 FULL HD Panasonic
    sensor 1/2.86 inch
    1920*1080 pixels @ 30fps
    The pixel size is 2.75*2.75um
    60@FPS
    White balance automatic
    Brightness control automatic

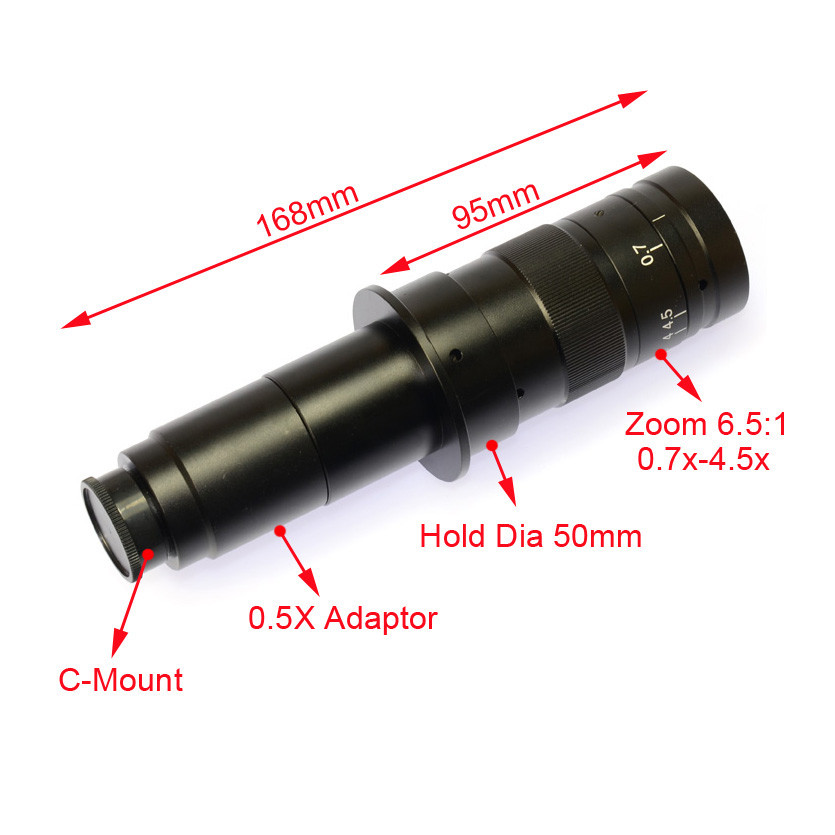

Zoom C-MOUNT Lens:

    Working distance: 100-140mm

    Zoom c-mount Lens

    0.5X C-mount adapter

    Zoom ratios: 6.5:1

    Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

    Size: 180mm(L) * 50mm(DIA)

    Weight: 450g

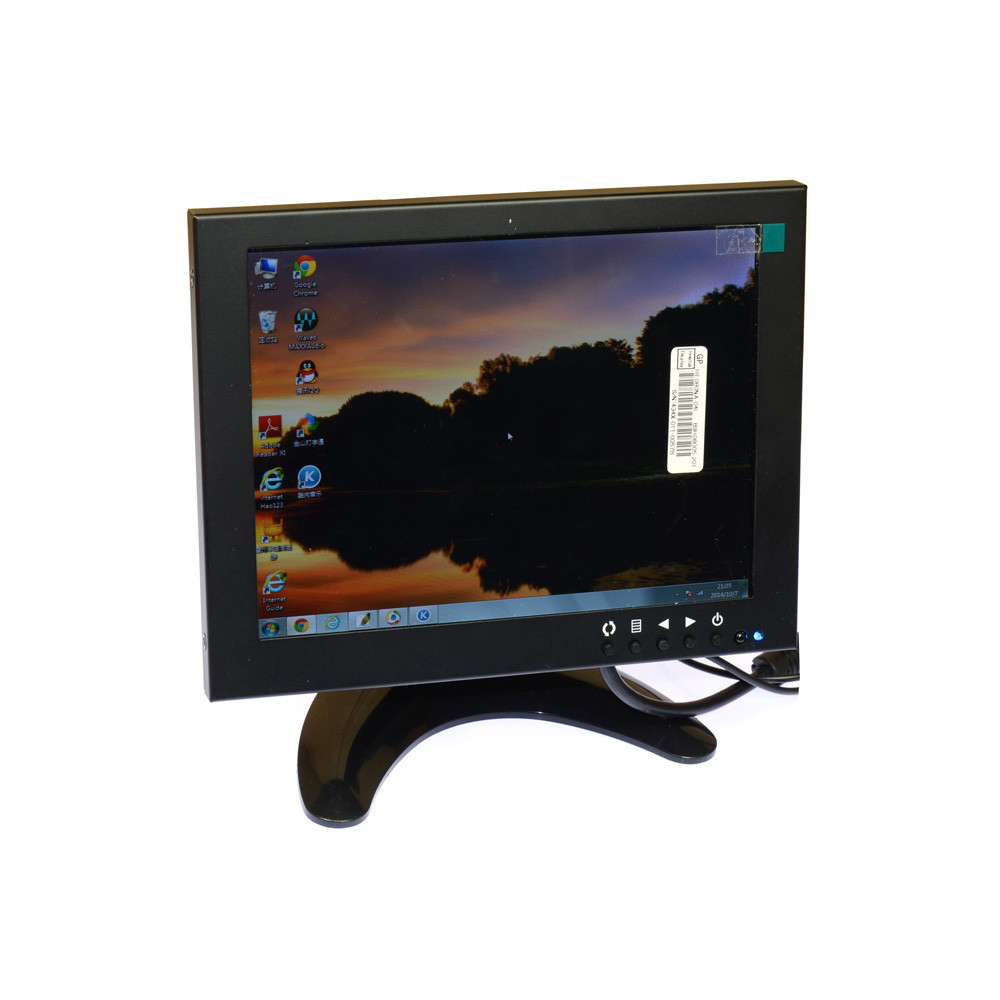

8" HDMI TFT LCD Color Monitor:

    8 inch (1024 x 768) high resolution TFT LCD monitor
    Clear image and colorful display
    Support BNC input for professional security system,which can reduce signal         interference to achieved a best signal state
    Multi video input supported (RCA, VGA, BNC)
    Support 15-pin VGA input , connect with PC (1024*768)
    Suitable for CCTV monitor, PC monitor or indoor use
    Built-in high quality speakers
    Auto standy function with timer switch and no signal
    Screen Size : 8"
    Screen Resolution : 1024 x 768 pixels
    Aspect Ratio : 4 : 3
    Screen Brightness : 400 cd/m2
    Screen Contrast : 400 : 1
    Viewing Angle : 160° (H) x 160° (V)
    Response Time : <= 12ms
    Video Input : HDMI, AV-in, VGA, BNC
    Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
    Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm

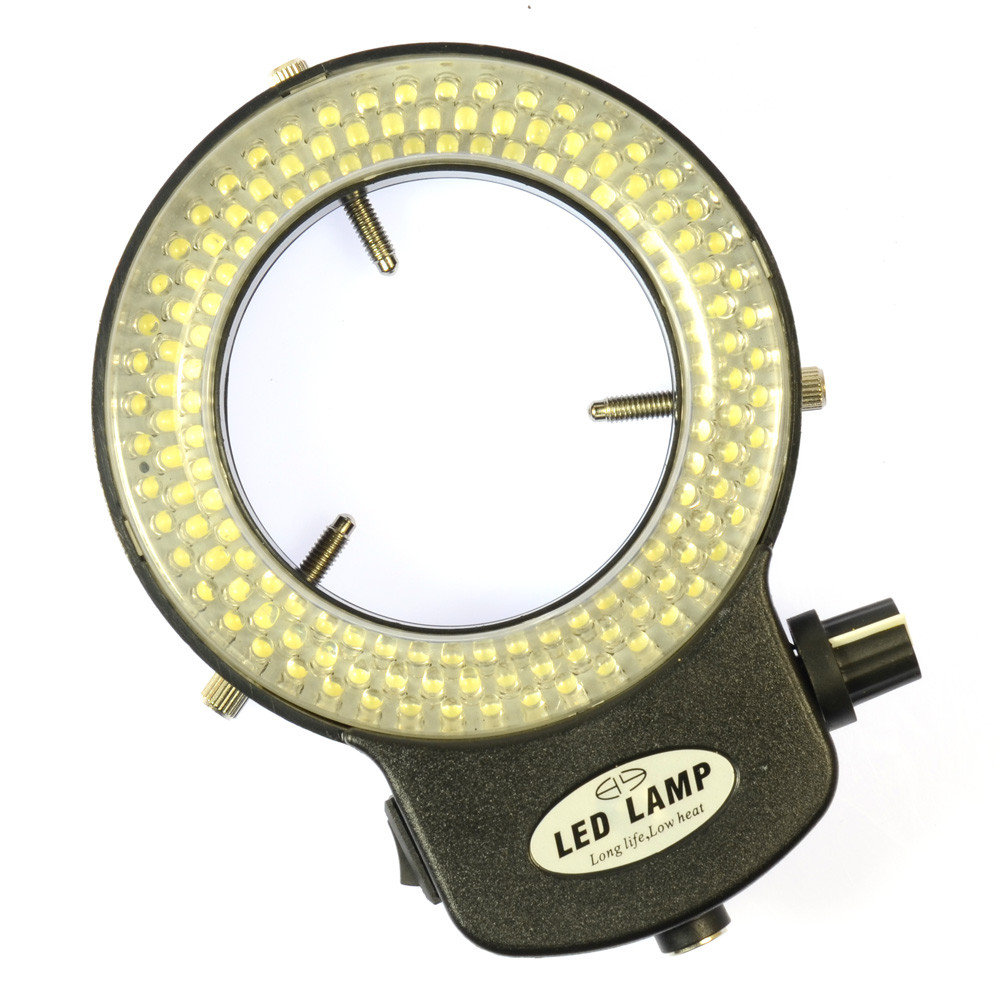

144 Bulbs Microscope LED Ring Light:

    144 bright white LED bulbs
    100,000 hours of life
    Intense and focused shadow-free illumination
    The brightness of 0-100%Adjustable,high brightness
    Variable intensity control
    Power input: 100-240V, 50-60HZ
    Suit for the dia of the lens: 30mm-63mm


Package include:

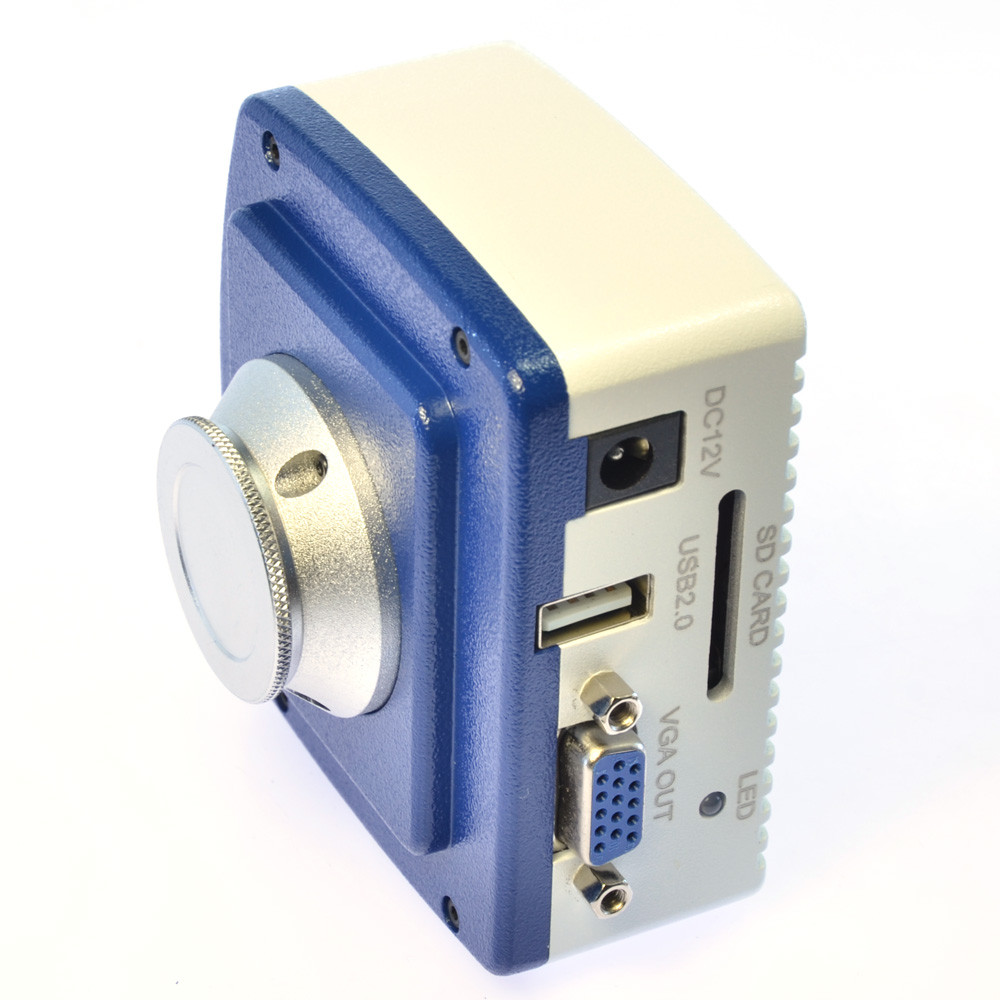

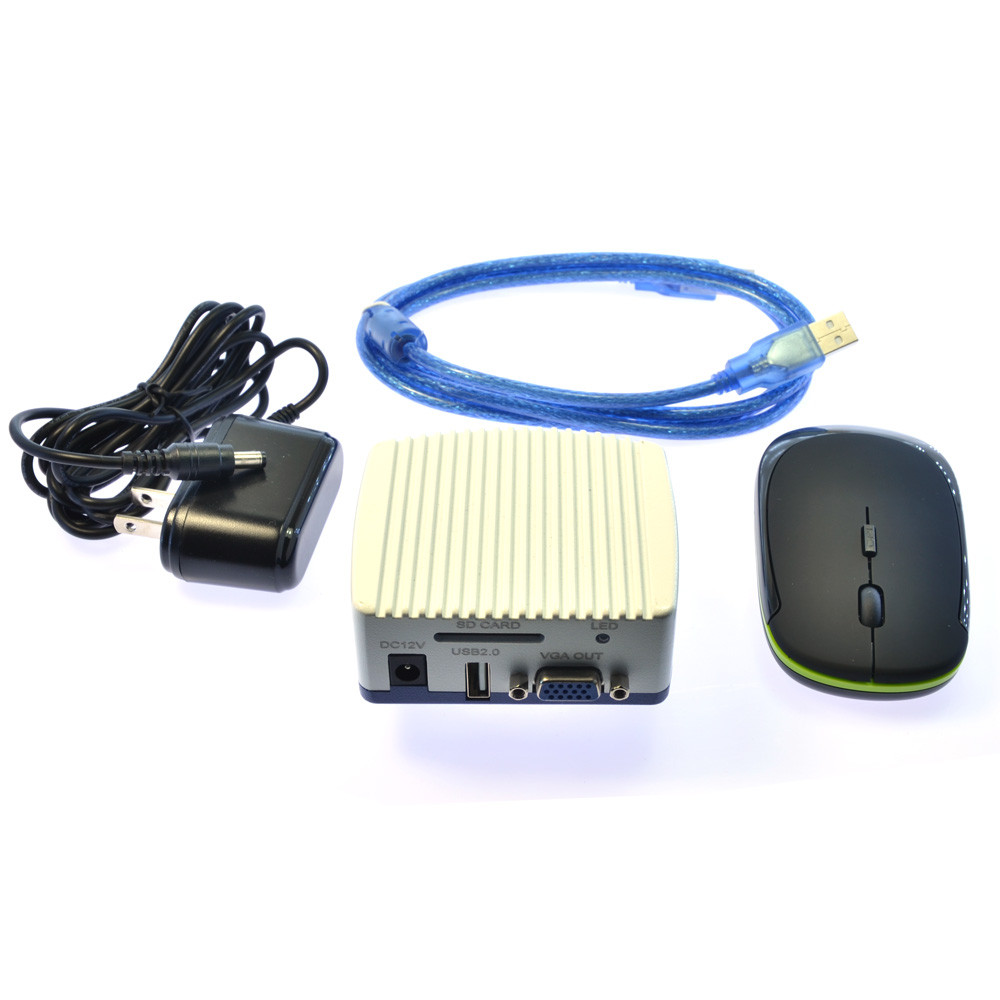

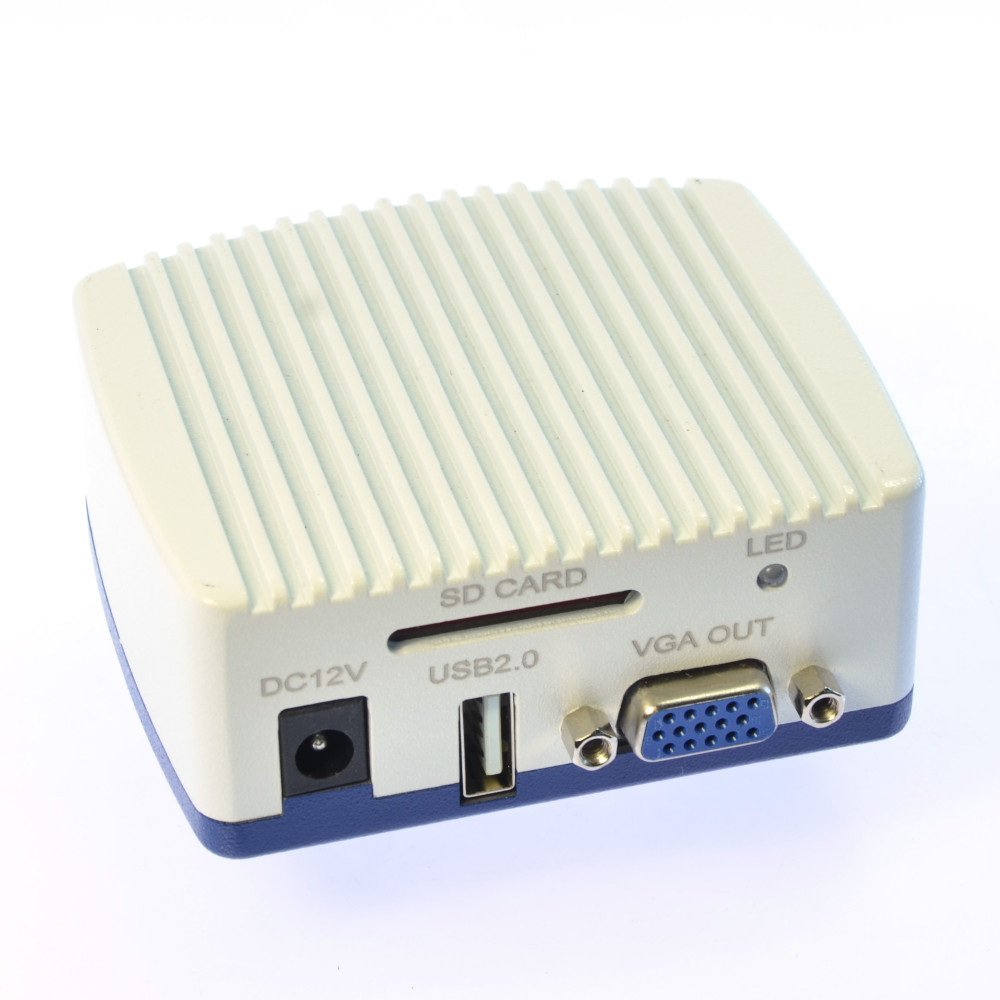

   1 x Microscope Camera Body

   1 x 180X Industry Zoom C-mount Lens

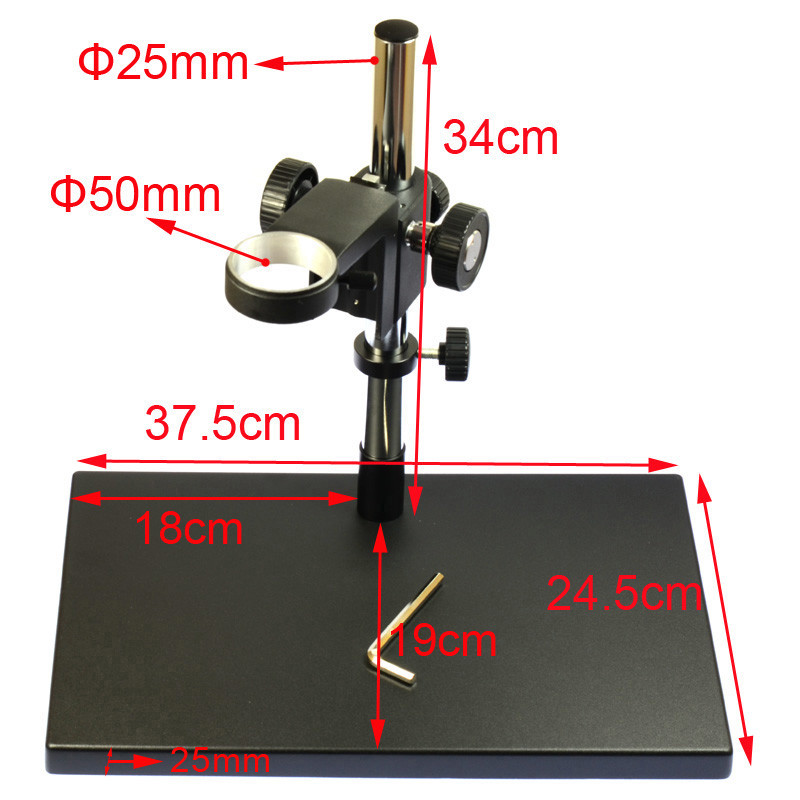

    1 x Table stand

    1 x 144 LED ring light

    1 x 8" HDMI/VGA monitor

   1 x 100V-240V Power Supply
