Features:

High Quality, High Resolution, Clear Images

With mouse function, easy control

2.0MP Definition

Japan CMOS

Certificate:CE,FC,RoHS

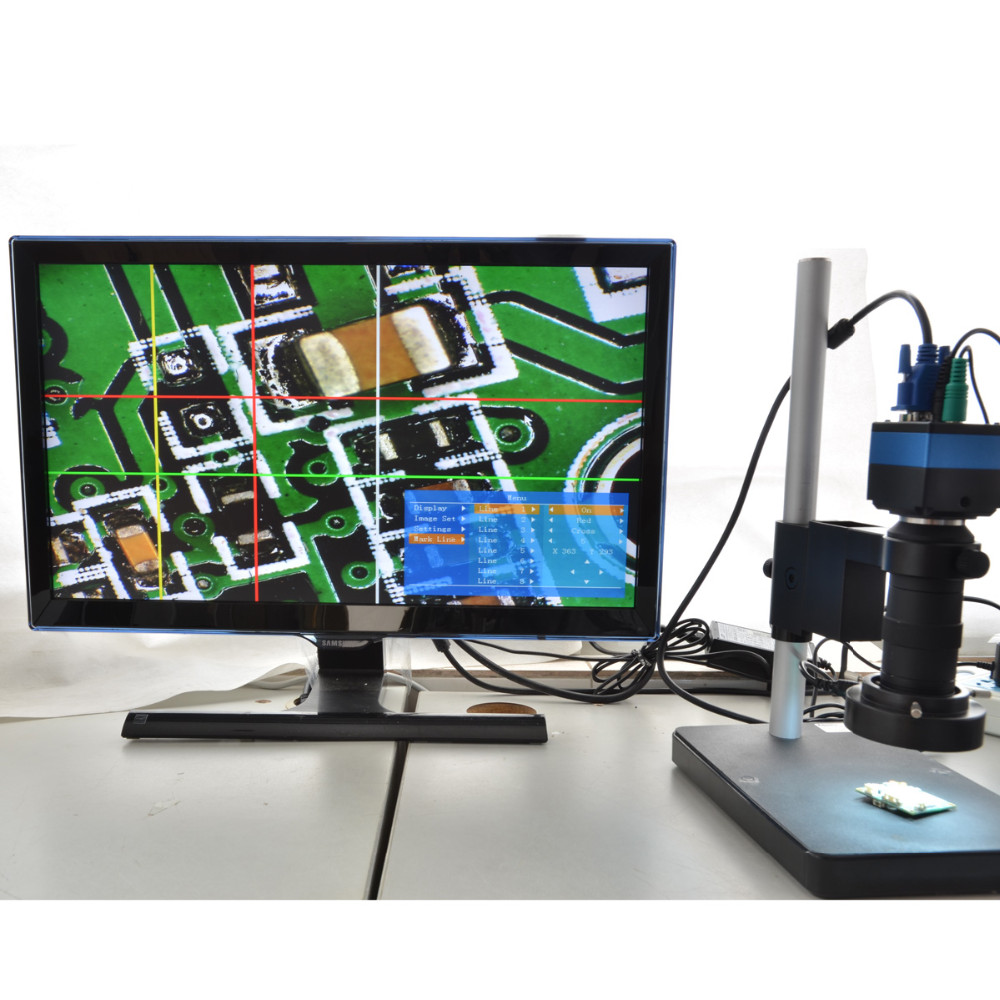

Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.

Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative

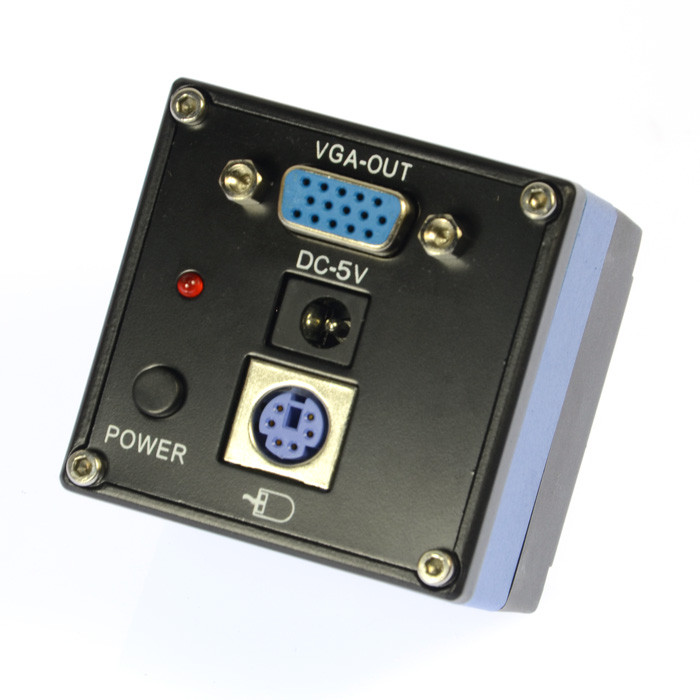

Supply VGA output ports.

We sell much to the industry factory, then the works can see the problems directly in the Monitor.

Specification:

Model: Camera with VGA output

Sensor: 2.0mp,1/3 inch

Full Resolution: 1600X1200 (UXGA)

800 lines Definition

VGA output: 800X600 60Hz,1024X768 60Hz,1280X1024 60Hz,1366X768 60Hz, 1440X900 60Hz, 1680X1050 60Hz, 1600X1200 60Hz

White Balance: Auto

C-MOUNT Lens:

zoom c-mount Lens

Magnification Power by 0.12 - 2X (about 8 - 100X on the display)

Work distance:55mm-130mm

Visual field :2.4mm-32mm

Size: 115mm(L) x 40mm(DIA)

Weight: 260g

40 LED Adjustable Compact Microscope Ring Light:

Provides intense and focused shadow-free illumination

40 bright white LED bulbs

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-45mm

Product parameters:
1. Screen size: 7 inches TFT-LCD high-definition digital LCD monitor desktop
2. Resolution: 1024 x 600, supports up to 1024 * 768, 1280 * 1024
3. the color system: PAL / NTSC
4. Power supply voltage: 9 ~ 35V
5. Brightness: 400 Contrast Ratio: 350:1
6. Color: Black
7. power consumption: 7W
8. operating temperature: -20 ° C - +65 ° C
9. Storage temperature: -25 ° C - +85 ° C
10.the display function: automatic switching visual function
11.Interface: AV2 video input (external reversing the priority function), a VGA PC standard interfaces
12.the screen up and down, left and right rotation
13.LCD screen Aspect Ratio: 16:9 (can be set to 4:3)
14.the visual Wide Angle: 70/70/50/70 (left / right / up / down)
15.Dimensions L * W * H: 173 × 113 × 21 mm
16.the headrest frame size L * W * D: 193X134X30mm

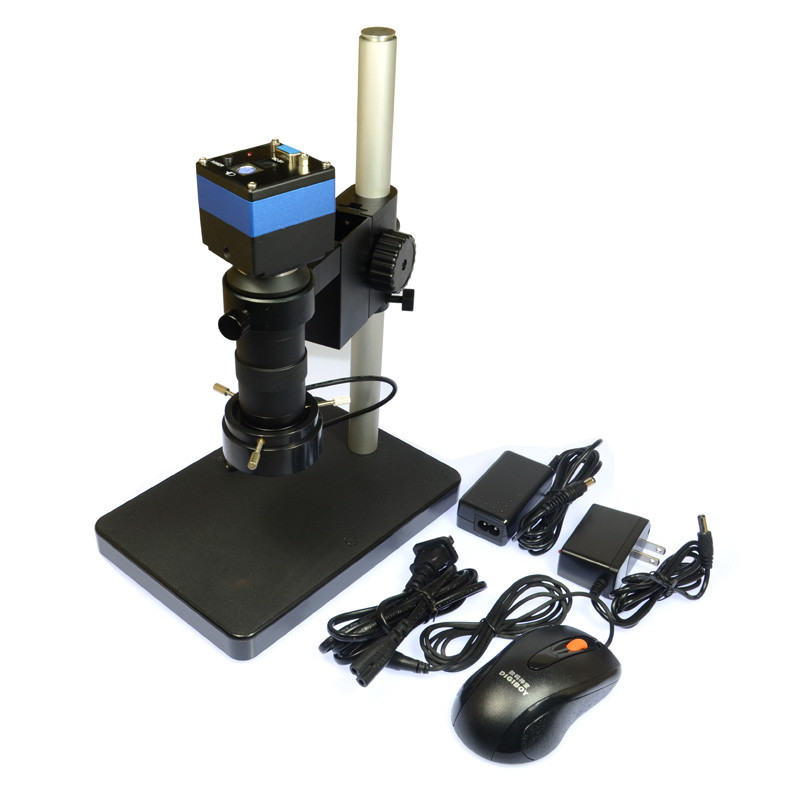

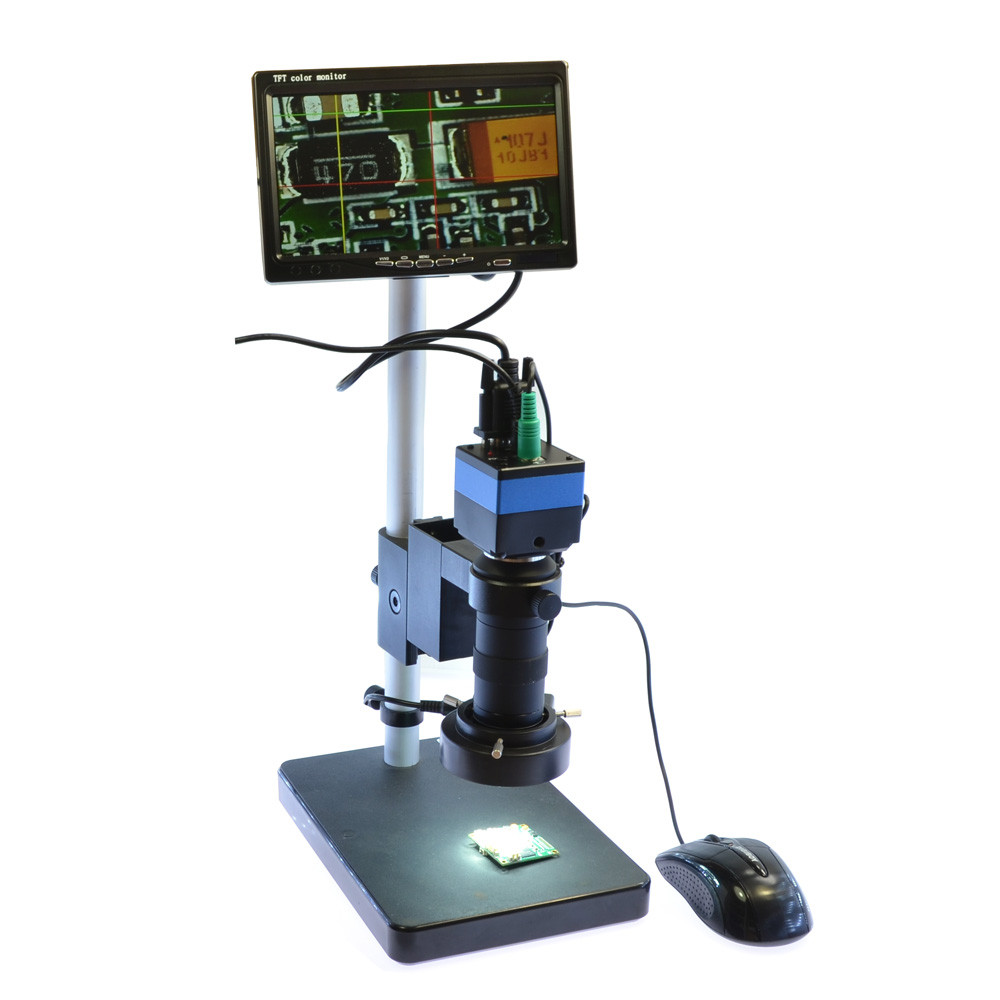

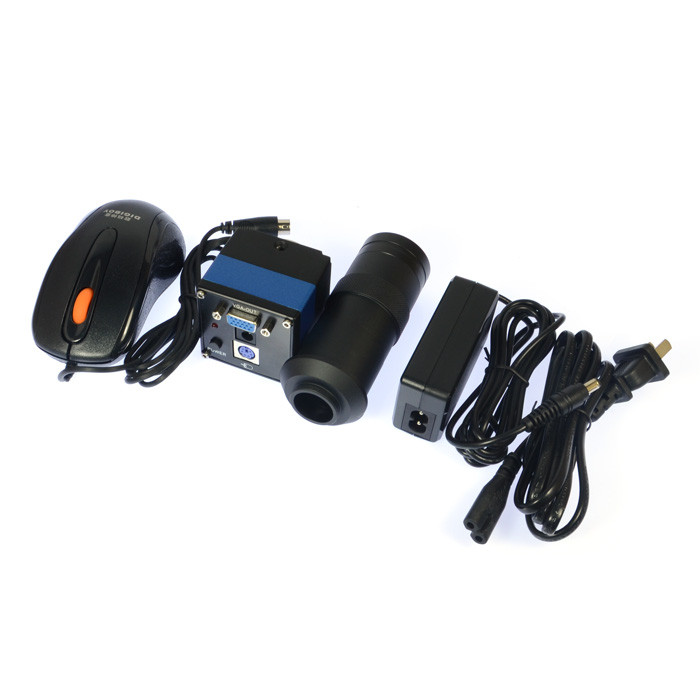

Package Content:

1 x Microscope Camera Body

1 x Mouse for camera

1 x   7" Inch LCD Monitor

1 x 40LED Ring Light

1 x 100X C-MOUNT Lens

1 x Microscope Stand

1 x 100V-240V Power supply
