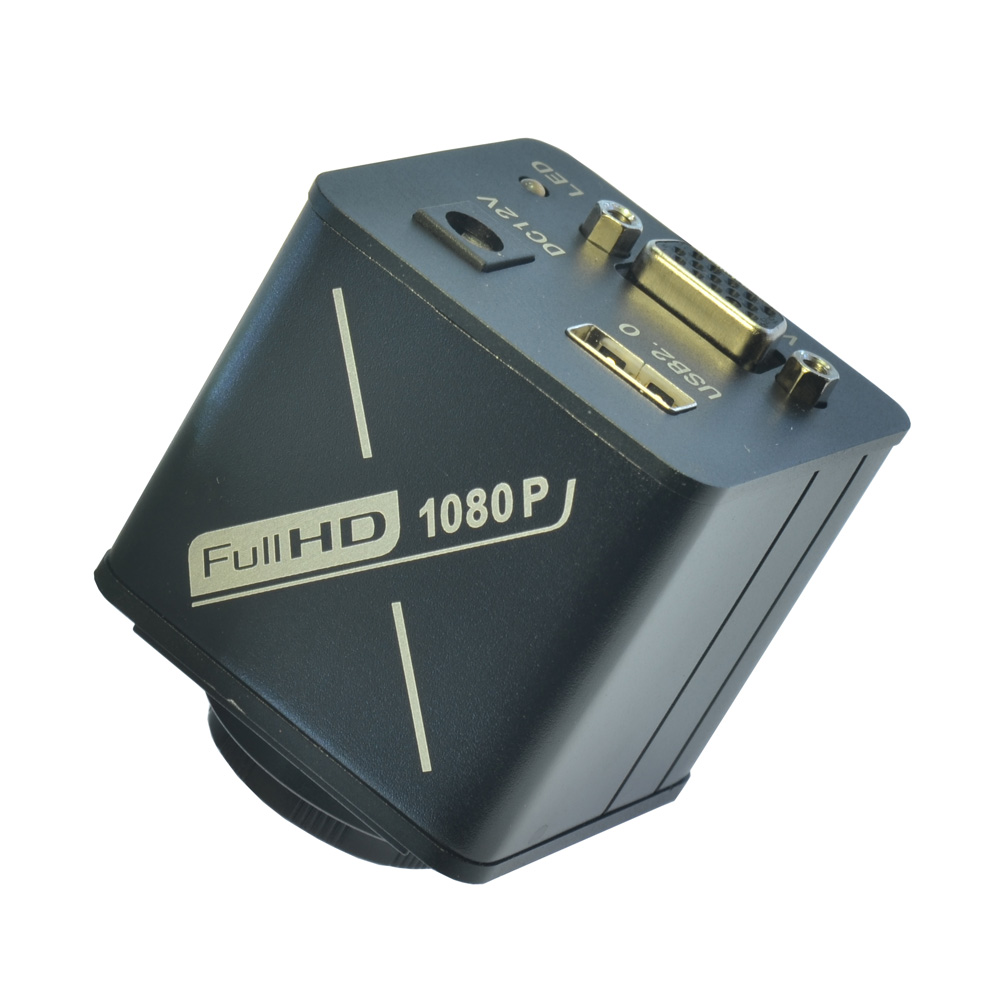

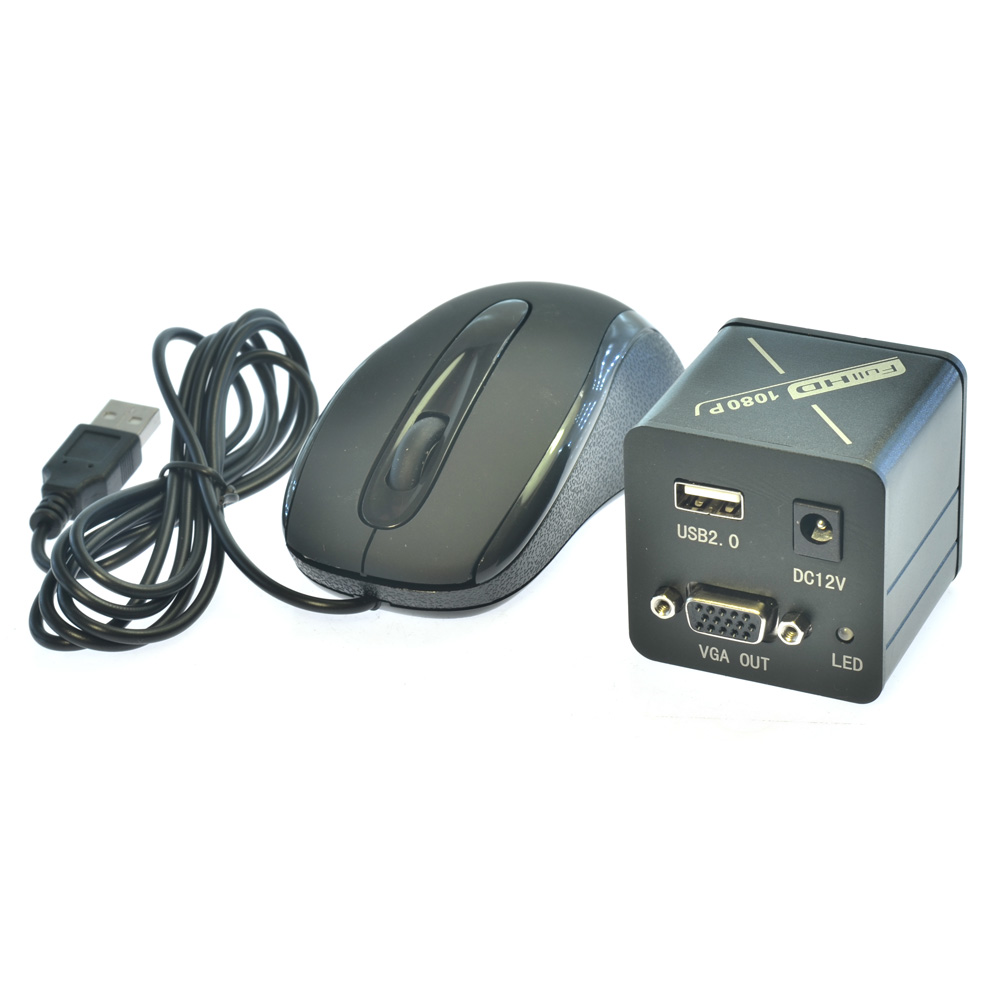

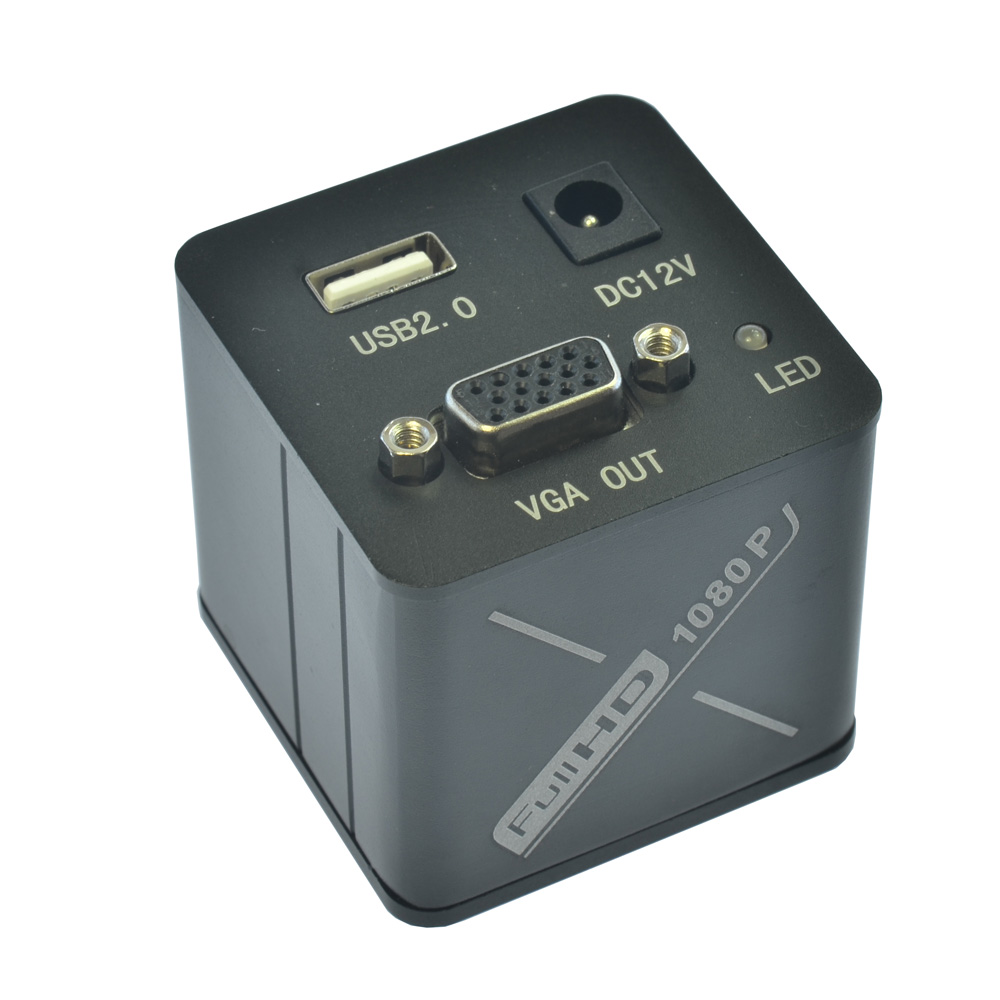

Full HD 1080P Microscope Industrial Camera VGA Microscope Camera+60 LED Light+180X C-mount Lens+8" HD LCD Monitor Microscopes

Features:

    High Quality, High Resolution, Clear Images
    1080P VGA output
    1920*1080 FULL HD Image sensor
    1/2.86 inch sensor
    The pixel size is 2.75*2.75um
    All metal shell
    Certificate: CE, FC, RoHS
    Industry CMOS Camera. It can Show the live image directly on any VGA monitor or Projector.
    Supply VGA USB output ports.
    We sell much to the industry factory, then the works can see the problems directly in the Monitor.

Specification:

    Image sensor 1920*1080 FULL HD
    sensor 1/2.86 inch
    1920*1080 pixels
    The pixel size is 2.75*2.75um
    White balance automatic
    Brightness control automatic

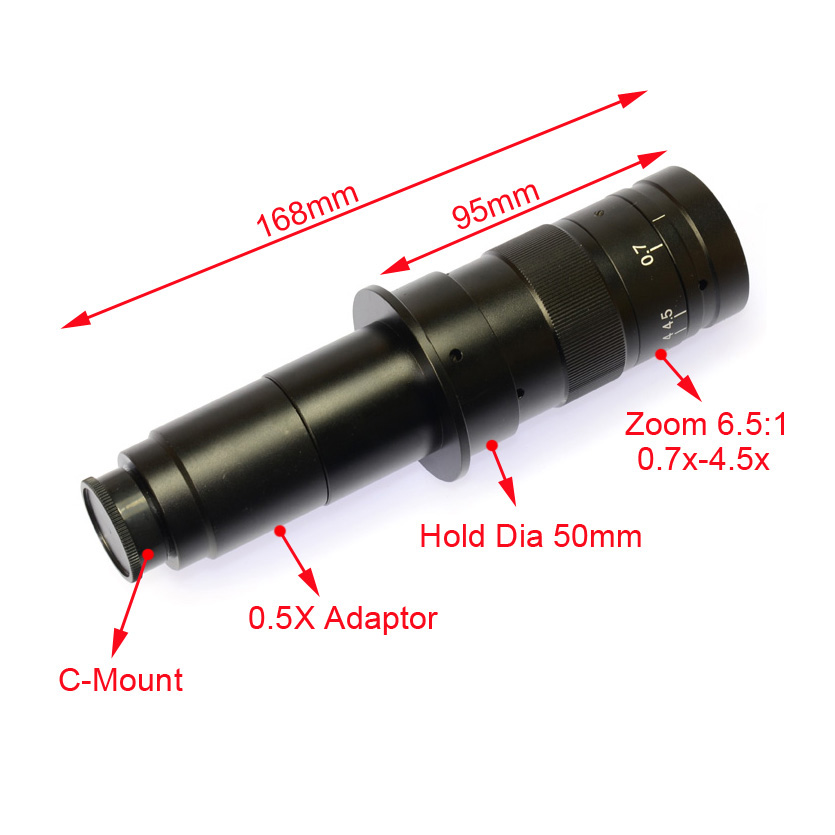

C-MOUNT Lens:

Working Distance: 100mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g

60 LED Light:

Light source: 60pcs LED
Input Voltage: AC90-240V
Output Voltage: DC12V
Output frequency: 4.5W
Working Distance: 40-160mm
Illumination: 30000LUX-35000LUX
color temperature: 6500K-7000K
brightness range control: 0% - 100%
light Color: cool white
Product Light: ＞30000HRS
Valid optical length: 75mm
Valid optical path: 30mm
Power box size: 110 x 60 x 30mm
Material of power box: Plastic
Color: Black
Inside dia. Of Ring Light: 61.5mm
Outside dia. Of Ring Light: 94mm
Inside dia. Of ring holder: 26mm
Outside dia. Of ring holder: 45mm

8 Inch Monitor:

Panel Size: 8 inches
LCD Type: TFT LED
Physical Resolution: 800 × 600
Display Ratio: 4: 3
Display Color: 16.7M
Point Distance (mm): 0.264
Brightness (nits): 250cd / ㎡
Contrast Ratio: 300: 1
View (Up / Down / Left / Right): 160 ° / 160 °
Response Time: 6ms
Power Supply DC: 12V 1A
Field Frequency: 50Hz, 60Hz, 70Hz
Signal Interface: AVC × 1, BNC × 1, VGA × 1, HDMI × 1
Color Format: PAL / NTSC / SECAM
Menu Operation OSD: keypad / remote control
Menu Language (optional): Simplified Chinese, Traditional Chinese, English, Russian, French, Spanish, German, Italian
Installation: Base Support / Wall

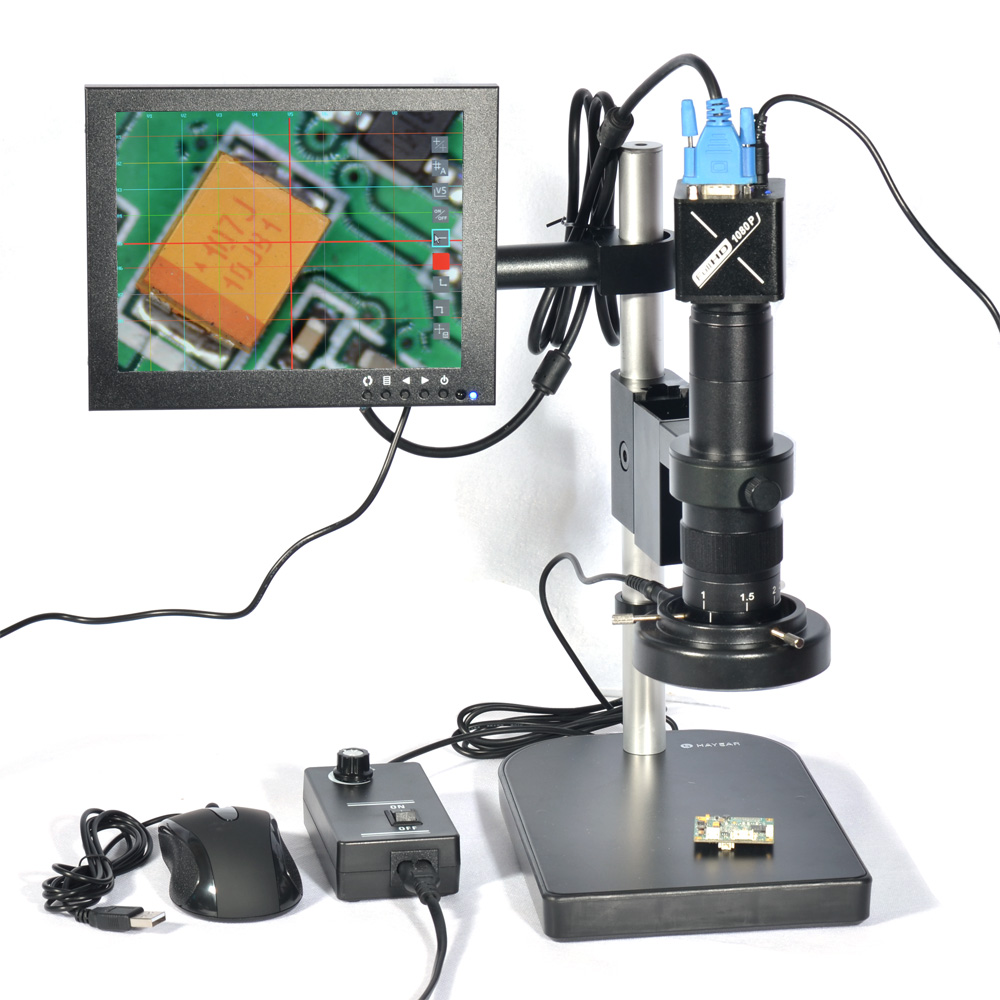

Package Including:

1 x Microscope Camera
1 x 12V/1A Power supply
1 x 180X Zoom C-mount Lens
1 x Table Stand
1 x 60-LED Ring Light with Power Adapter
1 x 8 inch Monitor
1 x Mouse
