Max operation distance between lens & object: 11cm

Features:

High Quality, High Resolution, Clear Images

Certificate:CE,FC,RoHS

Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.

Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative

Supply VGA or CVBS output ports.

We sell much to the industy factory, then the works can see the problems directly in the Monitor.

Specification:

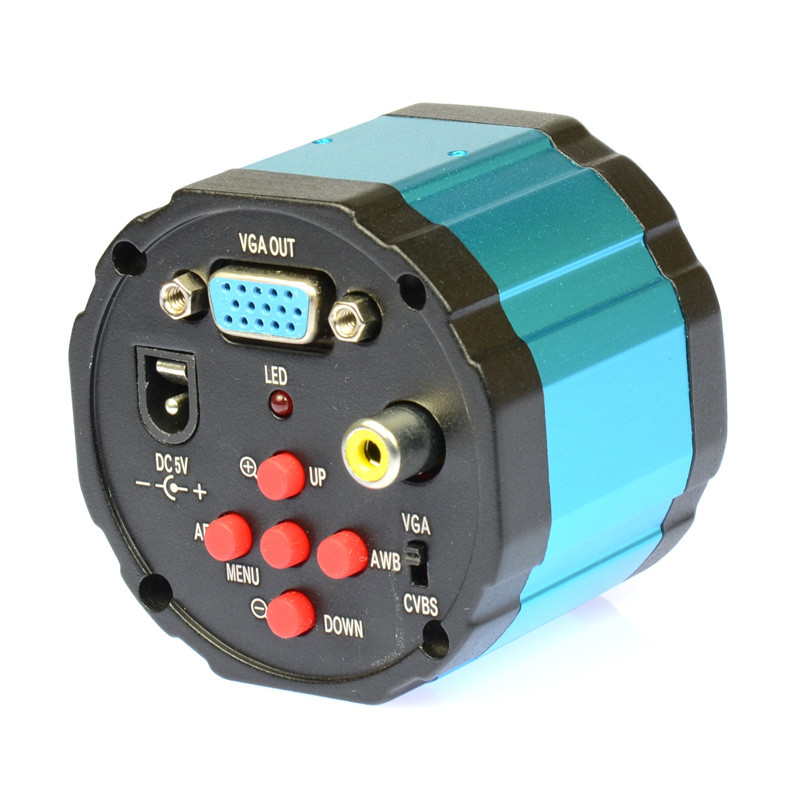

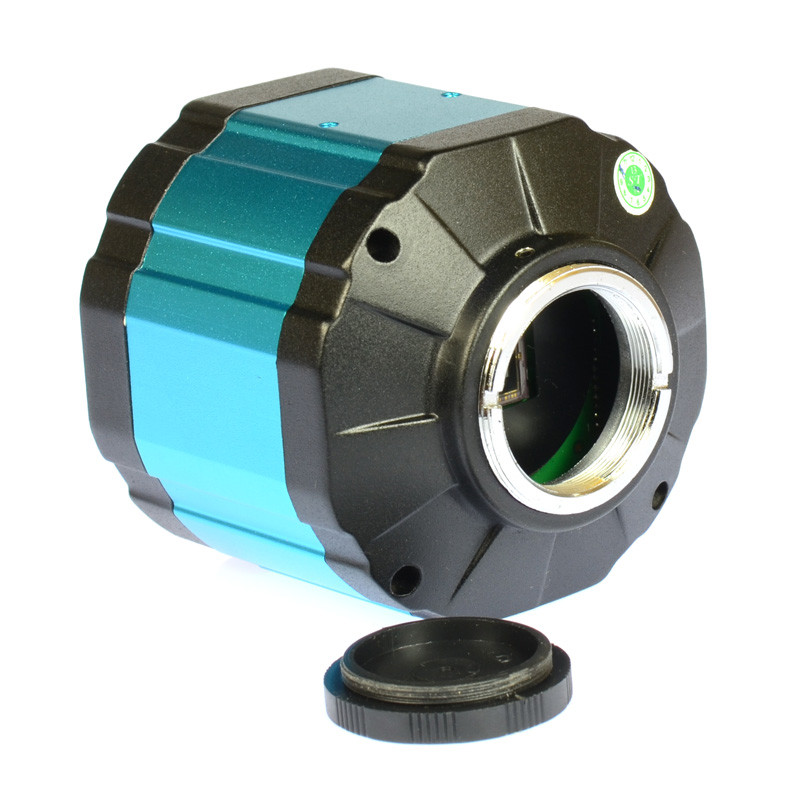

Model: Camera with VGA AV output

Sensor: 2.0mp,1/3 inch

Full Resolution: 1600X1200 (UXGA)

800 lines Definition

VGA output: 1024X768 60Hz,1280X1024 60Hz,1600X1200 60Hz

White Balance: Auto

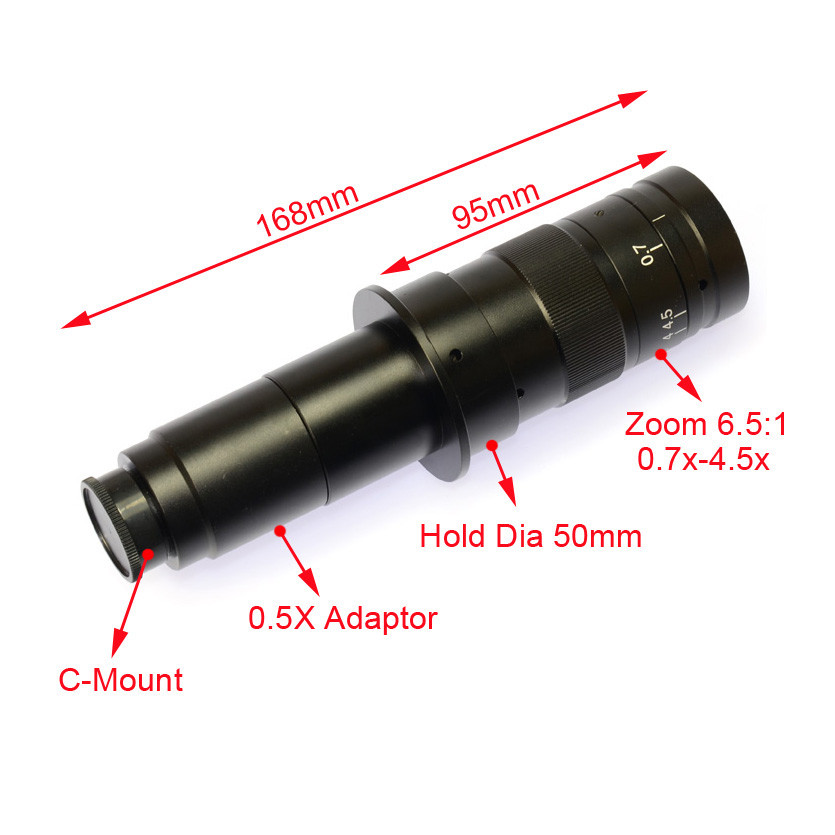

Zoom C-MOUNT Lens:

Working distance: 100-140mm

Zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 180mm(L) * 50mm(DIA)

Weight: 450g

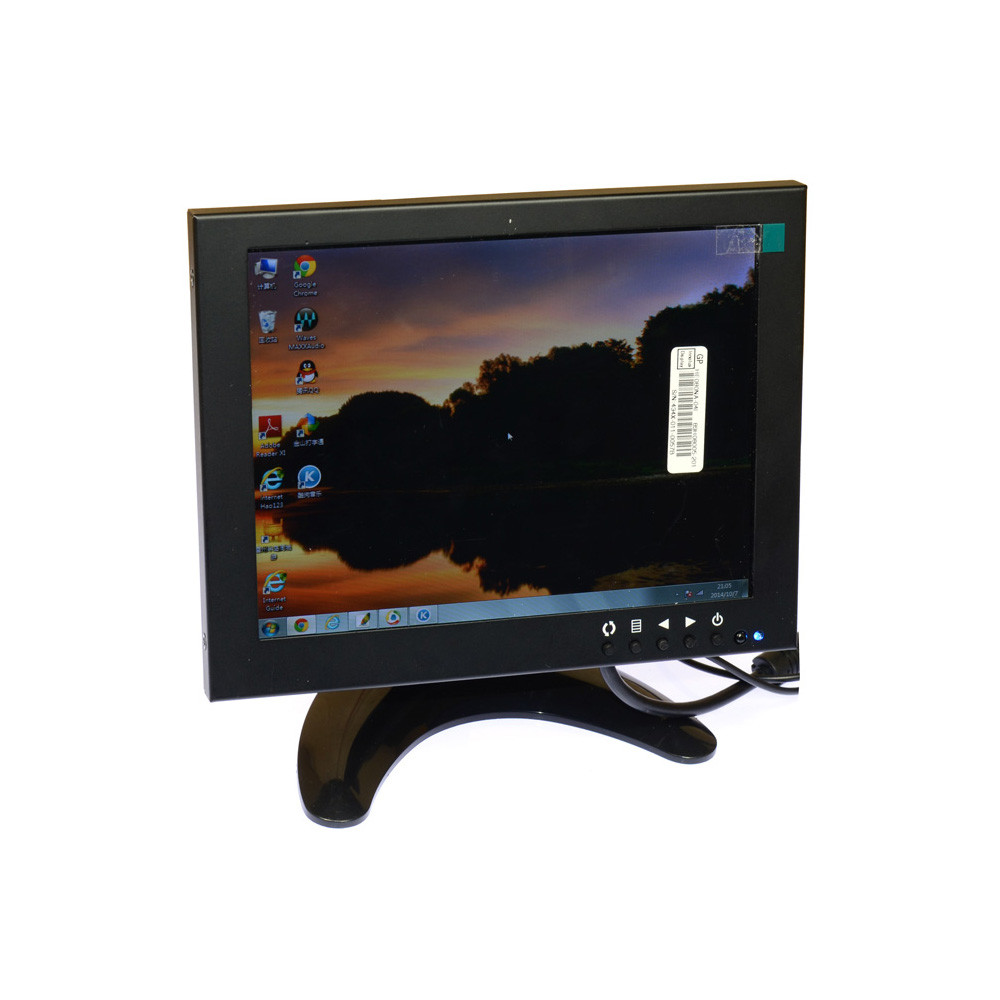

8" HDMI TFT LCD Color Monitor:

8 inch (1024 x 768) high resolution TFT LCD monitor
Clear image and colorful display
Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
Multi video input supported (RCA, VGA, BNC)
Support 15-pin VGA input , connect with PC (1024*768)
Suitable for CCTV monitor, PC monitor or indoor use
Built-in high quality speakers
Auto standy function with timer switch and no signal
Screen Size : 8"
Screen Resolution : 1024 x 768 pixels
Aspect Ratio : 4 : 3
Screen Brightness : 400 cd/m2
Screen Contrast : 400 : 1
Viewing Angle : 160° (H) x 160° (V)
Response Time : <= 12ms
Video Input : HDMI, AV-in, VGA, BNC
Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm

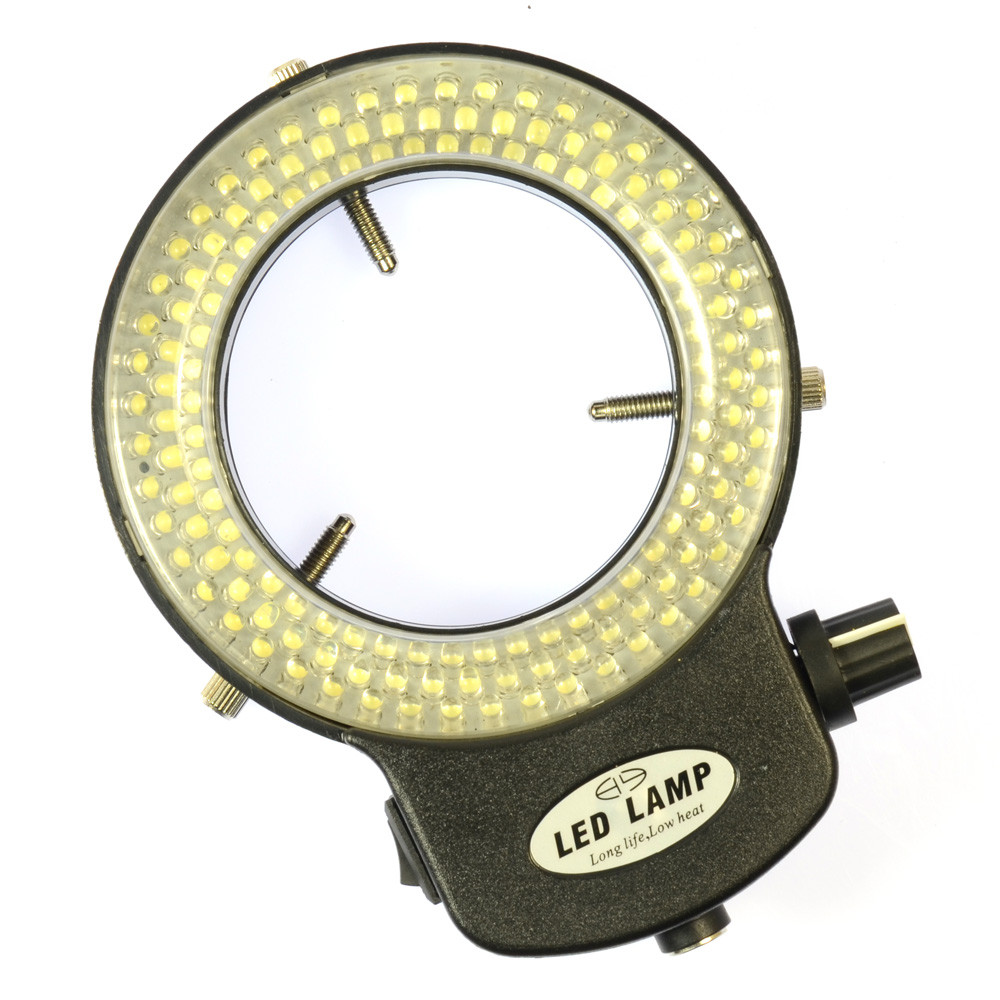

144 Bulbs Microscope LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

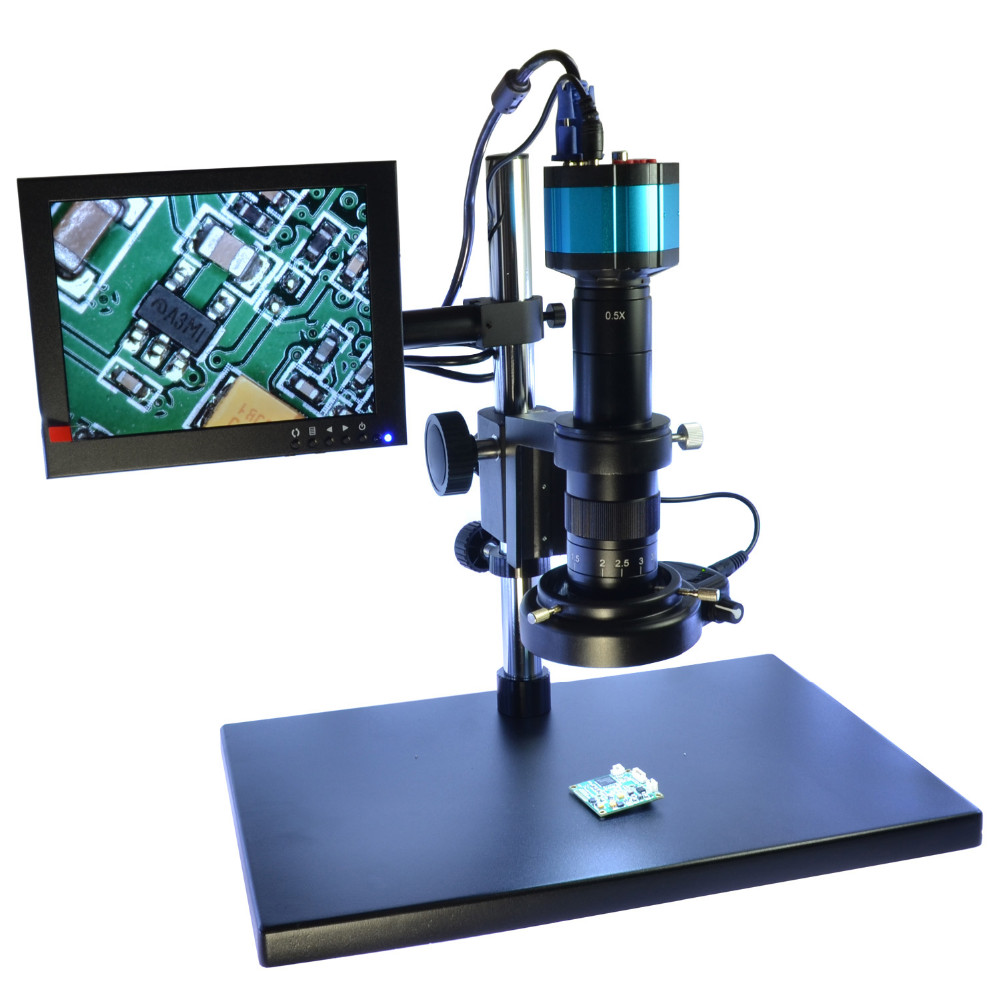

Package incluede:

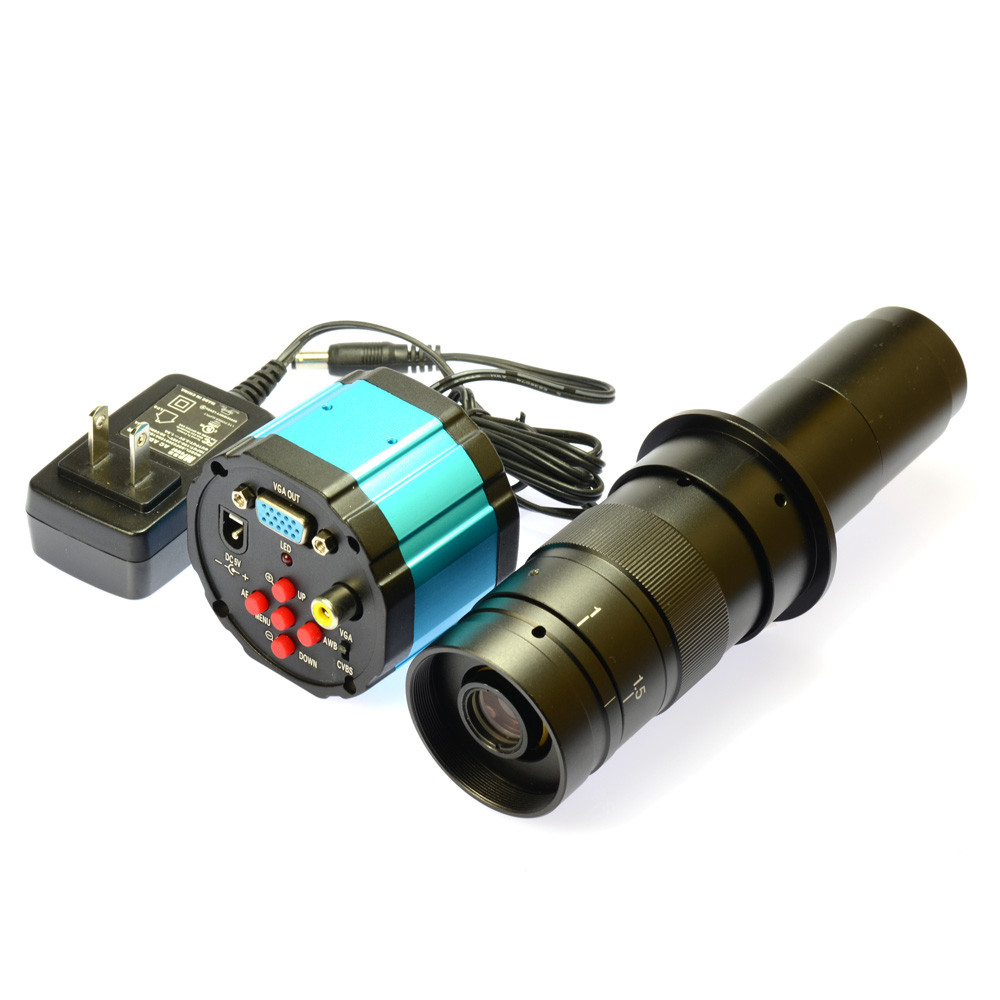

1 x Microscope Camera Body

1 x 180X Industry Zoom C-mount Lens

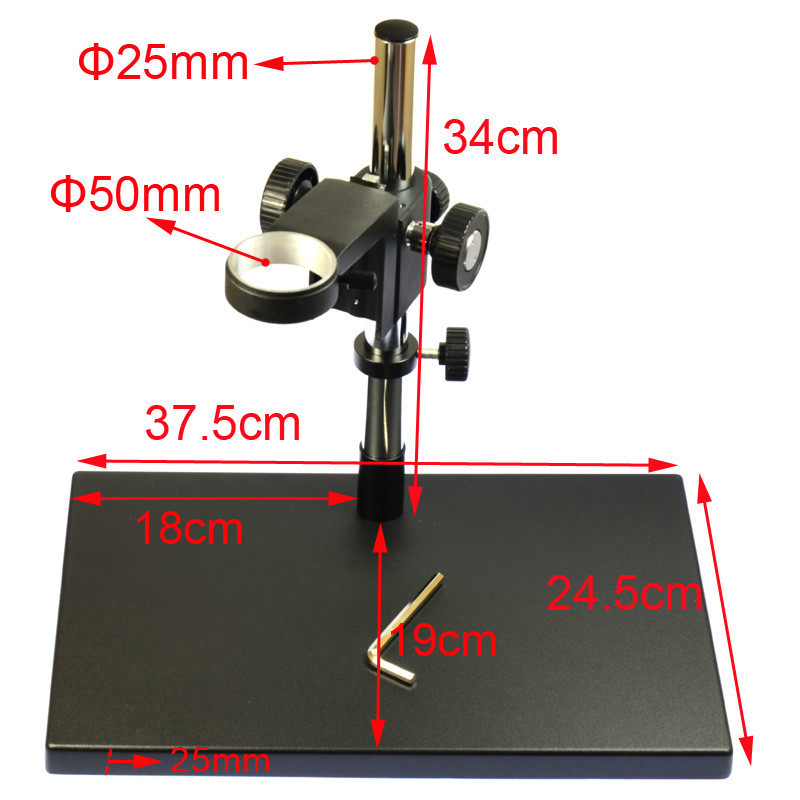

1 x Table stand

1 x 144 LED ring light

1 x 8" HDMI/VGA monitor

1 x 100V-240V Power Supply
